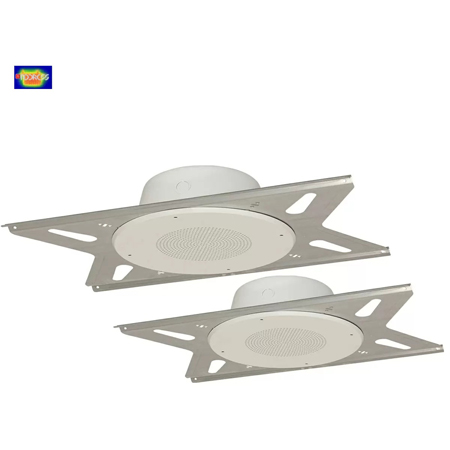

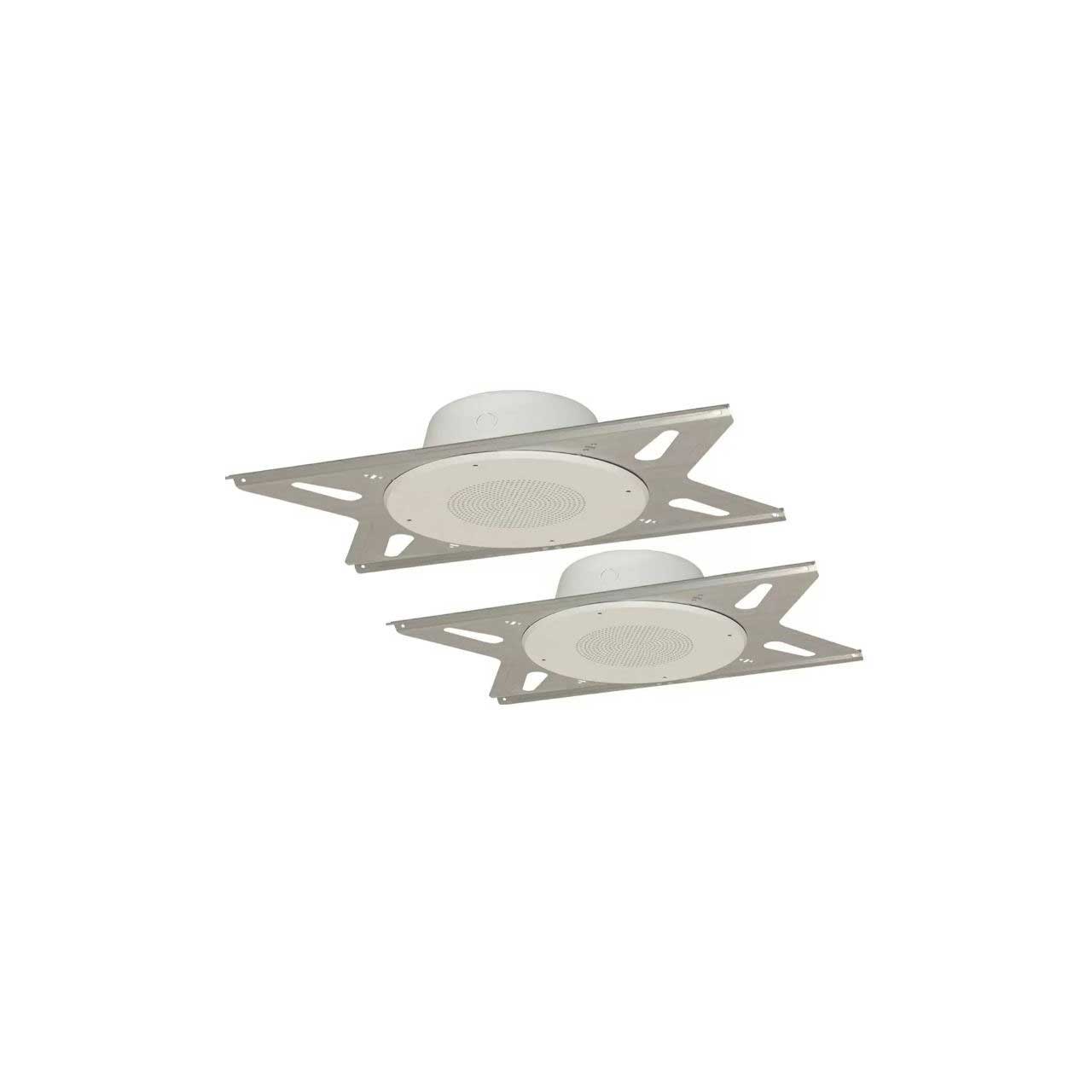

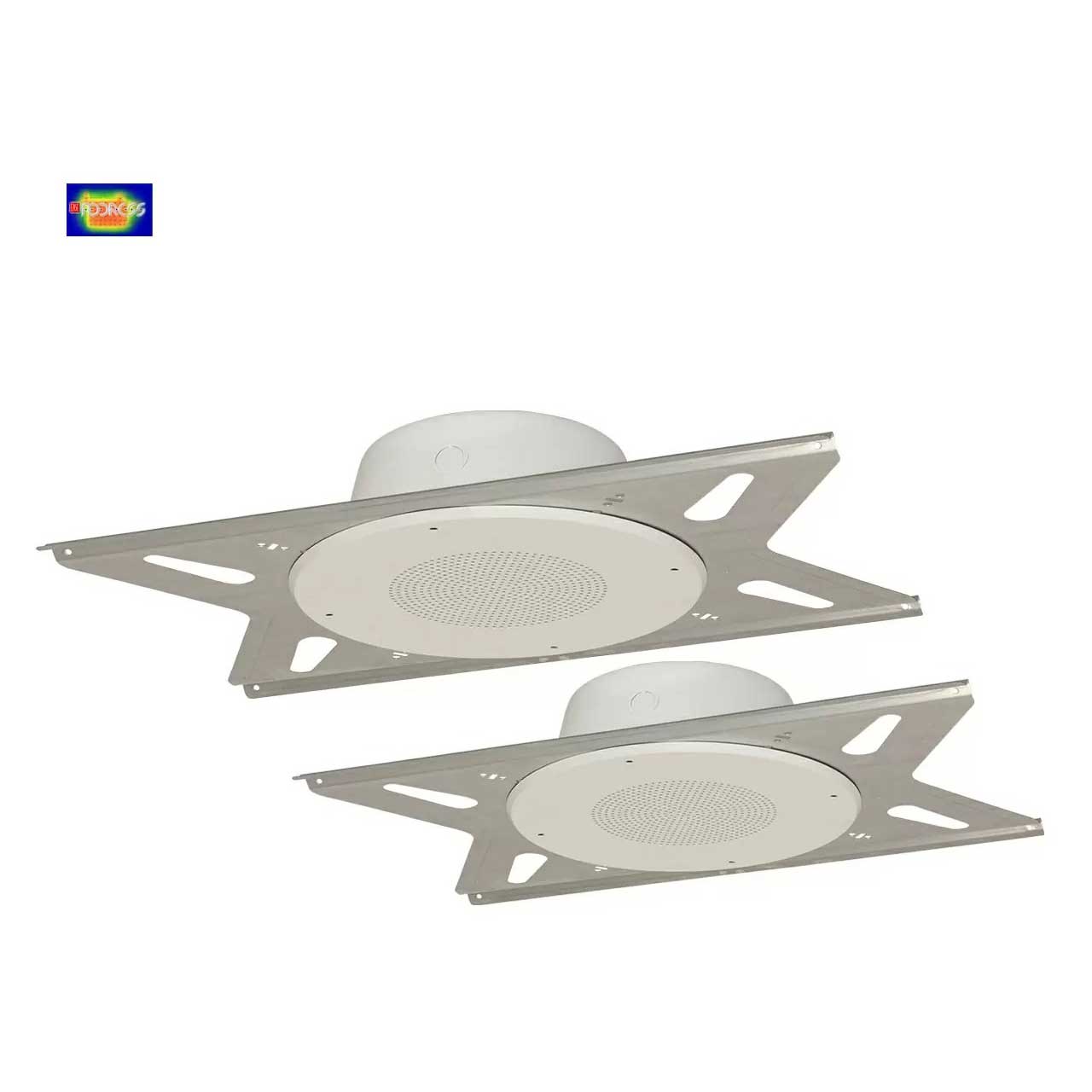

Lowell RPAK-810-72 Pair Of 8 Inch 25V/70V Speakers w/ Grilles / Backcans / Bridges

RPAK-810-72 - Overview

• Specifications:

  • Driver (No. 810): 8 in. 15W dual cone with 10 oz. magnet, 54Hz–11.6kHz (±6dB) and 50Hz–20kHz (±6.6dB) frequency response, 97.9dB average sensitivity measured 1W/1M.
  • Dual-Voltage Transformer: 25V/70V transformer with primary taps at .25, .5, 1, 2 and 5W.
  • Steel Grille (No. WB-8): Factory mounted to driver with welded studs. Installs to enclosure and T-bridge with four white screws (provided). White finish.
  • Enclosure (No. 8XD4): Heavy gauge steel with acoustic pad and four 1/2 – 3/4 in. knockouts for conduit. Punched lip for screw-mount installation of T-bridge. 10 in. diameter x 4 in. deep. White. Note: Does not include 8- 32 screws to mount enclosure to tile bridge.
  • Tile-Bridge (No. LBS8-R1): Transfers weight to ceiling support structure in suspended tile ceilings. Galvanized steel with 4 wire-tie holes for seismic anchoring. 23.75 in. long.

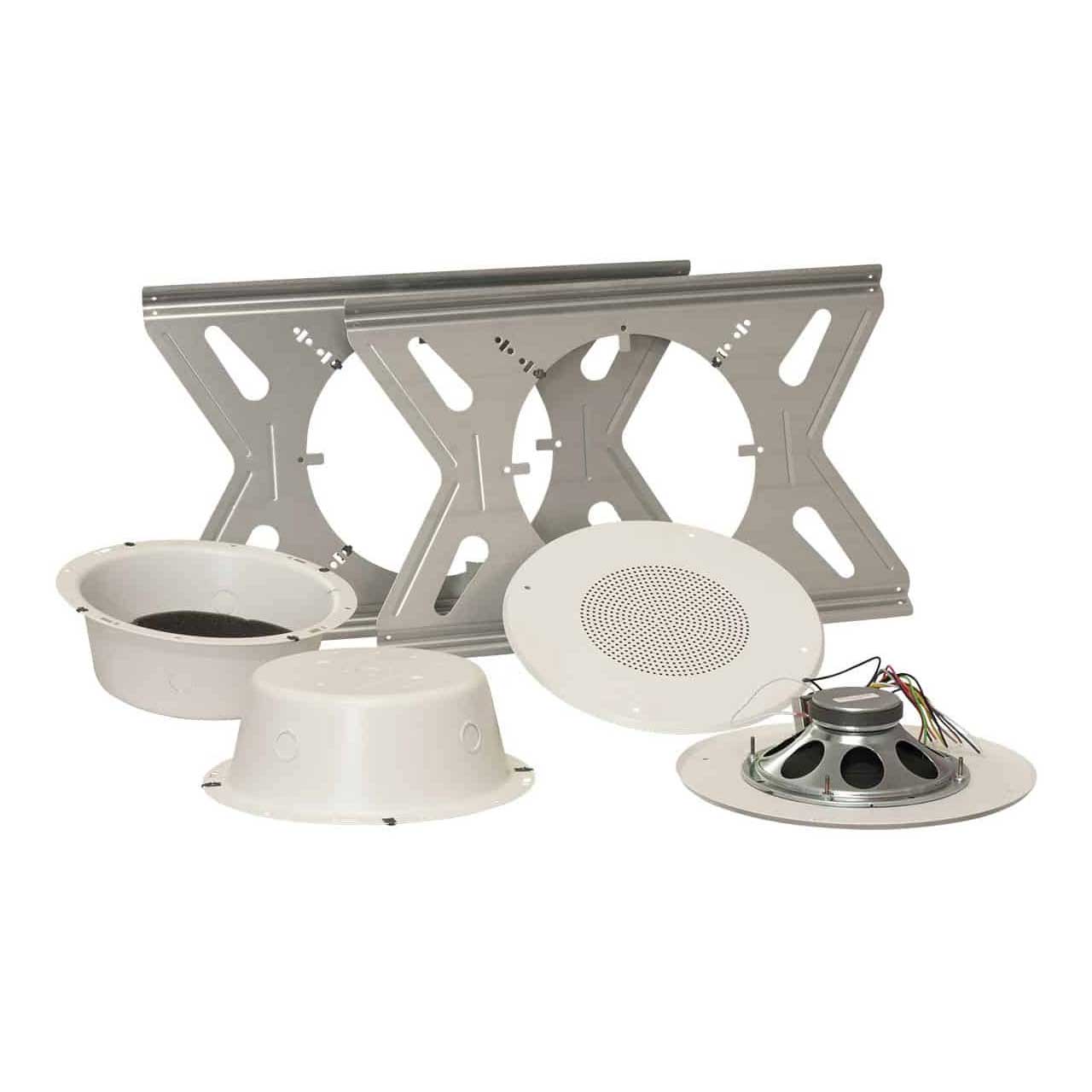

• Item Includes:

  • 2x 8" Speaker, 5W 70/25V xfmr
  • 2x Can
  • 2x Tile Bridge
  • 2x Grille


• Warranty:

  • 3 years
