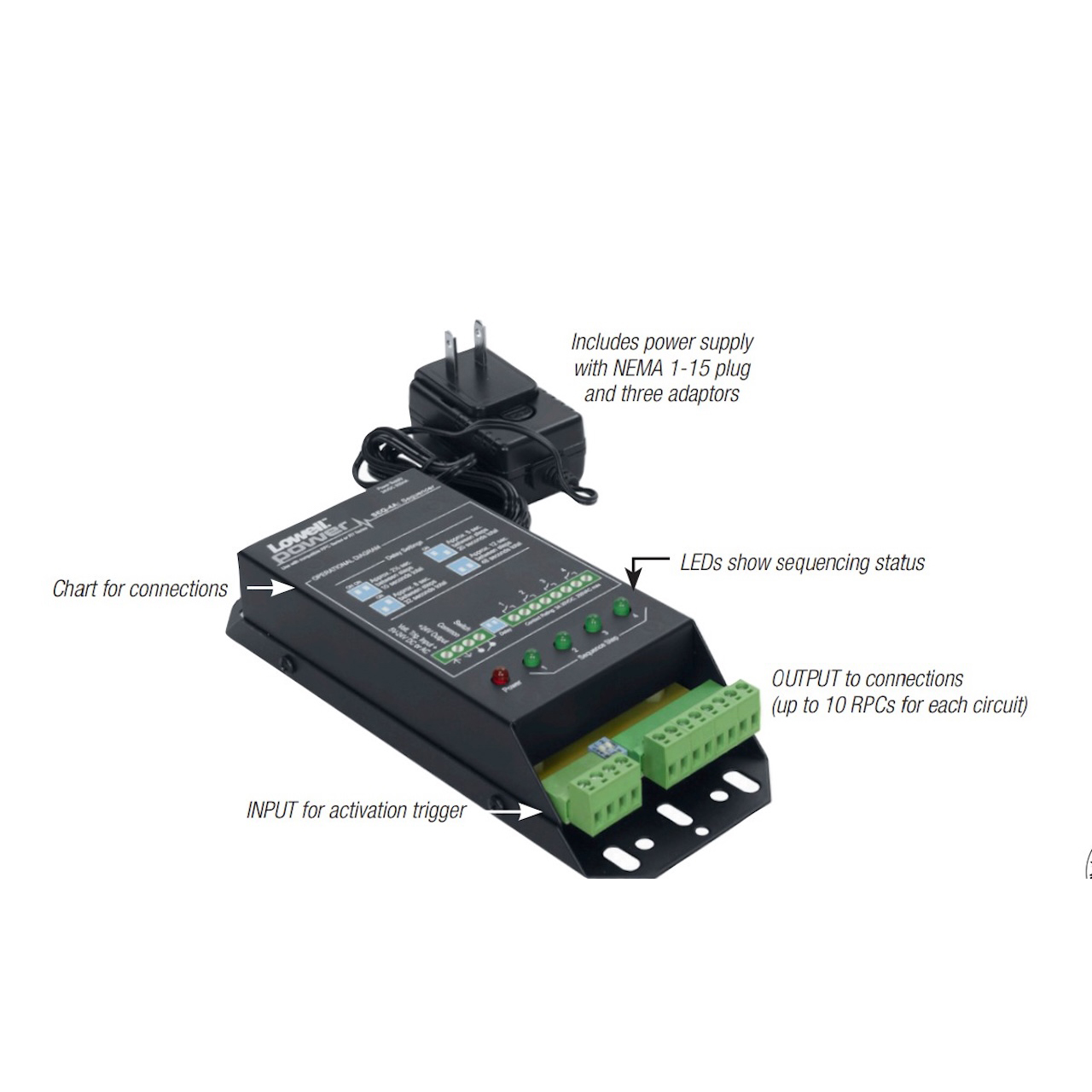

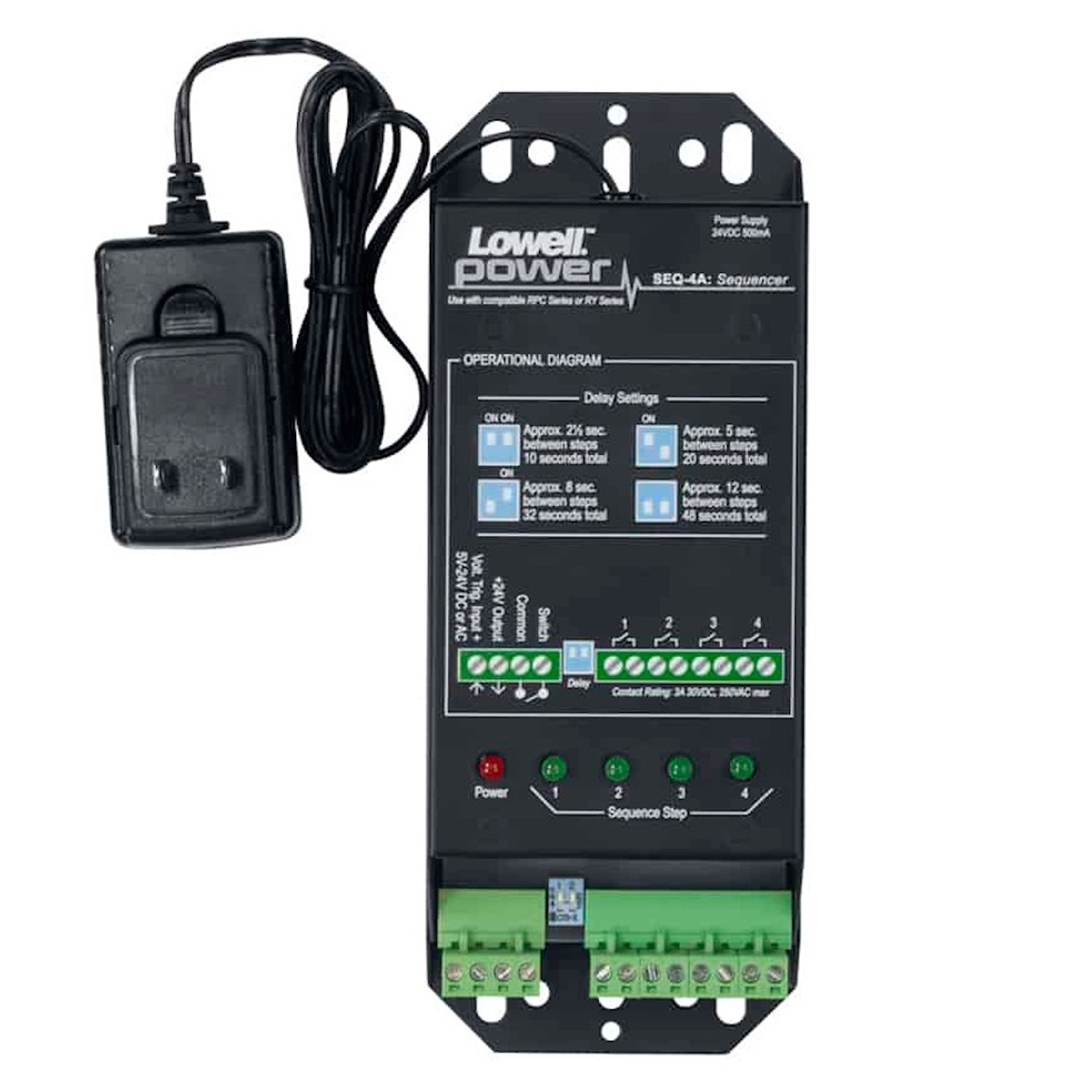

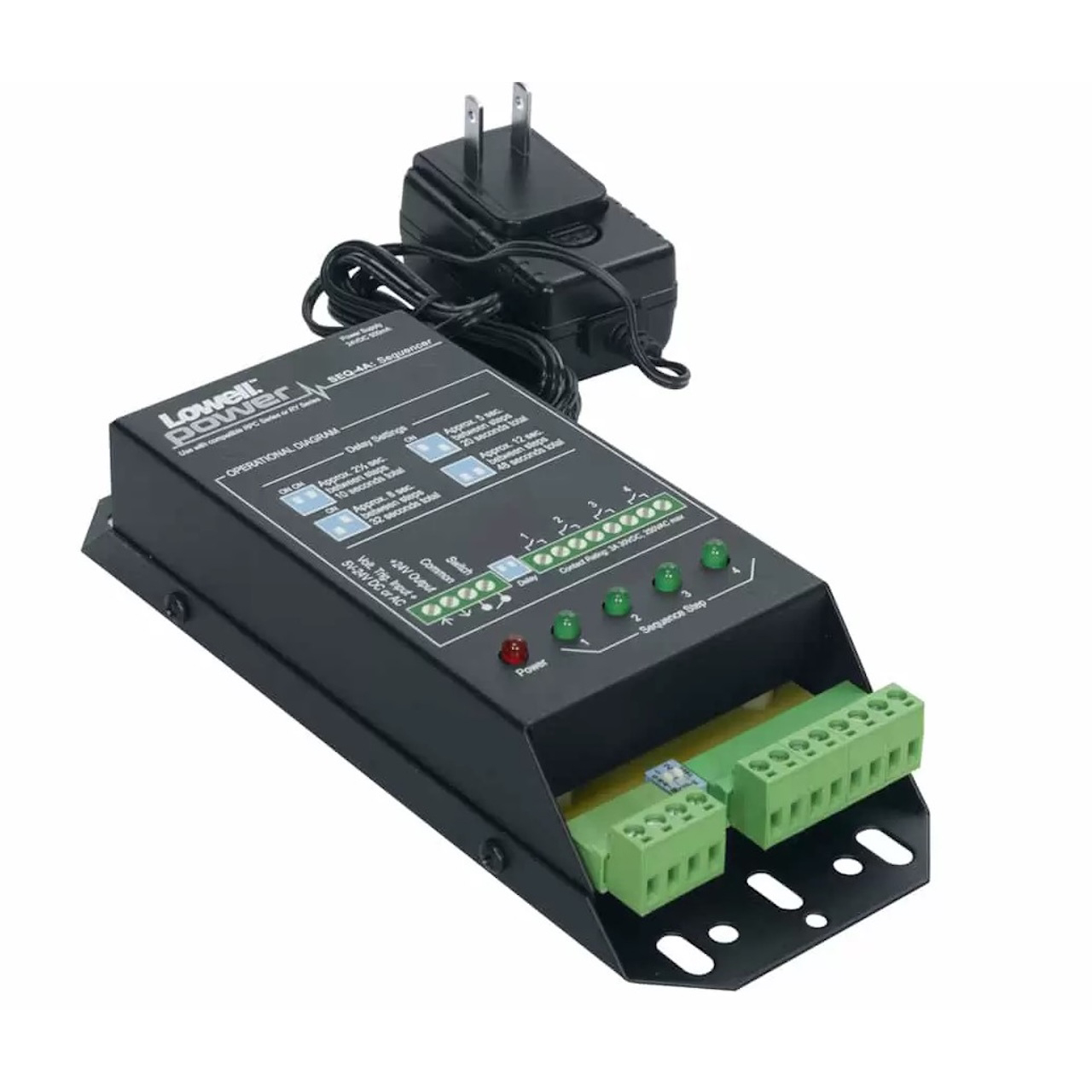

Compact low-voltage four-step sequencer model SEQ-4A from Lowell is designed to work with a single external switch or voltage input and low-voltage remote power controls (RPCs) to provide time-delayed activation of AC powered equipment on site or at remote locations. This unit uses classic wire connections and requires an external trigger.
Recommended Installation:
• Tuck this sequencer in a convenient location and keep the remote power controls near the equipment in another rack, room or building
• Maximum distance between switch, sequencer and remote power controls: 22 gauge wire = 6,600ft; 18 gauge wire = 17,160ft

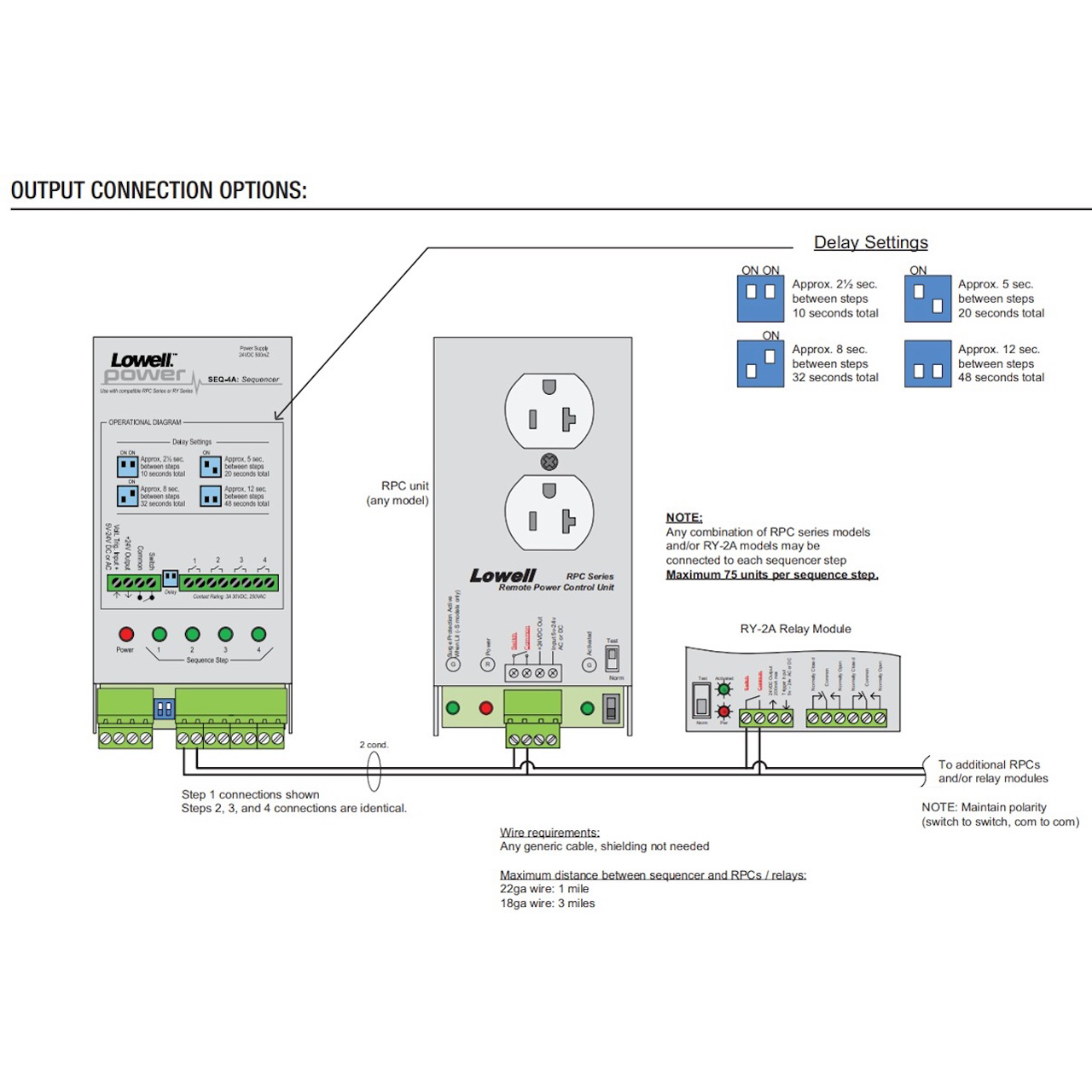

• System Capacity: Accepts up to 10 RPCs per step

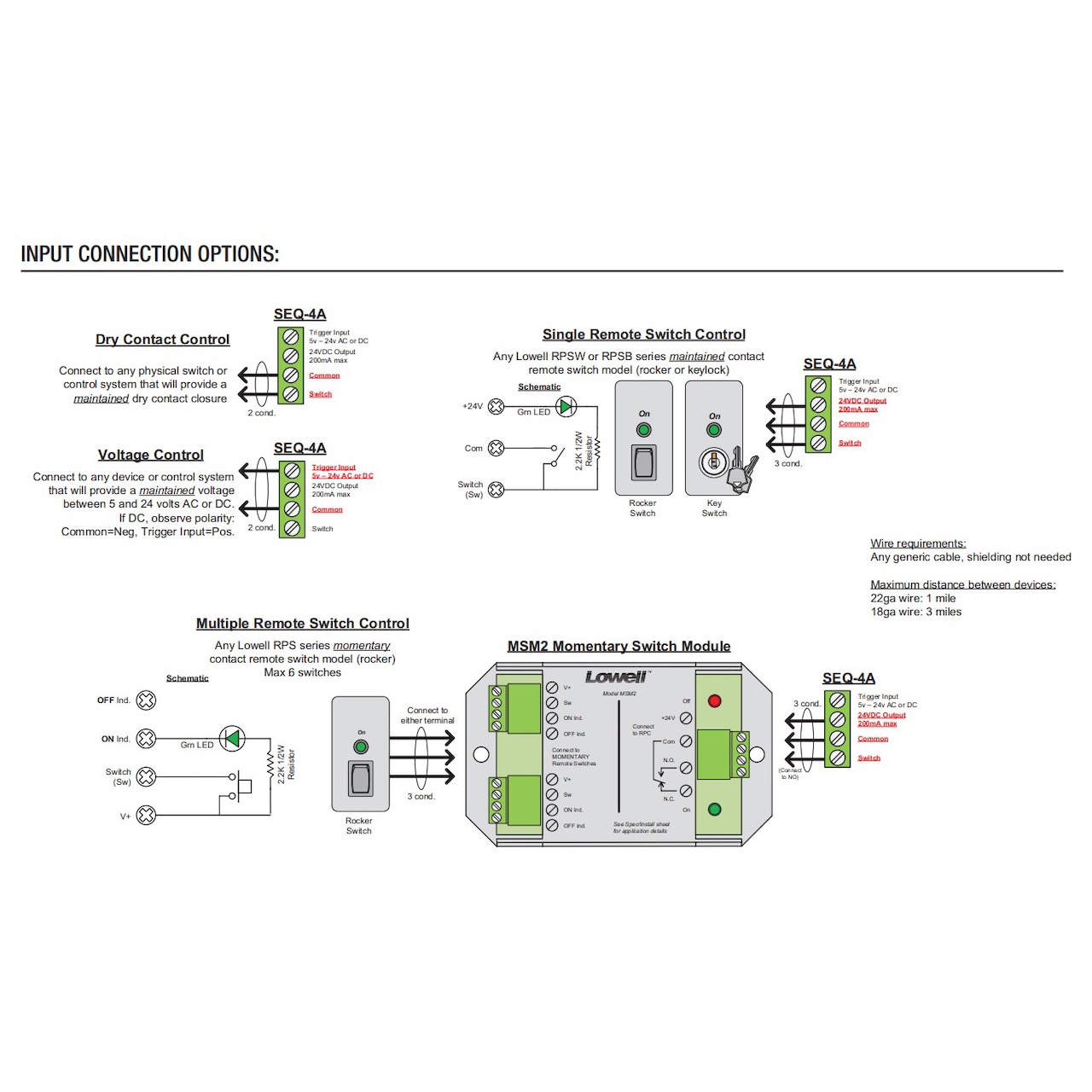

• For single switch applications, connect the sequencer to a remote SPST switch (RPS Series) with maintained contact closure
• For multi-switch applications, connect the sequencer to Lowell's MSM2 module, then connect the module to multiple remote SPST switches (RPS Series) with momentary contact closure
• Voltage input (5V - 24V, AC or DC)
