    LU0100080-10G - Overview

    The Luminex LU010008010G GigaCore 20t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.

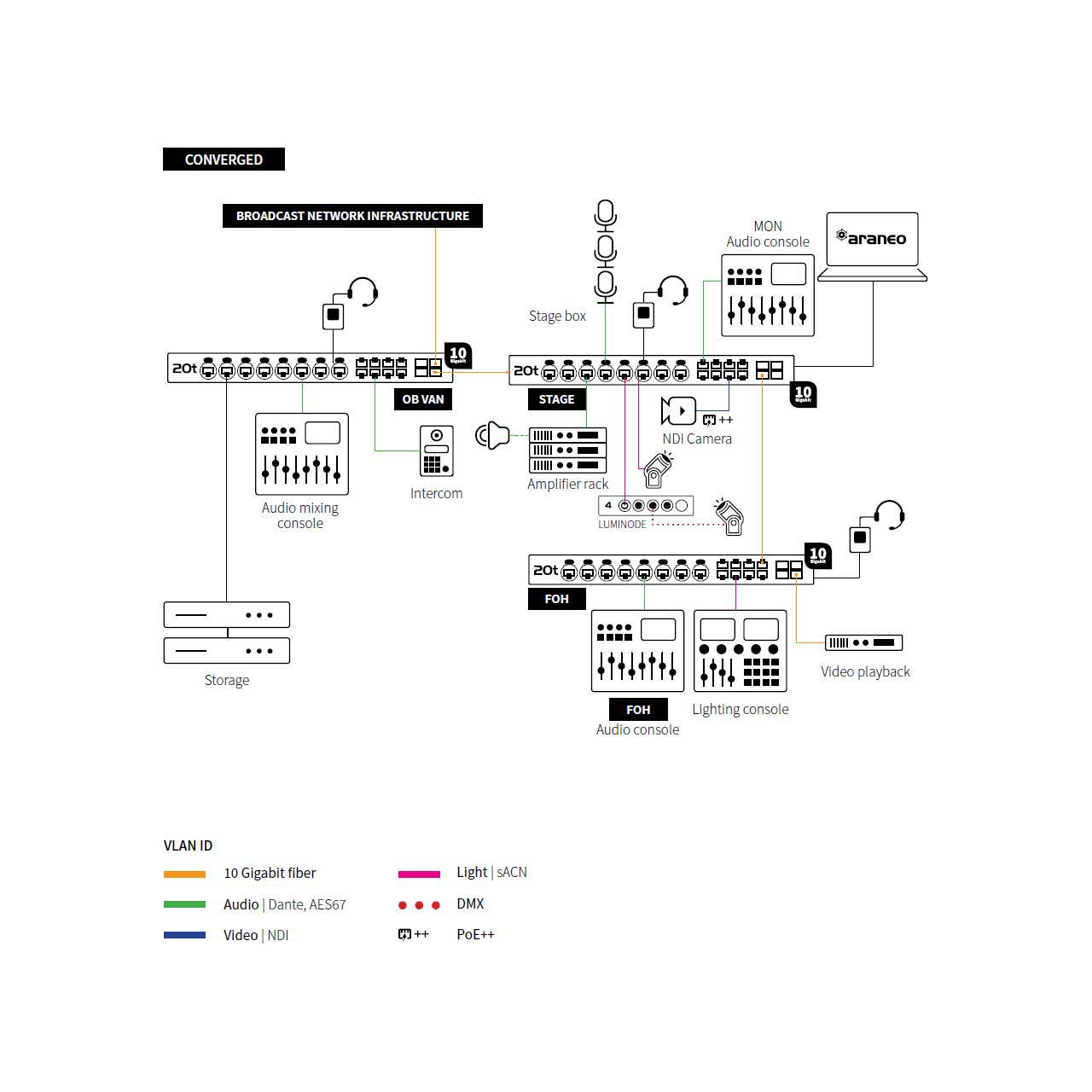

    It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

    10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.

    • Features:

      • Most suitable applications: Touring applications
      • RLinkX (Link redundancy): Yes
      • Groups (VLAN segmentation): Yes
      • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
      • Profile manager: Yes
      • Memory: Flash 1Gb RAM - 8Mb NOR flash 4Gb EMMC storage
      • MAC address table: 16384 entries
      • Address learning / Aging: Self learning, Auto aging
      • Switching throughput: 112Gbps
      • Jumbo frames: MTU up to 12000
      • IGMP support: Yes (V1/V2/V3)
      • IGMP snooping: Yes, enabled by default
      • Port sensing: Auto negotiation
      • Auto crossover: MDI / MDIX
      • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

    • Specifications:

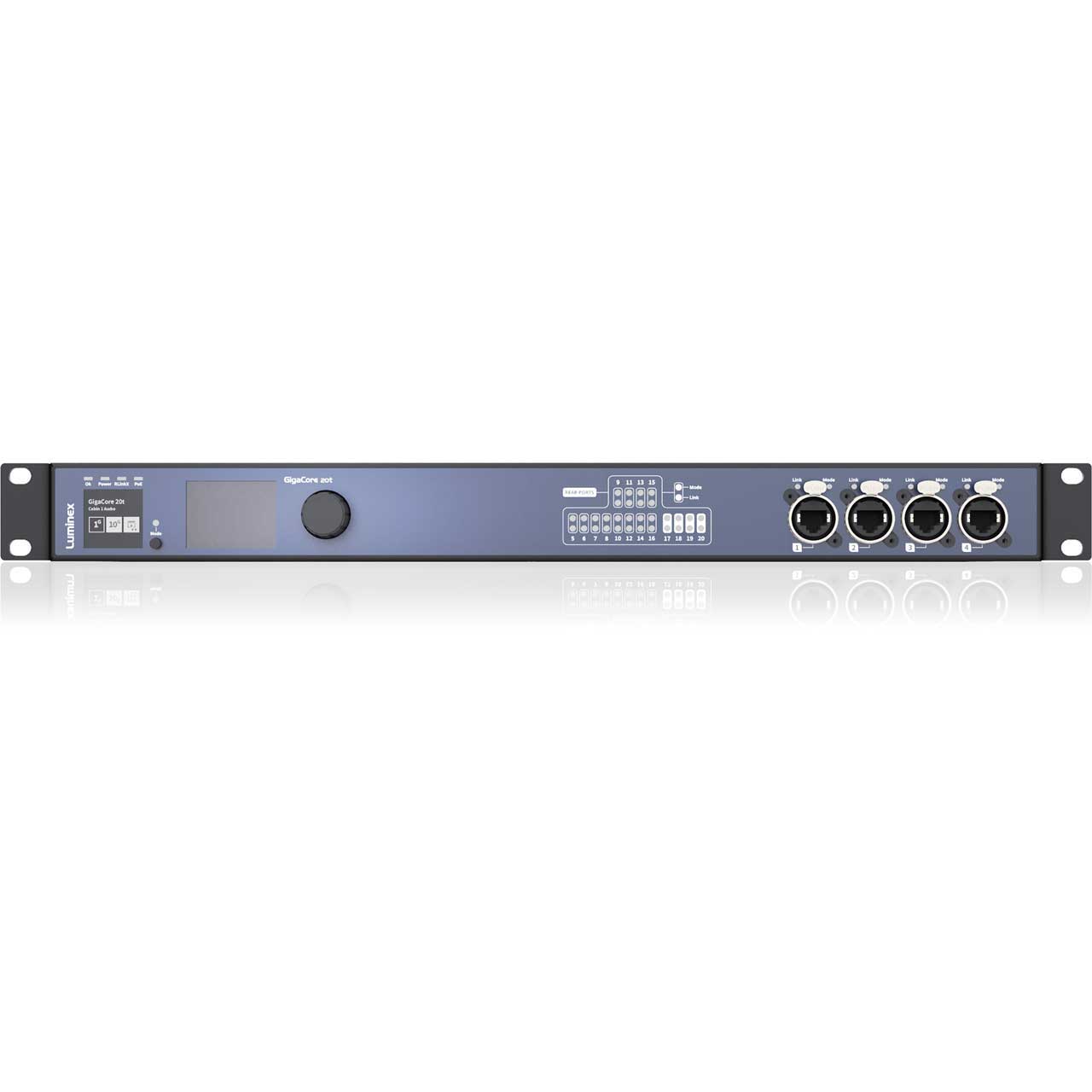

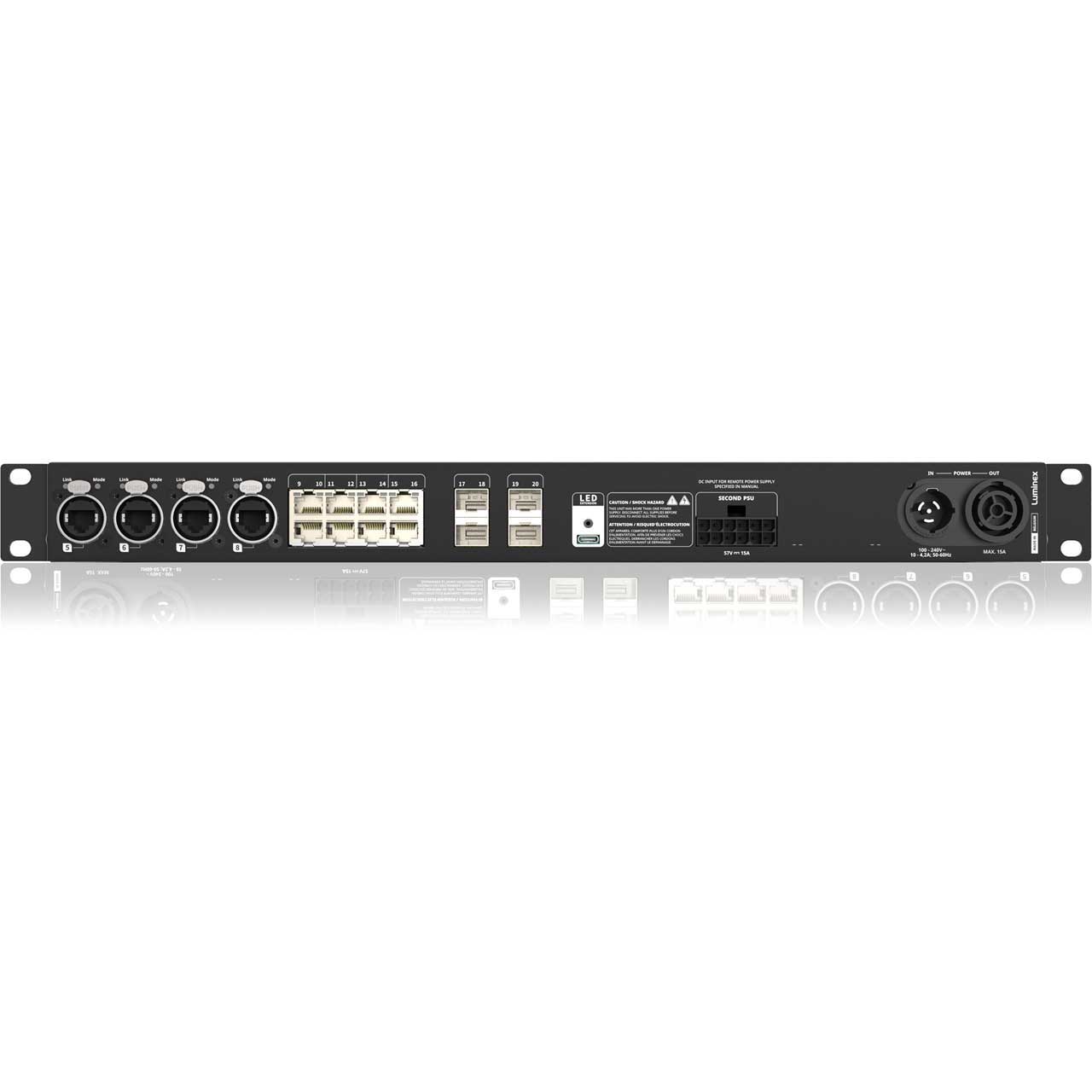

      • Ethernet connectivity: 8 x EtherCon conectors (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
      • Fiber connectivity: 4 x SFP+ cages (10Gbps/1Gbps) (independent from other ports) (rear)
      • Ethernet port speed: 1Gbps
      • Power connectivity: 1 x PowerCON True 1 in/out
      • Power input: 100-240VAC, 50-60Hz
      • Power consumption: Minimum 50W - Maximum 1050W
      • Backup power input: Yes (PoE models only)
      • Mounting: Rack
      • Enclosure: Robust metal housing
      • Dimensions: 19" x 8.54" x 1.73" (WxHxD)
      • Environment:
        Operating temperature: 32 to 122 °F
        Storage temperature: 14 to 158 °F
        Humidity (non condensing): 5 to 95% RH

    • Applications

      :

      • Live events
      • Touring
      • Convention centers
      • Large system integrations
      • Sports arenas
      • Broadcast and recording studios, OB vans
      • Theme parks
