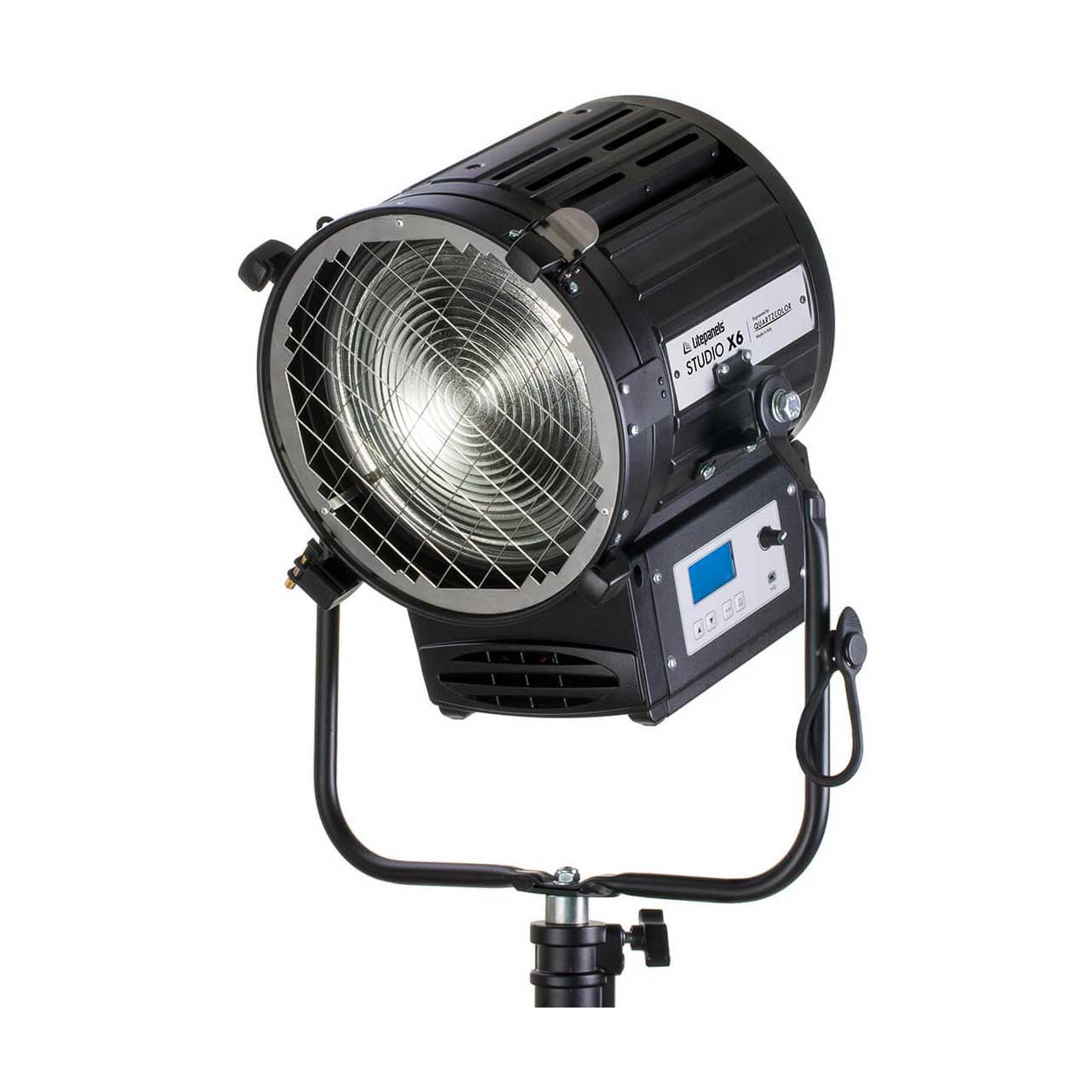

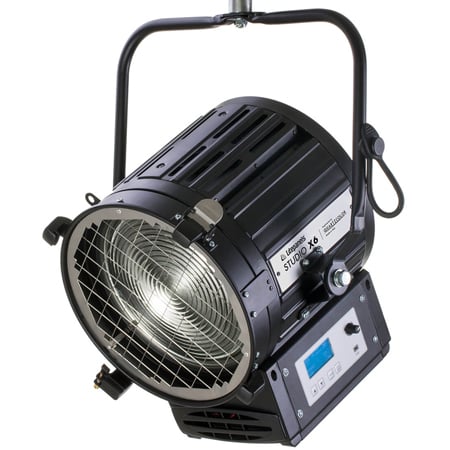

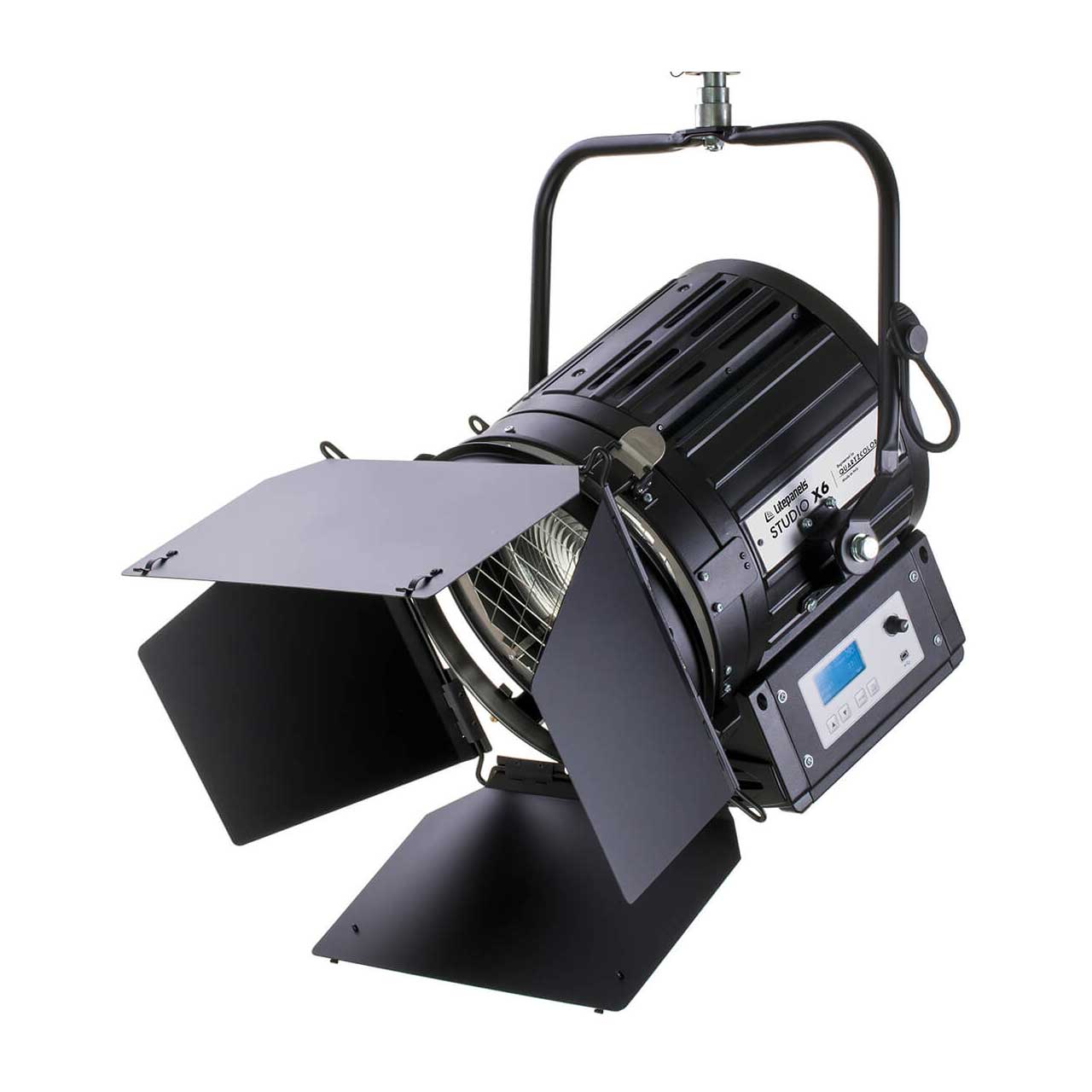

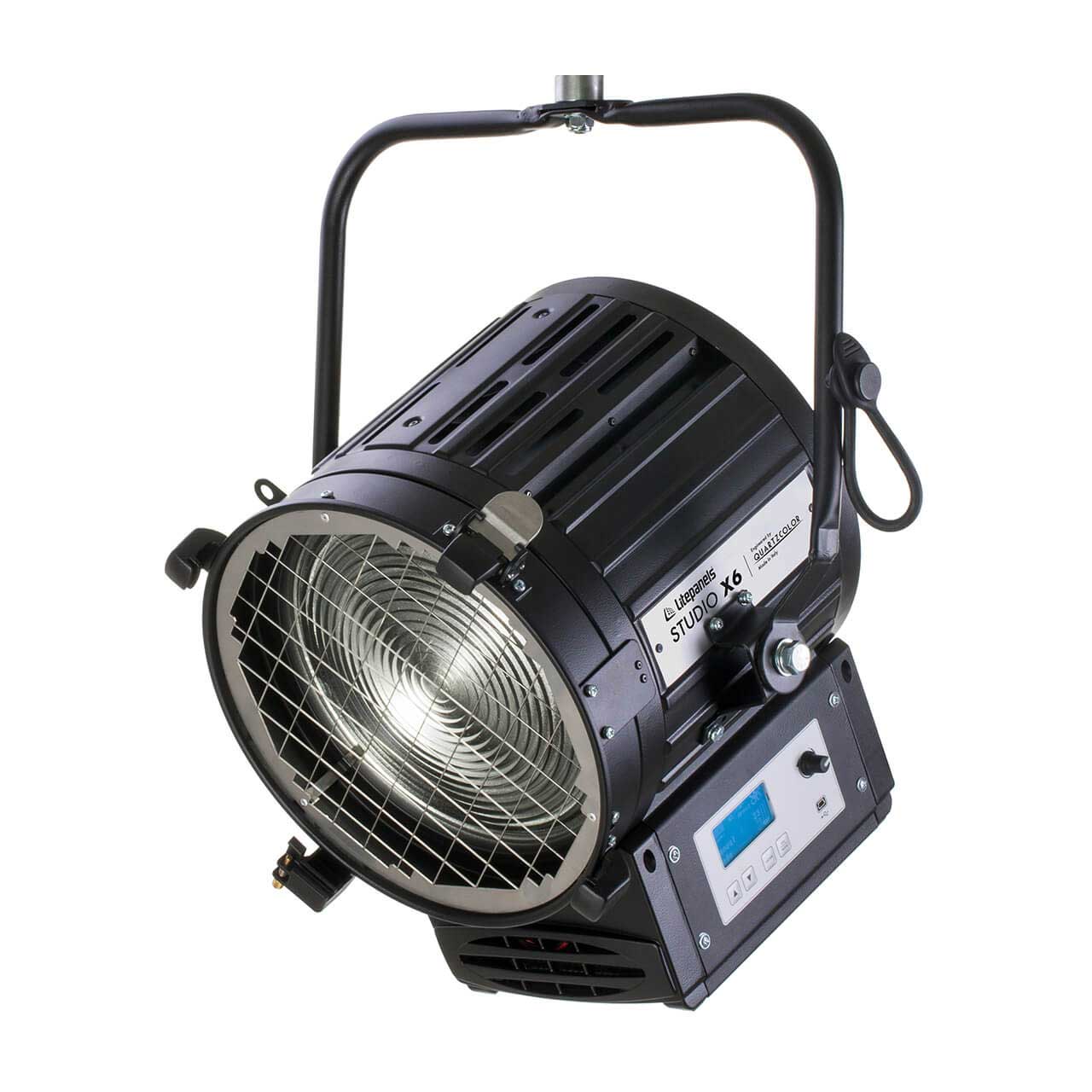

Litepanels 960-6301 Studio X6 Daylight 300 Watt LED Fresnel (Standard Yoke / US Power Cable)

ITEM #: LPAN-960-6301 MFG #: 960-6301

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,775.00

Our Price:

$4,536.25

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    960-6301 - Overview

    Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

    Natural talent light with perfect skin tone rendering is achieved with high output COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100%, Studio X Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

    The Studio X6 Daylight (5,600K) 300W Fresnel has a 10" lens with a spot-to-flood beam angle range of 12°-60°. The fixture offers output of 21,400 lux at 10ft/3m (spot). Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

    With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent - naturally.

    • Features:

      • Perfect talent light
      • Pure, bright, and consistent white light
      • Perfect skin tone rendering
      • Flawless fresnel beam
      • Even field throughout the zoom range
      • Effective light control with barndoors Complete control
      • DMX, RDM, and local control
      • Accurate, fine dimming curve
      • Enduring performance
      • Installed in leading broadcast studios
      • Advanced thermal managment

    • Specifications:

      • Optical Data
      • LED engine: Daylight COB
      • Lens: Fresnel 250mm / 10" Ø, low expansion borosilicate
      • Beam angle: 12° - 60°
      • Correlated Color Temperature: 5,600K
      • Daylight (5,600K) lux @16ft/5m, Spot 12°: 7,704
      • Daylight (5,600K) lux @16ft/5m, Flood 60°: 1,073
      • CRI: >90

        Operational Data
      • Focus adjustment: Wire focus mechanism on Teflon bushing
      • Dimming control: Constant Current 0-100% Continuous
      • Local control: Single dial (dimming) and keypad controller with backlit LCD display
      • Control connections: 5-Pin XLR in and through, Mini-USB
      • DMX control: Dimming, 8-bit and 16-bit
      • RDM control: DMX setup, hour counter, temperature
      • Fan: High efficiency convection, super silent fan with 3 speed presets
      • Software [Mini-USB]: Fixture status, firmware upgrade through PC
      • Ambient operating temperature: 0° - 40°C / 32°-104°F
      • Estimated LED lifetime: 50,000 hrs

        Mechanical Data
      • Mounting: Yoke with lateral thrust bearing and lock off knob, Jr Pin [28mm / 1 1/8"]
      • Weight: 13.8kg / 30.4lb
      • Tilt angle: +/- 90°
      • Barndoor diameter: 323mm / 12.7"
      • Safety mesh: Stainless steel 25x25mm / 1x1"

        Electrical
      • Nominal power draw: 300W maximum
      • Power supply: Integrated, universal
      • Mains input: 90 - 260 Vac, 50/60 Hz, autosensing
      • Power connection: powerCON TRUE 1, in and through
      • IP rating: IP20

    • Item Includes:

      • 1x LCD graphic display and on-board control panel
      • 1x 5-pin RDM-DMX in/out connectors
      • 1x Standard yoke with 1 1/8" (28mm) Jr Pin
      • 1x PowerCON in/out connectors
      • 1x Built-in universal power supply
      • 1x 4-leaf rotating barndoor Ø 12.7" (323mm)
      • 1x 10ft (3m) US powerCON True 1 cable
      • 1x gel frame Ø 12.7" (323mm)

    • Warranty:

      • 2 Years

    • GTIN:

      5060896401324
