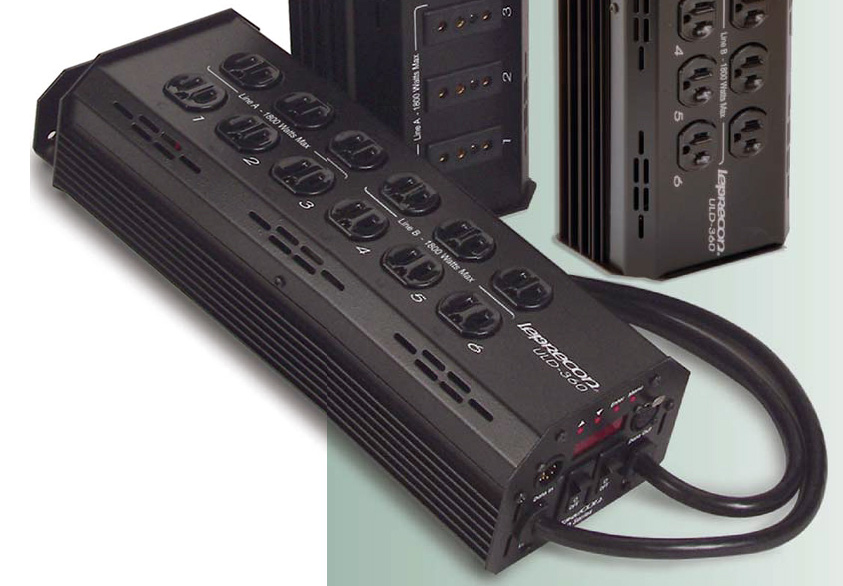

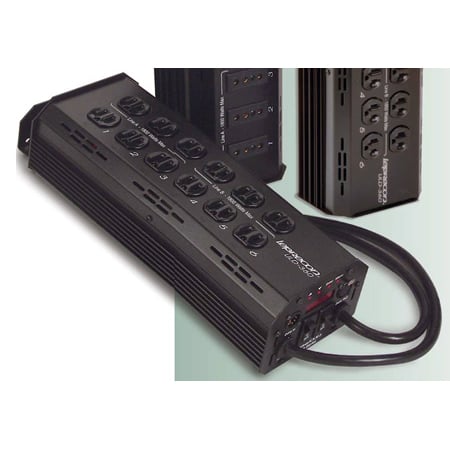

Leprecon 90-06-0270 ULD-360-HP Duplex 20 Amp High Power 6 Channel Dimmer - T-Blade Cordset NON ETL listed

ITEM #: LPRC-ULD360-HP20 MFG #: 90-06-0270

Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    90-06-0270 - Overview

    When it comes to a dimmer pack you can trust, the ULD ranks as the industry leader in small portable dimming. Production and rental companies alike have come to rely on the ULD for a wide variety of uses. The solid design and construction assure that they will handle the most demanding conditions no matter what the environment. Schools and houses of worship will also appreciate the simple setup and rock solid performance.

    Please Note: This model is NON ETL listed. Please check local codes and restrictions before purchase

    • Features:

      • Illuminated magnetic breakers
      • Over-temp/Over-volt pack protection
      • 4 programmable output settings per channel:
      • Linear, non-dim, fluorescent, or fixed intensity
      • 25 Amp SSR per channel
      • Encapsulated chokes for quiet operation
      • LED Display
      • DMX-512-5 pin M/F XLR
      • Built-in mounting bracket
      • Optional bracket available for horizontal mounting
      • Rated continuous use duty cycle on all 15 Amp models
    • Specifications:

      • Channels: 6
      • Output Connector: Duplex
      • Power In Plug(s): 2 Nema 5-20
      • Magnetic Breakers: 2-20 Amp
      • Max Watts per [email protected]: 3600
      • Package weight-lbs.: 12

    90-06-0270 - Required Accessories

      90-06-0270 - Recommended Accessories
