Livestream Studio HD51 All-in-one Live Production 5 input Switcher

Manufacturer: Livestream

Item #: LS-HD51   •   MFG #: HD51


Our Price:$7,499.00

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -

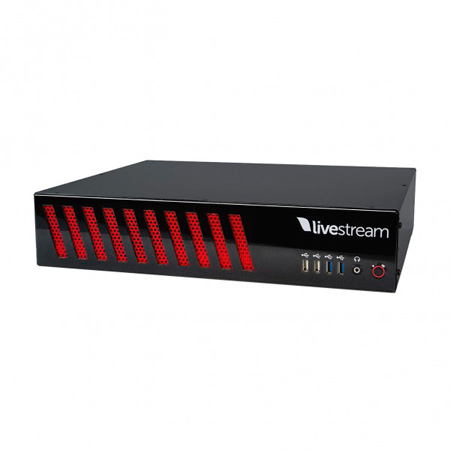

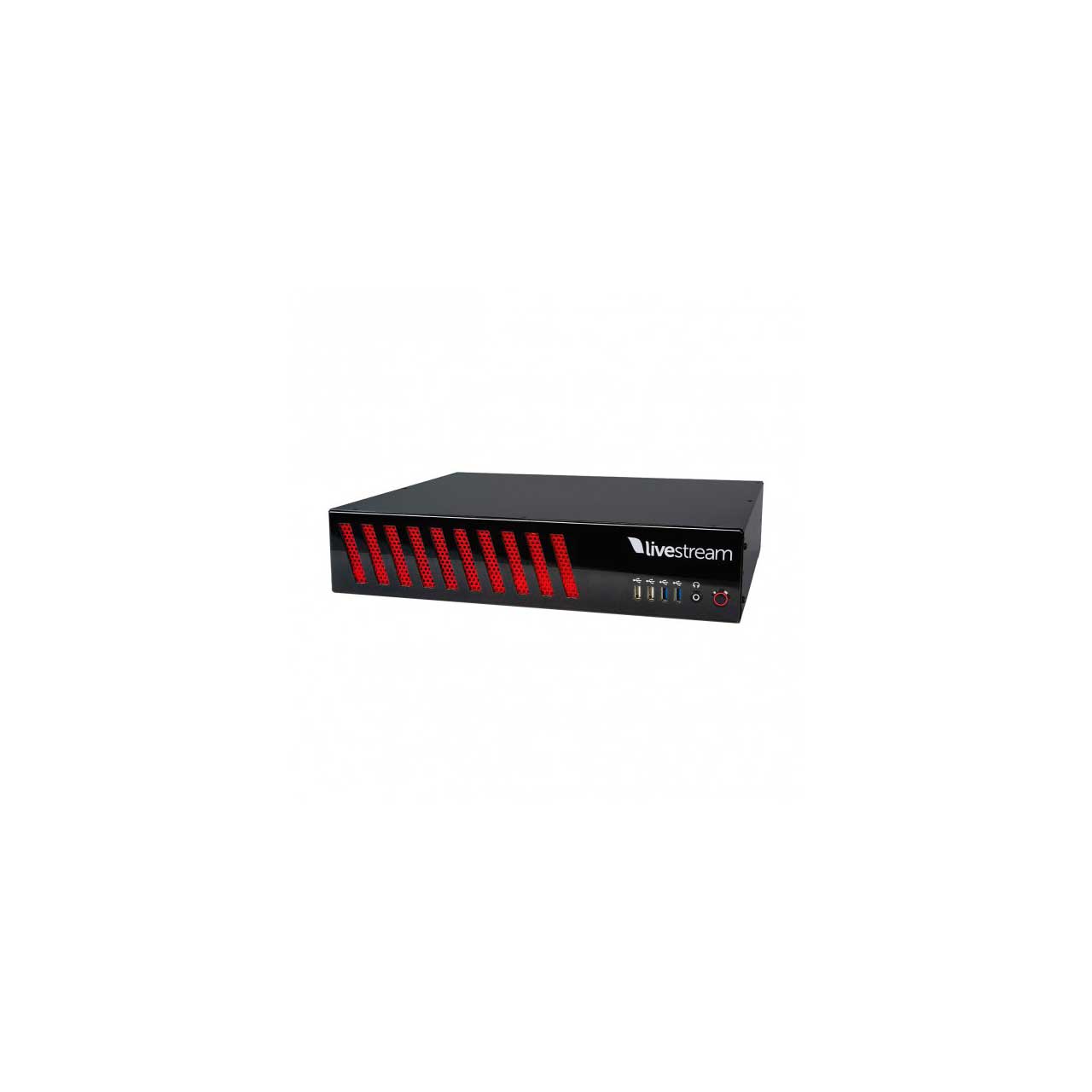

    Livestream Studio HD51 is an all-in-one live production switcher from the makers of the world's leading live video platform. Connect up to 5 HDMI cameras or professional HD-SDI cameras and stream live to in-venue screens or to the web using the built-in HD multi-bitrate encoder. Includes a high performance, 1TB hard drive that can record up to 4 simultaneous isolated (ISO) recordings or 20 hours of broadcast quality program output. Livestream Studio HD51 can be rack-mounted using the provided accessories; ideal for studios, facilities, and live production trucks.

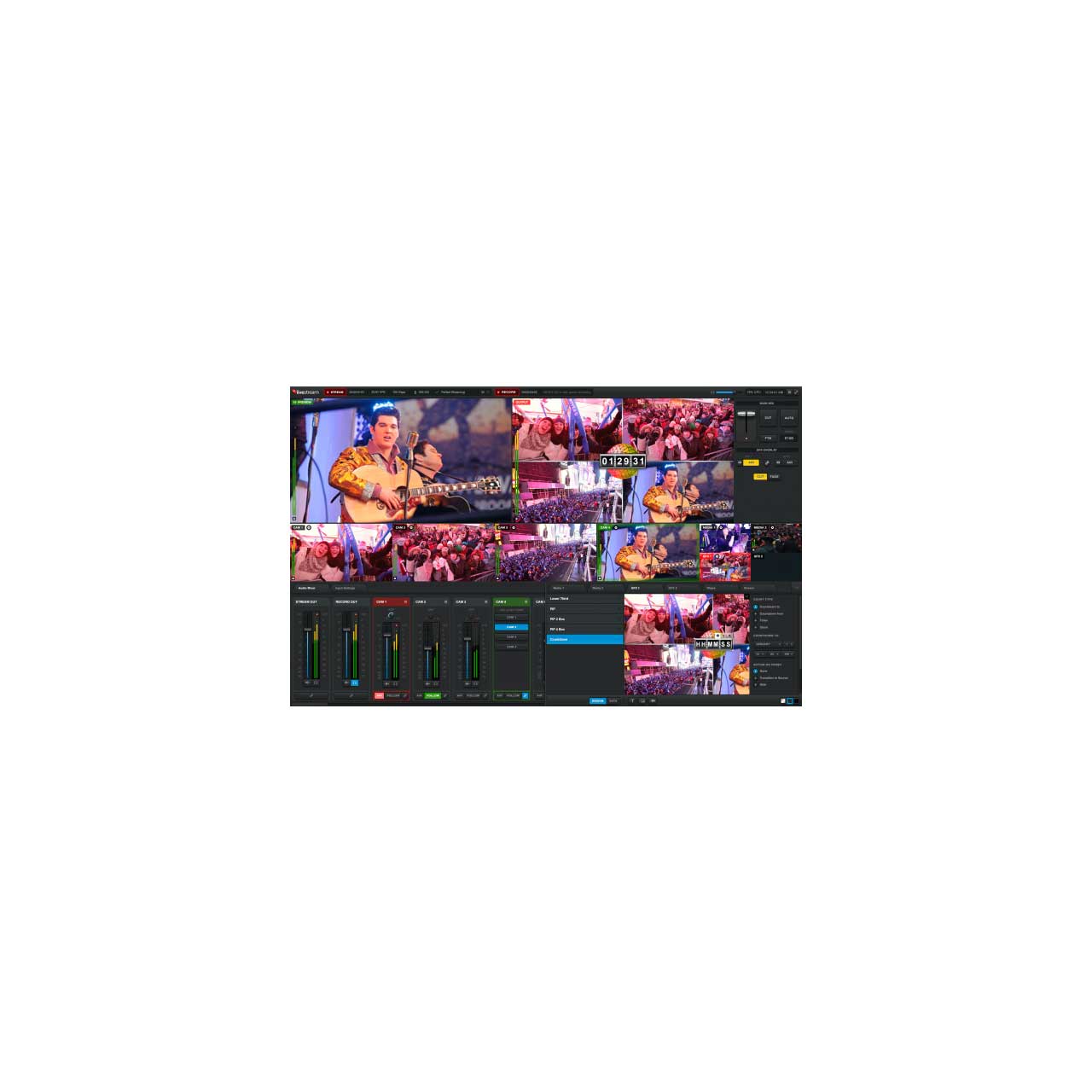

    Built-in Multiview
    Seeing all your cameras in real-time is the key to making the best editorial decisions. Livestream StudioT has a built-in multiview with all the features you'd expect from a live production control room, including full field-rate display (no matter how many inputs), tally, input labels and audio levels.
    External Multi-Screen
    Extend the multiview on additional screens to let the full team engage and participate in your production. Easily build a state of the art, master control room with up to four large multi-view screens, complete with customizable layouts and logos. Livestream StudioT HD51 supports up to two monitors via DVI and HDMI connectors,
    Cut, dissolve or select from our collection of wipe transitions when producing your live show.
    Built-in Audio Mixer
    Studio's all-encompassing audio tools cater to producers of all sizes from a one man band to a full production team. Our intelligent audio mixer features mix automation, SDI & HDMI embedded audio, level monitoring, peak warnings as well as our innovative channel grouping. External audio mixers are welcome too!
    Audio Input Options
    Embed your audio via HD-SDI, bring in your analog audio via any USB audio device or use the built-in 1/8" analog audio input.
    Embed your audio via HD-SDI, bring it in via USB or use the built-in 1/8" analog audio input.
    Built-in Graphics Editor
    Our fully featured two channel graphics generator allows you to create templates and dynamically change sport scores, lower third text or other graphic elements on the fly. The editor is built right into the user interface and supports text, transparent images, live picture-in-picture video, countdowns and a range of graphic effects including drop shadows, borders, crops and more.
    Downstream Key Overlays
    Overlays graphics as layers on top your program mix with transparency. Ideal for corner bugs, sport cording, lower thirds, picture-in-picture and other broadcast graphics needs.
    Composite up to 5 live audio/video sources together within the graphics editor; Ideal for a simple second camera angle, a scoreboard cam or a broadcast network 4-person live chat over animated background video.
    Media Recording (With ISO Recording)
    Record your program output in broadcast quality MJPEG to an AVI file for archive and editing later in Adobe Premiere, Final Cut Pro or for playback directly within one of the Studio media players. Now upgraded to allow up to 4 simultaneous isolated recordings (ISO) - choose from "clean" (without graphics) and "dirty" (with graphics) programs as well any live camera inputs. You can also now open the files being recorded in the media player to trim and replay segments from your live show without stopping the recording.
    Media Player
    Adding recorded material to your program is quick and easy with the two media players built into the Livestream Studio. Import all popular media formats, including H.264 as well as MP3 & WAV audio. Build playlists, loop clips, and auto-play on transition. Trim clips down for broadcast, and quickly scrub to find exactly what you're looking for. If a clip does not match your project settings, the built in transcoder will convert the file to match. Now with ISO recording you can get basic instant replay functionality by loading one of your ISO's into the media player!

    • Specifications

      • Live Inputs - 7 (5 x HDMI/SDI plus 2 x Remote Cameras)
      • SDI (HD/SD) or HDMI Inputs: 5
      • SDI (HD/SD) or HDMI Output: 1
      • Full size connectors for SDI (BNC) and HDMI on all inputs and output
      • Embedded Audio Input: 6 Stereo or 48 Mono Inputs
      • Analog Audio Input (1/8"): 1
      • Audio Monitoring (1/8"): 1
      • Livestream StudioT Keyboard: Included
      • Livestream Mousepad: Included

      • Media Sources: 6 integrated digital media sources for video & graphics playback. 2 DDRs (video clip playback with built-in transcoder), 2 GFX (graphics), 2 Color Bars / Background Color
      • Built-in Multiview: On-screen full field rate multiview of all live inputs, Preview, Program Out, 2 GFX and 2 DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens.
      • Video Switcher/Mixer: 1 x Mixer & Effects Bank (M/E) with no upstream keyer. Transitions: SMPTE Wipes (feathering, symmetry & positioning), Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts)
      • Graphics Downstream Key: 2 x Graphics DSK (downstream key) channels. One channel for GFX1 and one channel for GFX2. Independent or locked transition controls (fade/cut). Preview on multiview.
      • Graphics & Titling: Load JPG or PNG files (full transparency support with PNG files). Add dynamic text (set position/font/size/color) over any loaded image file within the GFX1 or GFX2. Dynamic Countdown, clock & timer.
      • Picture in Picture: Up to 5 input sources per GFX Module with cropping & opacity.
      • Video Clip Playback (2 Media Players): Eject/Load clip. Play/Pause/Stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition.

      • Recording: 4 x simultaneous recordings. Choose from Camera sources, Clean Program & Dirty Program. AVI MJPEG with uncompressed audio. Interlacing and Time of Day timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere.
      • Recording Capacity: ~20 hours at 1080i (Using 1TB built-in Hard Drive with recorder set to record at 100Mbps MJPEG AVI).
      • Live Streaming: HD live streaming via Gigabit/100/10 built-in Ethernet. Presets in up to HD 720p. Multiple simultaneous bit-rates. Including mobile quality for playback over 3G on mobile devices (iPhone/Android). Integrated live streaming to Livestream or any other RTMP compatible service including UstreamT, YouTubeT Live, Akamai, Wowzar Media Server, Adober Flashr Media Server. Integrated support for ZiXiT Internet transport protocol.
      • Audio Mixing: Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones. Incorporated video switcher follow feature with audio crossfade support when fading two video sources.
    • Item Includes

      • Power cord
      • Livestream Studio Keyboard
      • Livestream Mousepad
      • Mouse
      • Rack Ears
      • Blackmagic Design cards documentation and driver CD
      • Warranty
