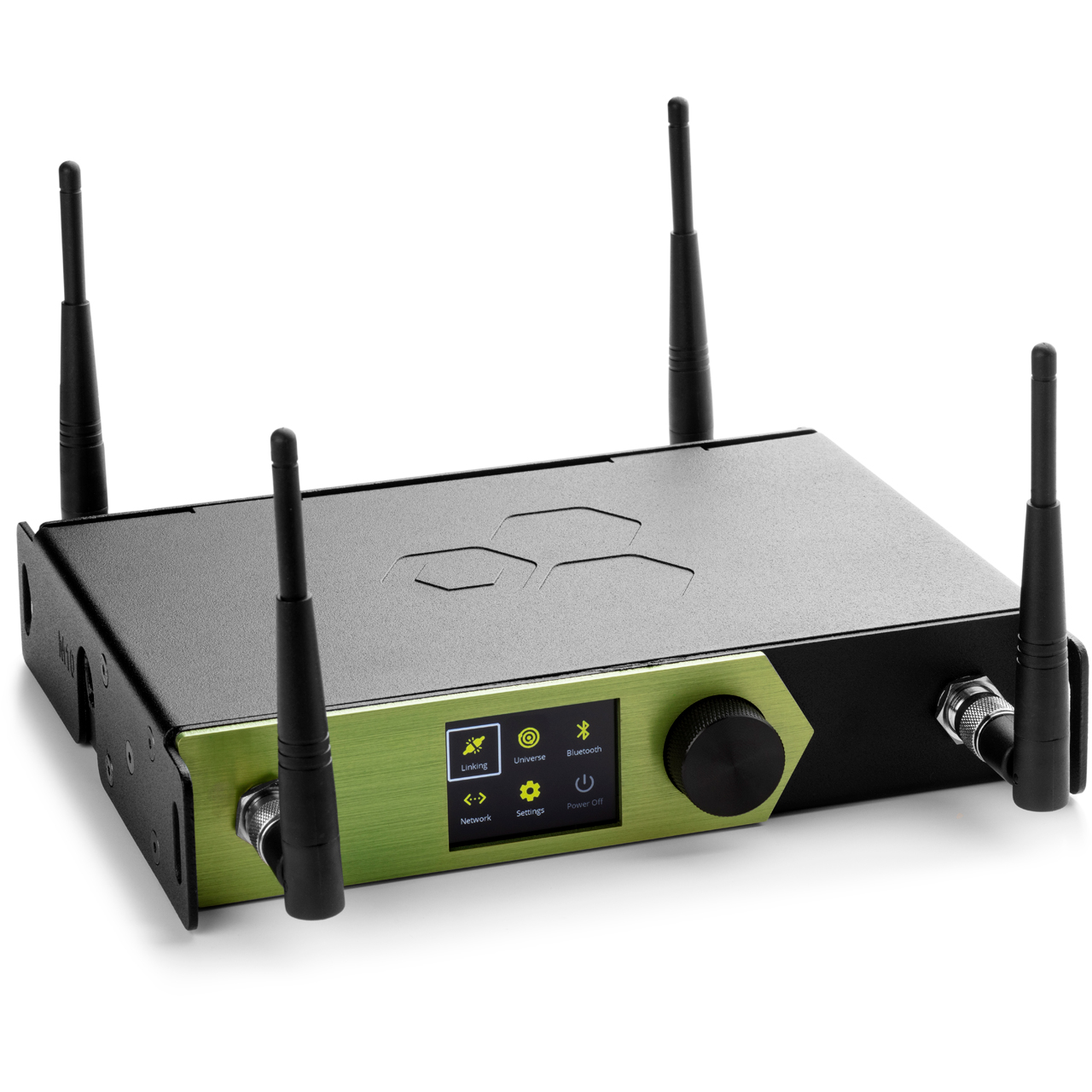

LumenRadio STARDUST Eight Universe DMX/RDM Transmitter DMX/RDM with WiFi/Ethernet PoE and Bluetooth

ITEM #: LUR-LRINSTX8 MFG #: LRINSTX8

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,630.00

Our Price:

$3,267.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


LRINSTX8 - Overview

The LumenRadio Stardust Eight Universe DMX/RDM transmitter takes industry leading CRMX technology to the next level with the introduction of features for the most demanding situations, setting the standards for Wireless DMX by providing unprecedented control and flexibility. Capable of delivering eight DMX/RDM universes and expanding the function of Cognitive-Coexistence, it has the reliability you trust and the amount of universes you need. The enhanced radio design allows for record breaking ranges on all eight universes simultaneously.

The onboard WiFi and Ethernet provides both configuration via web portal and transmission of sACN and Art-Net and with the intuitive color screen it's easier than ever to configure, while the built-in backup battery makes sure the show will go on.

LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring industry standard 5ms latency, error correction and 128 bit encryption at full refresh rate.

  • Features:

    • Eight Universe CRMX Transmitter
    • DMX/RDM, sACN and Art-Net 1-4
    • Up to 3280 Foot Long-Range Transmission
    • Ethernet and 5GHz WiFi
    • PoE Support
    • Configuration via Web portal or Front panel
    • Compatible with CRMX and W-DMX G3/G4s

  • Specifications:

      Supported Protocols
    • DMX/RDM
    • sACN/Art-Net 1-4
    • CRMX
    • W-DMX G3/G4s
    • Ethernet
    • WiFi 802.11b/g/n/ac

      RF Characteristics
    • Frequency Range: 2402MHz - 2480MHz
    • Radio Module: 4x TimoTwo
    • 5ms Latency
    • 128-Bit Encryption
    • Forward Error Correction

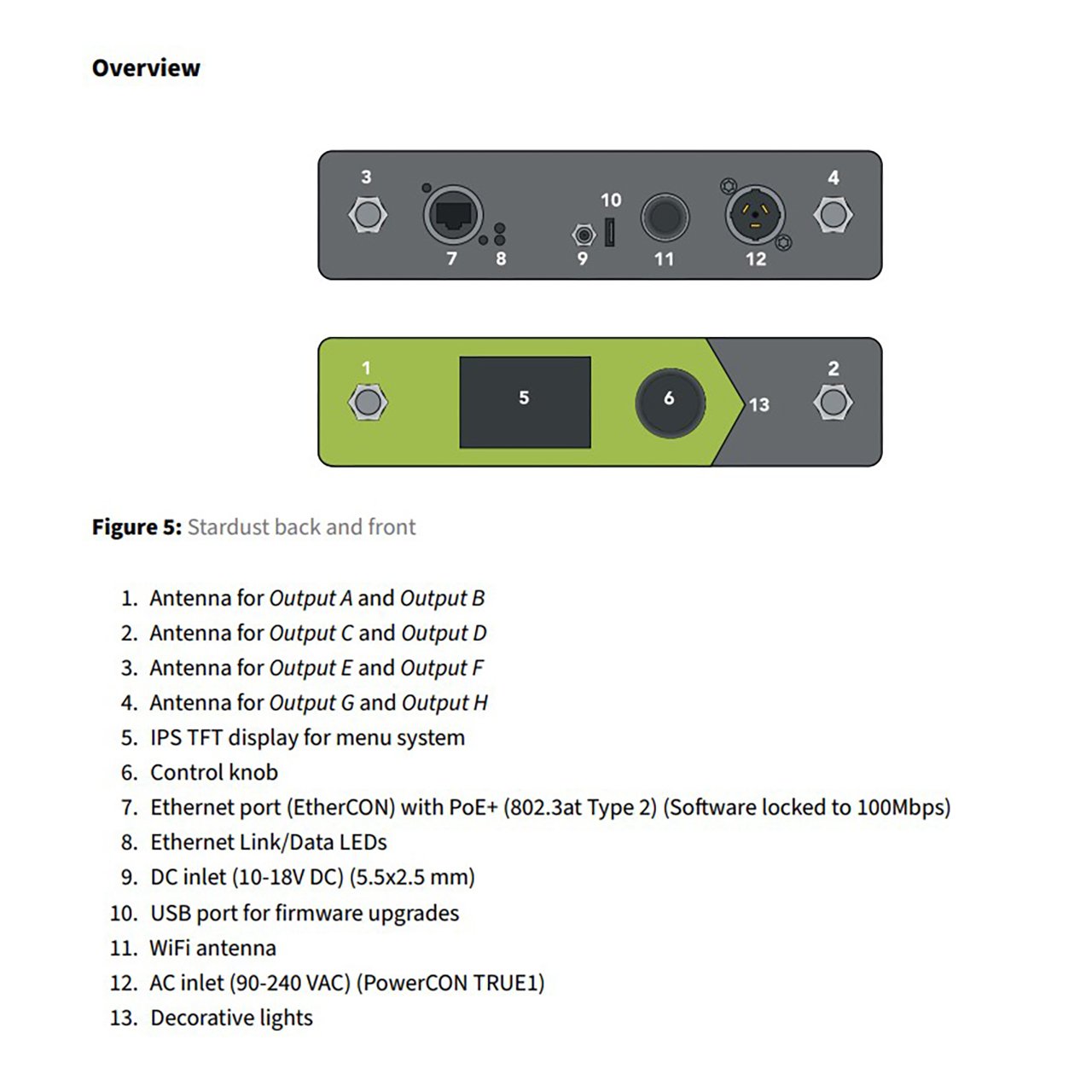

      Connectors
    • Ethernet: RJ45
    • Antennas: 4x RP-TNC
    • DC: 2.5mm/5.5mm Barrel connector
    • AC: powerCON Tru1

      Power
    • PoE
    • DC: 10V - 20V
    • Backup Battery (15 min. runtime)
    • AC: 100V - 240VAC

      Physical
    • IP20 Aluminium enclosure
    • Front panel color screen and rotary knob
    • M10 and ⅜" Threads
    • Rack and wall mount accessories
    • V-Lock battery mount accessory
    • Dimensions: 8.7" x 7.9" x 1.7" (22cm x 20cm x 4.4cm)
    • Weight: 3.5lbs (1.6kg)

  • Item Includes:

    • 1x Stardust Eight Universe DMX/RDM Transmitter with Ethernet & Wi-Fi
    • 1x Power Cable

  • Warranty:

    • 1 Year Limited Warranty
