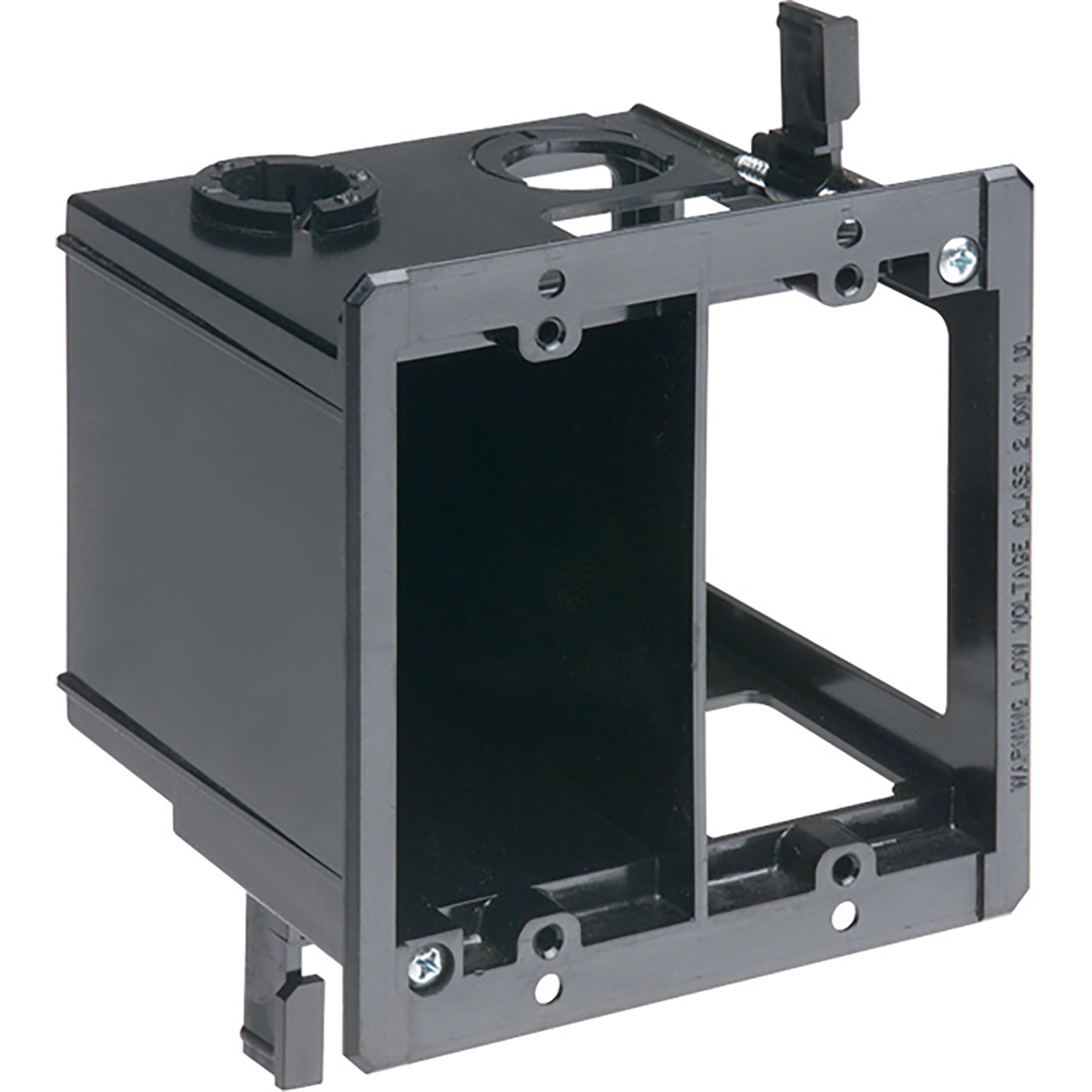

Arlington LVDR2 Two Gang Power and Low Voltage Box for Existing Construction

LVDR2 - Overview

2 Gang Power and Low Voltage Box for Existing Construction

• Features:

  • Neatly installs power and phone/cable outlets together, in one location
    Saves time and money...competitively priced!
    Fast and easy installation...bracket is its own template for cut out
    Adjusts to fit 1/4" to 1-1/2" thick wallboard, paneling, or drywall
    For raceway, the low voltage side provides a combo 1/2" and 3/4" KO
    Protects cable from damage
    Mounting wings hold bracket securely against wall when screws are tightened
    Includes installed NM connector on power side
    Two hour fire rating

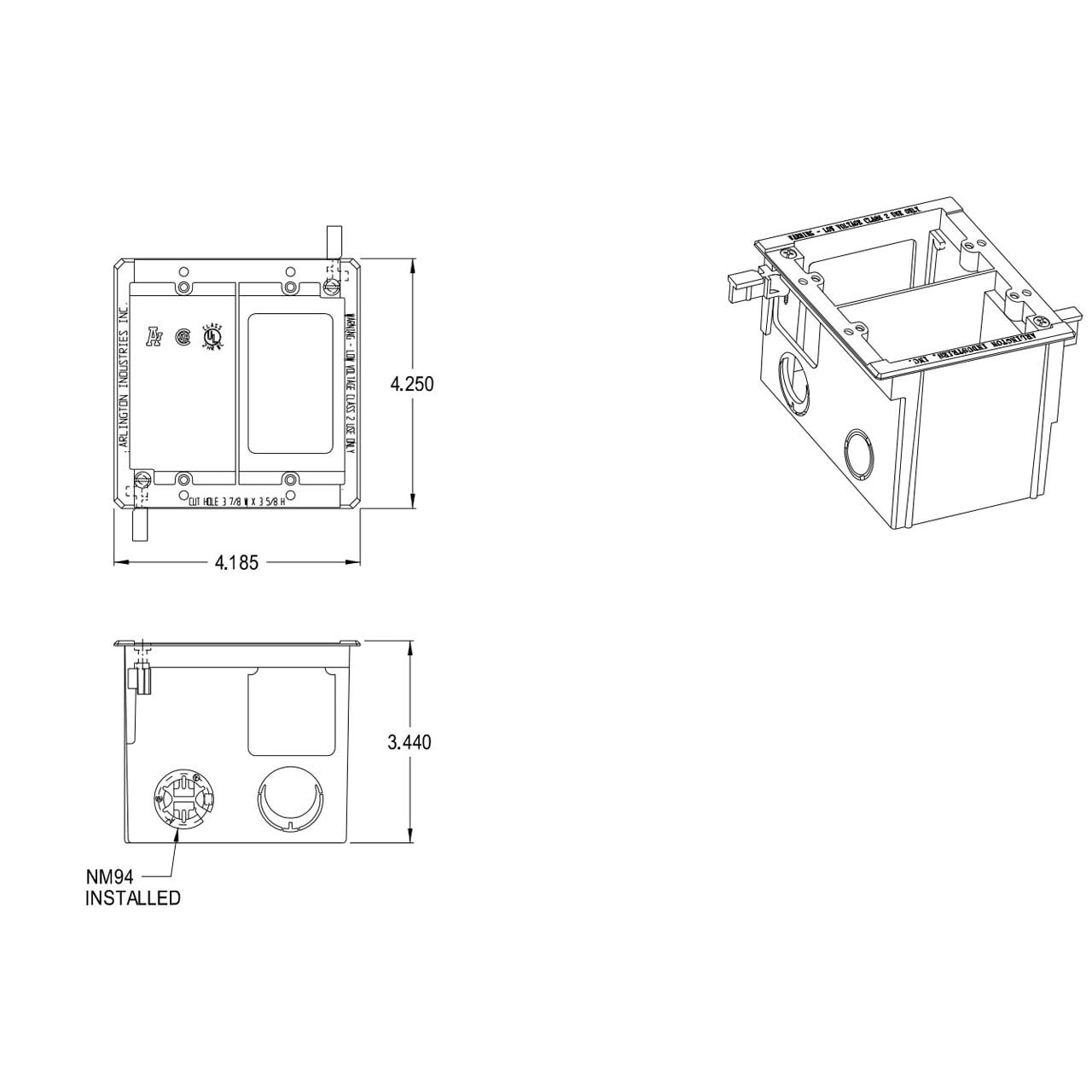

• Specifications:

  • Weight 0.250 lbs/each
  • Height 4.250"
  • Width 4.185"
  • Color Black
  • Material(s) Plastic
  • Cubic Inches 17.0 (Power Side)
  • Fire Rating 2 Hour
  • Knockout Size(s) 1/2" and 3/4"
  • Style Two-Gang Power/Low-Voltage Combination Box for Existing Construction
  • Trade Size 2-Gang
  • Usage Easy Installation of Power and Phone/Cable/Fiber Optic Outlets Togethe


• Item Includes:

  • 1x Power and low voltage box
  • 1x NM94 Cable Connector


• GTIN:

  0018997010001
