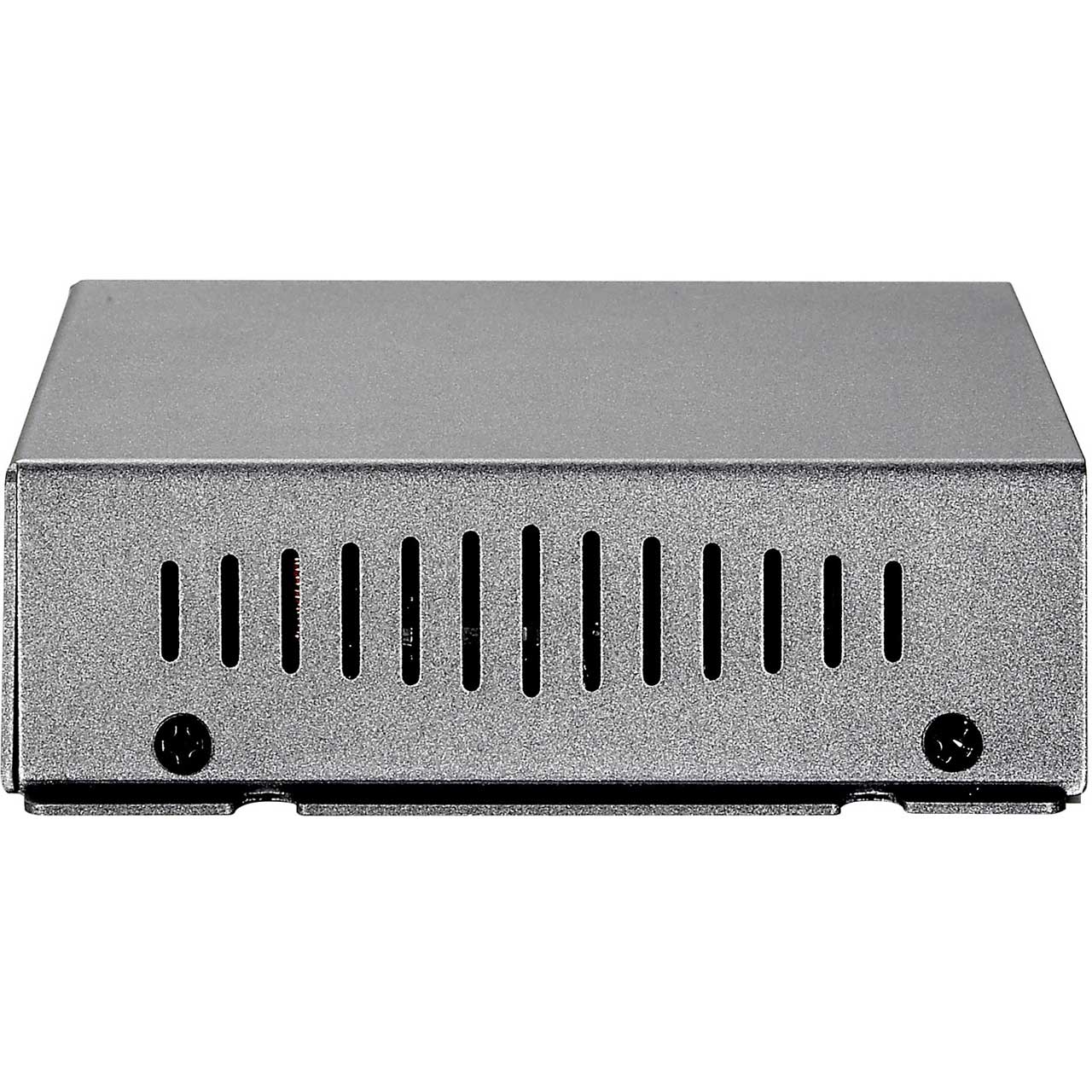

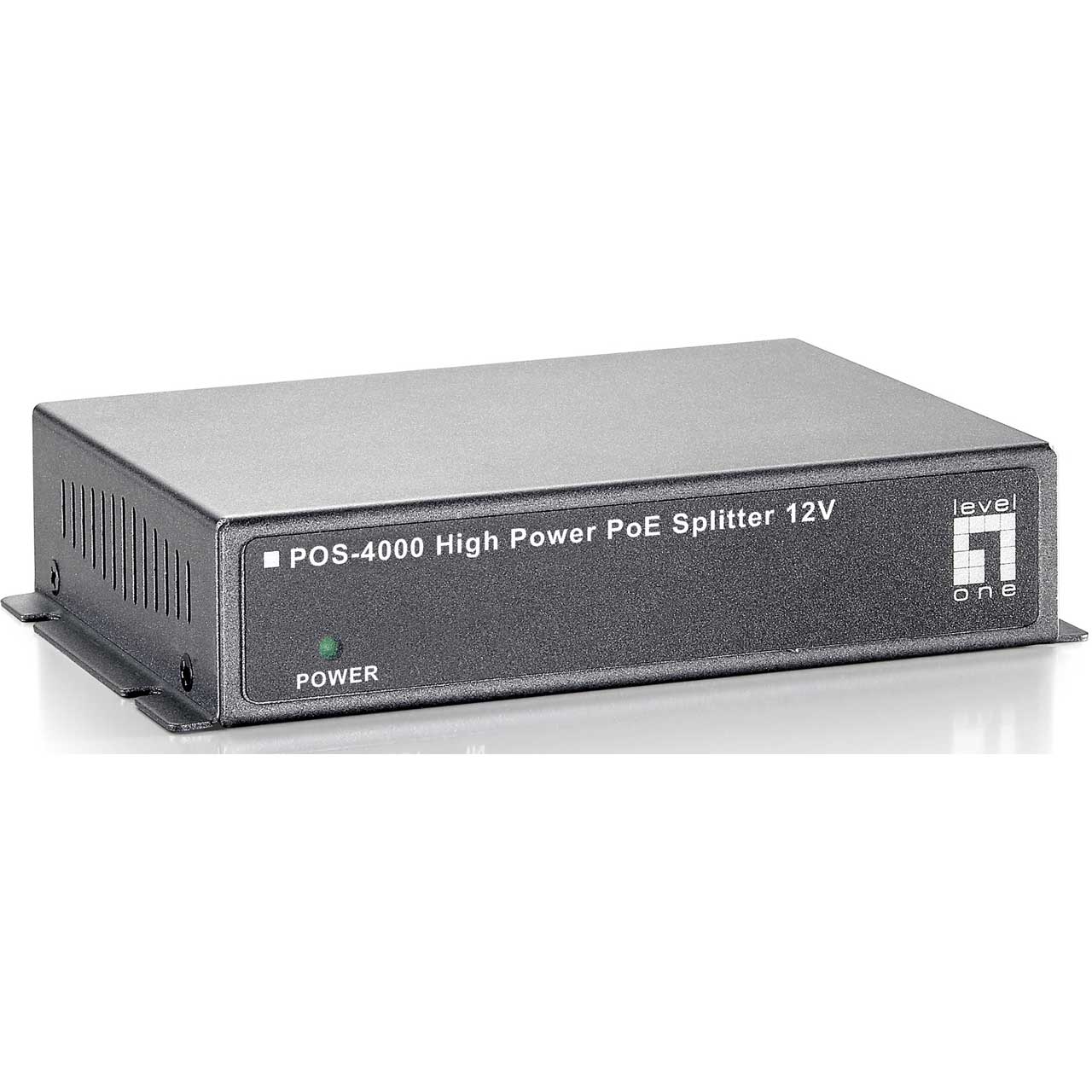

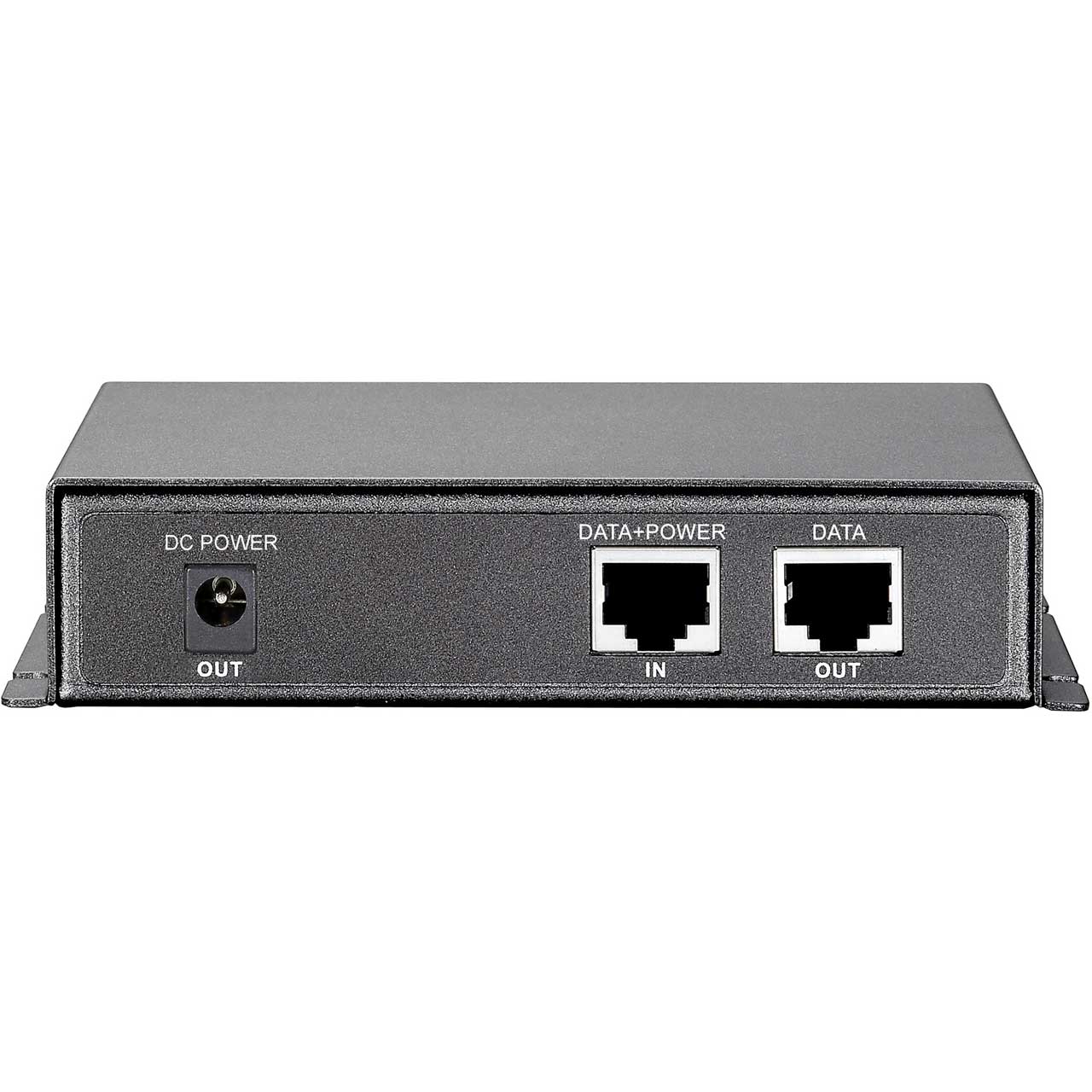

LevelOne POS-4000 Fast Ethernet High Power PoE Splitter - 12V DC Output

POS-4000 - Overview

• Features:

  • Enables high-power PoE connectivity for non-PoE device
  • Max. power output up to 12VDC/2.5A (30W)
  • Simple Plug and Play installation


• Specifications:

  • Standards
  • IEEE 802.3 10-BASE-T (Ethernet)
  • IEEE 802.3u 100-BASE-TX (Fast Ethernet)
  • IEEE 802.3x Flow Control (full-duplex flow control)

    Features
  • MAC Address: 1K
  • Buffer Memory: 48KB
  • Transmission Method: Store and Forward
  • Backplane: 1Gbps

    Filtering/Forwarding Rates
  • 100Mbps port-148,000pps
  • 10Mbps port-14,880pps

    Transmission Media
  • 10Base T Cat. 3, 4, 5 UTP/STP
  • 100Base TX Cat. 5 UTP/STP

    Network Interface
  • 4 x 10/100Mbps RJ-45 PoE Ports
  • 1 x 10/100Mbps RJ-45 Uplink Port

    PoE Spec
  • PoE Compatible: IEEE 802.3af Power over Ethernet / PSE
  • PoE over current protection
  • PoE circuit sorting protection


  • PoE Power Output: Per Port 52V DC, Max. 52W (High Power)
  • Power Budget: Max. 120W
  • Power Pin Assignment: 4/5(+), 7/8(-)
  • LED Indicators: Power, Uplink, LAN 1~4 port, PoE 1~4 port
  • Power Input: 56V / 2.15A
  • Power Consumption: 120W
  • Dimensions (L x W x H): 120 x 90 x 28mm
  • Weight: 0.8kg

    Temperature
  • Operating: 0~45 Degree °C
  • Storage: -40~70 Degree °C

    Humidity
  • Operating: 10~90% (Non-condensing)
  • Storage: 10~90% (Non-condensing)


  • Certifications: FCC, CE


• Item Includes:

  • x1 POS-4000


• GTIN:

  4015867149379
