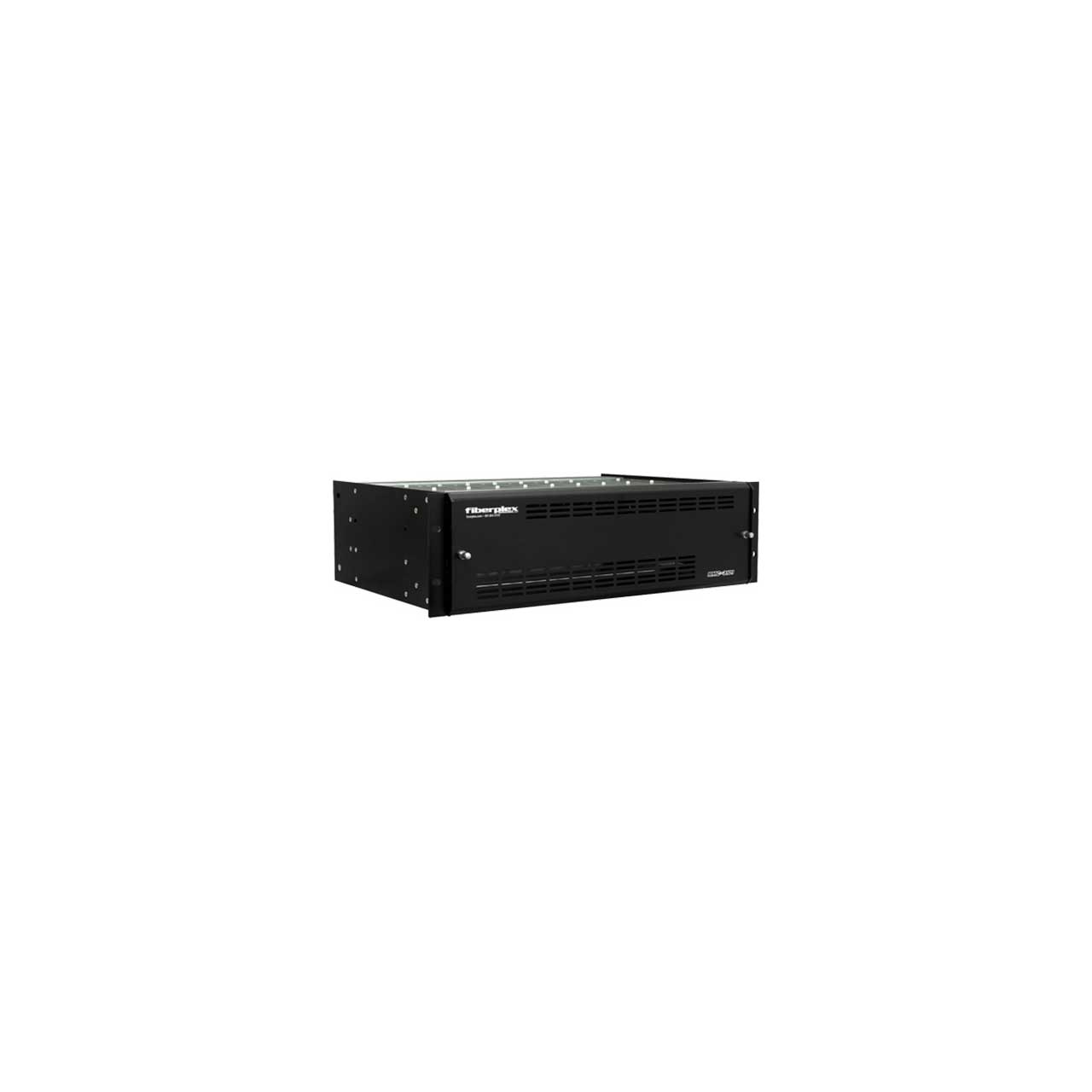

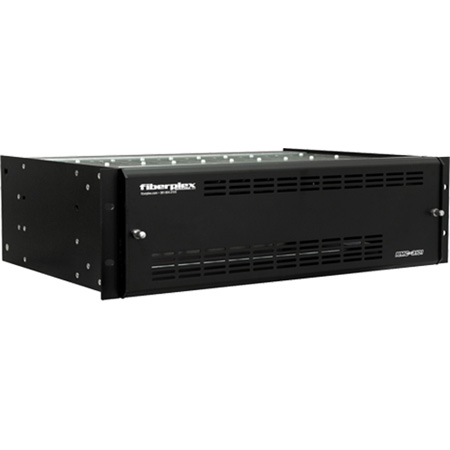

Fiberplex RMC-3101 3U 9 Slot Rack Mount Chassis

ITEM #: LVP-RMC-3101 MFG #: RMC-3101

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in January.

RMC-3101 - Overview

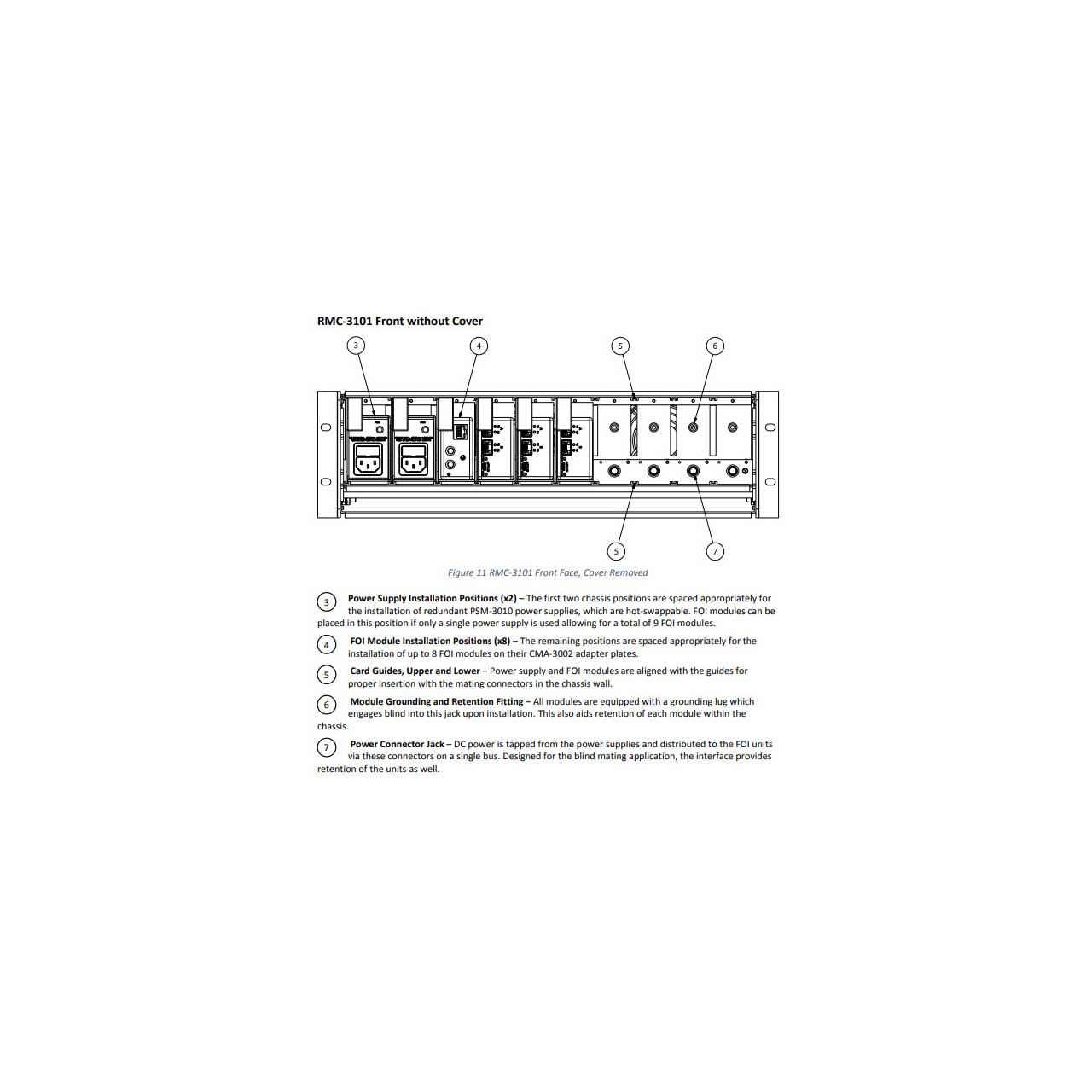

The Fiberplex RMC-3101 provides up to nine available slots for any fiber optic isolator or telephone disconnect unit. The tenth available slot must be occupied by a PSM-3010 power supply module. Each RMC-3101 will be shipped with one PSM-3010. A second PSM-3010 may also be added for power redundancy, leaving eight available slots for any fiber optic isolator. If the first PSM-3010 fails, the second PSM-3010 will take over the entire load and carry on normally. A cable bay is provided below the module bay for cable routing and enhanced air fl ow through two rear exhaust fans and a vented front panel.

An RMC-3102 is identical to the RMC-3101 with the addition of an optical patch bay mounted on the rear.

Each fiber optic isolator must also be accompanied by a CMA-3002 chassis mount adapter, which slides the fi ber optic isolator into the slot and assures correct alignment of the isolator power connector to the power bus inside the RMC-3101.

FiberPlex recommends the RMC-3101R for TEMPEST or other high security applications.

  • Features:

    • 3U Chassis holds up to 9 FOI isolators
    • Power redundancy is available with a second power module (only 8 FOIs fit with redundant power)
    • Each FOI isolator is easily accessable through a removable front panel
    • Enhanced cooling via tow rear mounted exhaust fans
    • Up to nine fiber optic isolators can be mounted inside.
    • Each fiber optic isolator is accessible and removable through the front of the chassis.
    • One PSM-3010 power supply and power line cord is included with chassis.
    • Power redundancy is available through an optional second power supply module.
    • A cable bay is provided below the module bay for cable routing.
    • Enhanced air flow through two rear exhaust fans and a vented front panel.
  • Specifications:

    • Fan Specifications
    • Speed: 2500 RPM
    • Max Air Pressure: 3.5 mm H2O / 0.14 inch H2O
    • Air Flow: 50.5 CFM / 1.43 m3/min
    • Noise: 34dBa @ 1M

      Power Supply
    • Input Voltage: 85 Min - 250 Max VAC
    • Input Frequency: 40 Min - 400 Max Hz
    • Input Power: typ. 75W
    • Output Voltage: typ. 9 VDC
    • Supply Current: typ. 8.3A
    • Output Power: 75W

    • Storage Temperature: -40°F - 185°F (-40 - 85 °C)
    • Operating Temperature: 32°F - 122°F (0 - 50 °C)

    • Physical (H x W x D): 5.25 inch x 19 Inch x 12.75 Inch (133mm x 483 mm x 234mm)
    • Weight: 22 lbs (10kg)
    • Case Dimensions(L x W x H): 9.559 Inch x 1.57 Inch x 3.468 Inch (243 mm x 40 mm x 88 mm)
    • Weight: 1.6lb (0.7kg)
