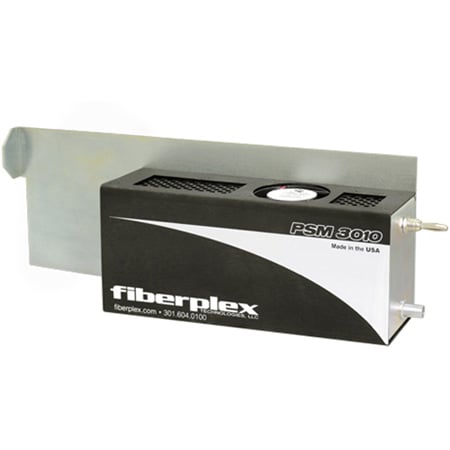

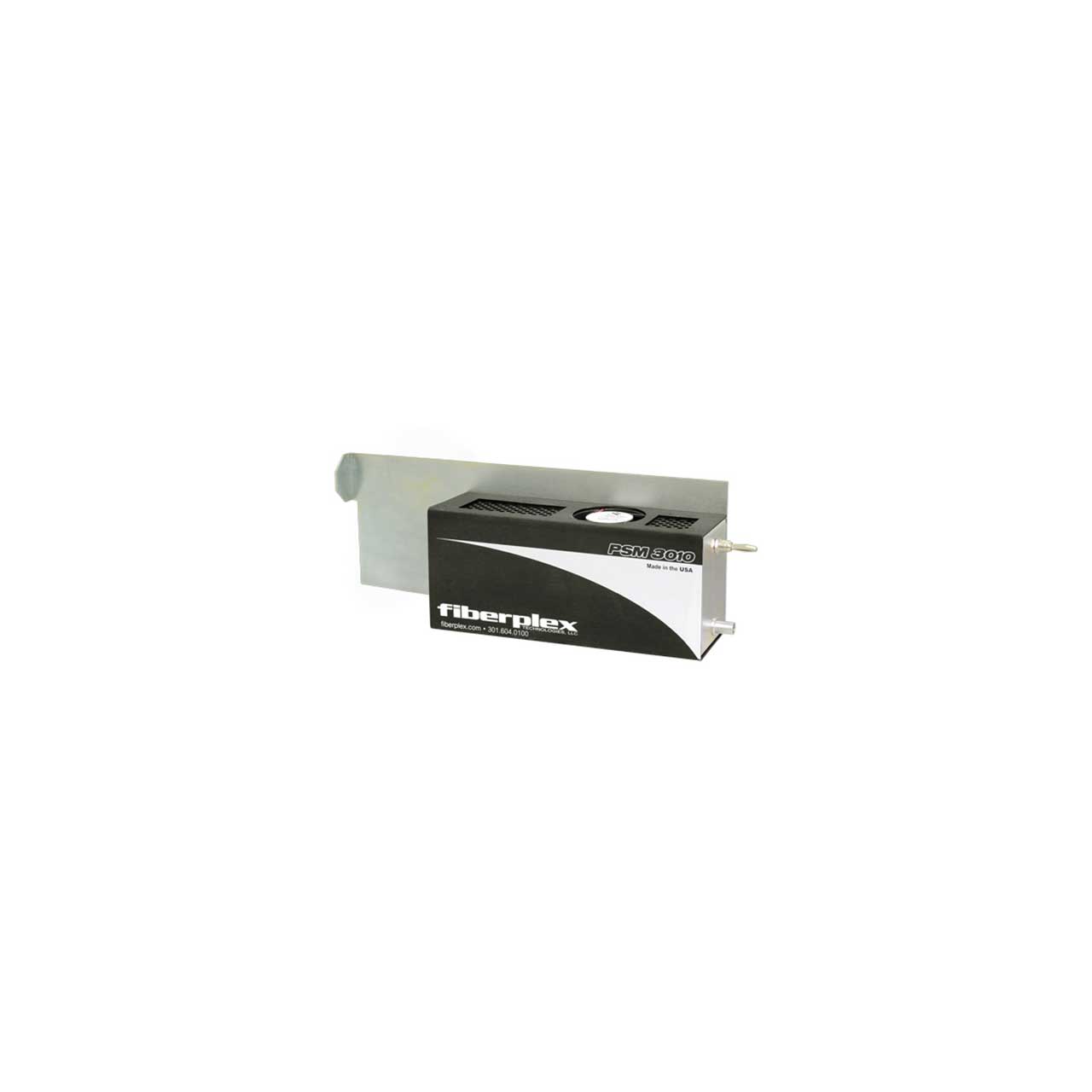

Fiberplex PSM-3010 Spare/Redundant Power Supply F/U/W RMC-3xxx Series Rack Mount Chassis - 75W 40-400 Hz 90-260 VAC

ITEM #: PSM-3010 MFG #: PSM-3010

free ship

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    PSM-3010 - Overview

    The FiberPlex PSM-2010 and PSM-3010 are power supply modules designed to be inserted into the RMC-2xxx and RMC-3xxx rack mount chassis, respectively. The modules provide an operating voltage through the chassis backplane to power up to nine fiber optic isolator units. Each rack mount chassis is shipped with one power supply module. For additional reliability and security, a second Power Supply Module (PSM) may also be added for power redundancy. If the first PSM fails, the second PSM will take over the entire load and carry on normally. Additionally, if one PSM fails, an onboard alarm will sound. An LED indicates that the +9VDC output voltage is present, and that the module is operating properly.

    • Features:

      • Provides power to up to 9 FOI isolators in a RMC-3101 or RMC-2101 chassis
      • Power redundancy is available with a second power module
      • Hot swappable
    • Specifications:

      • Power Supply
      • Input Voltage: Min. 85 / Max. 250 VAC
      • Input Frequency: Min. 40 / Max. 400 Hz
      • Input Power: 75W
      • Output Voltage: 9VDC
      • Supply Current: 8.3A
      • Output Power: 75W
      • Environmental
      • Storage Temperature: -40 to 185F
      • Operating Temperature: 32 to 122F
      • Case Dimensions
      • Length: 9.559 in
      • Width: 1.57 in
      • Height: 3.468 in
      • Weight: 1.6 lb
