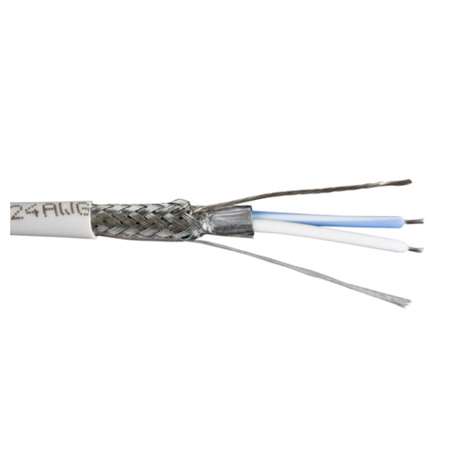

Liberty 24-1P-P485-WHT RS-485/DMX-512 24 AWG 1-Pair Dual Shielded Low Capacitance Plenum Cable - 1000 Foot Reel

24-1P-P485-WHT - Overview

• Features:

  • 24 AWG 7-Strand Tinned Copper Conductors
  • Foamed Fluoropolymer Dielectric Insulation
  • Simplex single pair construction
  • Dual Shielded with foil and tinned copper braid shields
  • Plenum rated PVC Alloy jacket with ripcord
  • Precise 11.2 pF/FT Low Capacitance, 120Ω impedance
  • NEC CMP, CEC CMP FT6, RoHS Compliant
  • 1000 Foot Spools Standard


• Specifications:

  Electrical
  • DC Resistance: 25.67Ω/1000ft | 84.20Ω/KM
  • Shield DCR: 4.77Ω/1000ft | 15.65Ω/KM
  • Mutual Capacitance: 12.0 pF/FT | 39.36 pF/M
  • Shield Capacitance: 22.0 pF/FT | 72.16 pF/M
  • Impedance: 120Ω
  • Velocity of Propagation: 79%
  • Voltage Rating: 300V
  • Maximum Current: 2.0A @ 77°F (25°C)

    Conductor
  • 24 AWG
  • 7-strand tinned annealed bare copper conductors
  • Diameter: 0.024" (0.61mm)

    Shield
  • Shield 1: 100% aluminum/polyester tape foil out
  • Shield 2: 90% 16/6/36 AWG tinned copper braid
  • 24 AWG 7-strand tinned copper drain.

    Jacket:
  • Plenum rated polyvinyl chloride
  • Colors: Natural White
  • Wall Thickness: 0.015" (0.38mm)
  • Diameter: 0.175" (4.45mm)
  • Outside Diameter: 0.175"
