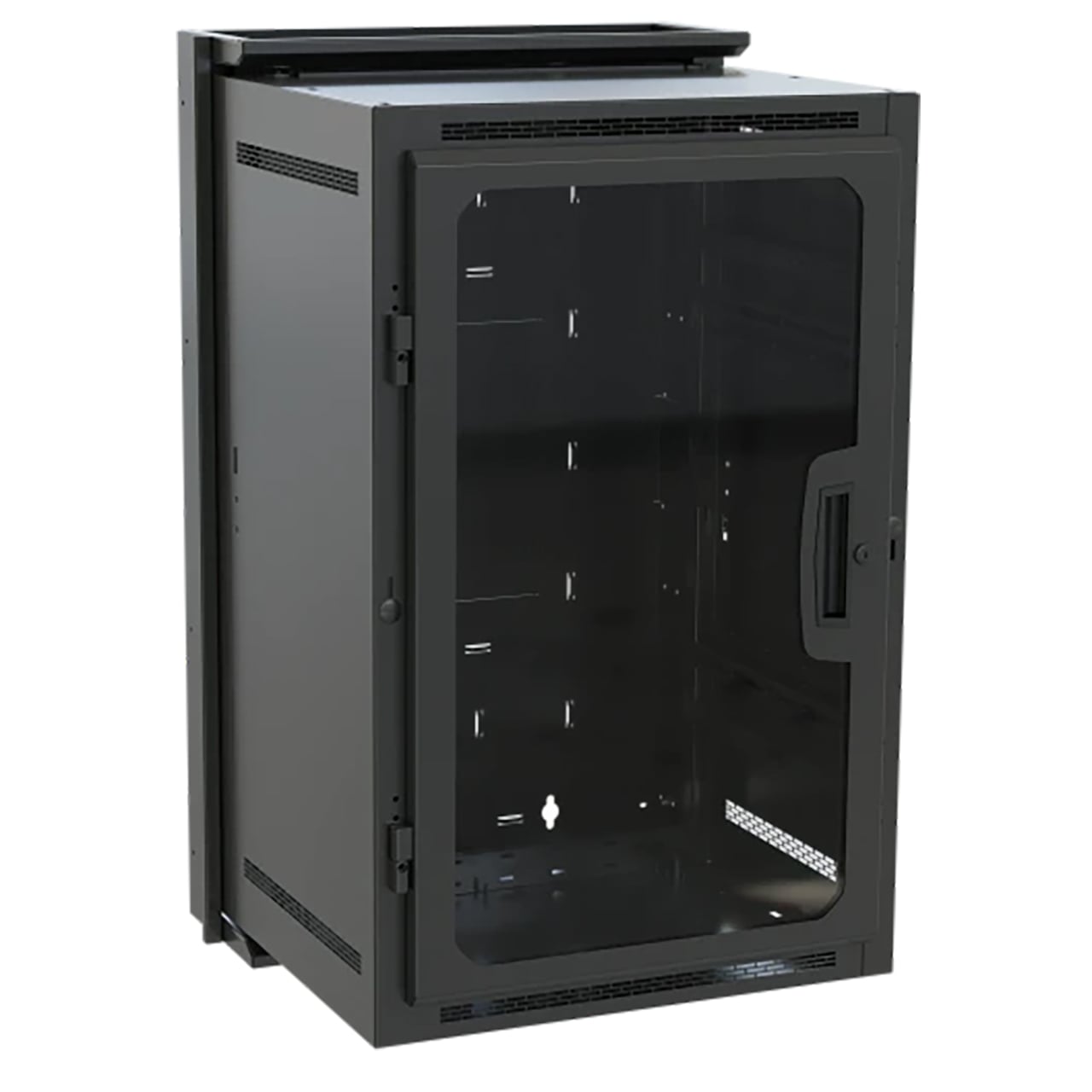

Middle Atlantic DWR-16-17PD DWR Series Pivoting Wall Rack

DWR-16-17PD - Overview

• Features:

  • 16RU and 17" Deep
  • Now equipped with the revolutionary Forward rack rail, which gives you the ability to use Forward blank panels, vent panels, and horizontal cable management.
  • Now accepts patented Lever Lock™ tool-free and hardware-free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
  • Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
  • Center section rear channel accommodates optional PDT and PD Slim PDUs to save space
  • Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite
  • Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room
  • Center section swing is reversible, and can be both key-locked and padlocked
  • The center section is keyed differently from the optional front door for additional security
  • Designed for active or passive cooling to support all systems
  • Comes with a factory-installed plexi door


• Specifications:

  • Depth: 17" (43.2cm)
  • Height: 35.06" (89.1cm)
  • Product Weight: 73.5lbs (33.3kg)
  • Rack Units: 16RU
  • Shipping Weight: 110lbs (49.9kg)
  • UL Load Capacity: 200lbs (90.7kg)
  • Usable Depth: 15" (38.1cm)
  • Usable Height: 28" (71.1cm)
  • Width: 23.4" (59.4cm)
  • Color: Black
  • Door Type: Plexi
  • Finish: Black Wrinkle Powder Coat
  • Forward Compatible: Yes
  • Front Door: Yes
  • Material: Steel
  • Rack Rail Type: Forward Rackrail
  • Seismic Rated: Yes
  • TAA Compliant: Yes
  • Seismic Load Capacity: 155lbs (70.3kg)


• GTIN:

  0656747005282
