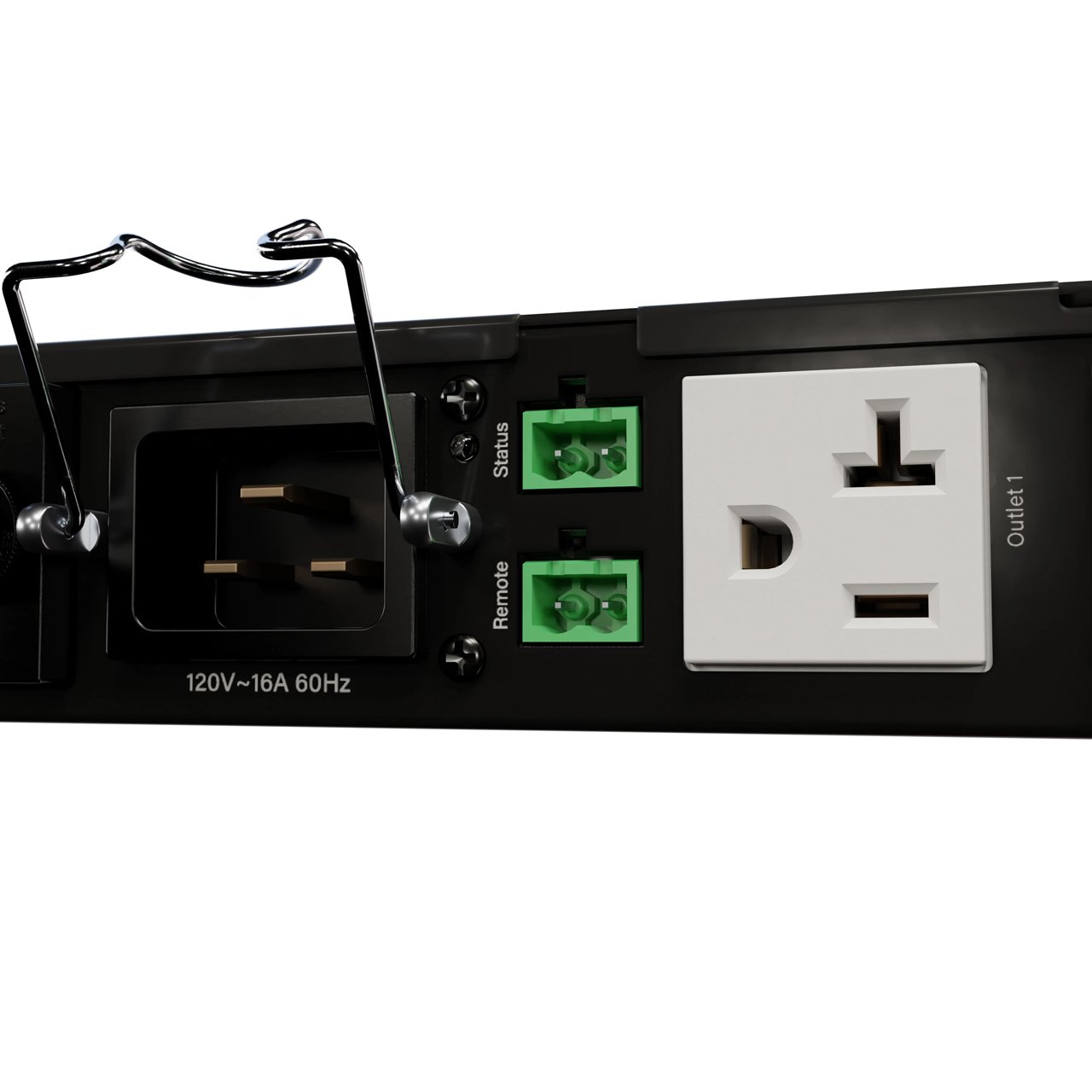

Middle Atlantic PDX-920R-SP NEXSYS 9 Outlet / 20 Amp Rackmount Power with Series Surge Protection

ITEM #: MAP-PDX-920R-SP MFG #: MAP-PDX-920R-SP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Middle Atlantic Products
Free Shipping with $49 Minimum Order

List Price:

$1,100.00

Our Price:

$990.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    MAP-PDX-920R-SP - Overview

    Why are you plugging your AV equipment into anything else?

    The NEXSYS PDX-920R-SP is built on a promise that we've kept for over two decades - more than half the life of the company - that their products are designed, engineered, and built for AV. Every NEXSYS rackmount PDU is available in 15A and 20A and always have surge and voltage protection making it easy to select the right PDU for the job. Still need more? Each NEXSYS rackmount PDUs can be controlled remotely via contact closure. Just choose NEXSYS.

    • Features:

      • Industry's fastest patented non-degrading surge technology
      • Protects equipment without contaminating system ground
      • 100% MOV-free design
      • With the selectable on/off voltage protection from the front of the unit, it gives the option to protect sensitive equipment from over/under voltage scenarios.
      • If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
      • IEC Inlet: Allows for cleaner cable management by selecting your desired length of power cord.
      • A standard 9' cord is included with all models
      • Rear outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.


    • Specifications:

      • Dimensions and Measurements
      • AC Voltage Input: 120 VAC
      • AC Voltage Output: 120V
      • Amps: 20 Amp
      • Cord Length: 9 ft (2.7 m)
      • Dimensions (DxHxW): 8.8" x 1.8" x 19" (22.2 cm x 4.4 cm x 48.3 cm)
      • Rack Units: 1 RU

        Characteristics
      • Color: Black
      • Control Type: Contact Closure
      • Isolated Ground: No
      • Outlet Count: 9
      • Plug Type: NEMA 5-20P
      • Receptacle Type: NEMA 5-20R
      • Special Features: NEXSYS PDU
      • Surge Protection Type: Series Protection


    • Item Includes:

      • 1x NEXSYS 9 Outlet / 20 Amp Rackmount Power with Series Surge Protection


    • Warranty:

      • 12-Year Warranty
