    CV-MICRO-JYSTK - Overview

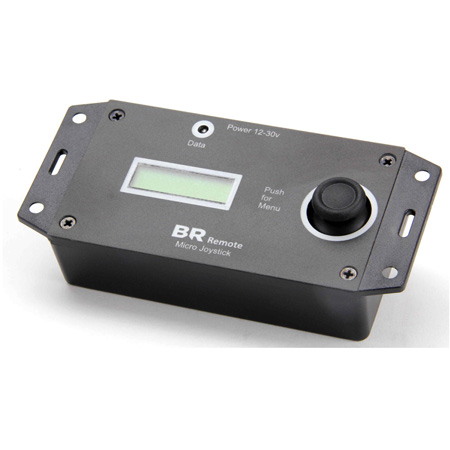

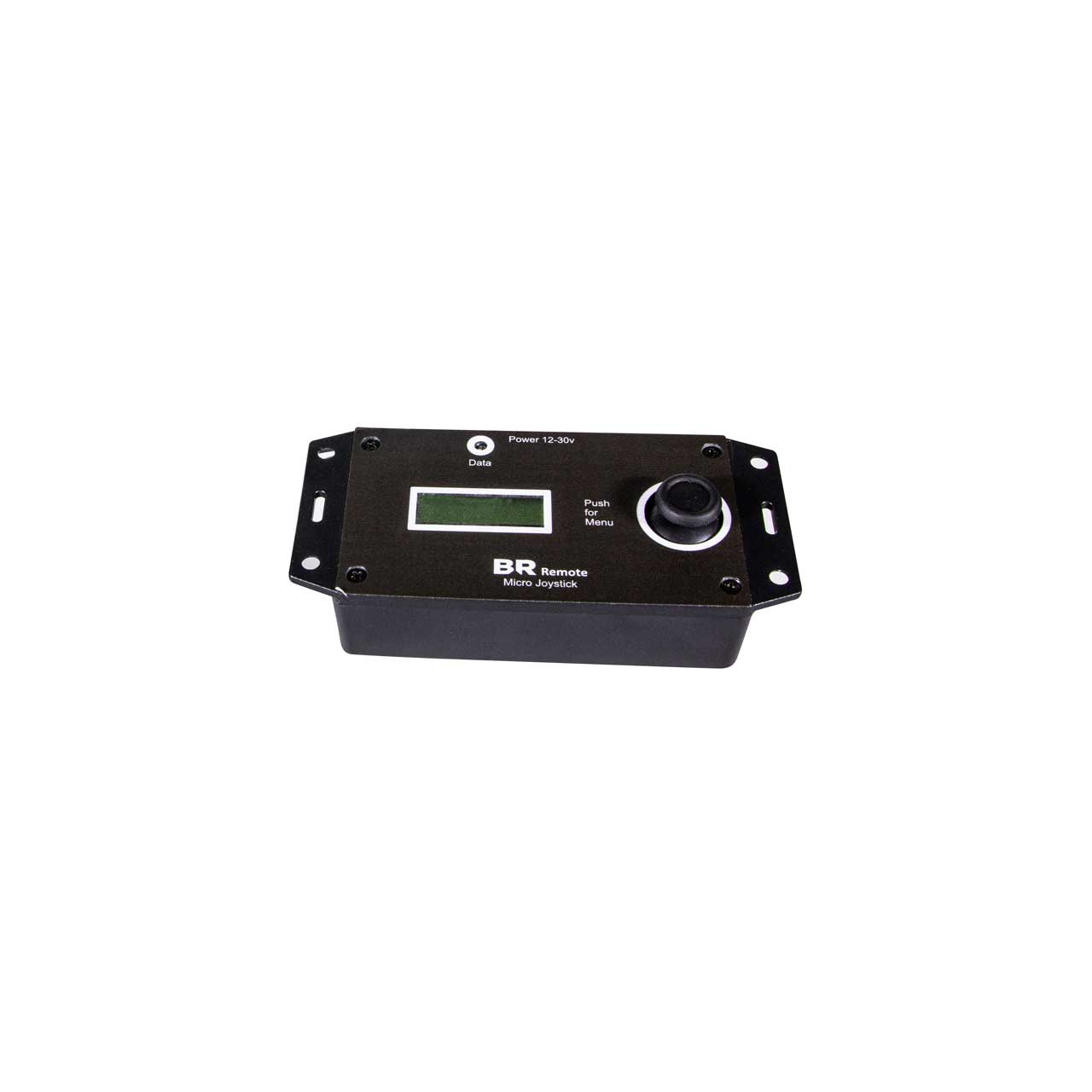

    The Marshall CV-MICRO-JYSTK is the smallest and most cost-effective joystick available for Marshall Miniature Cameras & CV-PT-HEAD. For many applications, the functionality of this joystick is all that is required for straight forward and easy setup operation.

    CV-MICRO-JYSTK can control and BR remote heads and various cameras. It can address any head ID from 1 ~ 8 and can even re-assign the ID of each PT Head.

    A familiar thumb-type joystick controls both the pan, tilt, zoom & focus and is also used to cycle through the extensive menu functions. It has camera control protocols and CCU functions, built in.

    Using the Lemo (base) to Hirose (camera) cable included in CV-PT-HEAD box, it can accept data from RCP as well as power camera - camera control offers full CCU control of the camera.

    • Specifications:

      • Power Connections: 12-35V @ 0.2A + Connected Head / DC Jack, 4-pin XLR on Flying Lead
      • Joystick Functions: Pan, Tilt, Zoom, Focus & Menu Navigation
      • Menu Functions: Pan & Tilt Speed & Direction / Head Select & Re-Assign Ident / Ramp Up/Down / Store & Go-To Pre-set
        Positions (8) / White Balance / Red Gain & Blue Gain / Iris, Gain, Shutter / Auto Focus & Auto Iris / Master Pedestal, Gamma, Detail /
        Dynamic Range, Noise Reduction / Rec Run/Stop / Camera Protocol Select
