    V-1SDI - Overview

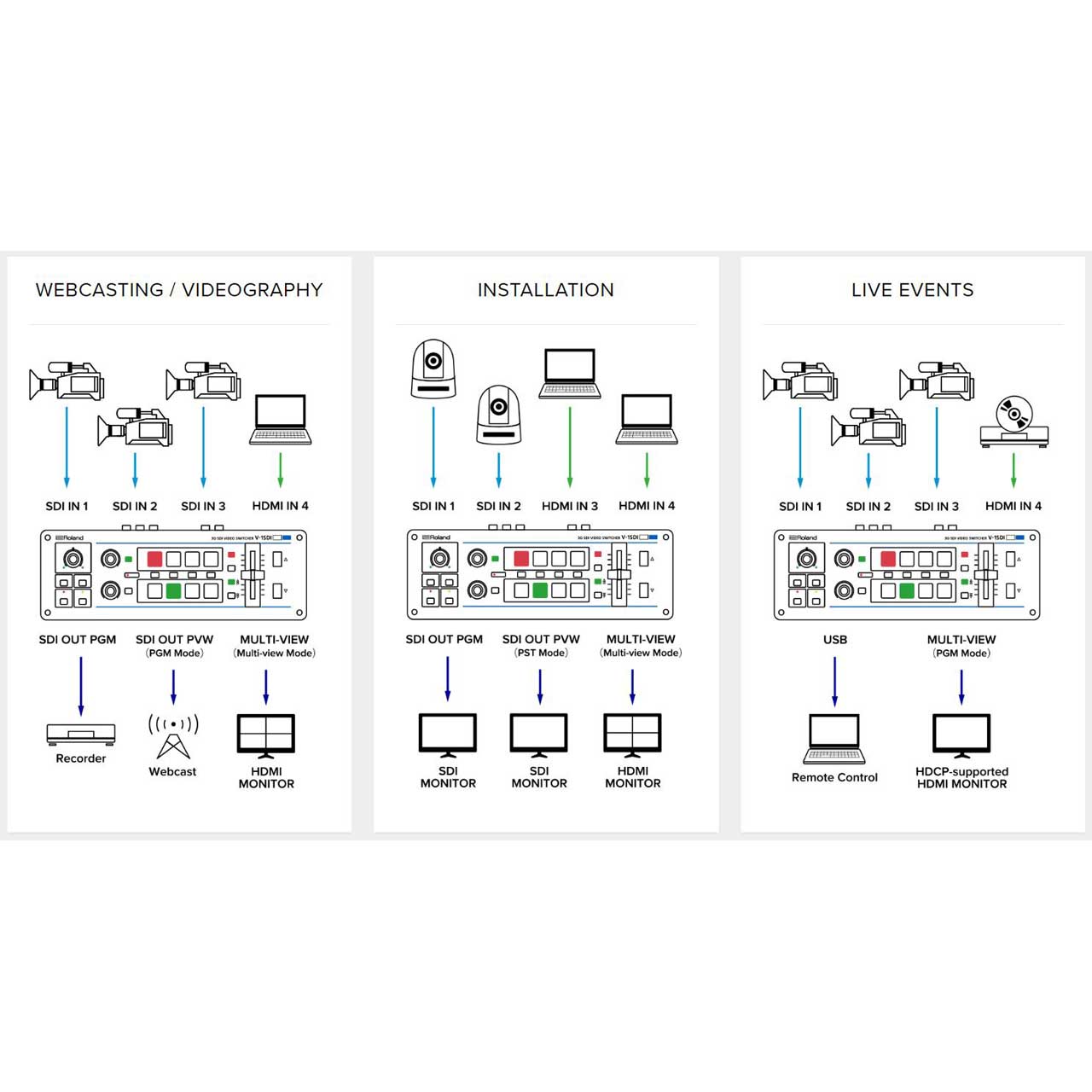

    V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

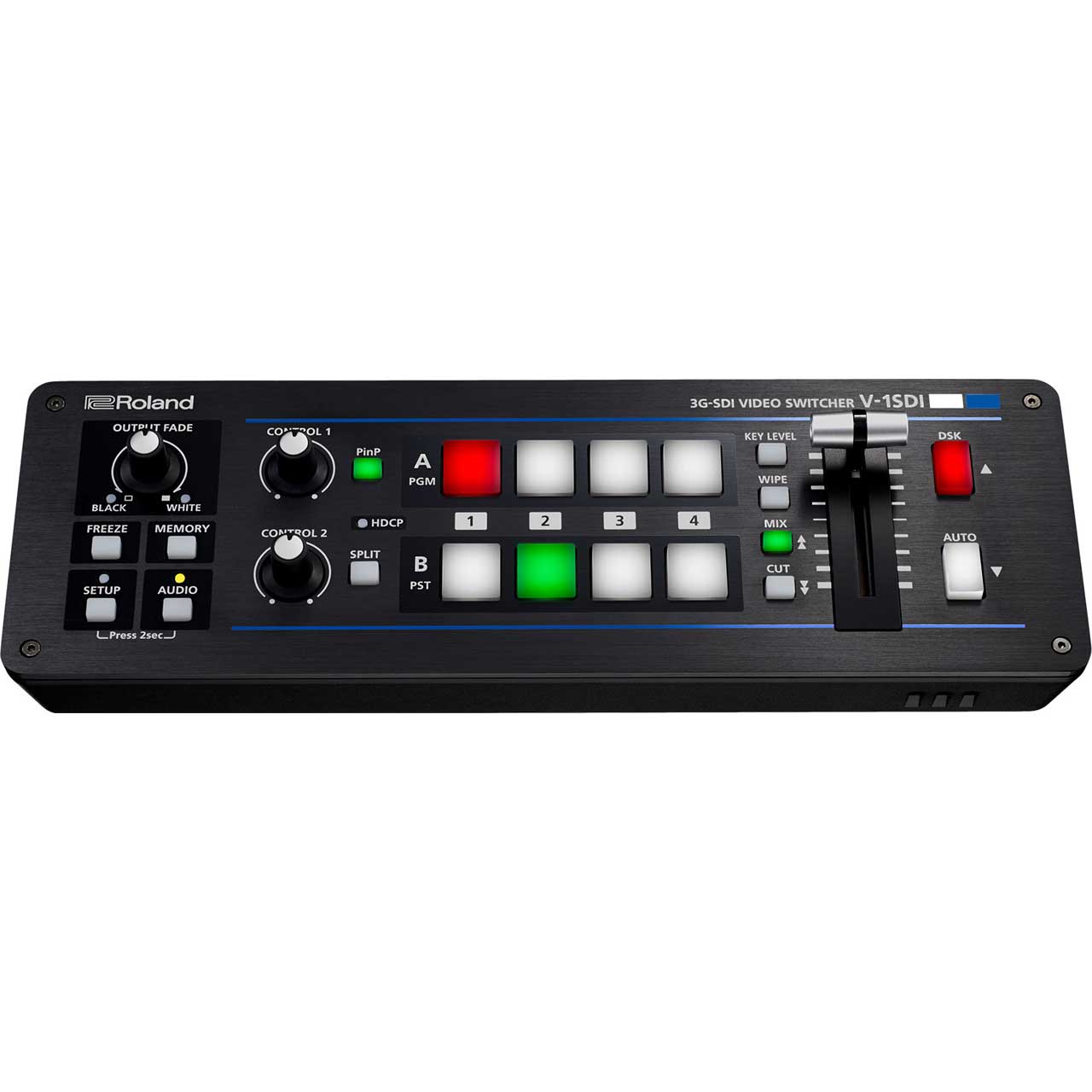

    Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

    With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

    Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable. The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings. V-1SDI RCS Ver.1.5 supports sending a Still Image to the V-1SDI.(The Still-image data is deleted, once the power is turned off.) The STILL IMAGE EDITOR allows both images and text to be edited making it ideal for easy, on-demand creation of subtitles and graphics. For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls. The software and App are FREE and can be found on the Roland site!

    • Features:

      • Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
      • Easy to operate with hardware controls
      • Compact size
      • Supports up to Full HD 1080p
      • 3 x 3G-SDI and 2 x HDMI inputs
      • 2 x 3G-SDI and 1 x HDMI output
      • Quad input multi-viewer with source labelling and audio metering
      • Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
      • Full 14 channel audio mixer included
      • Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
    • Specifications:

      • Video
      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Input Connectors: SDI INPUT 1--3: BNC x 3 (Conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
      • HDMI INPUT 3--4: Type A (19 pins) x 2, HDCP Supported, INPUT 3: SDI or HDMI selected
      • Output Connectors: SDI OUT PGM: BNC x 1, SDI OUT PVW: BNC x 1 (Conforms to SMPTE 424M (SMPTE 425M-AB), 292M), HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 (HDCP Supported)

      • Audio Processing: Sampling rate: 24 bits/48 kHz
      • Audio Formats: SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M, HDMI: Linear PCM, 24 bits/48 kHz, 2ch
      • Input Connectors -
      • Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M, HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
      • Analog: AUDIO IN (RCA phono type)
      • MIC (Stereo mini type, plug-in power supported)
      • Output Connectors -
      • Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
      • SDI OUT PVW: BNC x 1 SMPTE 299M
      • HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
      • Analog: AUDIO OUT (RCA phono type)
      • PHONES (Stereo mini type)
      • Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu), MIC: -41 -- -13 dBu (Maximum: -1 dBu)
      • Input Impedance: AUDIO IN: 15 k ohms, MIC: 10 k ohms
      • Output Level: AUDIO OUT: -10 dBu (Maximum: +8 dBu), PHONES: 92 mW + 92 mW (32 ohms)
      • Output Impedance: AUDIO OUT: 1 k ohm, PHONES: 10 ohms

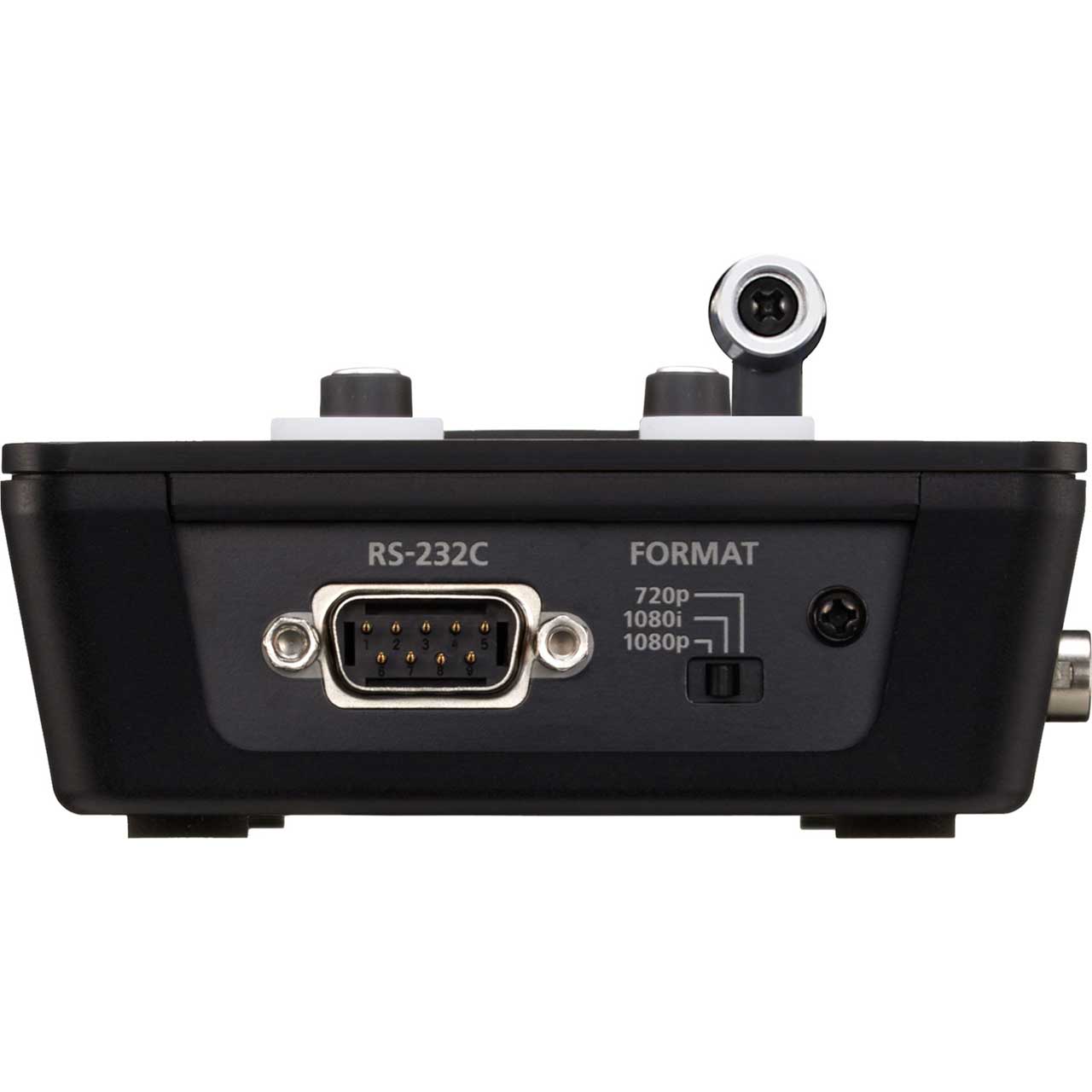

      • Other Connectors: USB: B Type (for remote control from PC), RS-232: DB-9 type
      • Other Functions: MEMORY (8 types), FREEZE (input video captured), OUTPUT FADE (Audio, Video: WHITE or BLACK)
      • Power Supply: AC Adaptor
      • Current Draw: 2.1 A
      • Power Consumption: 25 W
      • Operation Temperature: +0 to +40 degrees Celsius, +32 to +104 degrees Fahrenheit
      • Dimensions (inches): 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H)
      • Weight (excluding AC adaptor):2 lbs
    • Item Includes:

      • Owner's manual
      • AC adaptor
      • Power cord
      • Cord hook
