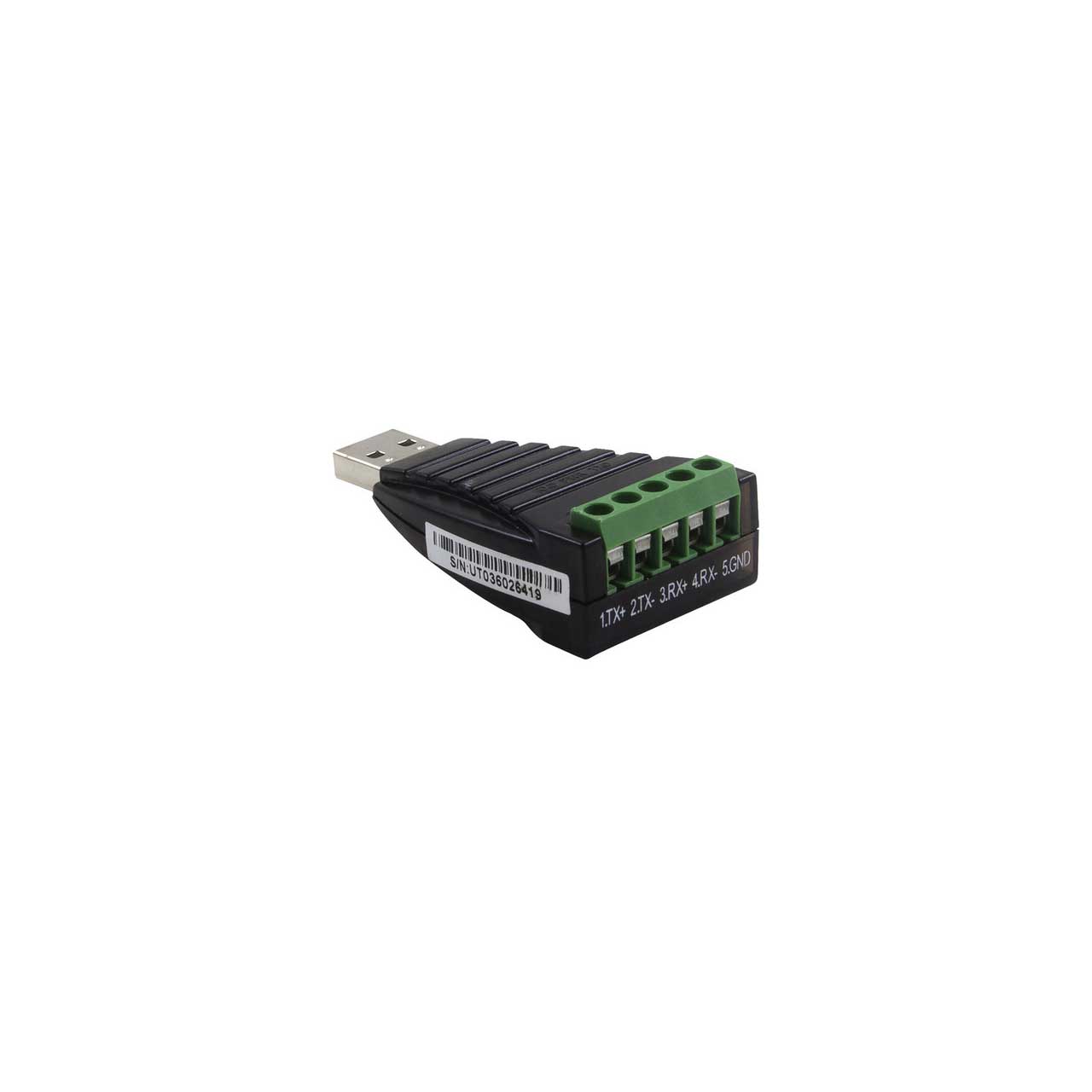

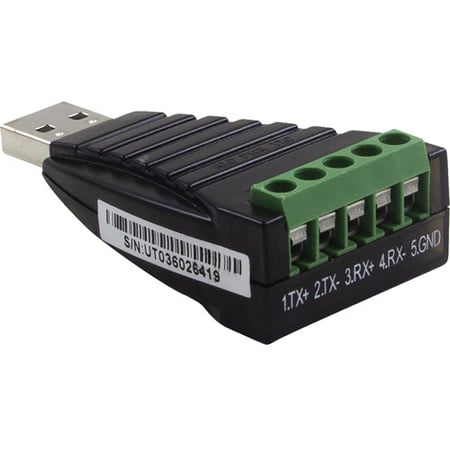

Marshall Electronics CV-USB-RS485 USB to RS485/422 Adapter

CV-USB-RS485 - Overview

• Features:

  • Compatible with CV502, CV505, CV565, CV343, CV345, CV365, CV350, and CV225 cameras
  • USB Type-A for data output and terminal pin assignment


• Specifications:

  • Compatible Cameras
  • Marshall Electronics CV502, CV505, CV565, CV343, CV345, CV365, CV350, and CV225 cameras
    USB Type
  • USB Type-A for data output and terminal pin assignment
    Connections
  • Phoenix Style 5-Pin Screw Terminals
    Output Signal
  • Pin 1: T/R+
  • Pin 2: T/R-
  • Pin 3: RXD+
  • Pin 4: RXD-
  • Pin 5: Ground
    RS-422
  • RS-422 full-duplex
  • Pin 1: Send(A+)
  • Pin 2: Send(B-)
  • Pin 3: Receive(A+)
  • Pin 4: Receive(B-)
  • Pin 5: Ground Wire
    RS-485
  • RS-485 half-duplex
  • Pin 1: RS-485(A+)
  • Pin 2: RS-485(B-)
  • Pin 3: Empty
  • Pin 4: Empty
  • Pin 5: Ground Wire
    Shipping
  • Weight: 0.1 lb
  • Dimensions (LxWxH): 4.2" x 4" x 1.5"


• GTIN:

  0801813192988
