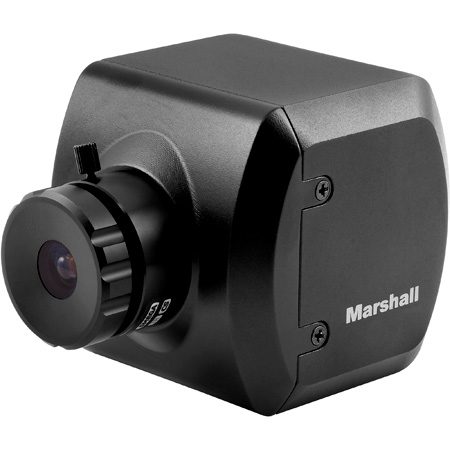

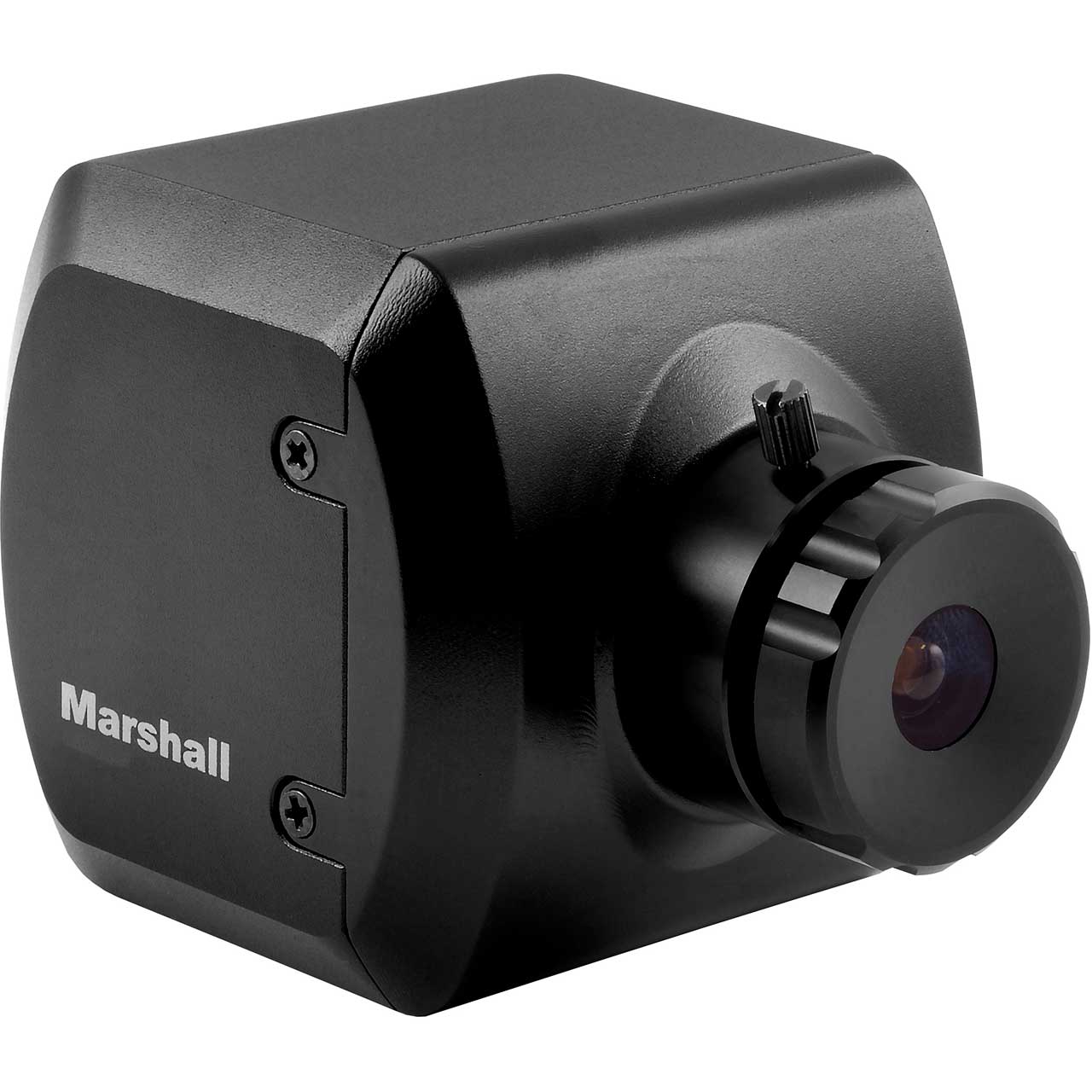

Marshall CV366 Compact 3GSDI/HDMI Genlock Broadcast Camera

ITEM #: MAR-CV366 MFG #: CV366

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$599.99

Our Price:

$499.99

Availability: In Stock
iAvailability Description Popup


    CV366 - Overview

    The Marshall CV366 Compact HD Camera with Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and flexible CS lens mount (lens sold separately) make this the most capable POV camera in the compact camera lineup.

    Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.

    Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size.

    Durable, Flexible, Powerful
    Marshall Compact Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.

    Applications:
    Broadcast
    Production
    Sports
    Racing
    Newscast
    Weathercast
    Live Events
    Aerospace
    House of Worship
    Courtroom
    Government
    Education
    eSports
    Nature
    Live Concert
    Podcast
    Studio
    Stage
    Science and Technology

    • Features:

      • Color Matrix to be offered as firmware update (coming soon)
      • Microphone/Line Level input with 2.5V Mic bias
      • Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
      • Low Light sensitivity (0.05 Lux) with ability to capture IR wavelengths
      • 3.2MP with 25% larger physical pixel size

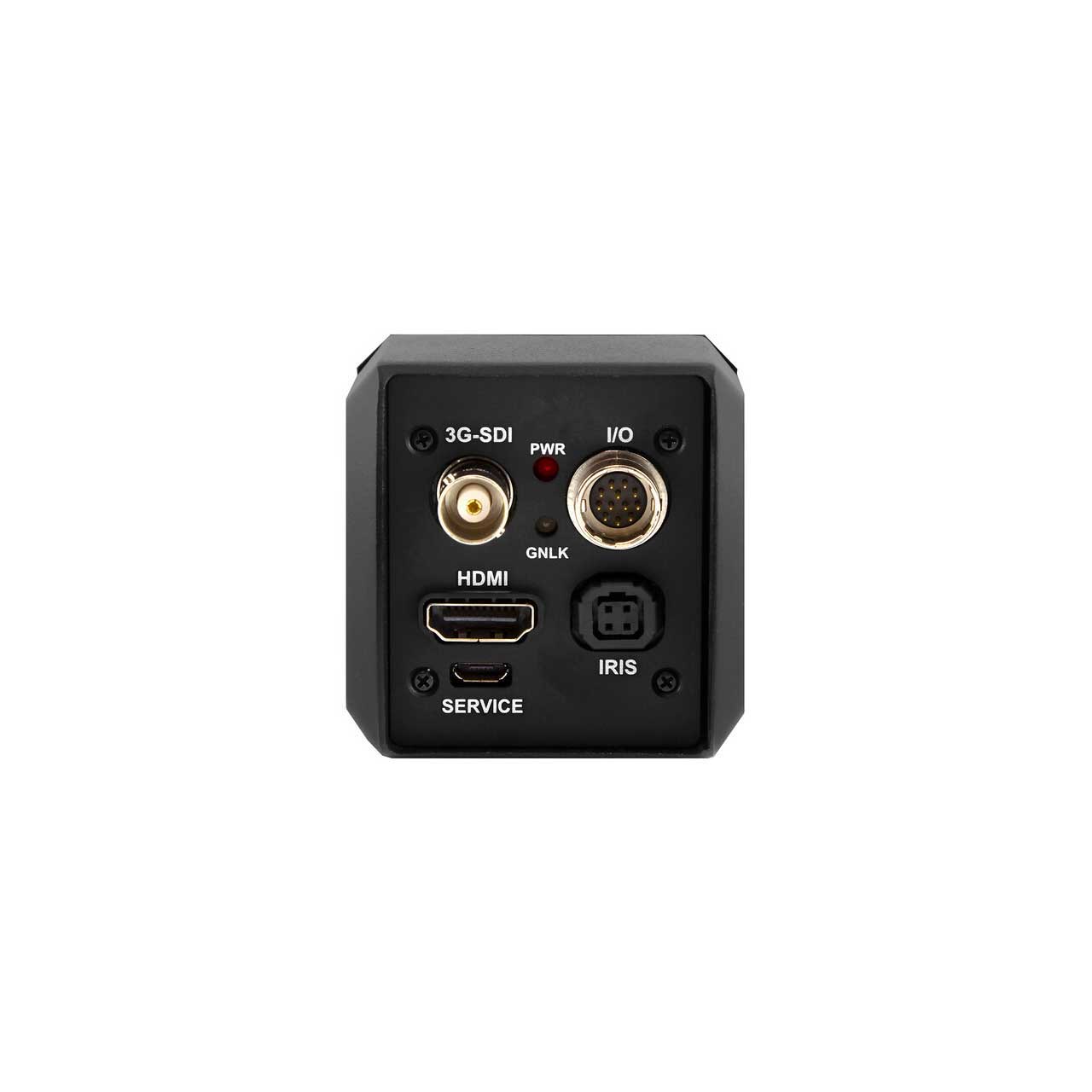

      • Simultaneous HDMI & 3GSDI outputs

    • Specifications:

      • Global Sensor: Sony 1/1.8" Exmor
      • SMPTE 424M (2.97Gbps) - 3GSDI:
        1920x1080p @ 50, 59.94, 60fps
      • SMPTE 292M (1.485Gbps) - HDSDI:
      • 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
        1920x1080i @ 50, 59.94, 60fps
        1280x720p @ 50, 59.94, 60fps
      • Environmental: -10°C ~ 50°C
      • Power Consumption: 6W

    • GTIN:

      0801813228632
