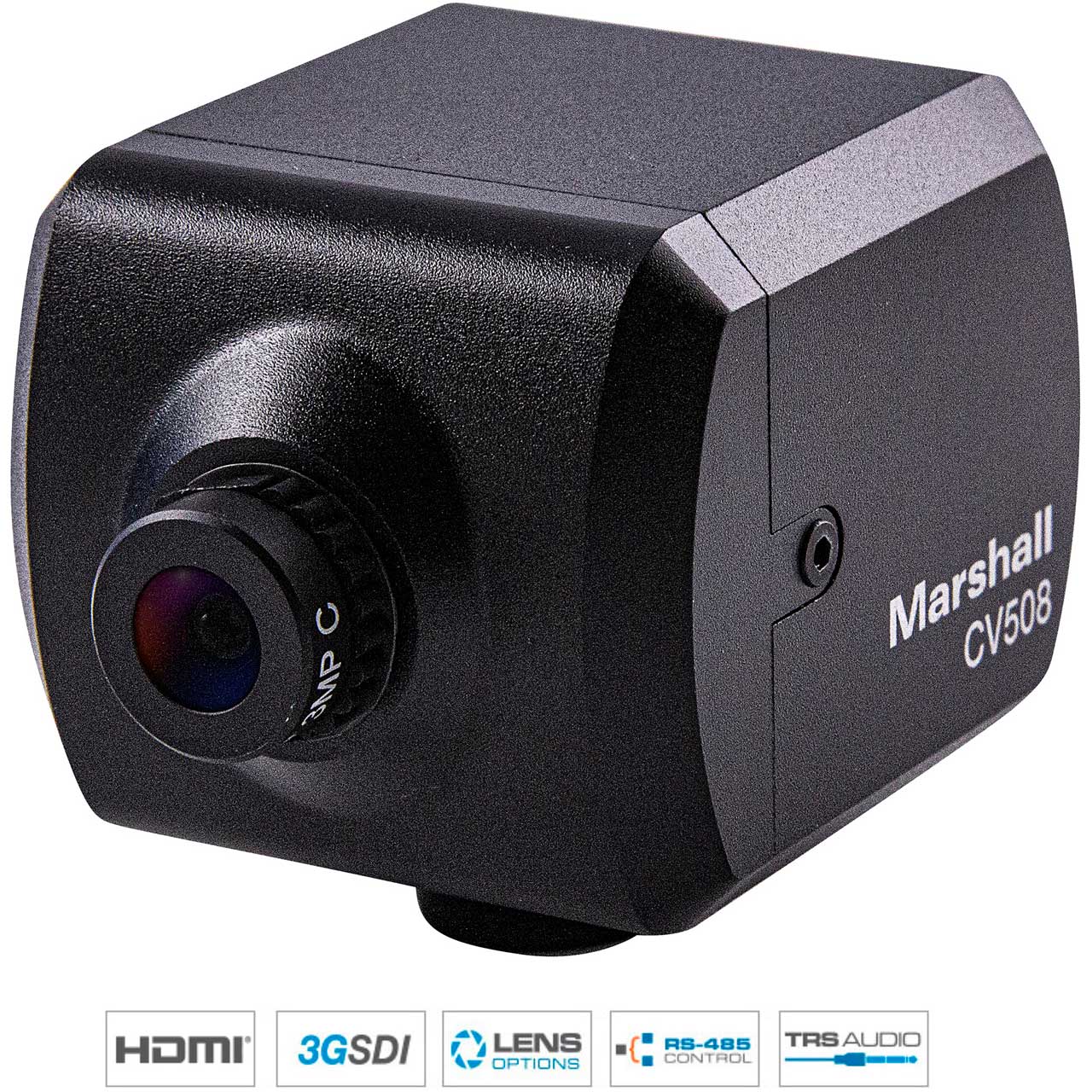

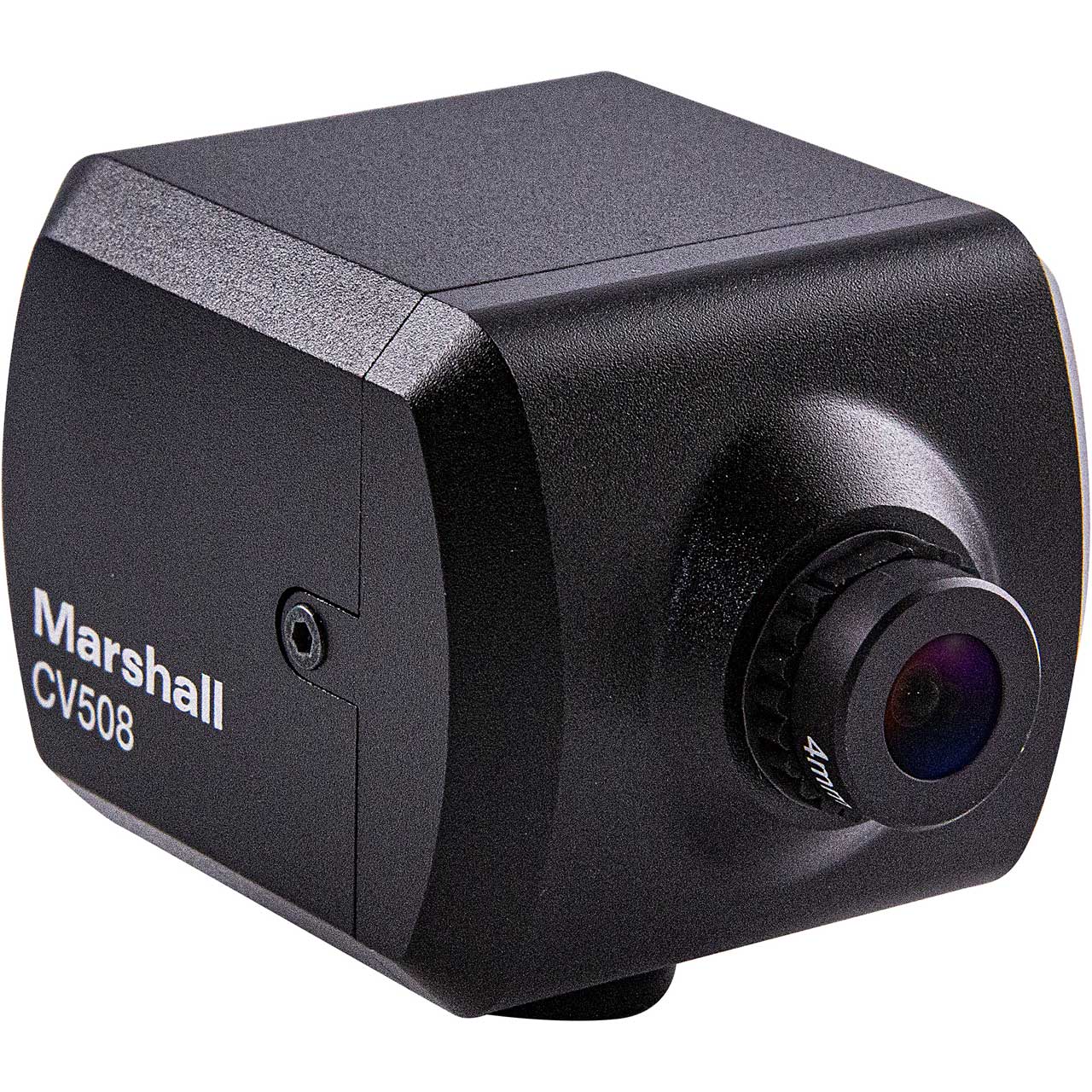

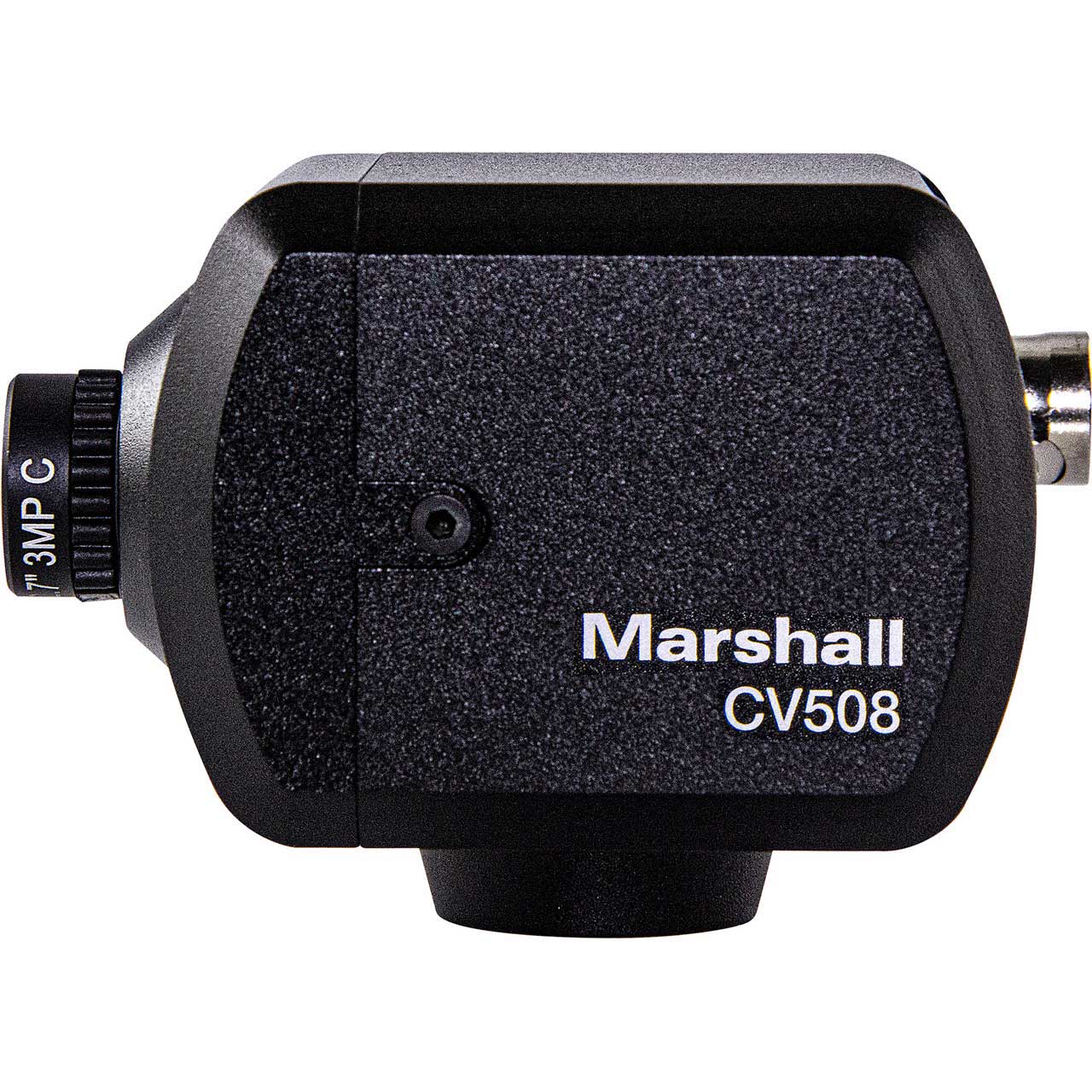

Marshall CV508 HDMI + 3GSDI 10-bit HD 4:2:2 Micro POV Broadcast Camera with 2.2MP Sony Sensor/4.0mm Lens & M12 Mount

ITEM #: MAR-CV508 MFG #: CV508

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    CV508 - Overview

    The Marshall CV508 camera is a broadcast quality POV camera delivering exceptional 10-bit HD 4:2:2 video performance (BT.709) from a durable and discreet aluminum alloy body with flexible interchangeable lenses. The new Sony sensor offers rich color accurate video with enhanced low-light sensitivity and refined remote adjust and match features making it the most powerful POV camera on the market.

    Sony 1/2.8" (6.46mm) Solid-Sate Image Sensors
    The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

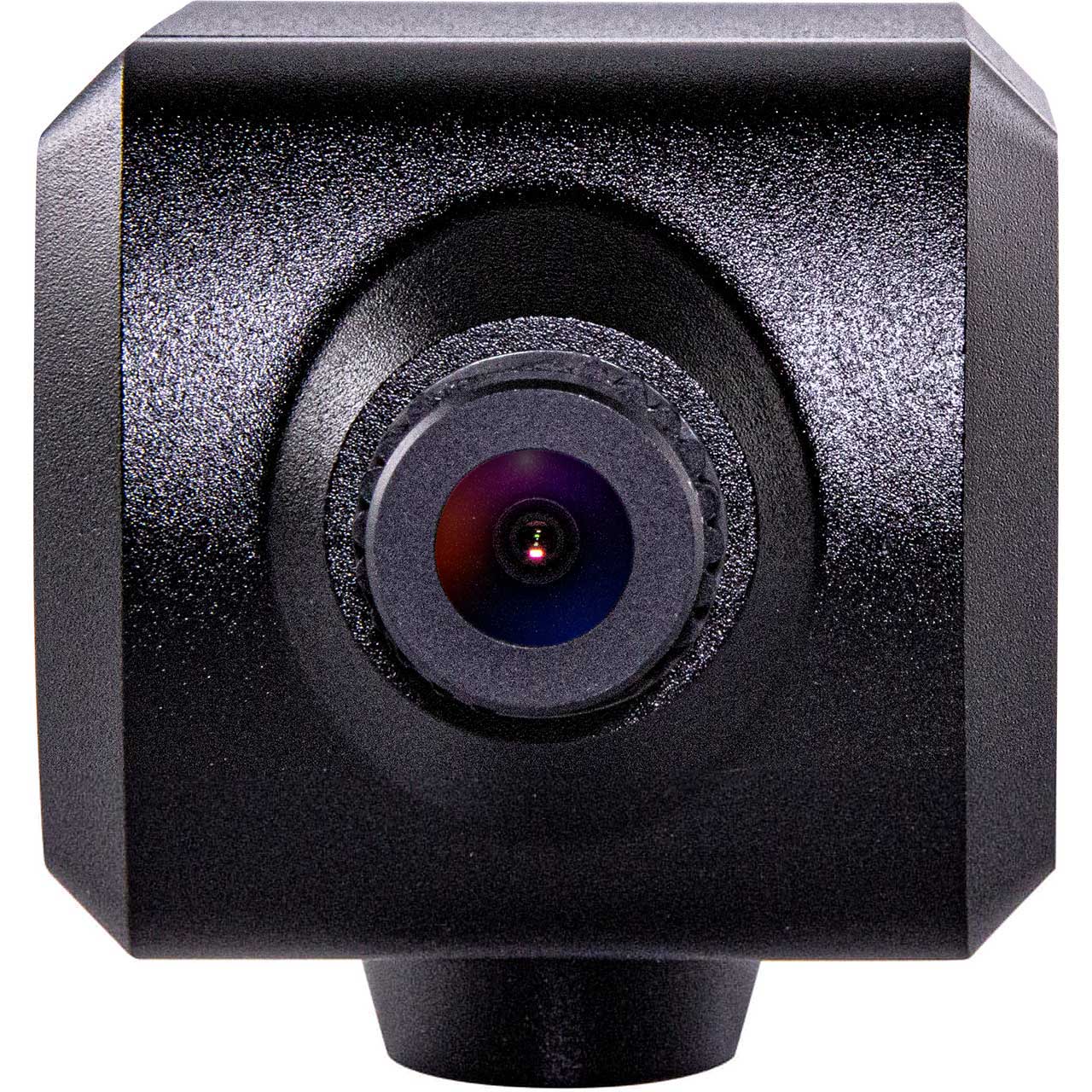

    Interchangeable M12 Lenses
    Marshall CV508 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

    Durable, Flexible, Powerful

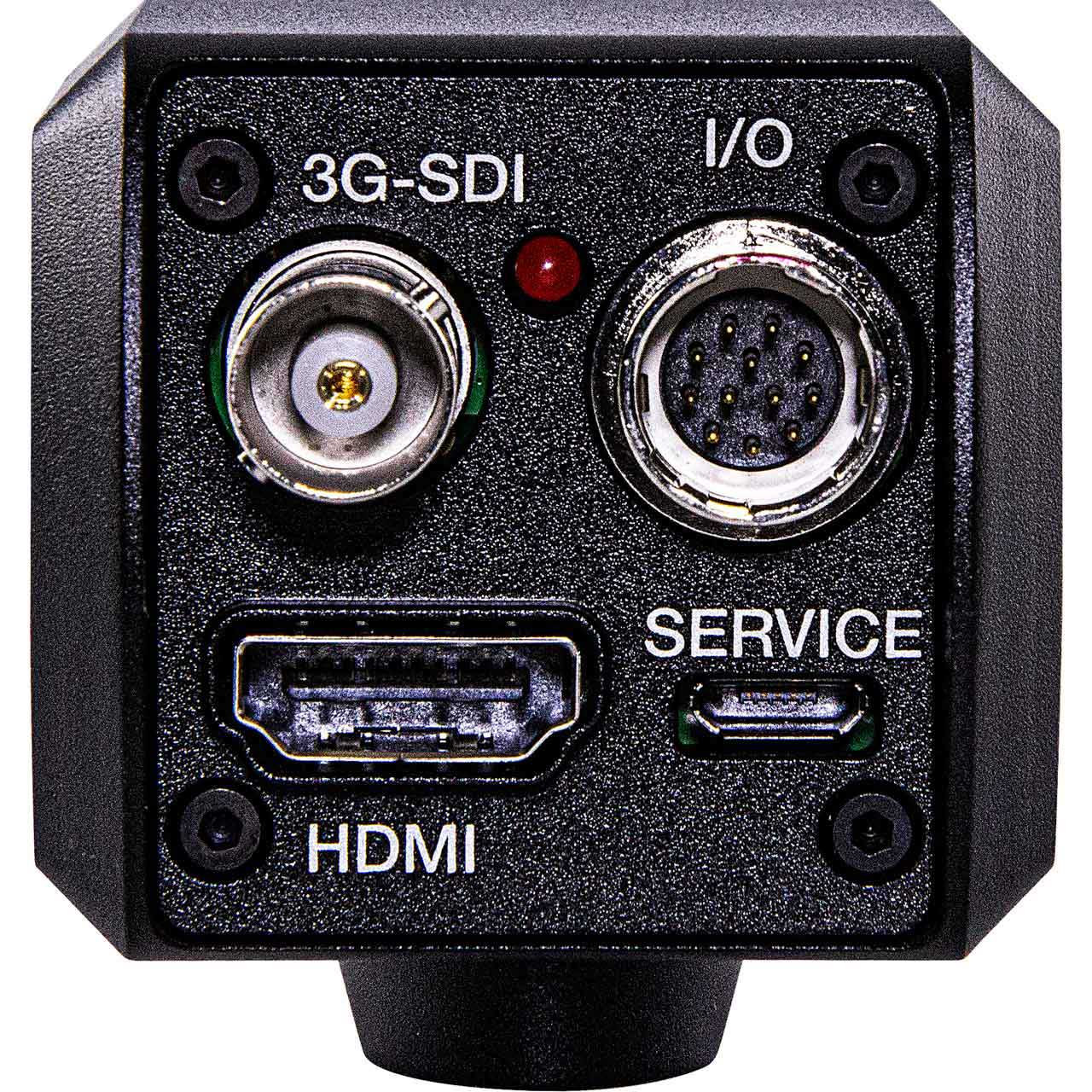

    The durable CV508 body is chiseled from a block of aluminum alloy with rear panel connector protection. CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

    Broadcast Performance
    Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

    Applications:
    The Micro CV508 is suitable for use in HDMI & 3GSDI workflows simultaneously where image quality, versatility and durability are of utmost concern, including live broadcast, production, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship, confidence monitoring, aerospace, and many, many more.

    • Features:

      • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
      • Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
      • HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
      • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
      • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
      • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
      • Micro-USB port for field upgradeable firmware via PC
      • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
      • Weight: 0.3lbs; approx dims: 40mm x 44mm x 55mm
      • Power: 12V+/-10% drawing 2.76W (max 6W)

    • Specifications:

      • Sensor
      • Image Sensor: Sony 1/2.8" IMX CMOS Solid-state Image Sensor with Square Pixel Array
      • Color: 10bit, 4.2.2, ITU BT.709
      • Pixel Size: 2.9 µm x 2.9 µm
      • Effective Pixel: 1920 (H) x 1080 (V) - 16:9 HD ratio
      • Min. Illumination: 0.01Lux (Day), 0.005Lux (Night)

        Optics
      • Lens: Interchangeable M12, 4mm (85° H.AOV) (included)

        Functions
      • Back Light Compensation: WDR, BLC, HLM
      • Exposure: Auto / Manual / AGC Fix / Shutter Fix
      • White Balance: ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push
      • Day & Night: System Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism
      • Electronic Shutter: 1/30~1/10000
      • Privacy: Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom, DIS (Digital Image stabilizer), NegArt, Freeze

        Video Outputs
      • HDSDI SMPTE 292M(1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30. 1920x1080i @ 50, 59.94, 60. 1280x720p @ 50, 59.94, 60
      • 3GSDI SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60fps, 800mVp-p, 75Ω, unbalanced generator (single-ended)
      • HDMI (+Audio): Only HDMI 1.3 compliant on simultaneous to 3GSDI outputs

        Audio Input
      • MIC Input: TRS Stereo, Mic/Line Level input with 2.5V Mic bias, 48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps

        Control Interface
      • Visca over RS485: SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200

        General
      • Operation Temperature: -10°C ~ 50°C
      • Power Input: 12V DC (7V to 15VDC)
      • Power consumption: Max 6W = 2.64W

    • Item Includes:

      • 1x CV508 POV Broadcast Camera
      • 1x 4.0mm (85° H.AOV) prime lens
      • 1x Locking Hirose cable

    • GTIN:

      0801813230956
