Marshall CV610-U3W-V2 Compact USB3.0 10x Optical Zoom AF UCC Conference Streaming PTZ Camera with HDMI/CVBS Out - White

ITEM #: MAR-CV610-U3W-V2 MFG #: CV610-U3W-V2

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


Items similar to the MAR-CV610-U3W-V2

CV610-U3W-V2 - Overview

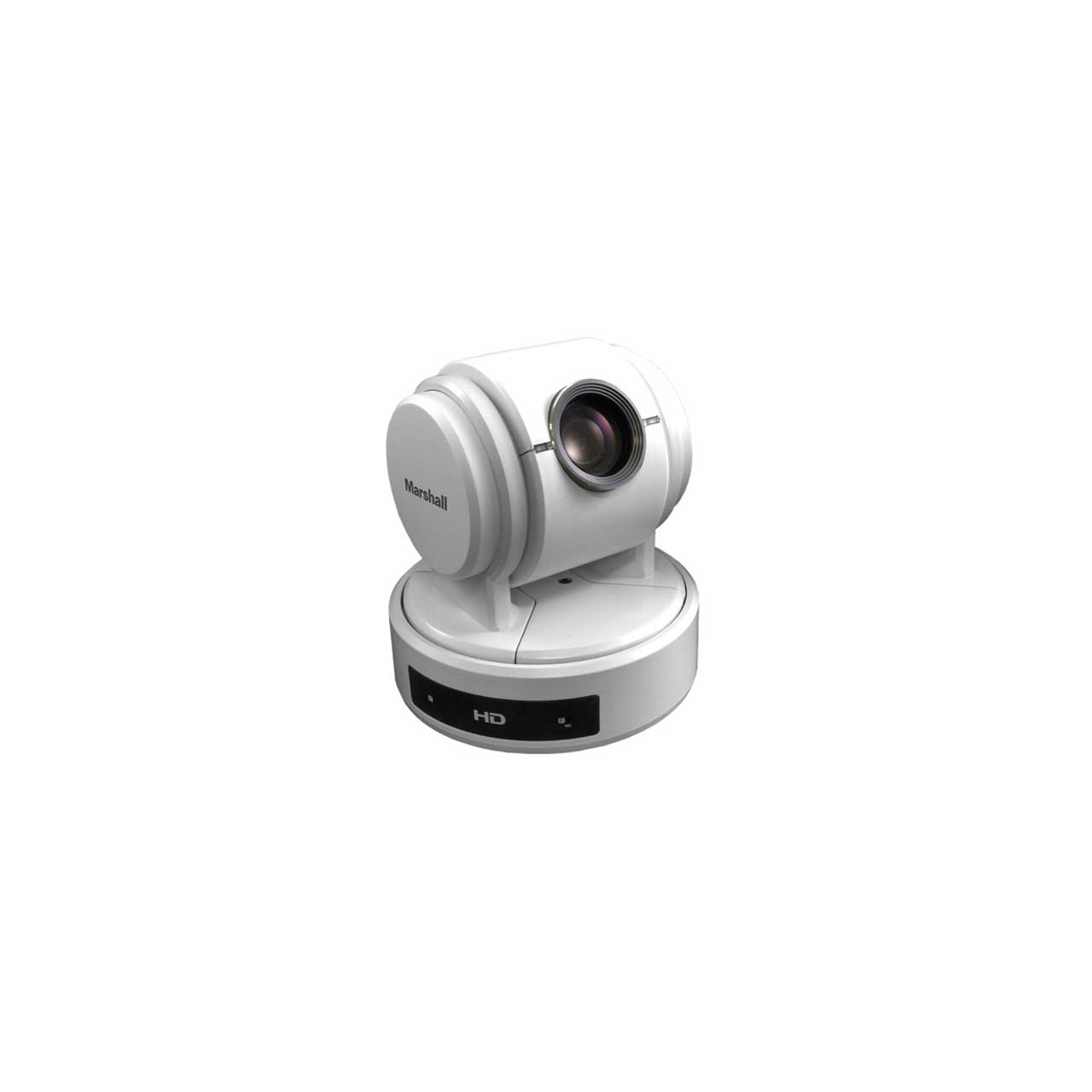

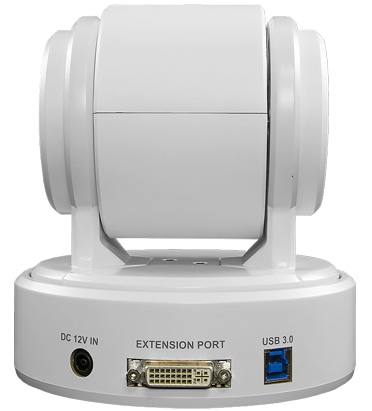

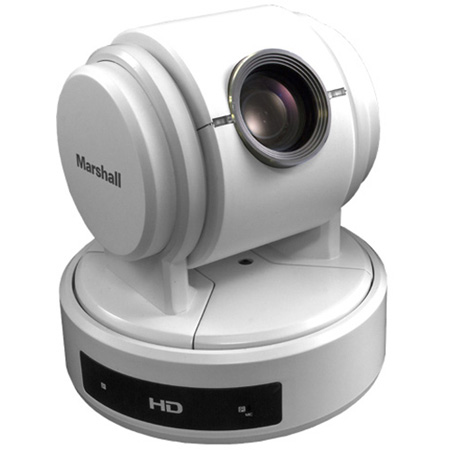

Marshall's new second-generation CV610-U3W-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The CV610-U3W-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3W-V2 was developed to deliver next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps, and 1280x720 at 60/50/30/25 fps.

Professional AV
Corporate Boardrooms
Remote Learning
Houses of Worship
Live Events
Broadcast Multimedia

  • Features:

    • 2-Megapixel HD Sensor
    • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
    • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
    • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
    • Full-HD resolutions: 1920x1080p, 1280x720p
    • Frame rates: 60, 50, 30, 25 fps
    • HDMI output resolution can be set independently of USB output resolutions
    • Onboard audio mic & 3.5mm TRS audio jack (optional input)
    • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
    • Up to 128 presets with quiet, smooth transitions
    • Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0
    • Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera
  • Item Includes:

    • 1x PTZ Camera
    • 1x Power Adapter and Power Cord
    • 1x IR Remote Controller (3V CR2032 Coin Lithium Battery Required)
    • 1x Camera Extension Module
    • 1x USB3.0 Cable
