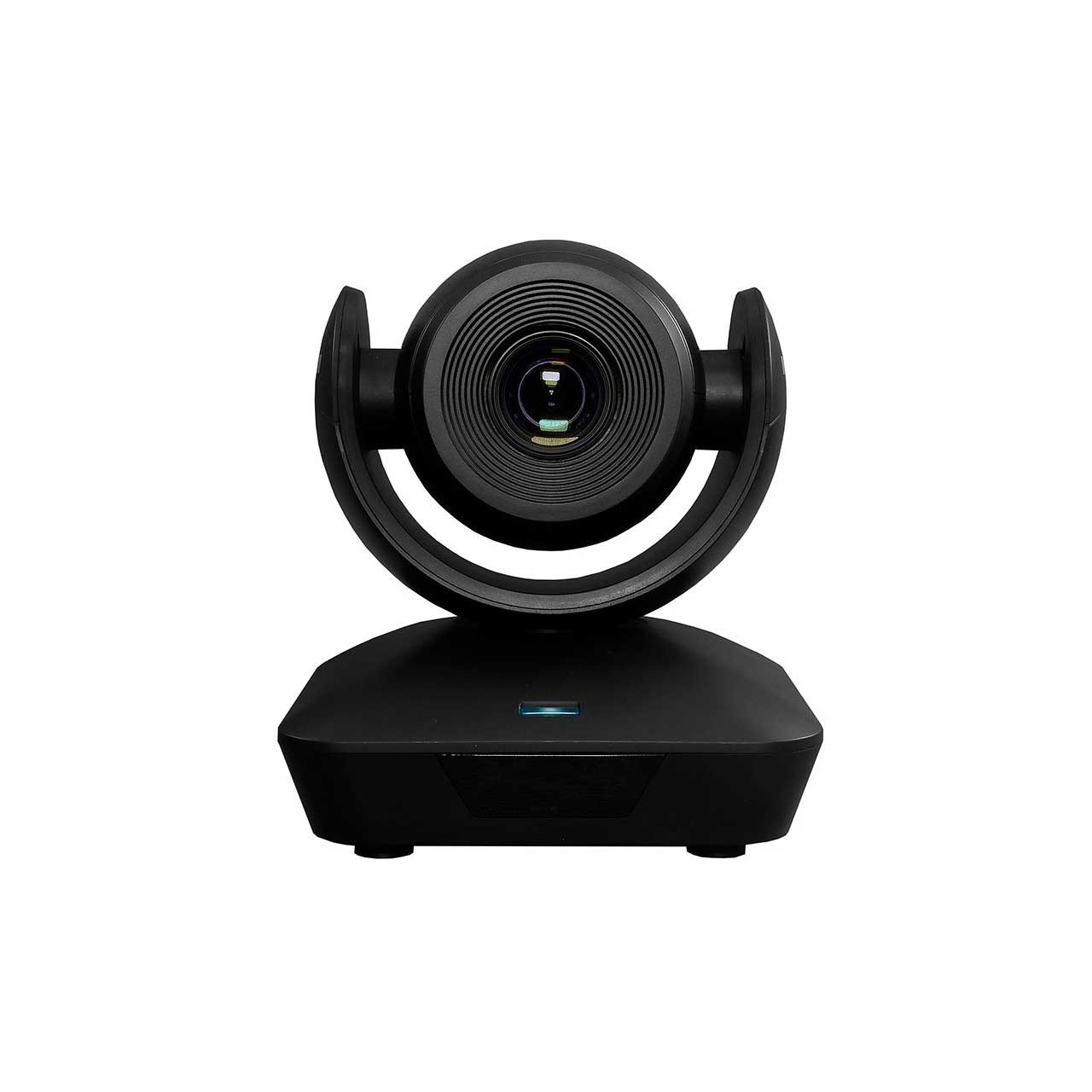

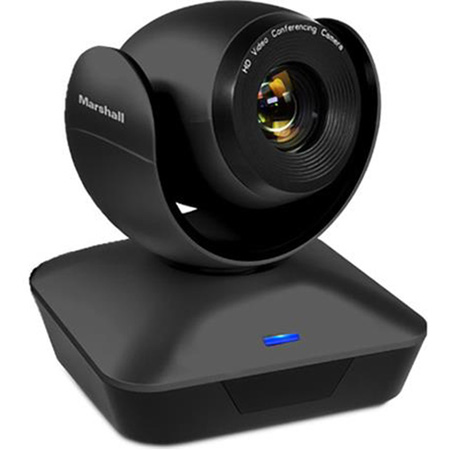

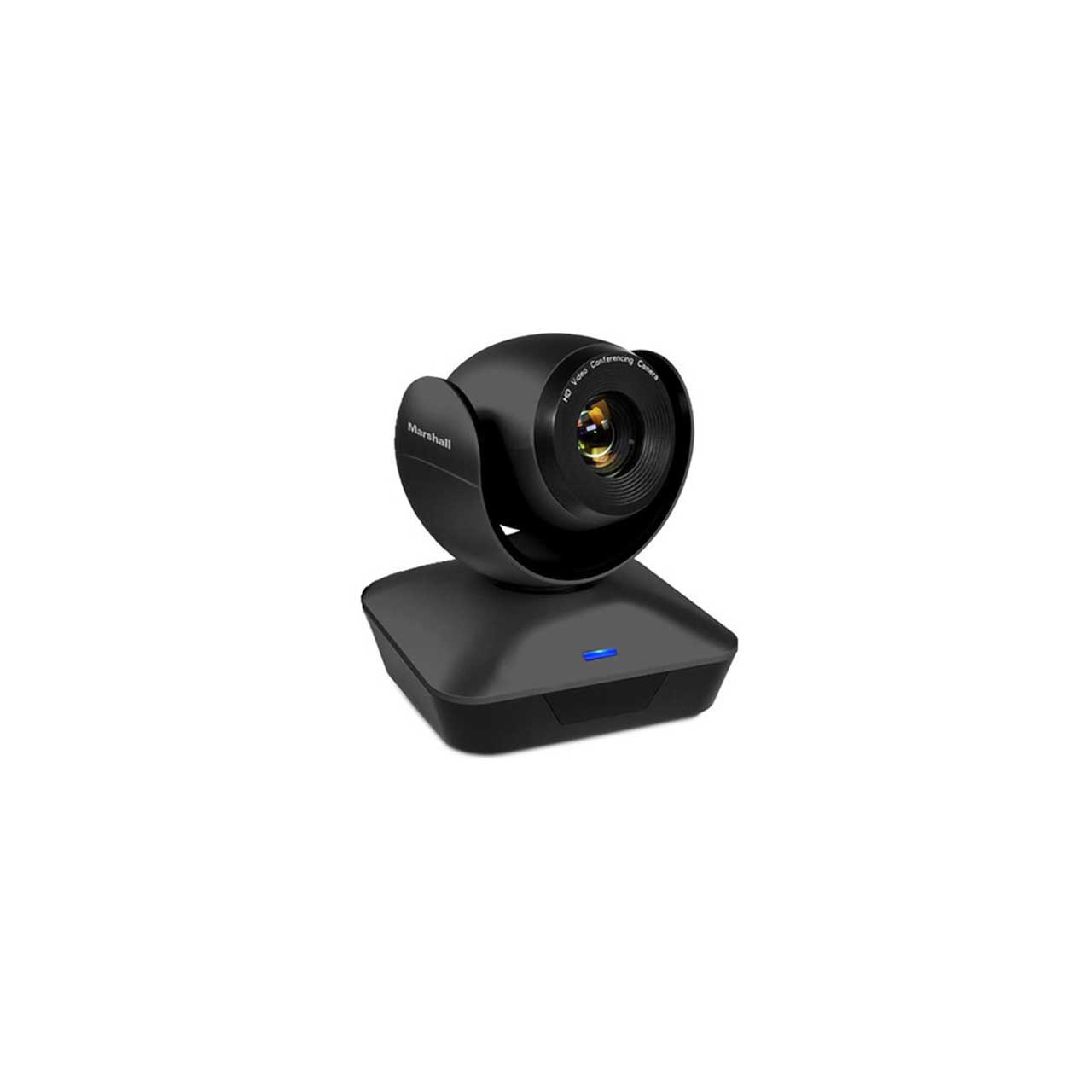

Marshall AV-CV610-U2 USB 2.0 10x (4.7-47mm) 5MP Streaming PTZ Camera (1080p 720p 480p) - USB 2.0 UVC Protocols - Black

Name: Marshall AV-CV610-U2 USB 2.0 10x (4.7-47mm) 5MP Streaming PTZ Camera (1080p 720p 480p) - USB 2.0 UVC Protocols - Black
Brand: Marshall Electronics
SKU: MAR-CV610-UB

ITEM #: MAR-CV610-UB MFG #: CV610-UB

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-CV610-UB

Panasonic AW-UE160KPJ 4K PTZ Camera with OLPF - SMPTE ST2110 Standard Compatible - BlackOur Price: $14,495.00
OBSBOT Tail Air Auto-Director 4K PTZ Streaming Camera w/ AI Tracking - Supports NDI - 4K at 30fps/1080p at 60fpsOur Price: $499.00
BZBGEAR BG-ADAMO 12x 4K UHD Auto Tracking 12G-SDI/USB 2.0/3.0/NDI HX Live Streaming PTZ Camera with Tally Lights - WhiteOur Price: $2,799.00
PTZOptics PT30X-SE-GY-G3 Move SE 30x 1080p60 PTZ Camera with 300ft Range Auto-Tracking - HDMI / SDI / USB and IP - GrayOur Price: $1,199.00

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

CV610-UB - Overview

Marshall Electronics CV610-UB Teleconference PTZ Camera is designed to deliver broadcast quality video to Teleconference, Pro A/V, and computer interface applications where USB2.0 connectivity is required. Easy setup and easy integration into video-conference software (UVC1.5 protocol standard).

Features:
- 5 Megapixel 1/2.8-inch Sensor
- USB2.0 video output
- Full-HD Video: 1920x1080p, 1280x720p, 640x480p
- Frames per Second: 30fps, 15fps, 8fps
- 10x Optical Zoom 4.7~47mm (F1.8~14) - 12x Digital Zoom
- Angle-of-View: 62.5° wide, 6.5° telephoto
- Pan-Tilt Range: 340 degree Horizontal Pan Range - 120 degree Tilt Range
- Control via common PC GUI software, IR Remote, RS232, RS485, USB2.0
- Integrate into a variety of familiar UC video programs (UVC1.5 protocol)
- USB2.0 and 12V Power Cord included with camera
- Up to 128 presets
Specifications:
- Video Format: MJPG - 1080P30, 720P30, 640*480P30
- Video Port: USB2.0
- Sensor: 1/2.8 inch high quality 5MP CMOS sensor
- Lens: F4.7~47.mm(10X), F1.8 - 14, Field of view: 62.5°(wide)-6.43°(tele)
- Pan/tilt Rotation: Pan: ±170°; Tilt:-30°~+90°, support up-side down installation
- Pan/tilt Speed: Pan: 0.1°-120°/s; Tilt: 0.1°-80°/s
- Preset: 10 via IR remote setting, 128 via VISCA control, preset accuracy :0.1°

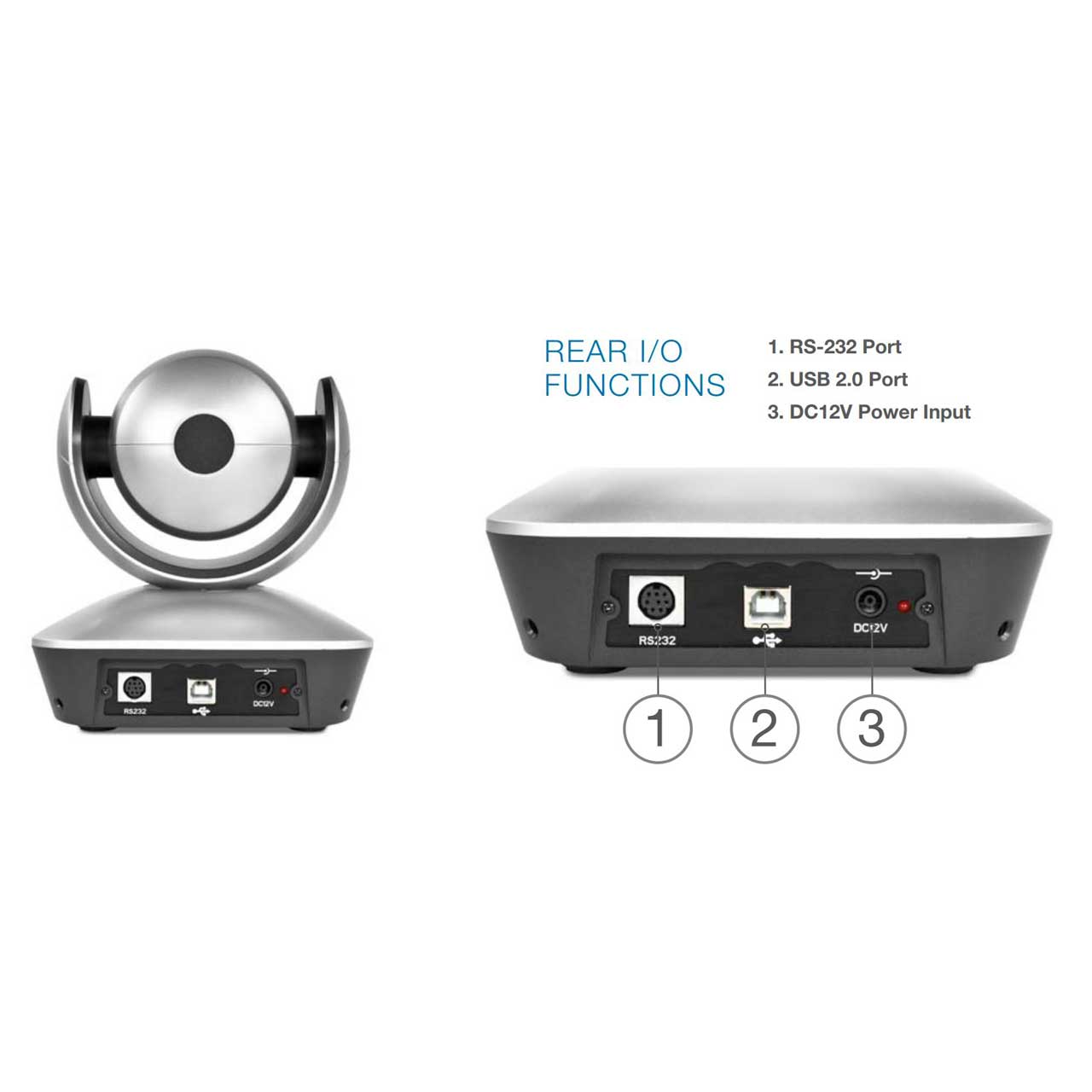

- Control Port: RS232, RS485, USB2.0
- Min. Lux: 0.01lux
- White Balance: Auto/Manual
- Focus: Auto/Manual
- Iris: Auto/Manual
- Shutter: Auto/Manual
- WDR: Supported
- BLC: Supported
- 2D Noise Reduction: Supported
- 3D Noise Reduction: Supported
- Input Voltage: DC12V
- Dimension: 5.82 x 5.19 x 6.34" (148 x 132 x 161mm)
- Net weight: 2Lbs (0.9kg)
GTIN:
0801813191158
