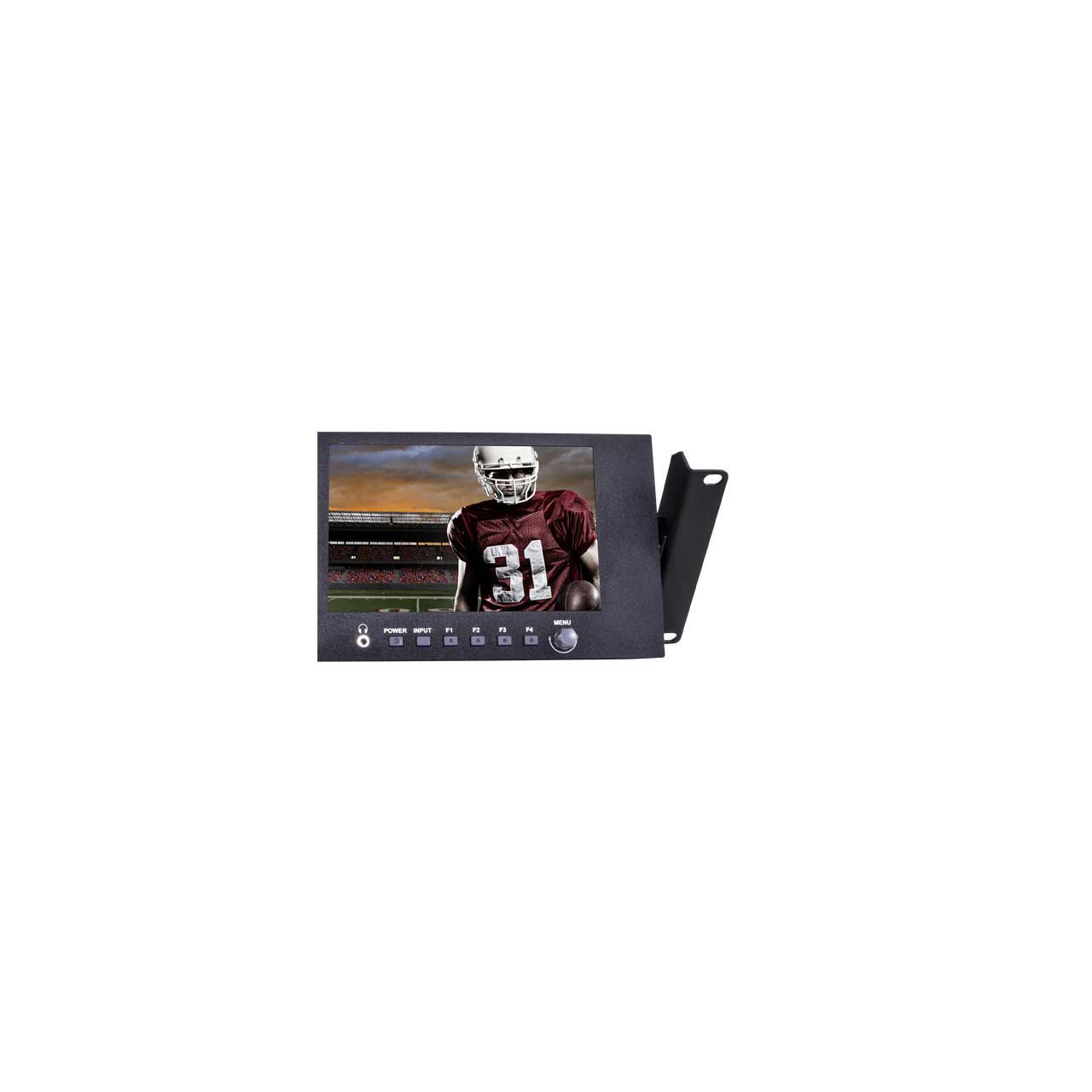

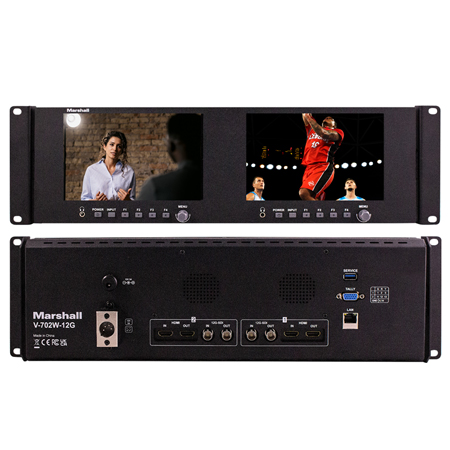

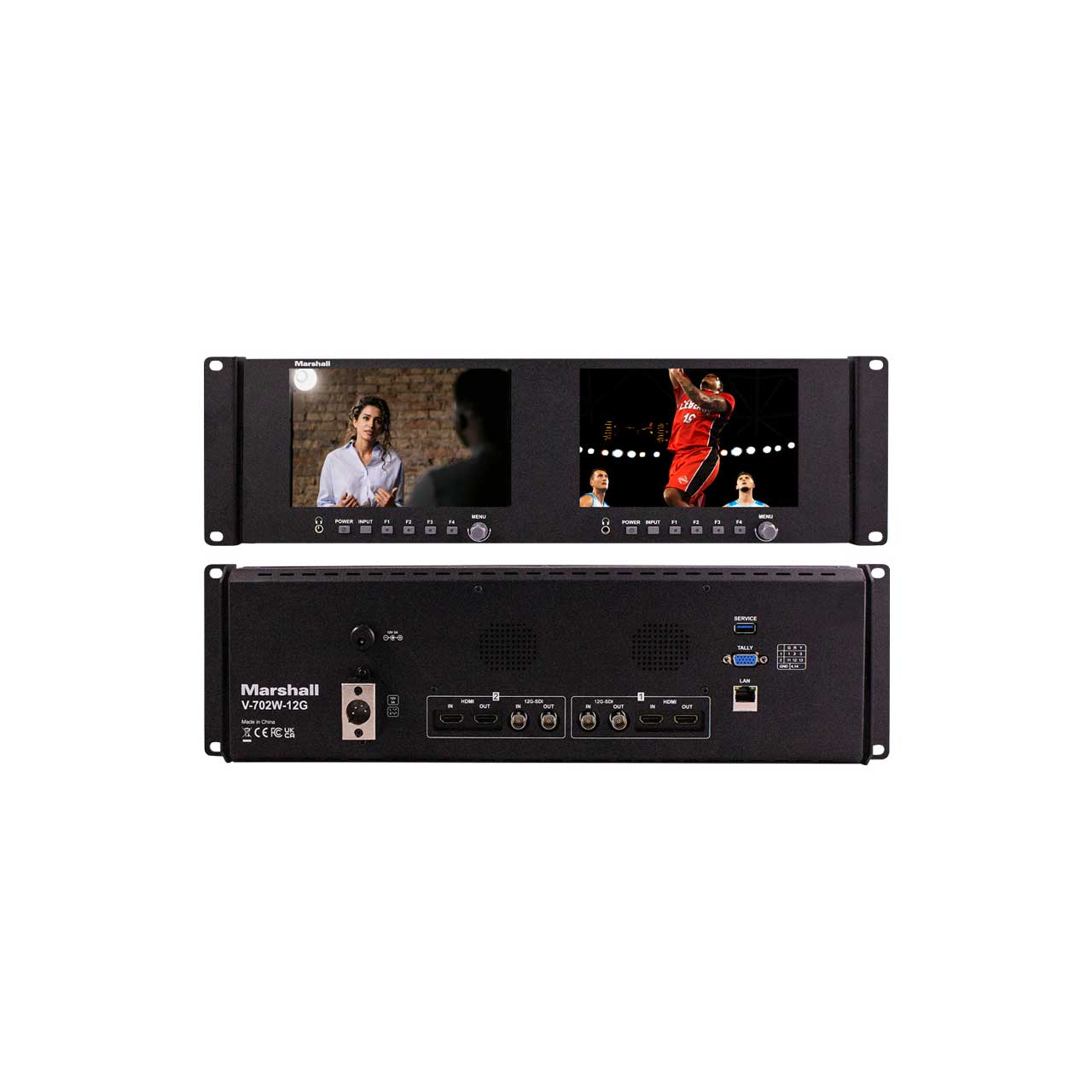

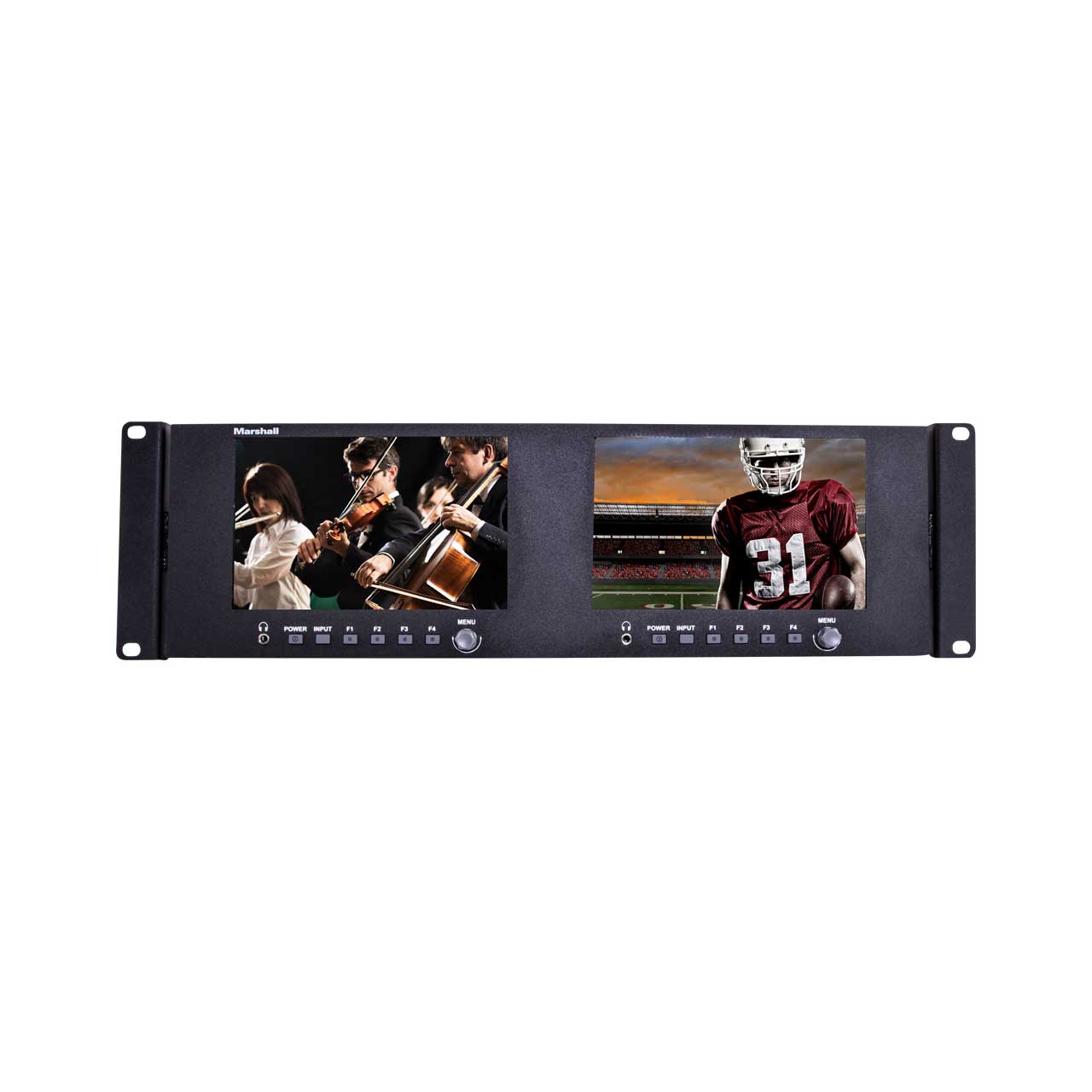

Marshall V-702W-12G Dual 7-Inch 3RU Rackmount 12G Monitor with Waveform / HDMI and 12G-SDI Inputs

ITEM #: MAR-V-702W-12G MFG #: V-702W-12G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-V-702W-12G

V-702W-12G - Overview

The Marshall V-702W-12G dual 7" LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. The V-702W-12G adds multiple analysis functions to a monitors with great images and pricing. Features like Waveform Monitor, Vectorscope, Audio Phase, HDR modes, S-Log conversions and user LUT's (with split-screen comparison) makes this monitor a versatile QC platform.

Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

Split-Screen Comparison
Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.

Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.

  • Features:

    • Dual 7" rack mount, 1920 x 1200 resolution, typical brightness 450 cd/m² and contrast 1100:1
    • SDI input/loopout supports up to 12G (3840x2160p60 and 4096x2160p60); HDMI input/loopout supports up to 3840x2160p60 and 4096x2160p60
    • Audio out from 3.5mm headphone jack
    • Waveform and vectorscope
    • Display 3D LUT Support: 8 built-in logs and 6 user defined logs
    • 4 user defined function buttons
    • On-screen tally indicators
    • GUI control via Ethernet
    • Other main features include Color space, Gamma adjust, HDR, safety marker, aspect marker, center marker, scan modes, aspect ratio, H/V delay, check field, image freeze, peaking, false color, exposure level, histogram, time code, audio meter


  • Specifications:

    • Number of Panels: 2
    • Panel Size: Dual 7-inch
    • Resolution (Pixels): 1920 x 1200
    • Aspect Ratio: 16:9
    • Viewing Angle: 160° / 160° (H/V)
    • Brightness (in cd/m2): 450
    • Backlight type: LED
    • Compatible Input Formats: Video Formats via SDI Input: SDI input/loopout supports up to 12G (3840x2160p60 and 4096x2160p60) Video Formats via HDMI Input: HDMI input/loopout supports up to 3840x2160p60 and 4096x2160p60
    • Audio Output: Headphone jack, 3.5mm mini-phone
    • Power Supply: Included
    • Weight: 5.2 lbs, 2.32 Kg
    • Size: 19" W x 5.3" H x 1.2" D


  • Item Includes:

    • 1x Power supply
    • 1x Rack Ears with adjustable tilt
