Magenta 2211108-01 CFS-HDMI-TX2 Compact 2-port Fiber Optic TX HDMI (HDCP) Audio & RS-232

ITEM #: MGE-2211108-01 MFG #: 2211108-01

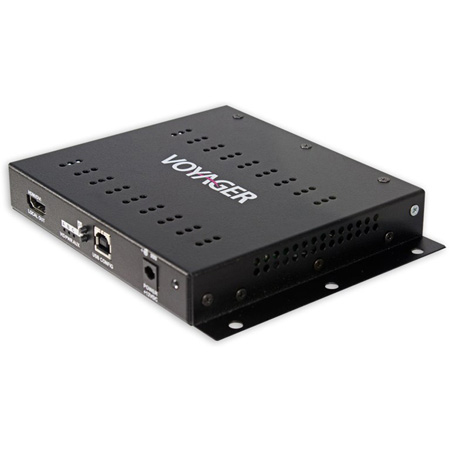

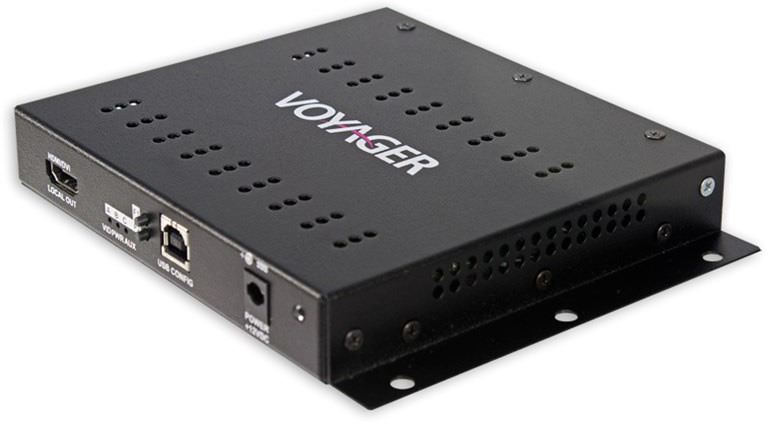

  • Product Image Thumbnail 1 of 3

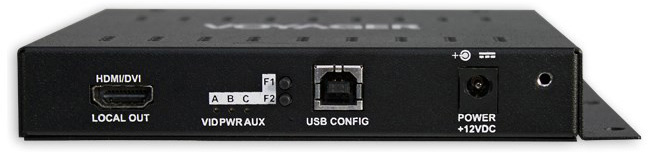

  • Product Image Thumbnail 2 of 3

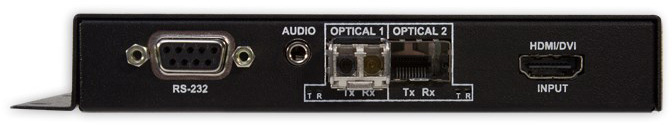

  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$830.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    2211108-01 - Overview

    The Magenta Research CFS-HDMI-TX2 extends 1920 x 1200 uncompressed HDMI or DVI video, audio, and serial signals up to 6,600' (2km) over multi-mode fiber optic cables. The transmitter has a small form factor and can be easily and securely mounted behind a screen or other small areas via the built-in mounting flange. Its range can be extended to up to 2.5 mi (4km) and 18.6 mi (30km) by using optional single-mode fiber optic modules (sold separately).

    While it ships with one MMF SFP standard module, the CFS-HDMI-TX2 Transmitter features a second port that, when populated with a second SFP (sold separately), introduces a variety of signal distribution options. For example, you could cascade signals to a second transmitter, or feed a second grouping of Voyager receivers (which can be daisy-chained).

    • Features:

      • Two duplex fiber optic output ports
      • Small form factor makes mounting easy
      • Uncompressed multi-format video at 1920 x 1200 resolution
      • Transmission range of up to 18.75 mi (30km) using optional single-mode fiber optic modules
      • Single-mode and multi-mode fiber support (single-mode modules sold separately; one MMF module included)
      • Advanced EDID management and HDCP compliance; supports EDID/DDC connections on HDMI connectors
      • Local HDMI output
      • Recognizes all 8 channels (if present) of embedded HDMI audio, passing them through the system to the receiver
      • Video Output Formats: The local port is essentially a direct copy of the video input port, but the output video color-space is always RGB regardless of the input video color space
      • In the Box
      • Magenta Research Voyager CFS-HDMI-TX2 2-Port Compact Format Standalone HDMI/DVI Transmitter with HDCP
      • Multi-Mode Fiber Optic SFP Module

    • Specifications:

      • Maximum Resolution: 1080p, 1920 x 1200
      • Color Depth Maximum: 24 bits/pixel (8 bits/color)
      • Refresh Rate Maximum: 60 Hz @ 1920 x 1200
      • Connectors Input: 1 x HDMI; Output: 1 x HDMI; 1 x CORE docking connector
      • HDMI: Version 1.3b
      • HDCP: Version 1.1; Classification: HDCP repeater device
      • Power: Approximately 0.5 W
      • Operating Temperature: 32 to 104°F (0 to 40°C)
      • Storage Temperature: -4 to 140°F (-20 to 60°C)
      • Humidity: 80% RH, non-condensing
      • Enclosure: Steel
      • MTBF: 100,000 hours
      • Dimensions (L x W x H): 1.75 inch x 5.50 inch x 5.25 inch (4.45 x 13.97 x 13.33 cm)
      • Weight: 1.4 lb (0.6 kg)
      • Package Weight: 2.25 lb
      • Box Dimensions(L x W x H): 9.5 inch x 8.4 inch x 3.0 inch

    • Item Includes:

      • Magenta Research Voyager CFS-HDMI-TX2 2-Port Compact Format Standalone HDMI/DVI Transmitter with HDCP
      • Multi-Mode Fiber Optic SFP Module
