Magewell 53110 Ultra Encode HDMI Capture Card - Universal Encoder - H.264/H.265

ITEM #: MGW-53110 MFG #: 53110

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Magewell
Free Shipping with $49 Minimum Order

List Price:

$469.00

Our Price:

$459.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    53110 - Overview

    The Magewell Ultra Encode HDMI universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

    Ultra Encode HDMI supports multiple video encoding formats - including H.264, H.265 (HEVC), and NDI®|HX2 - and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, TS over UDP, TS over RTP, and TVU's ISSP technology.

    Ultra Encode HDMI is ideal for broadcast video and audio, natively support live broadcast for Facebook, YouTube, and Twitch, as well as your own site, with multiplatform distribution. To customize encoder perfectly for your session, we have Web UI, where device work status, a thumbnail preview window and tabs for streaming settings, analytics, and stream health monitoring are provided.

    • Features:

      • Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/HLS/TS over UDP/TS over RTP/TVU ISSP streaming protocols
      • Dual stream encoding - main-stream and sub-stream
      • 8 overlays for main and sub streams each
      • Specify main stream or sub stream for each streaming session
      • H.264 and H.265 (HEVC) Video encoders
      • AAC Audio encoder
      • Web UI - a remote network management system - provides webpage configuration with kinds of customization for device functions


    • Specifications:

      • Input Features
      • Video:
      • Supports HDMI 1.4a, DVI-D
      • Typical resolution/frame rate:
      • 4096x2160 60fps 4:2:0
      • 4096x2160 30fps 4:4:4/4:2:2
      • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
      • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
      • 1920x1080i 25/29.97/30/50/59.94/60
      • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
      • 720x576p 50/100/144
      • 720x576i 25/50
      • 720x480p 59.94/60/144
      • 720x480i 29.97/30
      • Color depth: 8/10/12-bit
      • Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
      • Custom EDID
      • Audio:
      • HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
      • Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

        Encode:
      • Video
      • Bitrate: 16Mbps
      • Dual-stream encoding: main stream and sub stream
      • Main stream Resolution/frame rate:
      • 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
      • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
      • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
      • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
      • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
      • Sub stream:
      • Supports enabling/disabling sub stream
      • Resolution/frame rate:
      • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
      • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
      • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
      • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
      • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
      • H.264/H.265 (HEVC) Codec:
      • System timecode or RP-188 standard timecode for SEI Message setting
      • H.265 (HEVC) SEI message supports carrying interlacing signal mark
      • Video aspect ratio conversion
      • Audio:
      • Encode up to 4 audio streams
      • Encoding 2-channel AAC
      • Bitrate: 256/192/128/96/64/48/32/16 kbps
      • Output source embedded audio and line in through LINE OUT

        Live Stream
      • Natively supports streaming to:
      • Twitch
      • YouTube, publishing to timeline or a new event and setting "made for kids".
      • Facebook, enabling backup stream and publishing to timeline or a new event.
      • Supports streaming protocols:
      • RTSP
      • RTMP/RTMPS
      • SRT Caller/SRT Listener
      • NDI®|HX2
      • HLS
      • TS over UDP/TS over RTP
      • TVU ISSP
      • Supports sessions over the same streaming protocol, such as: up to 6 sessions of TS over RTP and TS over UDP simultaneously; up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously); up to 6 sessions of RTMP and RTMPS simultaneously
      • Supports streaming only 1 session of HLS, RTSP, or NDI|HX2
      • Supports specifying a video stream and an audio stream for each streaming session

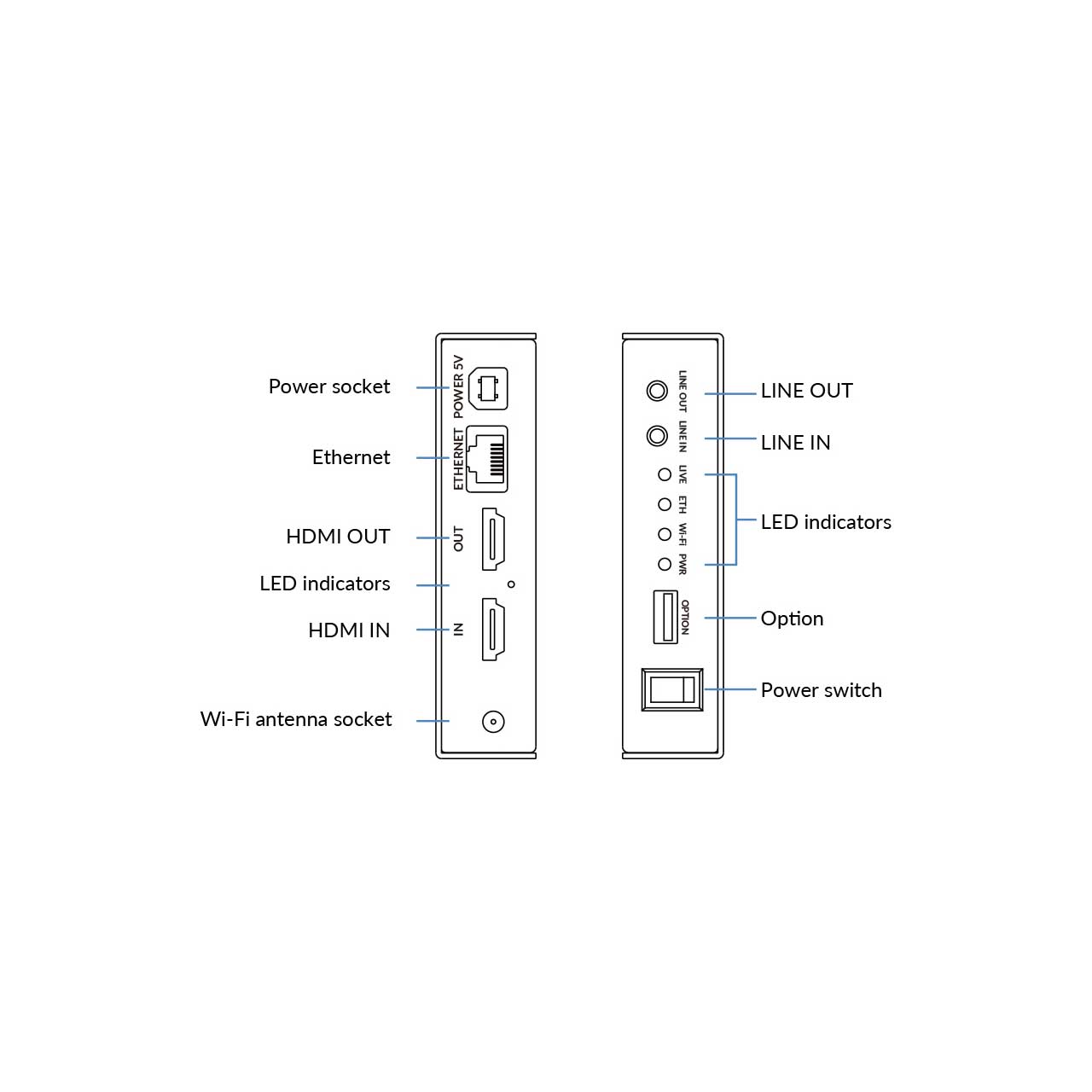

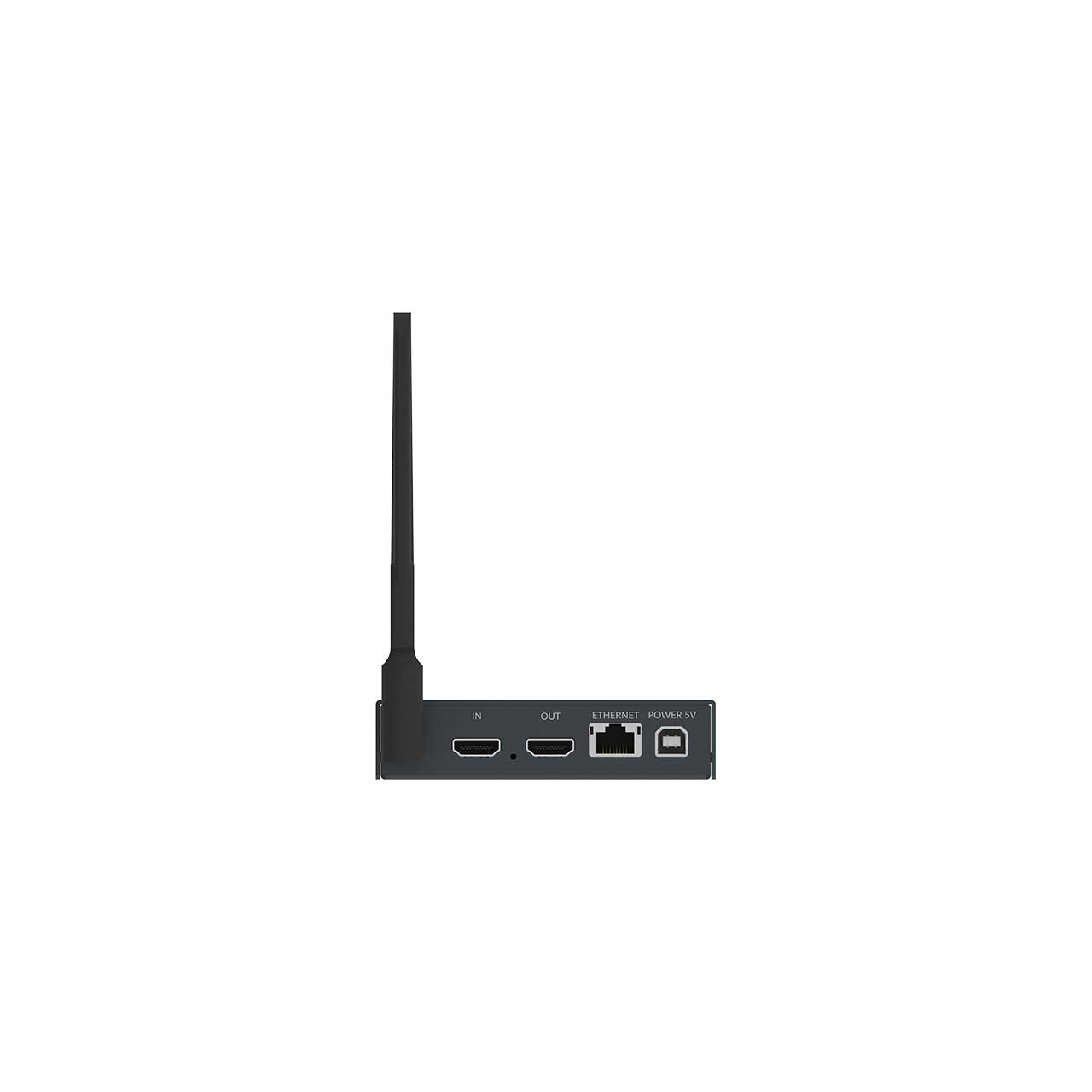

        Inputs/Output Ports
      • 2x HDMI ports (1x Input, 1x Loop-through)
      • 1x 3.5mm LINE IN
      • 1x 3.5mm LINE OUT
      • 2x USB Type-A


    • Item Includes:

      • 1x 5V Power Adapter
      • 1x HDMI Cable
      • 1x USB Type A to Type B cable
      • 1x Wi-Fi Antenna
      • 1x T-bracket


    • Warranty:

      • 2-Year Limited Warranty
