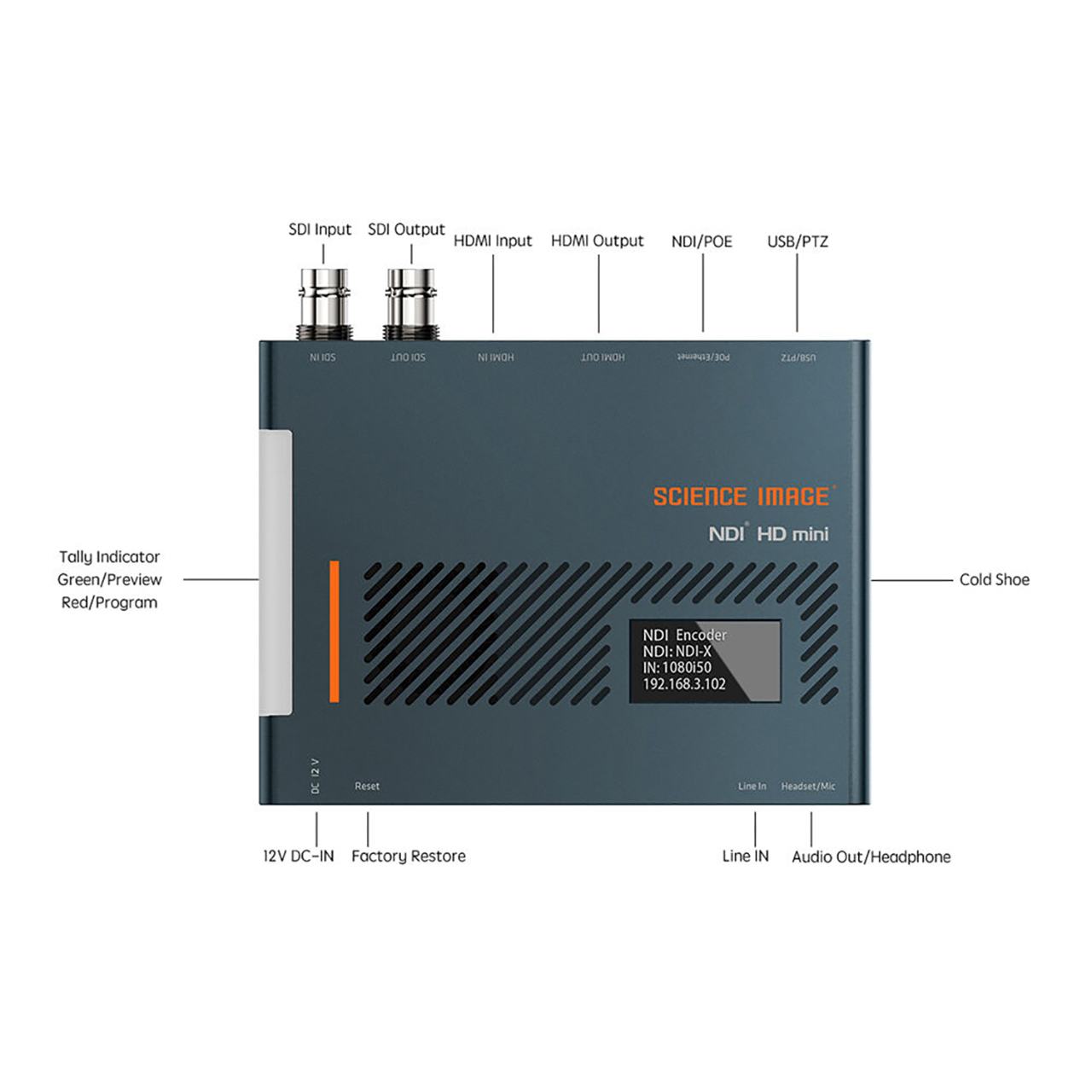

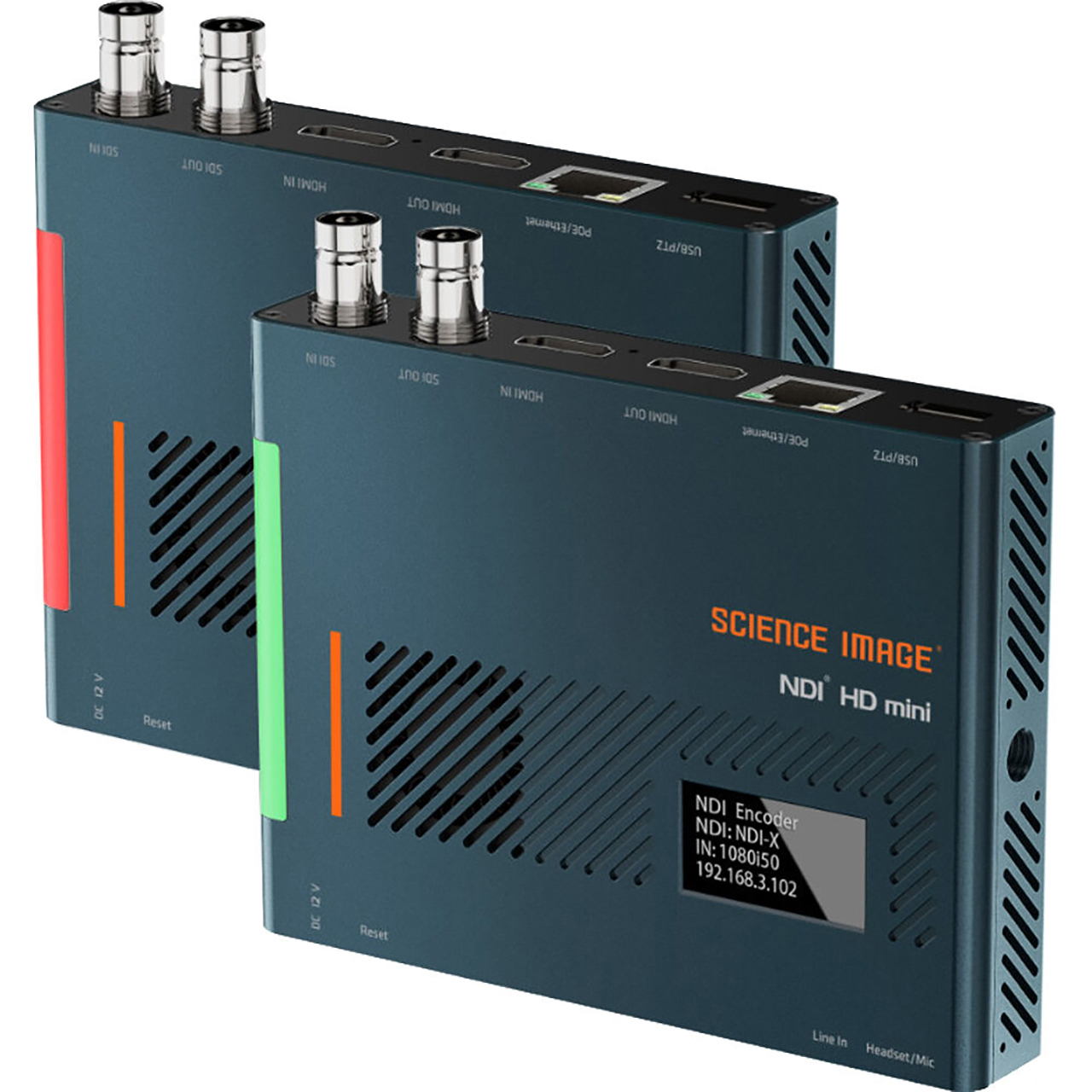

This cost-saving pair of two compact Science Image NDI HD Mini Bidirectional 3G-SDI/HDMI Encoder/Decoders features both 3G-SDI and HDMI 1.4 inputs and outputs that can encode or decode full NDI video up to 2160p30 with a small form factor. A large, matte tally light on the side of each device makes it ideal for use in live production environments. The design of these units features a 1.3" OLED display screen, which shows the unit's working status and parameters as well as input and output in real time.
Encoding/Decoding In One Key Switch

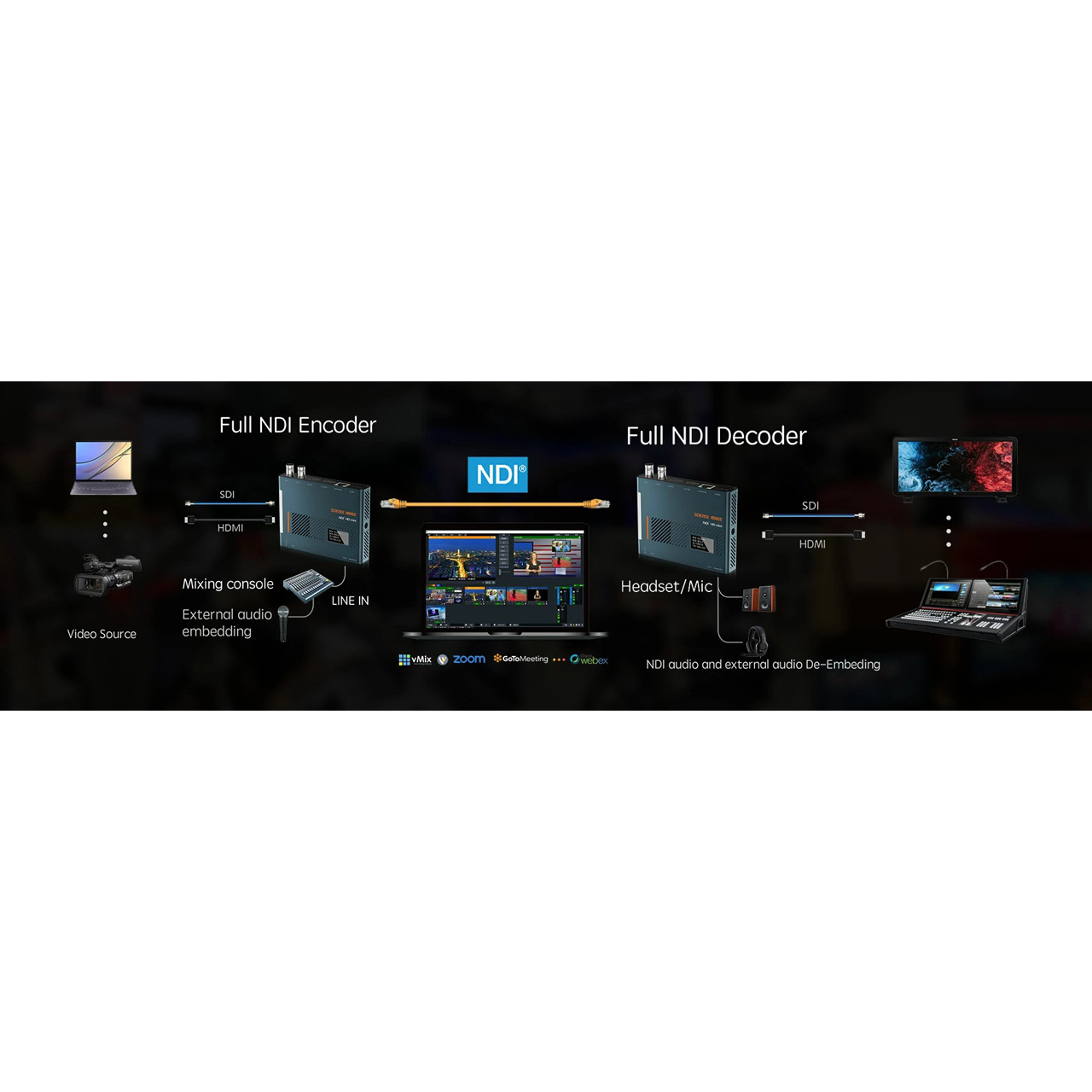

Switch Full NDI encoding and decoding with one key; Support 3G-SDI and HDMI 4K30 or below any SMPTE standard format input; Full NDI encodes and decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost. The box can be used as a Full NDI Encoder or Decoder, flexibly deployed in the front end or display/control terminal according to different scenarios in the field; While NDI works, it is also an SDI/HDMI Bi-Directional converter; One machine multi-purpose, reduce the system cost, to be able to respond quickly, flexible, convenient.
OLED Display & Large Tally Light
The 1.3 inch OLED display will show the working status, such as encoding or decoding, signal, format, network, input/output, optical transmit or receive, and other info in your live. The Tally light is large, and can be viewed from 3 sides.
NDI 5.5
Support NDI 5.5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need.
Broadcast Quality
Support 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, compatible with multiple sampling formats(444,422,420), accurate and fast signal recognition. Adopt Xilinx FPGA SOC hardware, internal design, and embedded Linux system, ensure the program runs stably, not influenced by the external complex environment.
Compatibility and Stability
Support SMPTE video source, compatible with the video from most equipment. Open to most software and browsers, truly plug and play. HD mini meets industrial standards, which ensure it works durably and reliably.
