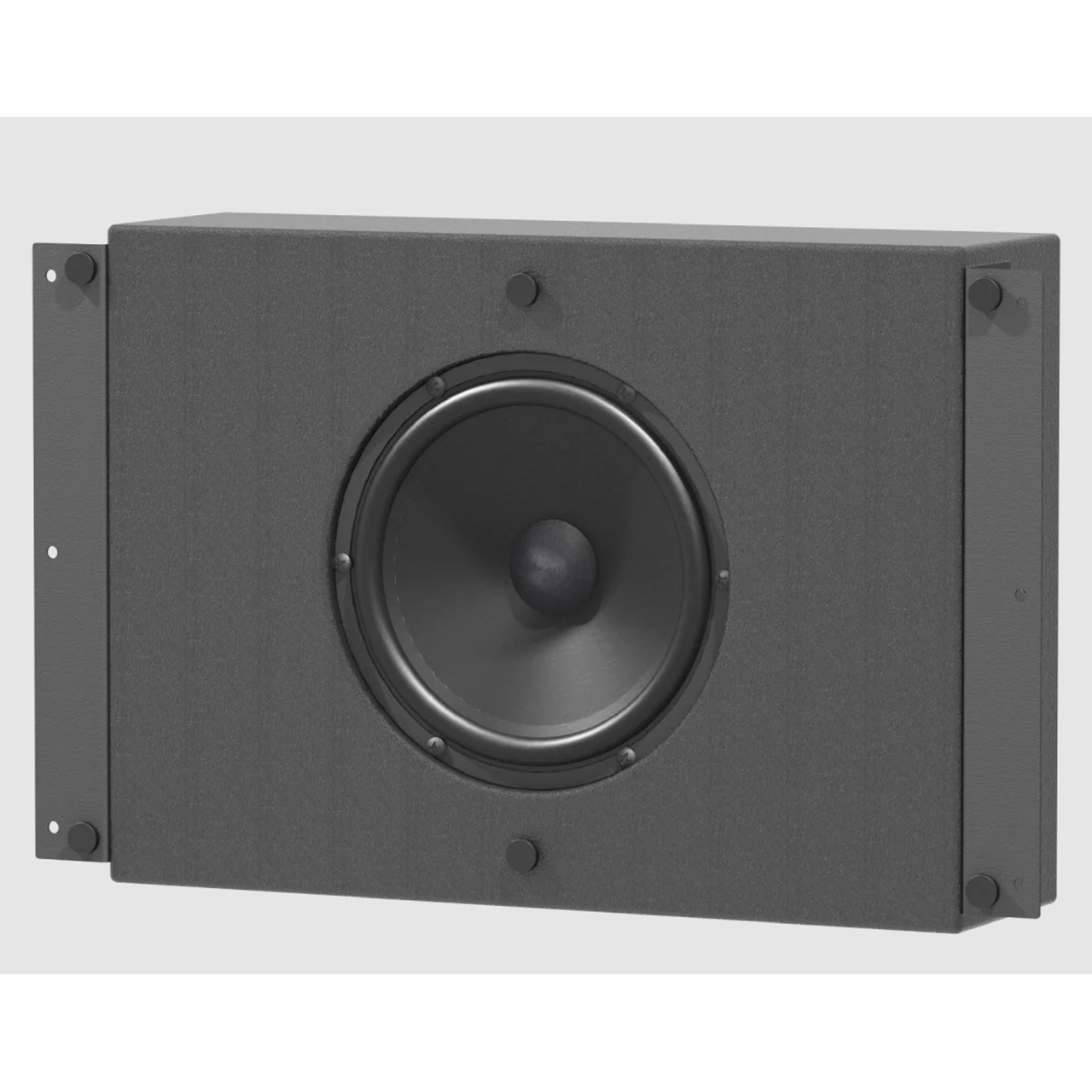

Innovox Micro-Sub 6 IW BLK Ultra-Compact Sub-Bass Loudspeaker for In-Wall Installation - Black

ITEM #: MICRO-SUB-6-IW-B MFG #: MICRO-SUB 6 IW BLK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$531.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MICRO-SUB 6 IW BLK - Overview

The Innovox Micro-Sub 6 IW is a high definition subwoofer designed for in-wall installation. It uses a 6.5" low frequency driver in a very compact sealed enclosure. It should be used in conjunction with out-board active equalization to achieve superior transient response and maximum output. This sophisticated DSP processing can be provided by an Innovox proprietary powered system processor. The Micro-Sub 6 IW complements the Innovox Slim Line Series of shallow profile surface-mount loudspeakers, and the Flex Video Series of display-mounted loudspeakers. It also is used as a low-bass component in extended range distributed audio systems.

Applications Include:
- Sound for Video Presentations
- Themed Venues and Restaurants
- Boardrooms
- Retail Spaces
- Video Wall Installations

  • Features:

    • In-Wall Mounting
    • Very Compact Enclosure (only 4.10" deep)
    • Excellent Transient Response
    • LF Extension to 45Hz

  • Specifications:

    • Frequency Response: 45Hz - 350Hz ±3dB
    • Power Handling: 175W long term program (AES-2)
    • Maximum Long-Term Output: 102dB
    • Peak Output: 108dB
    • Nominal Impedance:
    • Input Connectors: 1x 2-pole Phoenix
    • Enclosure Material: Hardwood multi-ply plywood
    • Enclosure Type: Rectangular, sealed enclosure
    • Finish: Black
    • Grille: Painted, perforated steel
    • Suspension Hardware: 2x 1/4"-20 threaded mounting points

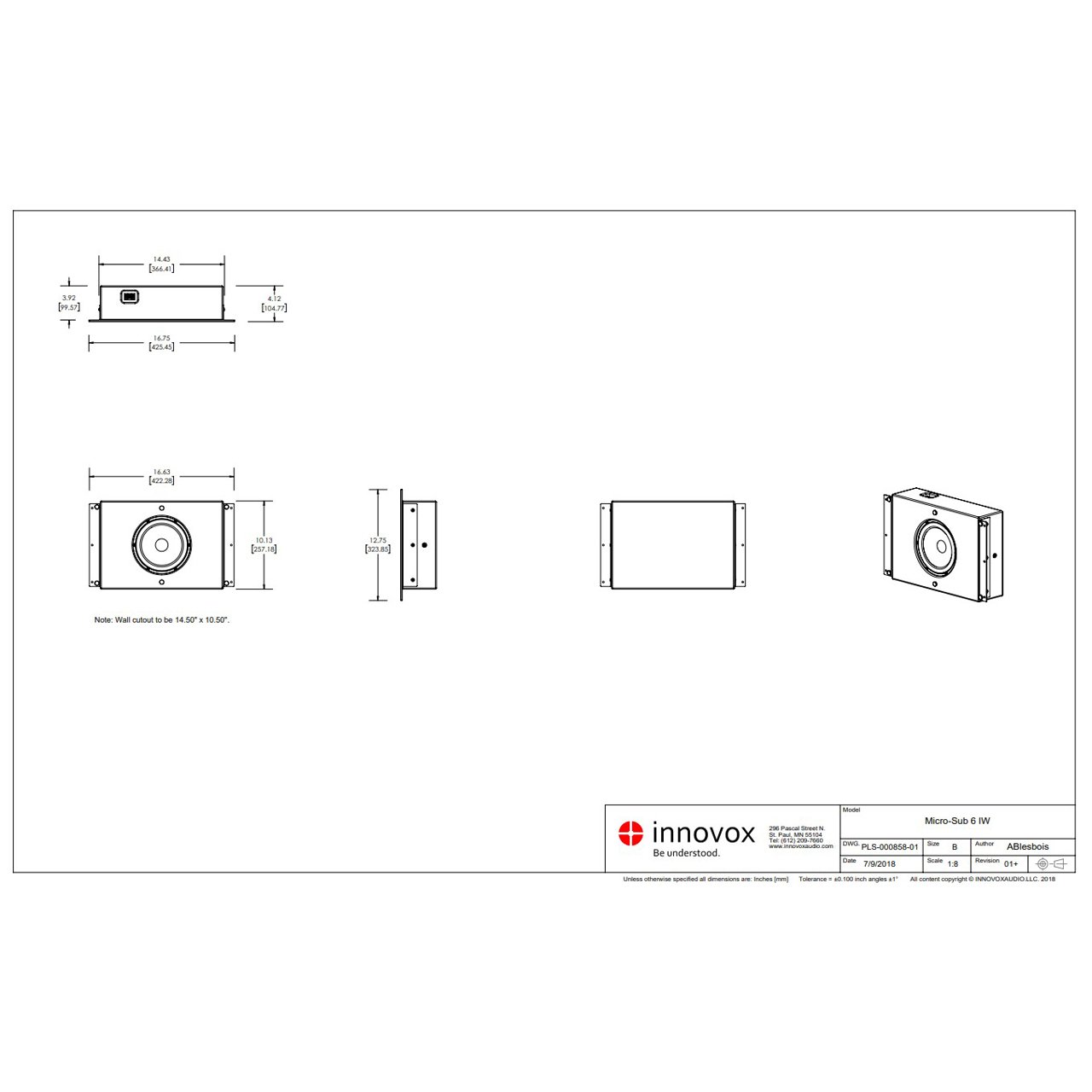

    • Height: 10.33" (262mm)
    • Width: 14.33" (364mm)
    • Depth:
      - With Grille 4.12" (105mm)
      - Without Grille: 3.92" (100mm)
    • Net Weight: 15lbs (6.8kg)
    • Shipping Weight: 18lbs (8.2kg)


MICRO-SUB 6 IW BLK - Required Accessories
