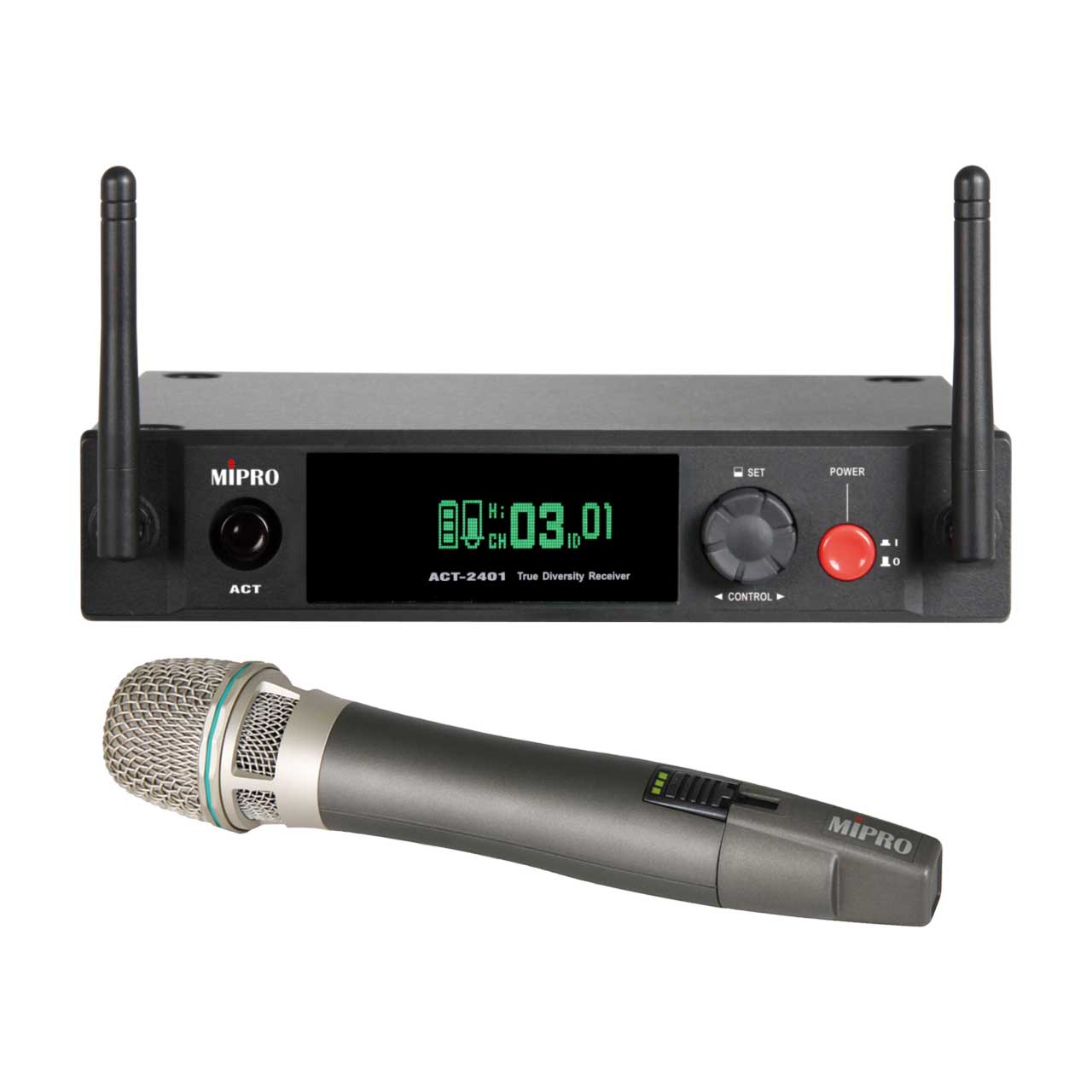

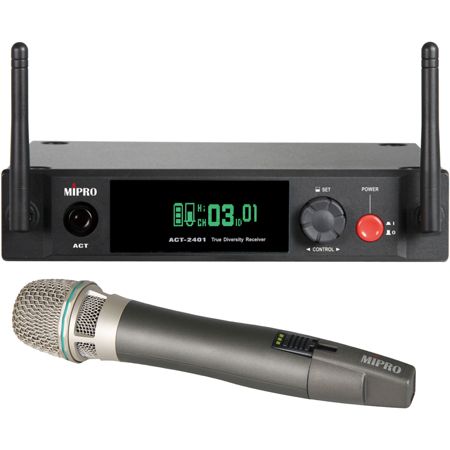

Mipro ACT-2401/ACT-24HC Half-rack Single-channel 2.4GHz Wireless Mic Receiver w/ ACT-24HC Rechargeable HH Mic & Charger

ACT-2401/ACT-24HC - Overview

• Features:

  • Receiver
  • By using an adaptive tracking algorithm, the 2400-Series skips the common Wi-Fi frequencies effectively avoiding interference from most 2.4GHz communication products
  • Utilizes a 4 frequency hopping spread spectrum technique that avoids any remaining interference
  • With dual tuner true digital diversity receiving, receiving distance is up to 100 meters (330 ft.) with no signal drop-out
  • 12 compatible simultaneous channel operation
  • 24-bit / 44.1 kHz digital audio sampling
  • Lo-Cut and Flat EQ settings
  • Adjustable AF gain & RF power output
  • Half rack single and dual channel systems
  • Receiver is enclosed in a sturdy metal case
  • Front mounted antennas
  • Optional rack mount hardware

    ACT-24HC Transmitter
  • 3 LEDs indicate battery status and turn red to indicate low battery
  • The multi-layered metal grille protects the capsule against impact, rolling and pop noise
  • Condenser cardioid capsule delivers better reliability, sensitivity and sound quality
  • Proprietary capsule suspension design virtually eliminates handling noises for true natural sound reproduction
  • Outstanding off axis rejection reduces feedback
  • Locking on/off switch
  • One-touch ACT syncs the transmitter and receiver frequency automatically
  • These rechargeable transmitters deliver over 10 hours of use on a 4-hour charge. A 25-minute fast charge provides up to 1-hour operation. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The included intelligent battery charger maintains a high charge capacity for up to 600 charge cycles


• Specifications:

  • Receiver
  • Chassis: EIA Standard 19" 1/2U
  • Display Graphic: OLED
  • Frequency Range: 2.4GHz ISM band (2.4 - 2.4835GHz)
  • Preset Frequency: 12
  • Frequency-hopping: Each channel has 4 preset hopping frequencies
  • Receiving Mode: Dual-tuner Digital Diversity
  • Audio Sampling: 24-bit / 44.1 kHz
  • Sensitivity: -95 dBm
  • S/N Ratio: > 115 dB(A)
  • T.H.D.: 0.1 % @ 1 kHz
  • Audio Frequency Response: 20 Hz - 20 kHz (-2 dB)

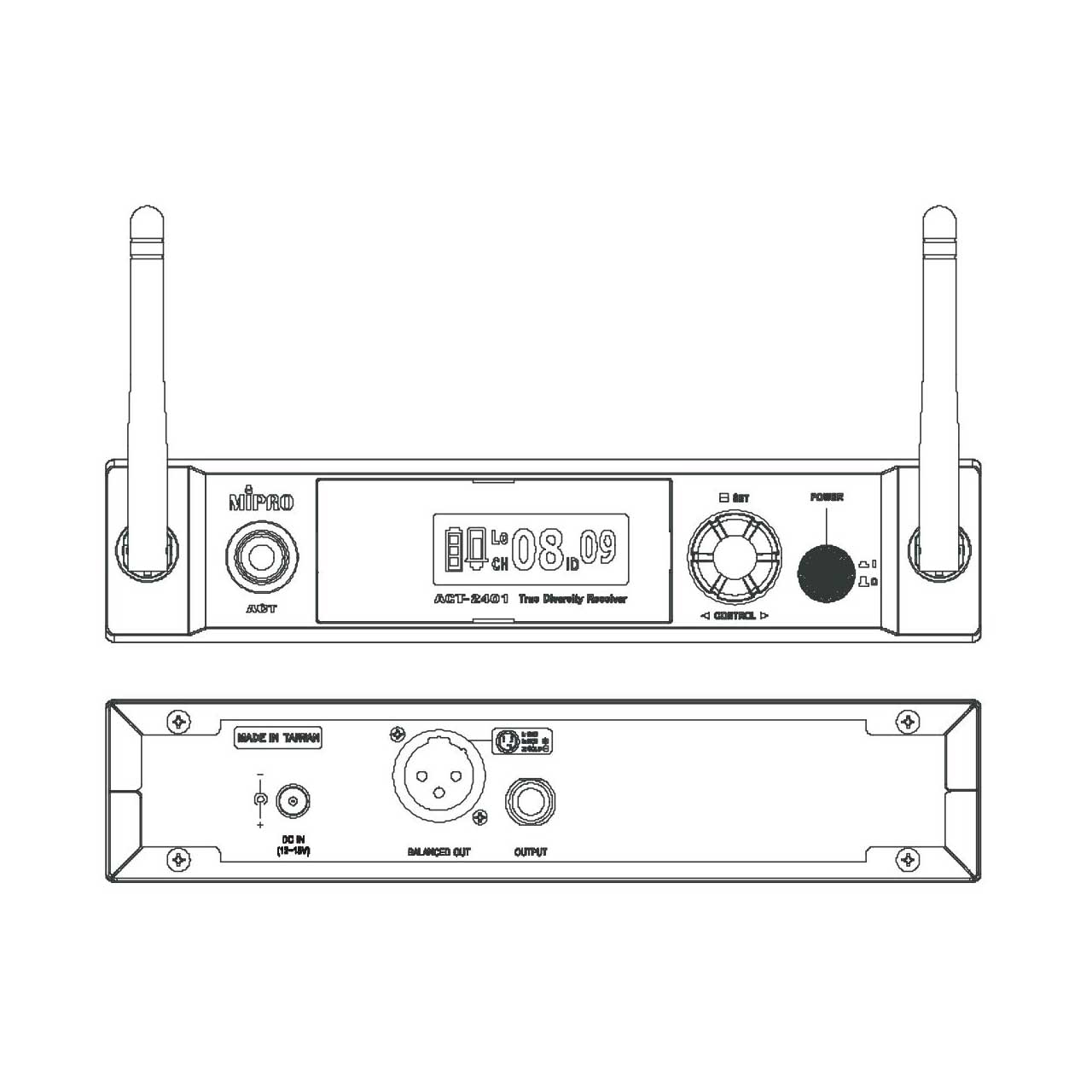

  • Output Connectors: Balanced XLR & Unbalanced 6.3 mm (1/4 ")
  • Audio Output Adjustment: 0 dB (standard), -10 - +20 dB adjustable range
  • Latency: < 4.0 ms
  • Antenna: 2 x 50 O fixed antenna
  • Power Consumption: 1.6 W
  • Dimensions: 210 x 44 x 180 mm / 8.3 x 1.7 x 7.1 "
  • Weight: Approx. 0.75 kg / 1.7 lbs
  • Operating Temperature: -10 V- +60 C

    Transmitter
  • Frequency Range: 2.4GHz ISM band (2.4 - 2.4835GHz)
  • Channel Set-Up: ACT Sync
  • RF Output Power: 2 mW / 10 mW switchable (country dependent)
  • Transmitting Mode: Frequency hopping
  • Max. Audio Input: 6.5 dBV
  • Battery Meter: 4-level green / red LED display
  • Battery Type: ICR 18500 rechargeable lithium battery x 1
  • Current Consumption: Approx. 138 mA
  • Dimensions: (O x L) 51x 248 mm / 2.0 x 9.8 "
  • Net Weight: Approx. 255 g / 9 oz


• Item Includes:

  • 1x ACT-2401 Receiver
  • 1x ACT-24HC Rechargable Handheld Mic

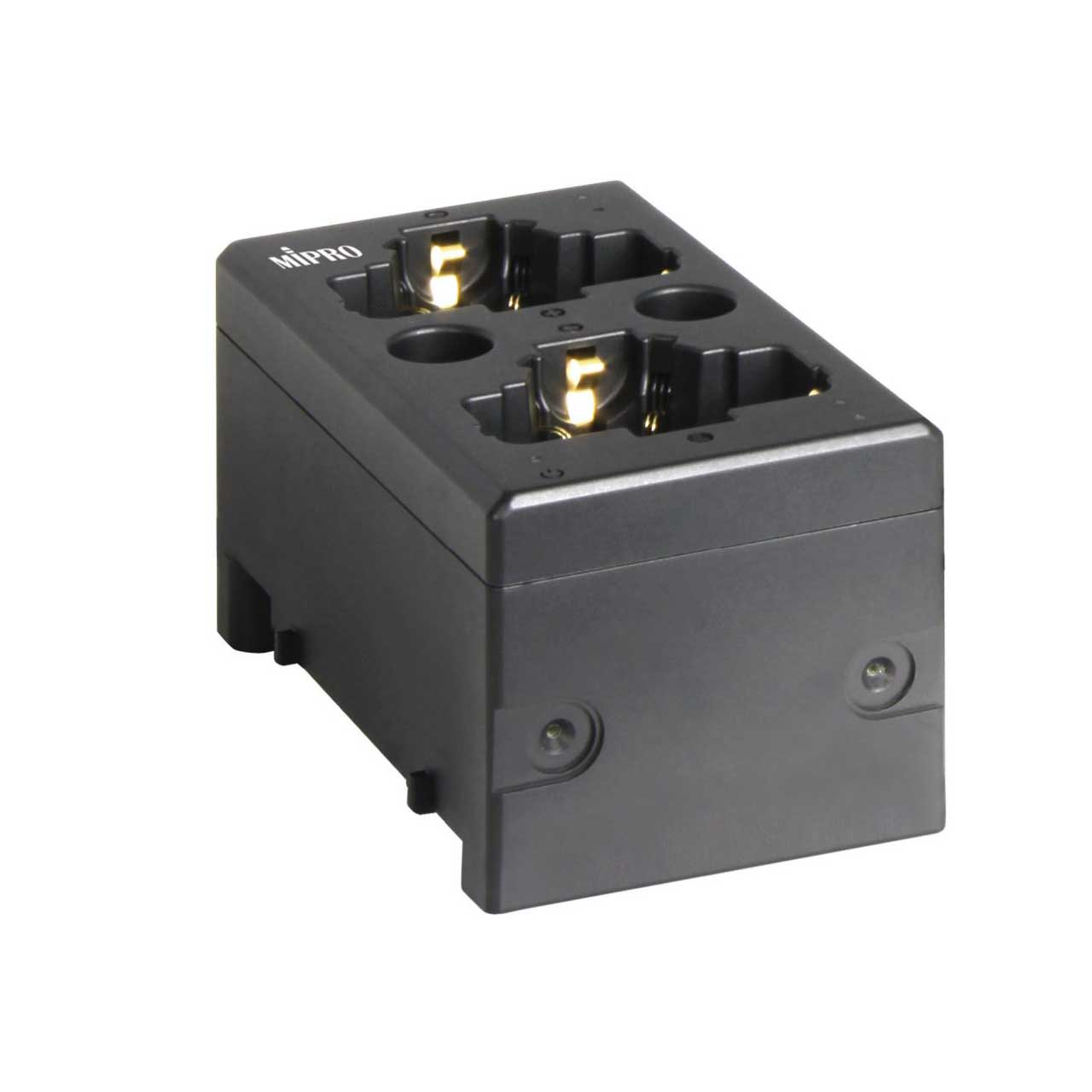

  • 1x MP-80 Charging Station


• Warranty:

  • 1-Year Limited Warranty
