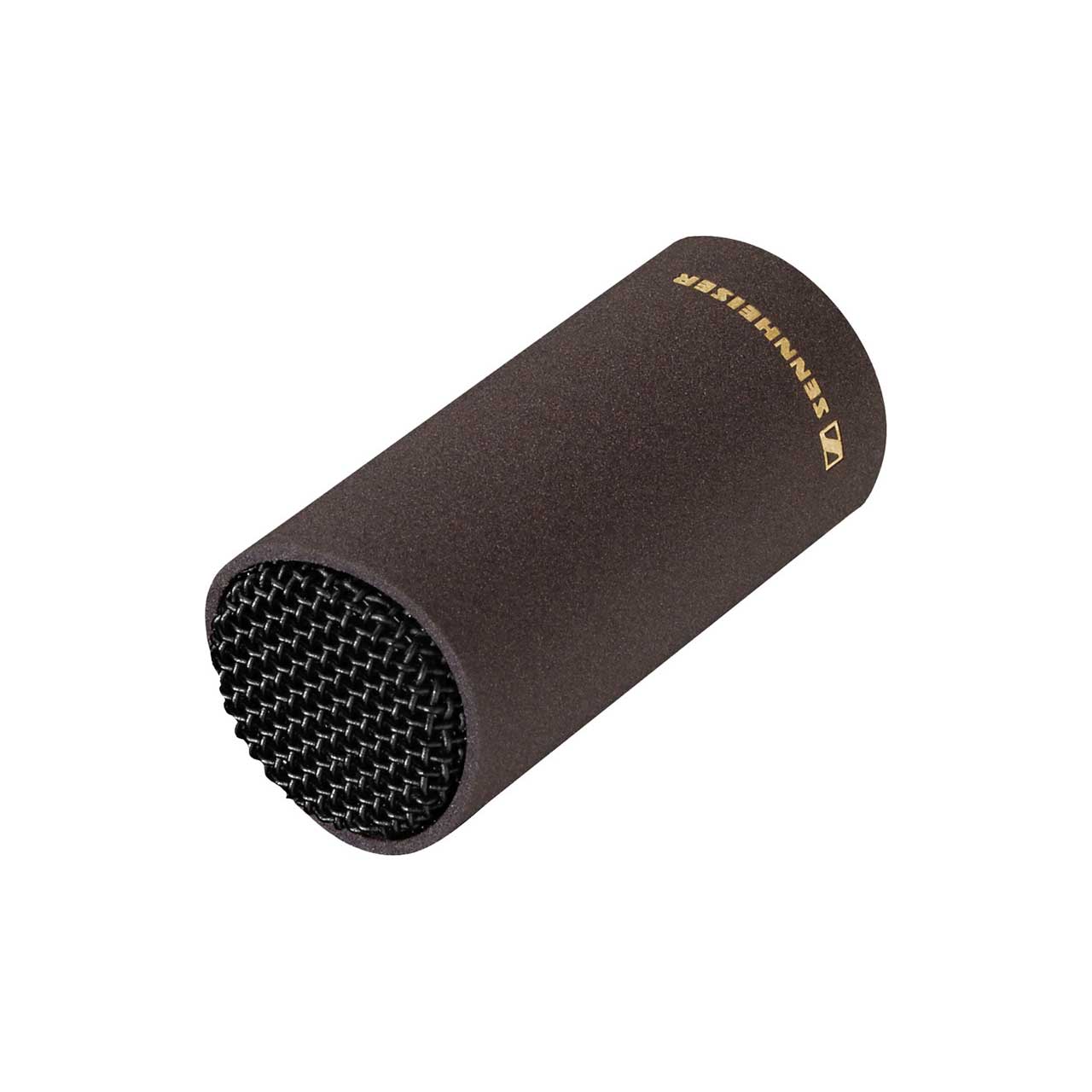

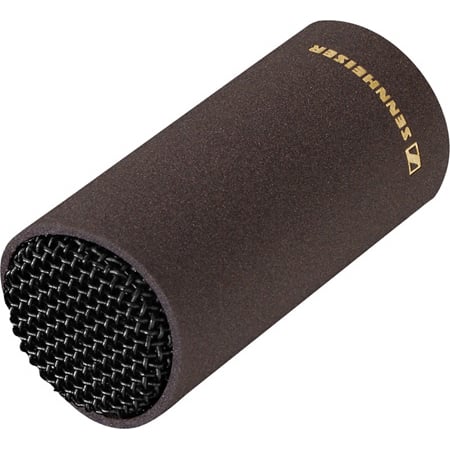

Sennheiser MKH8020 Modular Omnidirectional Mic

Manufacturer: Sennheiser

Item #: MKH8020   •   MFG #: MKH8020







The omni-directional MKH 8020 is ideal for recording large and small sound sources, for a "Decca Tree" or for use in an OSS "Jecklin Disk" array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambiance is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass.

  • Features

    • Onmi-directional pick-up pattern
    • Modular design
    • Wide frequency response 10 to 60.000 Hz
    • Symmetrical transducer with 2 backplates providing extremely low distortion
    • Extremely low inherent self-noise
    • Accurate directional pattern
    • Non reflective Nextel coating
    • Ideal for stereo and surround recordings, as an M microphone and for ambiance
    • Also available in stereo pairs
  • Specifications

    • Current Consumption: 3,3 mA
    • Pick Up Pattern: omni-directional
    • Frequency Response: 10 Hz - 60 kHz
    • Sensitivity: 31 mV/Pa (- 30 dBV/Pa)
    • Nominal Impedance: 25 Ohm
    • Min Terminating Impedance: 1000 Ohm
    • Equivalent Noise Level: 10 dB(a)
    • Max Spl: 138 dB SPL
    • Supply Current: 48 V +/- 4 V
    • Dimensions: 19 mm diameter, length 41 mm (74 mm including XLR-Module)
    • Weight: 25 g (55 g including XLR Module)

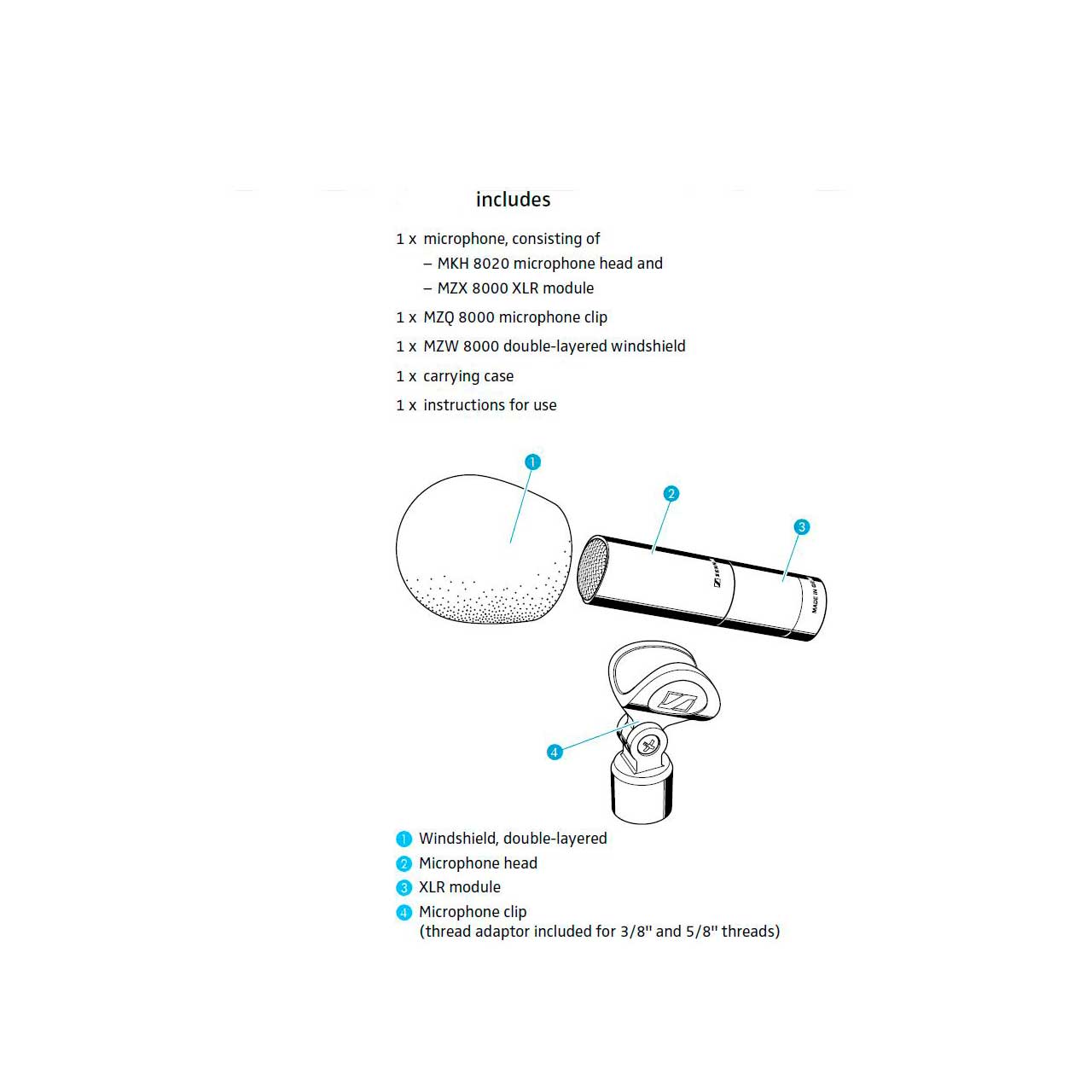

  • Item Includes

    • 1 x microphone, consisting of: MKH 8020 microphone head and MZX 8000 XLR module.
    • 1 x MZQ 8000 microphone clip.
    • 1 x MZW 8000 double-layered windshield.
    • 1 x carrying case.
    • 1 x instructions for use.
