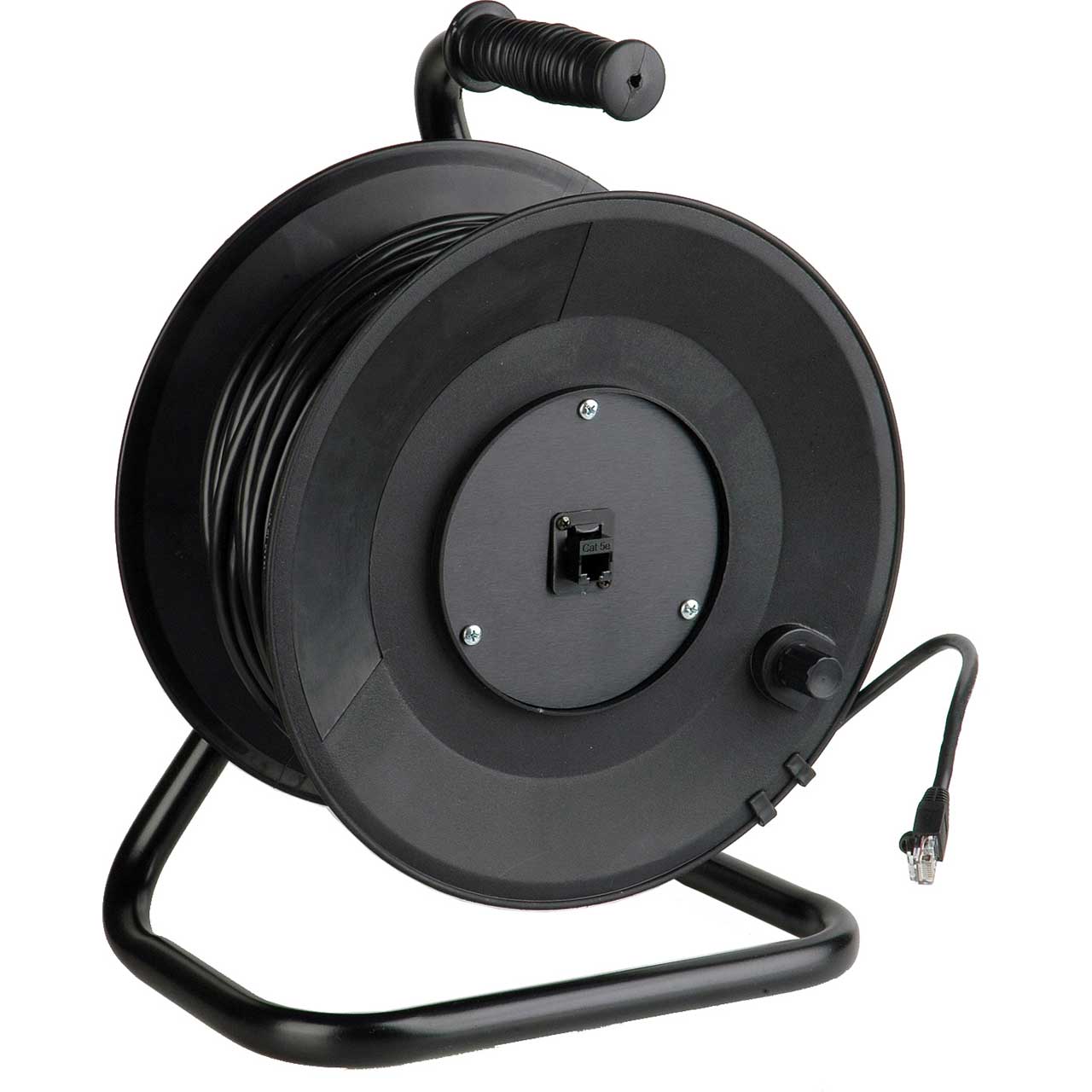

This series of the Connect-N-Go reel is designed for systems with existing baluns in place or anywhere you need a rugged, long length CAT5 run. Designed with Belden 7923A DataTuff cable. 7923A DataTuff is a 24 AWG CAT5e cable with bonded-pairs and an industrial grade sunlight and oil-resistant PVC jacket. Ideal for field use because its extremely resistant to nicks and abrasions while at the same time its flexible jacket is designed for handy deployment and winding.
The reel sits 15" tall and has a 10.75" O.D. reel with an inner hub that's 4.75" in Diameter x 5" Deep with cable port holes on the side of the drum and on the reel face.
