Microphone & Mic/Line Audio Cable Per Foot

ITEM #: MP1022 MFG #: MP1022

free ship

List Price:

$1.14

Our Price:

$0.90

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    MP1022 - Overview

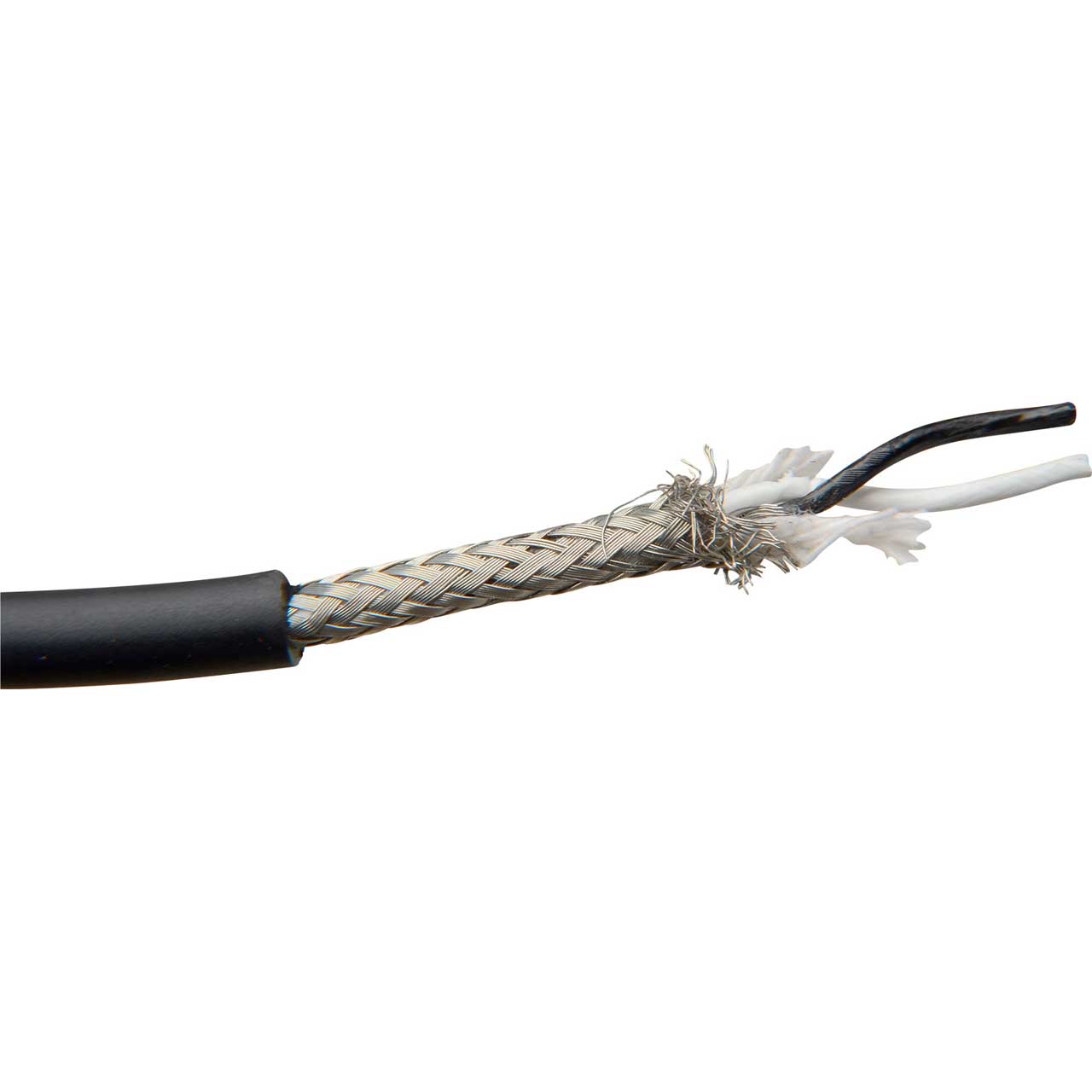

    Thin profile and easy-to-terminate microphone cable for applications where reduced size and weight are required. The reduced diameter, matte PVC jacket, and tight-angle braid shield make MP1022 both extremely flexible and easy to handle. Ideal for mobile production trucks, multi-pin to XLR breakout cables, bantam or longframe patchcords, and short distance balanced mic or line level equipment interconnect.

    • Features:

      • Thin Profile
      • Light Weight
      • Low Attenuation
      • Extra-flexible
      • Polyethylene Dielectric
      • Full Copper Braid Shield
      • Drain Wire for Quick Shield Terminatioin
      • Matte PVC Flexible Master Jacket
      • Microphone or Line Level Balanced Analog Audio
      • Portable Microphone Cables
      • Balanced Equipment Interconnect
      • Longframe or Bantam Patchcords

    • Specifications:

      • # of Conductor Pairs: 1
      • Conductor AWG: 24
      • Insulation: PE
      • Shield: 95% TC Braid
      • Jacket: Flexible Matte PVC
      • Nominal O.D.: 0.194"
      • Drain Wire: 22 AWG (41x40) Stranded TC
      • Capacitance: 20 pF/ft between conductors

    • GTIN:

      0612825389354
