Gepco MP1201 24AWG Quad-Star Microphone Cable - 1000 Foot Roll - Black

ITEM #: MP1201-1000 MFG #: MP1201 1000

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,736.40

Our Price:

$1,166.10

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    MP1201 1000 - Overview

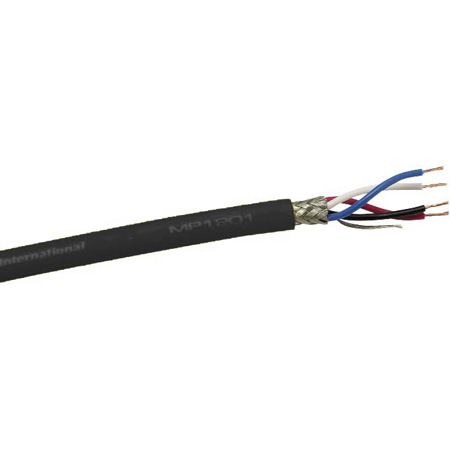

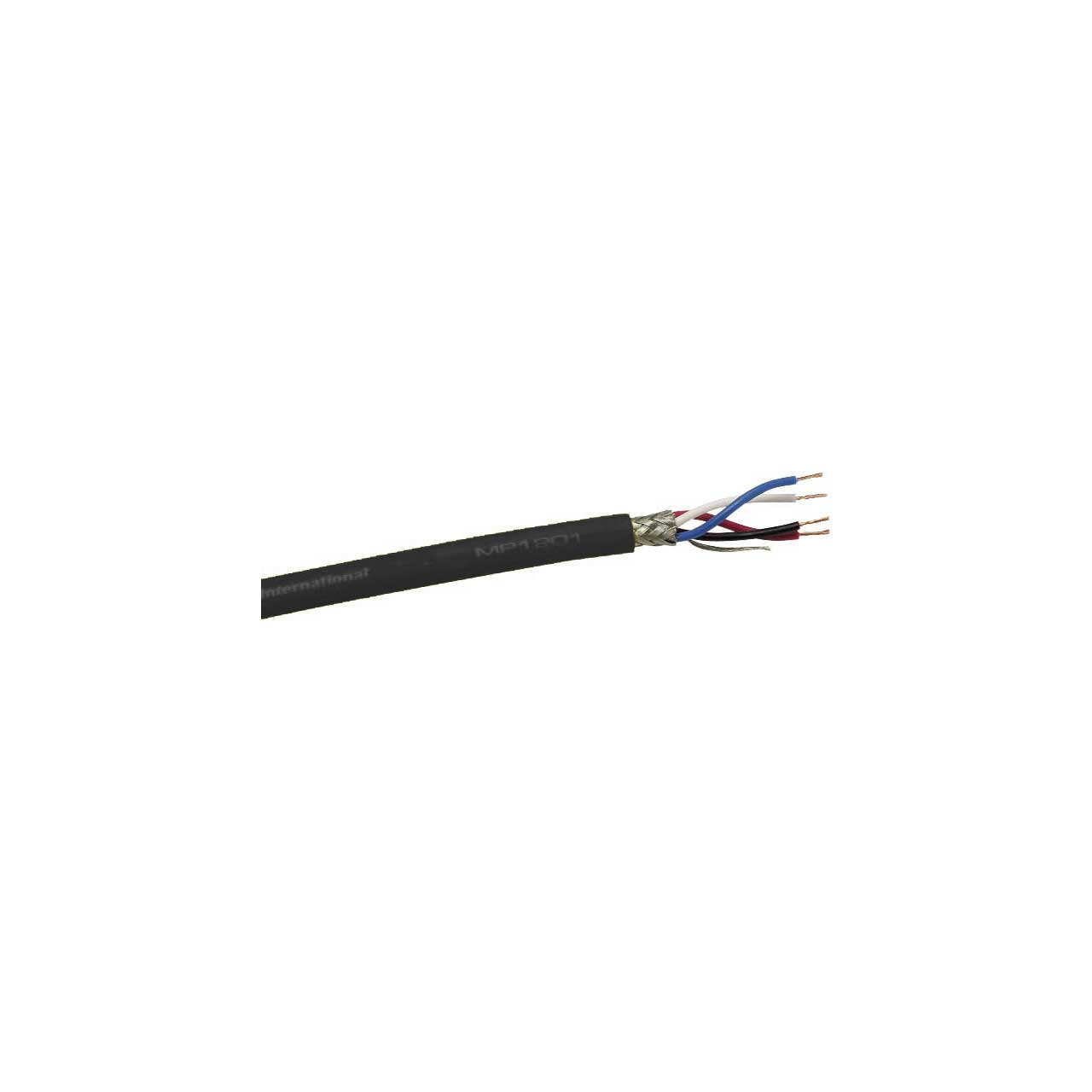

    Gepco MP1201-1000 24AWG Quad-Star Microphone Cable is an industry-proven, quad-star design and tight-angle, full-coverage braid shield for maximum low-frequency EMI noise rejection. Four conductors form a "double balanced" system that minimizes the loop area and reduces noise induction from external sources such as AC lines and dimmer packs. As a result, this series is ideal for applications where high EMI is present, or where a redundant pin to pin connection is desired for improved flex-life.

    • Features:

      • Improved Noise & Hum Rejection
      • Extra-flexible
      • Increased Flex-life
      • Polyethylene Dielectric
      • Full Copper Braid Shield
      • Drain Wire for Quick Shield Termination (MP1201 only)
      • Matte PVC Flexible Master Jacket

    • Specifications:

      • Number of Conductors: 4
      • Nominal O.D.: 0.240"
      • Conductors: 24 AWG (41x40) Stranded BC
      • Insulation: PE, .016"
      • Color: Black
      • Shield: 95 TC Braid
      • Drain Wire: 24 AWG (41x40) Stranded TC
      • Jacket Type: Flexible Matte PVC
      • Capacitance: 39 pF/ft between conductors; 57pF/ft between one conductor and other tied to shield
      • Cond. DCR: 25.6 Ohm/1000'

    • GTIN:

      0612825394648
