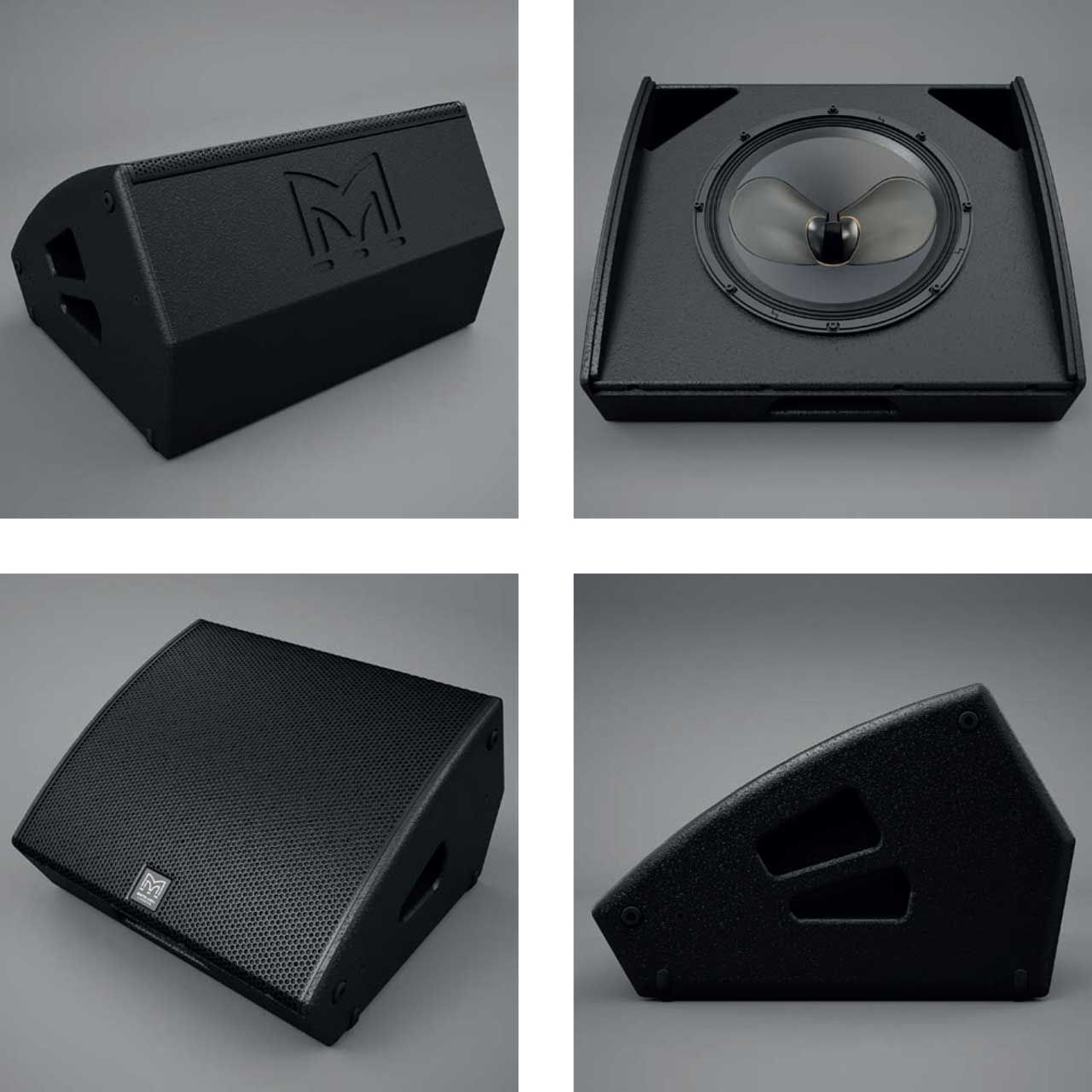

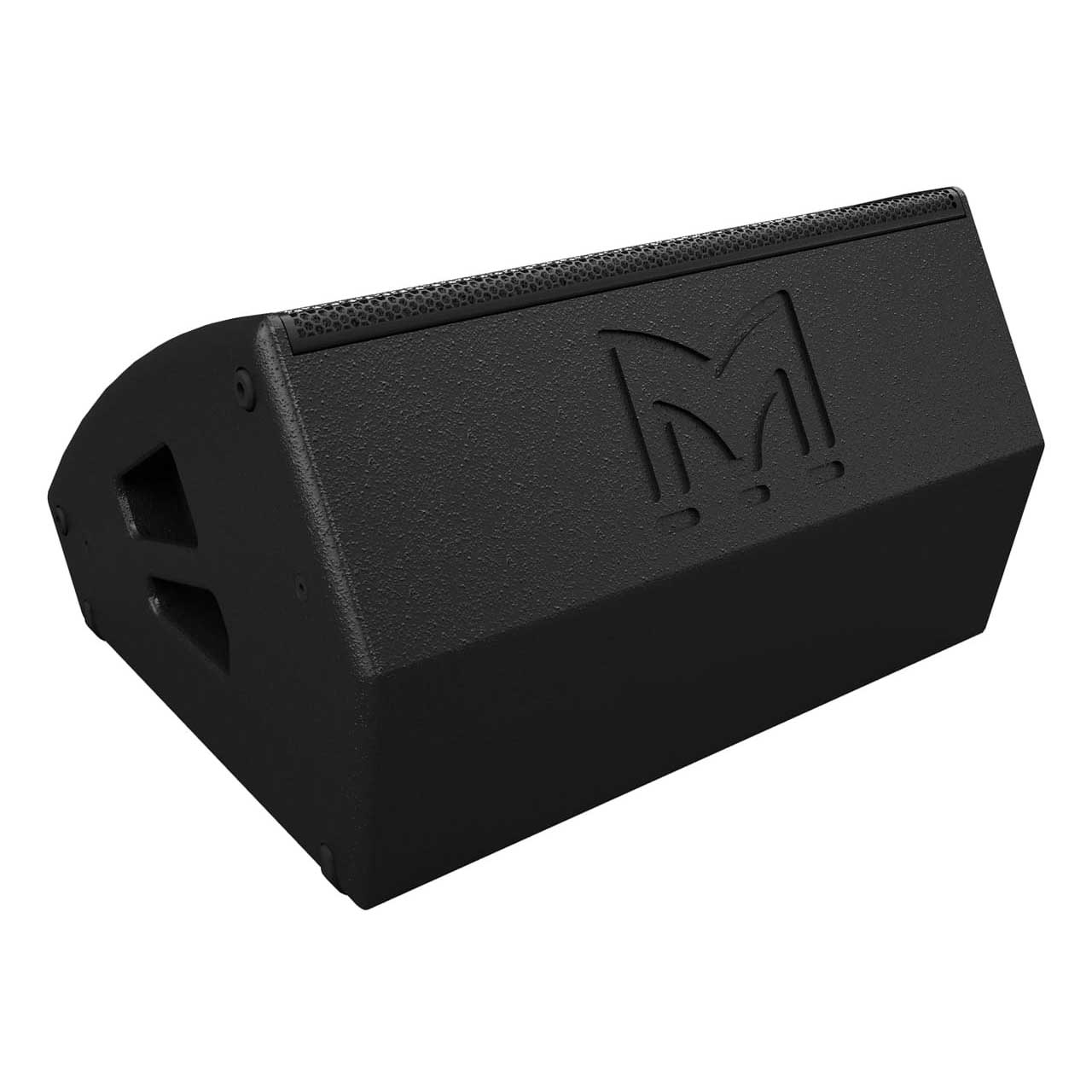

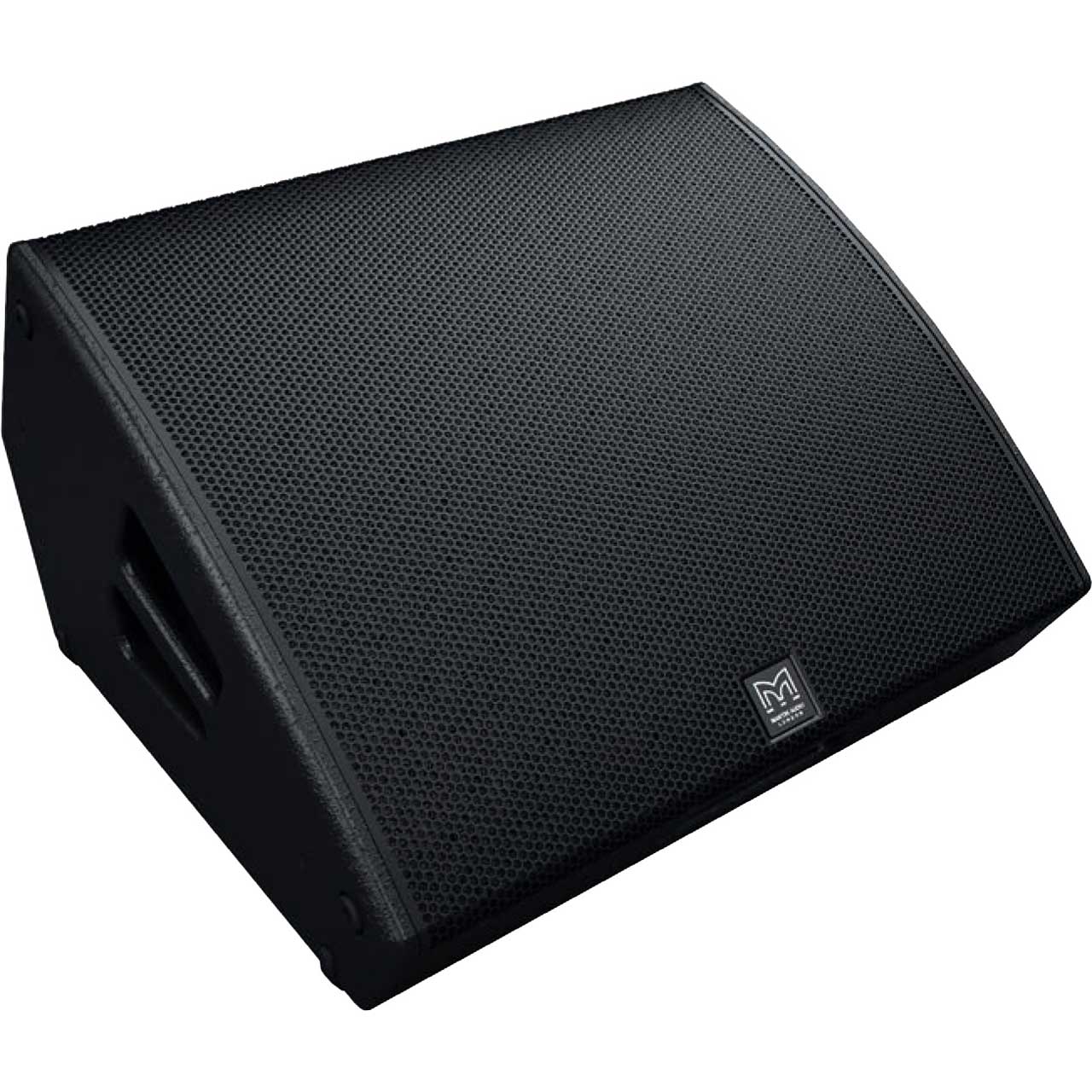

Martin Audio LE200 Two-way Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor

LE200 - Overview

LE200 - Overview

• Features:

  • Compact, two-way stage monitor
  • Coaxial `point-source' performance
  • Differential DispersionT technology for consistent coverage
  • Defined, near-rectangular coverage plane at head-height
  • Switchable active/passive operation
  • Low-profile plywood enclosure
  • M8 rigging inserts
  • Multiple connectors for flexible deployment
  • Stage monitor


• Specifications:

  • TYPE Two-way, bi-amp/passive Coaxial Differential Dispersion
  • stage monitor
  • FREQUENCY RESPONSE (3) 68Hz-18kHz ± 3dB
  • -10dB @ 50Hz

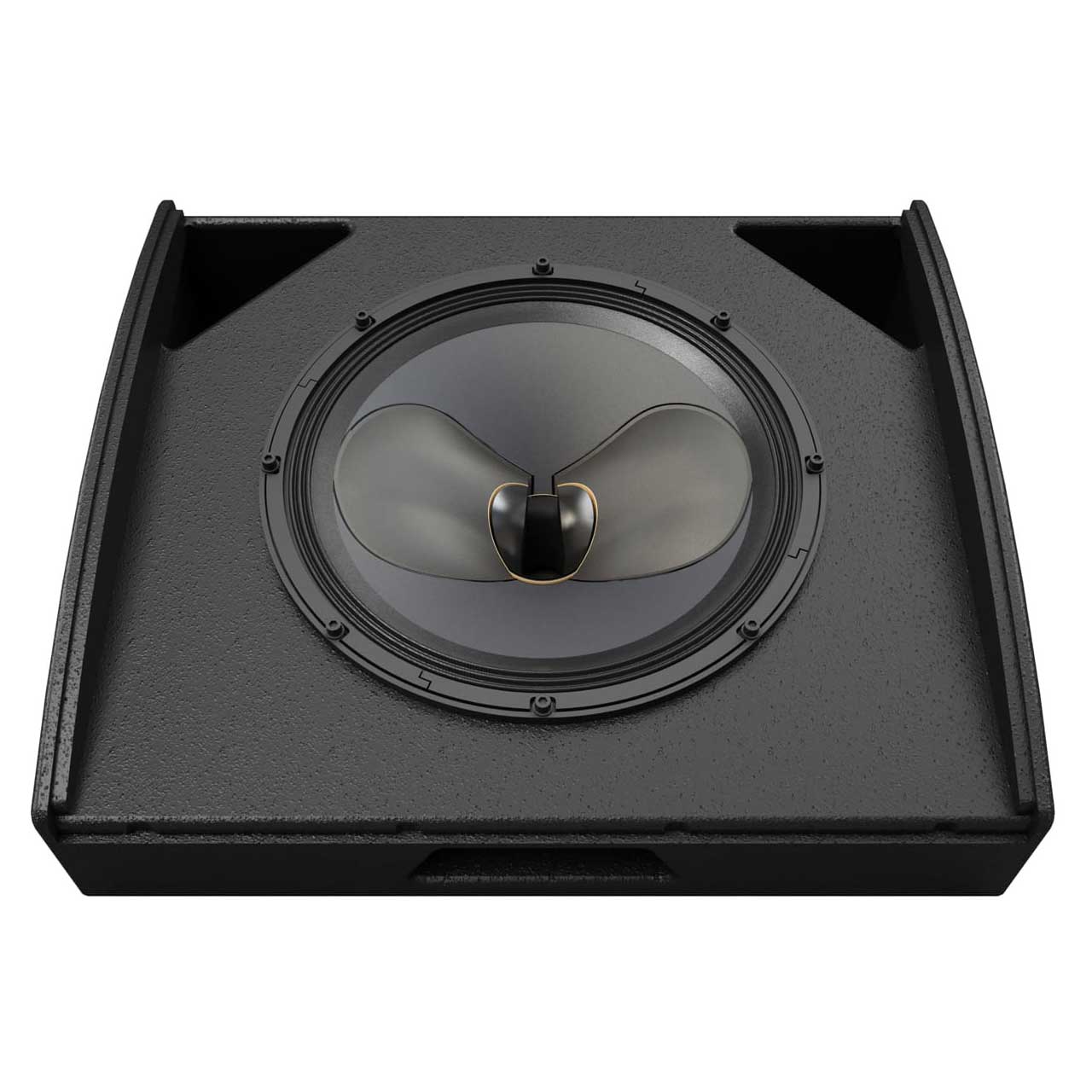

  • DRIVERS LF: 15" (380mm)/3" (75mm) voice coil, long excursion,
  • shared ferrite motor system with HF
  • HF: 1.4" (32mm) exit/3" (75mm) voice coil, titanium dome
  • compression driver
  • RATED POWER (2) 400W AES, 1600W peak
  • RECOMMENDED AMPLIFIER iK81 / VIA5002/5004
  • SENSITIVITY (3) LF: 100dB, HF: 103dB
  • Passive: 100dB
  • MAXIMUM SPL (9) 133dB peak
  • NOMINAL IMPEDANCE LF/FR: 8 ohms, HF: 8 ohms
  • DISPERSION (-6dB) 100°-60° horizontal, 60° vertical
  • CROSSOVER 1.2kHz active/passive (switchable)
  • ENCLOSURE Birch/poplar ply
  • FINISH Black textured paint
  • PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
  • BAFFLE ANGLE 30°
  • CONNECTORS 4 x NL4 type
  • PIN CONNECTIONS LF/FR: 1+/-, HF: 2+/-
  • FITTINGS 2 x bar handles
  • Protective rubber feet on base and sides
  • 4 x M8 inserts
  • DIMENSIONS (W) 610mm x (H) 364mm x (D) 562mm
  • (W) 24.0ins x (H) 14.3ins x (D) 22.1ins
  • DIMENSIONS INCL FEET (W) 616mm x (H) 367mm x (D) 562mm
  • (W) 24.2ins x (H) 14.4ins x (D) 22.1ins
  • WEIGHT 26kg (57.3lbs)
  • ACCESSORIES Eyebolts
