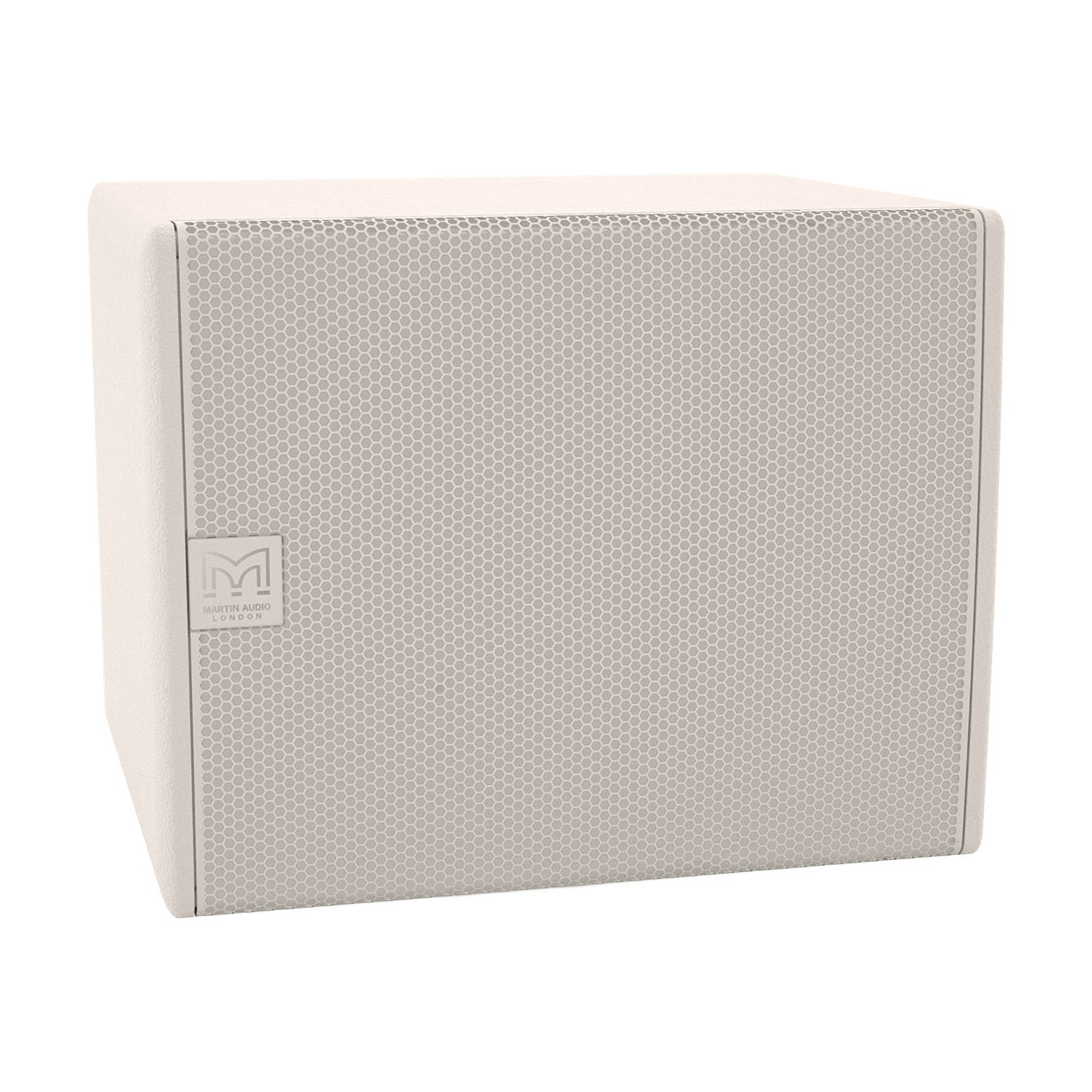

The Martin Audio SX112-W (White) is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of full-range loudspeaker models. It features a very efficient 12" (300mm) long-throw bass driver with a high power 3" (75mm) voice coil and generously-sized reflex ports for low noise, high power operation. With a response of 48Hz-150Hz ± 3dB, the ultra-compact size of the SX112 makes it an ideal partner for ADORN or CDD Series systems where space is at a premium or where the subwoofers need to be hidden. The enclosure is constructed from plywood and has an impact-resistant finish, while the driver is protected by a rigid perforated steel grille, which is pre-curved to withstand physical damage.
Finished in black (RAL9005) or white (RAL9016) as standard with integrated flying points, the SX112 can be also be supplied in any RAL colour to order.
When used with full-range systems, crossover and EQ functions can either be performed by the DX0.4, DX0.6 or DX4.0 system controllers

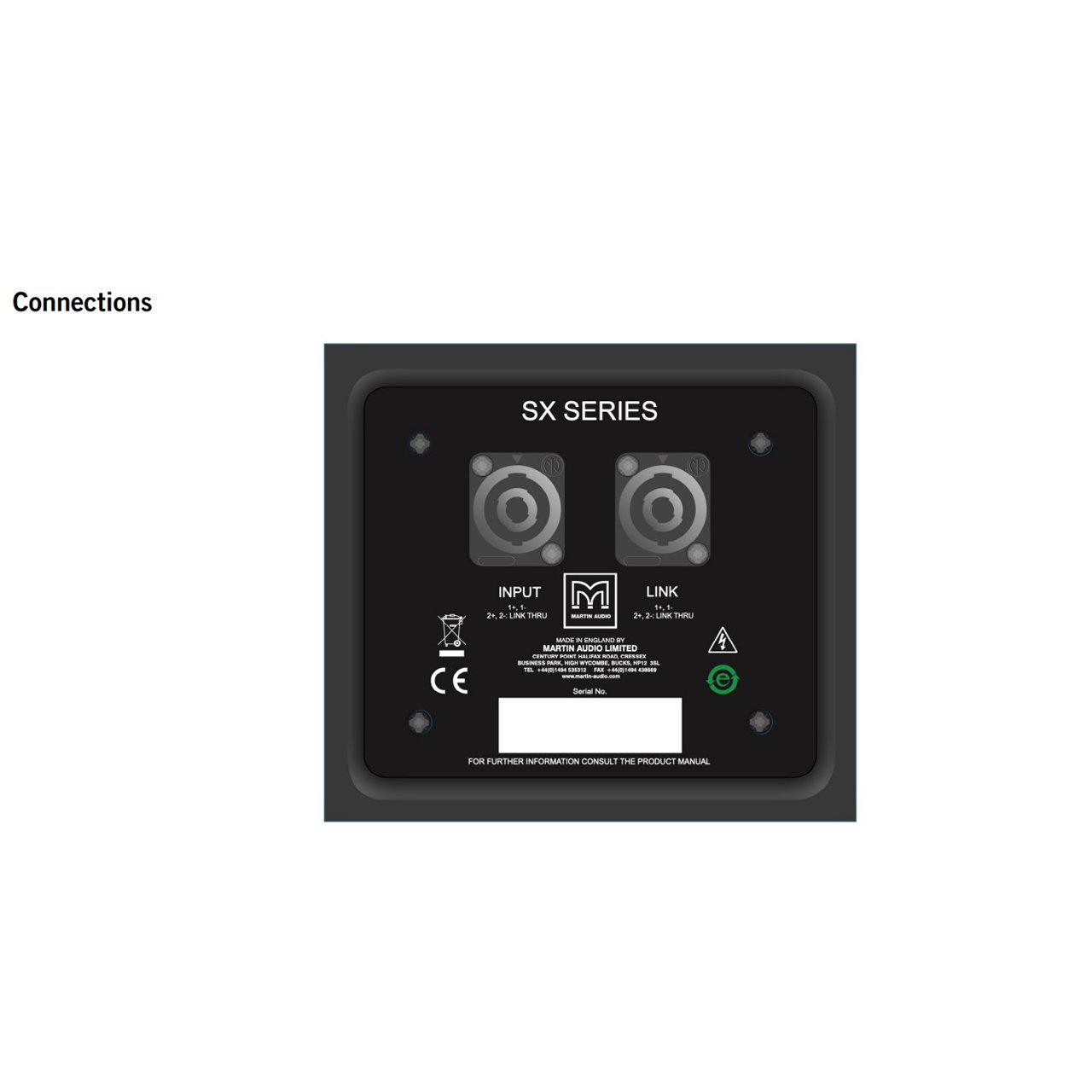

The SX112 has a pair of NL4 connectors on the rear panel. These are wired in parallel and whilst one is nominally labelled `INPUT' and the other as `LINK', connection in and out can be made to either connector. Connection to the drive unit(s) is made to pins 1+/-. There is no internal connection to pins 2+/- although these are linked together so can be used for example to carry a mid/top signal and connected to a full range system using a cable wired with reverse connections (pins 2 to pins 1).
Applications Incude:
• Live Music Clubs and Bars
• Nightclubs
• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship
