    VIA2502 - Overview

    The Martin Audio VIA2502 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2 x 1250 watts into 2 ohms, or 1 x 2500 watts into 4 ohms bridged, it is ideal for powering Blackline X, CDD and V. Series systems in small to medium-scale installations and portable sound applications.

    Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.

    Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.

    For a wide variety of installations and portable situations, the VIA2502 is ideally partnered with the Martin Audio DX0.5 system processor. Larger installations will benefit from use with the DX4.0 processor with its onboard network capability and proprietary VU-NET software control.


  • Small to medium-scale installations
  • Portable sound and stage monitoring
  • Hotels, restaurants and bars
  • Houses of Worship and auditoriums
  • Educational facilities
  • Live music and dance clubs
  • Mobile DJ's
    • Features:

      • Two channels of efficient Class D amplification
      • 2500 Watts total power output
      • 2U rack height
      • Exceptionally lightweight
      • Switch mode power supply
      • Variable speed cooling fan with front-to-back airflow
      • Global mains operation, 115V to 230V auto-sensing
      • Comprehensive protection systems
      • Signal and clip limiter LEDs
    • Specifications:

      • General
      • Type: Two-channel Class D Amplifier
      • Power Output:
        2x 1250W into 2 ohms
        2x 800W into 4 ohms
        2x 450W into 8 ohms
        1x 2500W bridged into 4 ohms
      • Cooling: Vari-speed fans, front-to-back airflow
      • Maximum Ambient Temperature: 40°C (105°F)

        Audio Inputs/Outputs
      • Analog In/Link (4 Channels): 2 x female, 2 x male Neutrik™ XLR
      • Analog Input Impedance: 10 kΩ balanced
      • Maximum Analog Input Level: +20dBu
      • Amplifier Outputs: 2 x Neutrik Speakon™ NL4

        Audio Performance
      • Output Noise: -113dBA, referenced to max output (22kHz bandwidth)
      • Frequency Response: <10Hz ->20kHz +/- 0.25dB
      • Total Harmonic Distortion: 0.003% typical, 1kHz @ 1W
      • Slew Rate: > 80V per microsecond
      • Damping Factor: 120 ref 8 ohms

        Power Supply
      • Type: High current, high frequency switch-mode
      • AC Operation Range: 100-240V +/-10% 45 - 65Hz
      • Mains Connector: 1 x Neutrik Powercon™
      • Total System Efficiency: > 90% typical

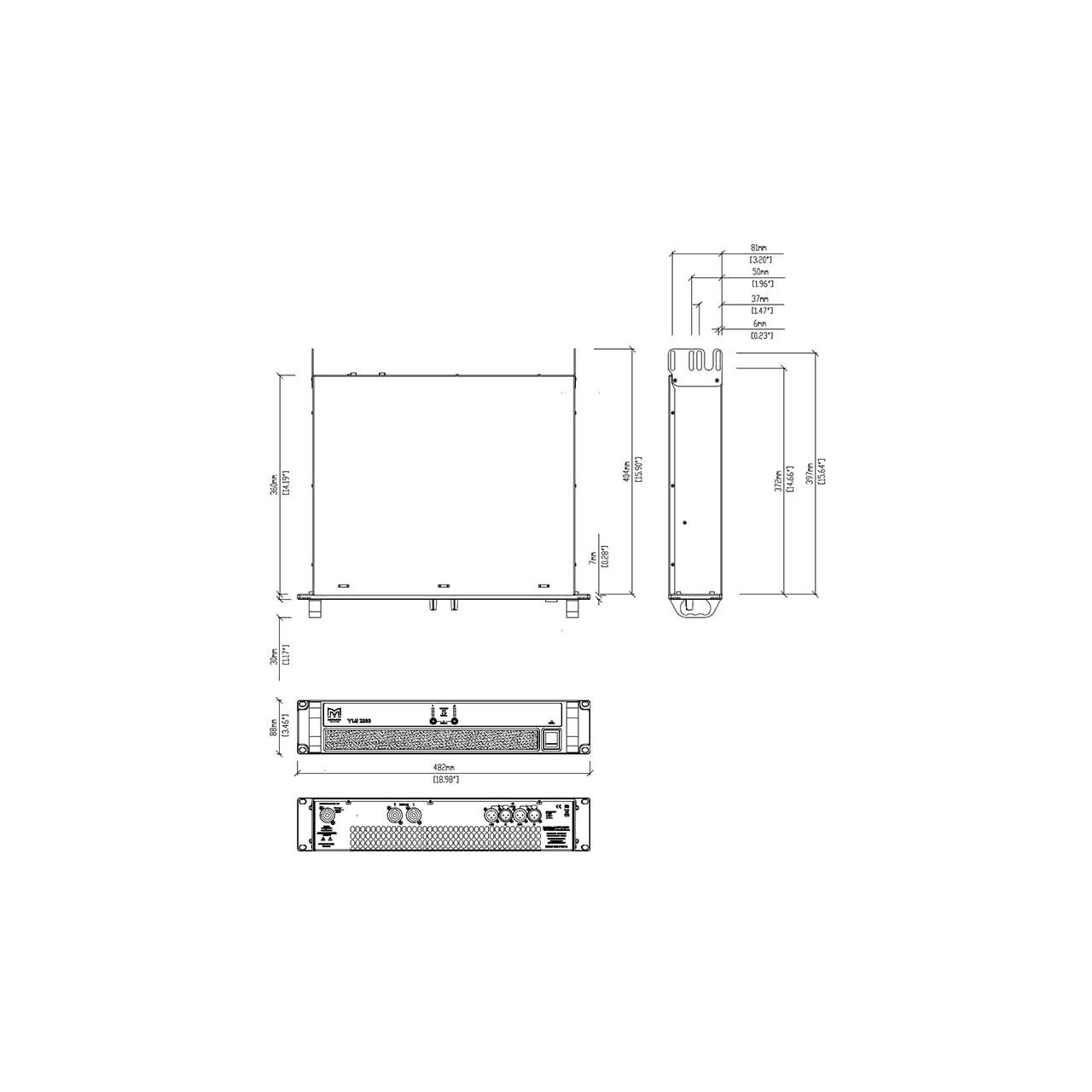

      • Dimensions: (W) 19in x (H) 2U/3.5in x (D) 17.4in / (W) 482 x (H) 2U/88mm x (D) 441mm (incl handles and optional rear support)
      • Weight: 8kg (17.6lbs)
