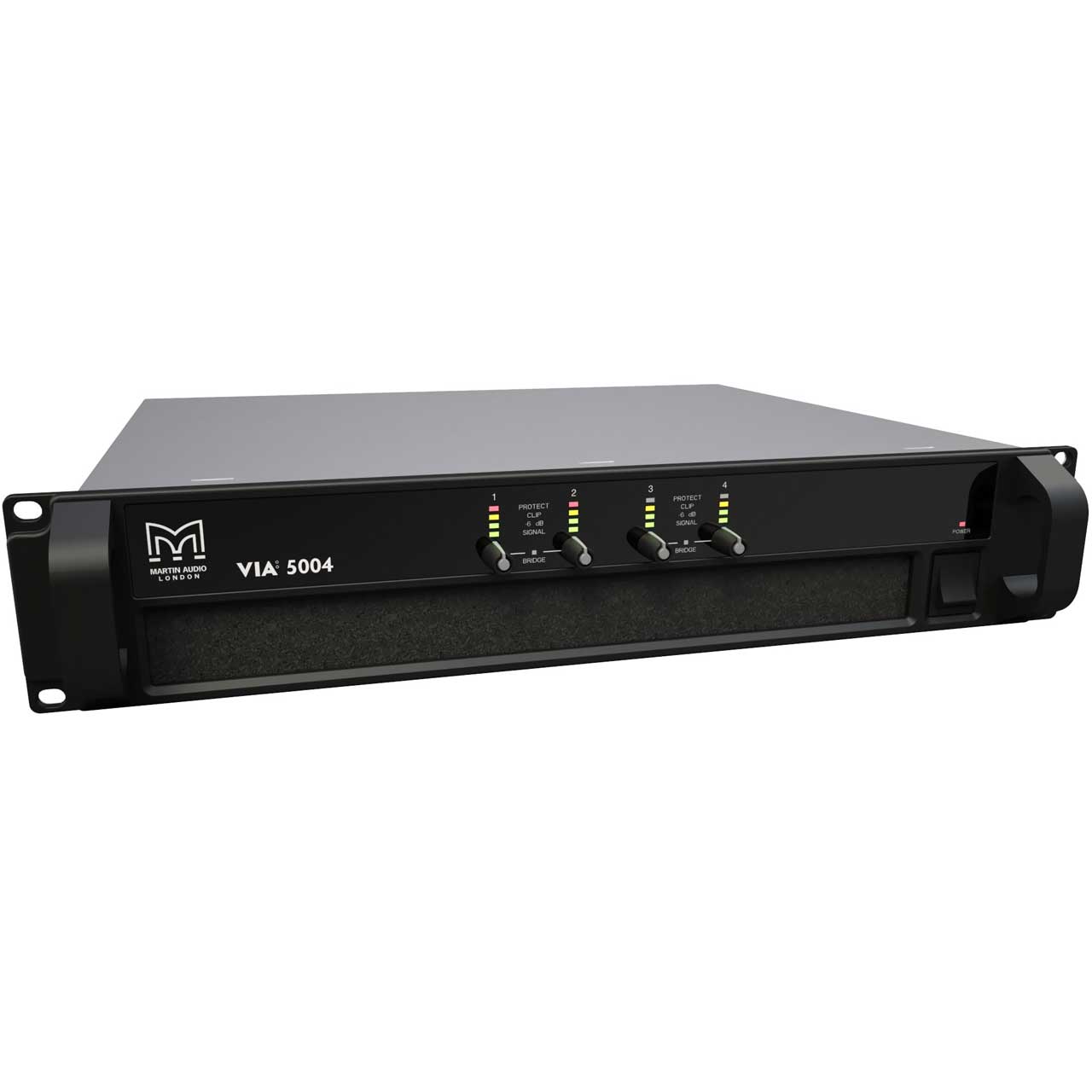

Martin Audio VIA5004 4 Channel Power Amplifier - 4x 800 Watts into 4Ω or 2 x 2500 Watts Bridged into 4Ω

VIA5004 - Overview

VIA5004 - Overview

• Features:

  • Four channels of efficient Class D amplification
  • 5000 Watts total power output
  • 2U rack height
  • Exceptionally lightweight
  • Switch mode power supply
  • Variable speed cooling fan with front-to-back airflow
  • Global mains operation, 115V to 230V auto-sensing
  • Comprehensive protection systems
  • Signal and clip limiter LEDs


• Specifications:

  • General
  • Type: Four-channel Class D amplifier
  • Power Output:
    4 x 1250 Watts into 2 ohms
    4 x 800 Watts into 4 ohms
    4 x 450 Watts into 8 ohms
    2 x 2500 Watts bridged into 4 ohms
  • Cooling: Vari-speed fans, front-to-back airflow
  • Maximum Ambient Temperature: 105°F

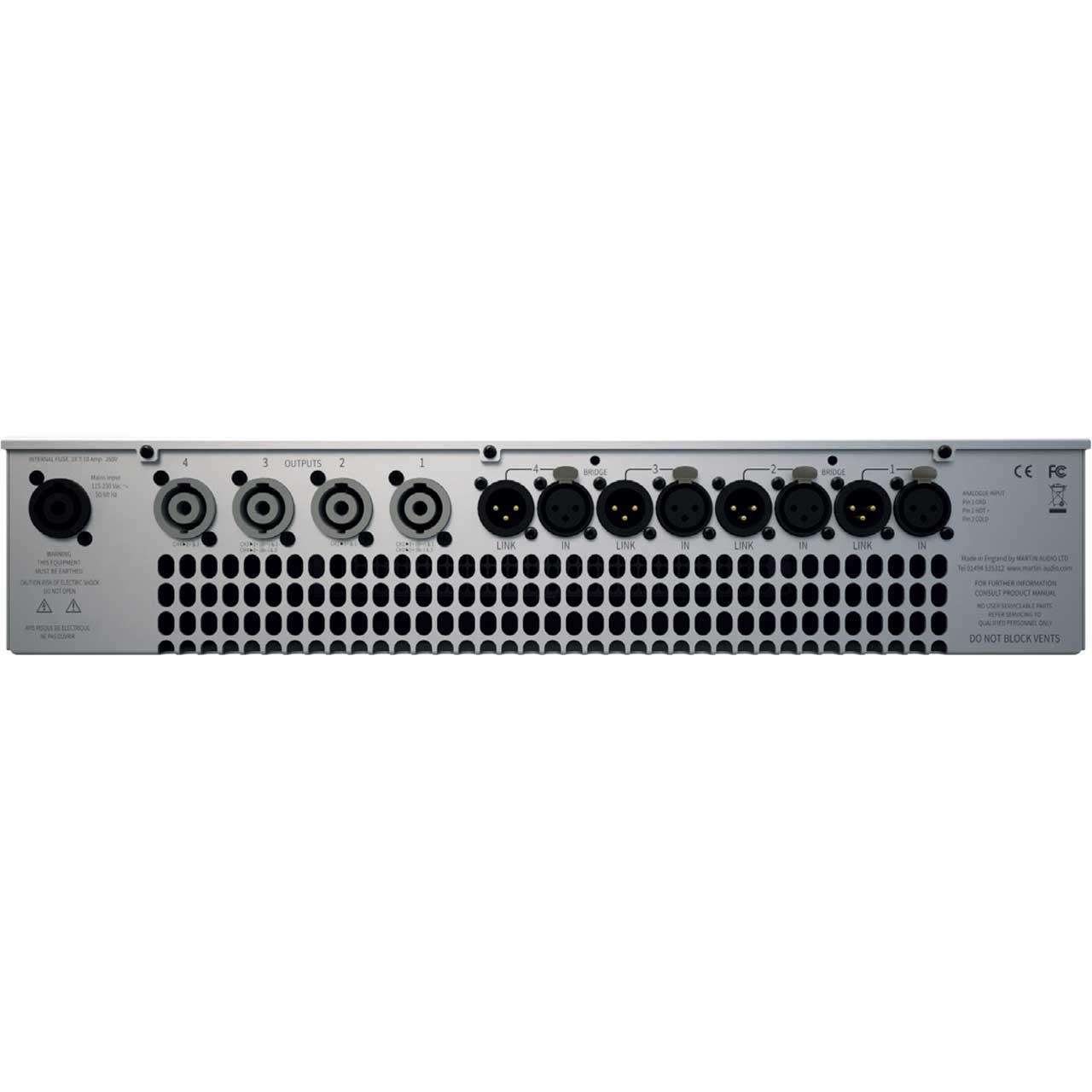

    Audio Inputs/Outputs
  • Analogue In/Link (4 CHANNELS): 4 x female, 4 x male Neutrik™ XLR
  • Analogue Input Impedance: 10KΩ balanced
  • Maximum Analogue Input Level: +20dBu
  • Amplifier Outputs: 4 x Neutrik Speakon™ NL4

    Audio Performance
  • Output Noise: -113dBA, referenced to max output (22kHz bandwidth)
  • Frequency Response: <10Hz - >20kHz +/- 0.25dB
  • Total Harmonic Distortion: <0.05% typical @ 1kHz, -3dB output (22kHz bandwidth)
  • Slew Rate: >80V per microsecond
  • Damping Factor: 120 ref 8 ohms

    Power Supplies
  • Type: 2 x high current, high frequency switch-mode
  • AC Input Operating Range: 100-240V +/-10%, 45 - 65Hz
  • Total System Efficiency: >90% typical
  • Mains Connector: 1 x Neutrik Powercon™

    Physical
  • Dimensions: (W) 19inch x (H) 2U/3.5inch x (D) 17.4inch
  • incl handles and optional rear support
  • Weight: 22 Lbs
