Matrix Switch MSC-AMS40TE Multiplexed Audio System 40 AES Stereo - DB25 Outputs

ITEM #: MSC-AMS40TE MFG #: MSC-AMS40TE

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-AMS40TE

MSC-AMS40TE - Overview

Matrix Switch Corporation's advanced modular, distributed Multiplexed Audio System (AMS) offers a powerful, low-latency, dedicated audio sample-synchronous platform for analog and digital audio distribution and routing. Visit our Multiplexed Audio Products page for a more detailed overview of this product family.

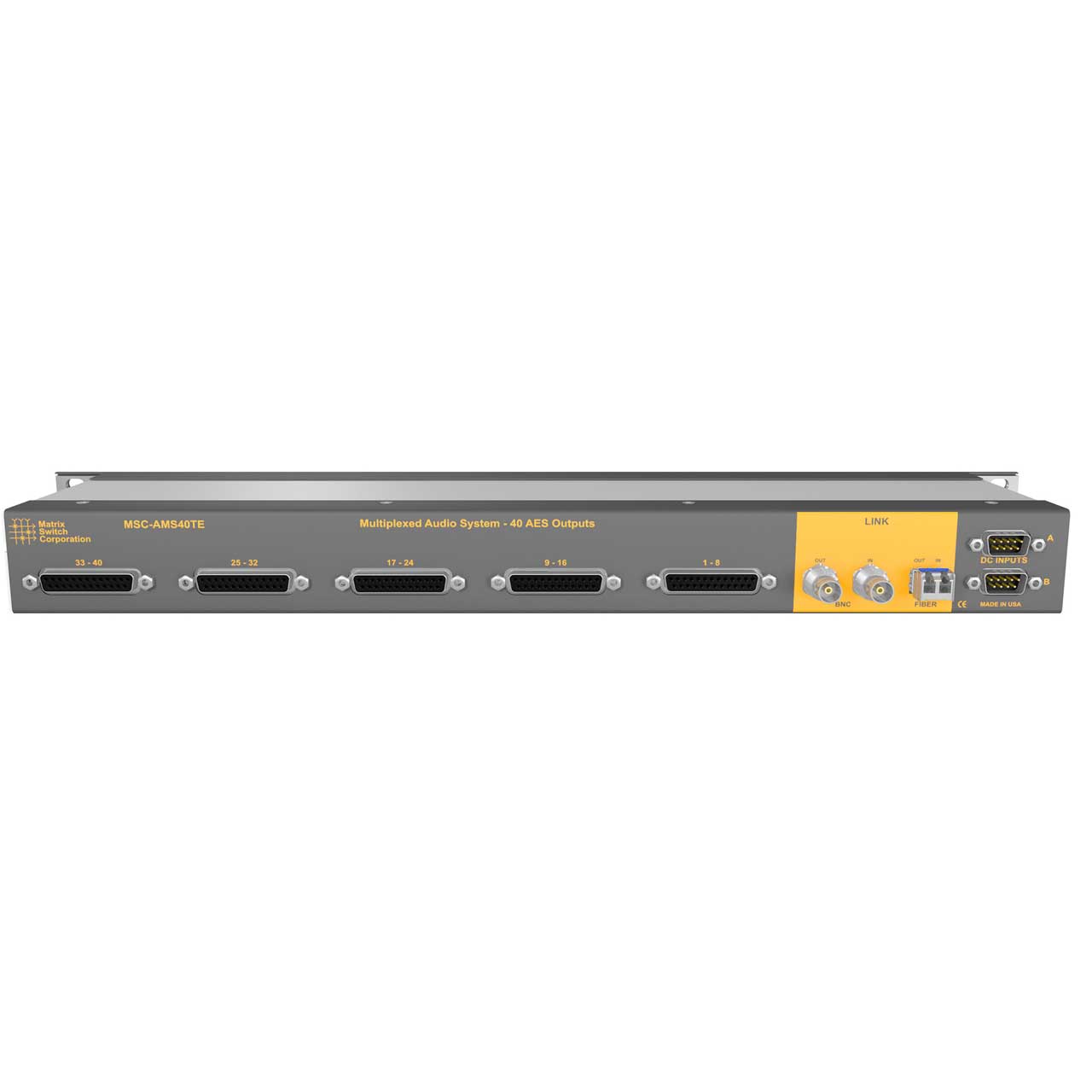

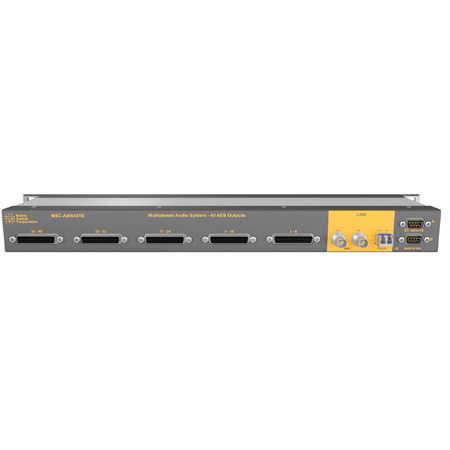

The MSC-AMS40TE adds 40 AES outputs using DB25 connectors to a Multiplexed Audio System. Each stream supports up to 2 AES channels for a device total of 80 AES digital audio channels. The DB25 connectors use the common balanced signal TASCAM pin-out with many compatible consumer and professional products available, including breakout cables and screw down terminal blocks.

Please Note! SFP's Not Included.

  • Features:

    • Supports all AES audio rates up to 192 KHz
    • External DC power supply
    • Redundant power supply included
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements
    • Backed by a full 2 year manufacturer parts and labor warranty


  • Specifications:

    • Outputs: 80
    • Enclosure Type: 1RU
    • Power: 12 VDC 5A Adapter
    • Power Connector: D9 Male
    • Panel Type: Status
    • Operating Temp.: 32 - 158F
    • Storage Temp.: -14 - 194F
    • MTBF: 50,000+ Hours
    • MTTR: < 48 Hours
    • AES: Audio
    • Connector Type: DB25 (Tascam pinout)
    • Input Level: 200mV to 5V P-P
    • Input/Output Impedance: 110 Ohm +/- 1%
    • Output Level: 1V P-P
    • Output Impedance: 110 Ohm 1%
    • Standard: AES3


  • Warranty:

    • 2 Year Warranty
