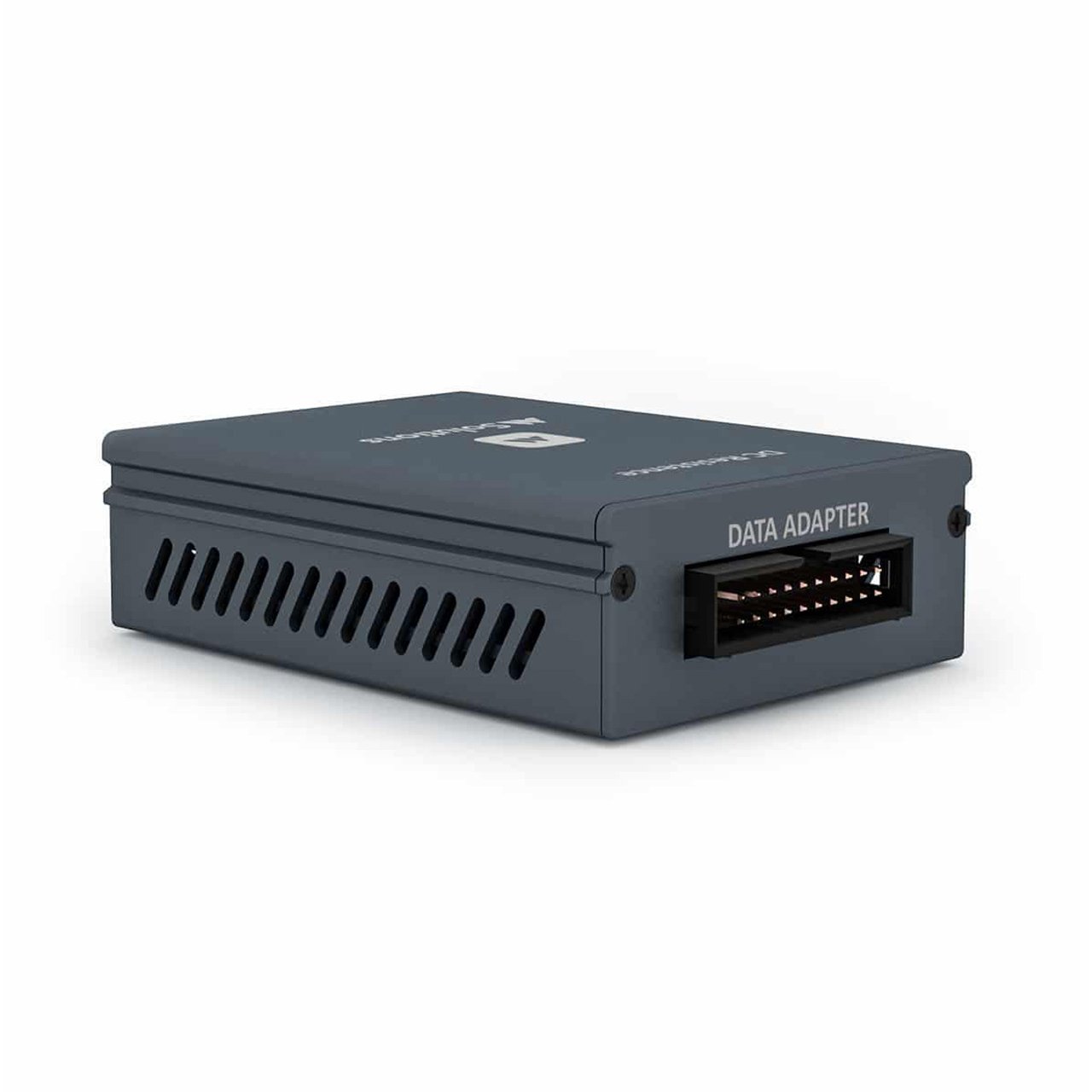

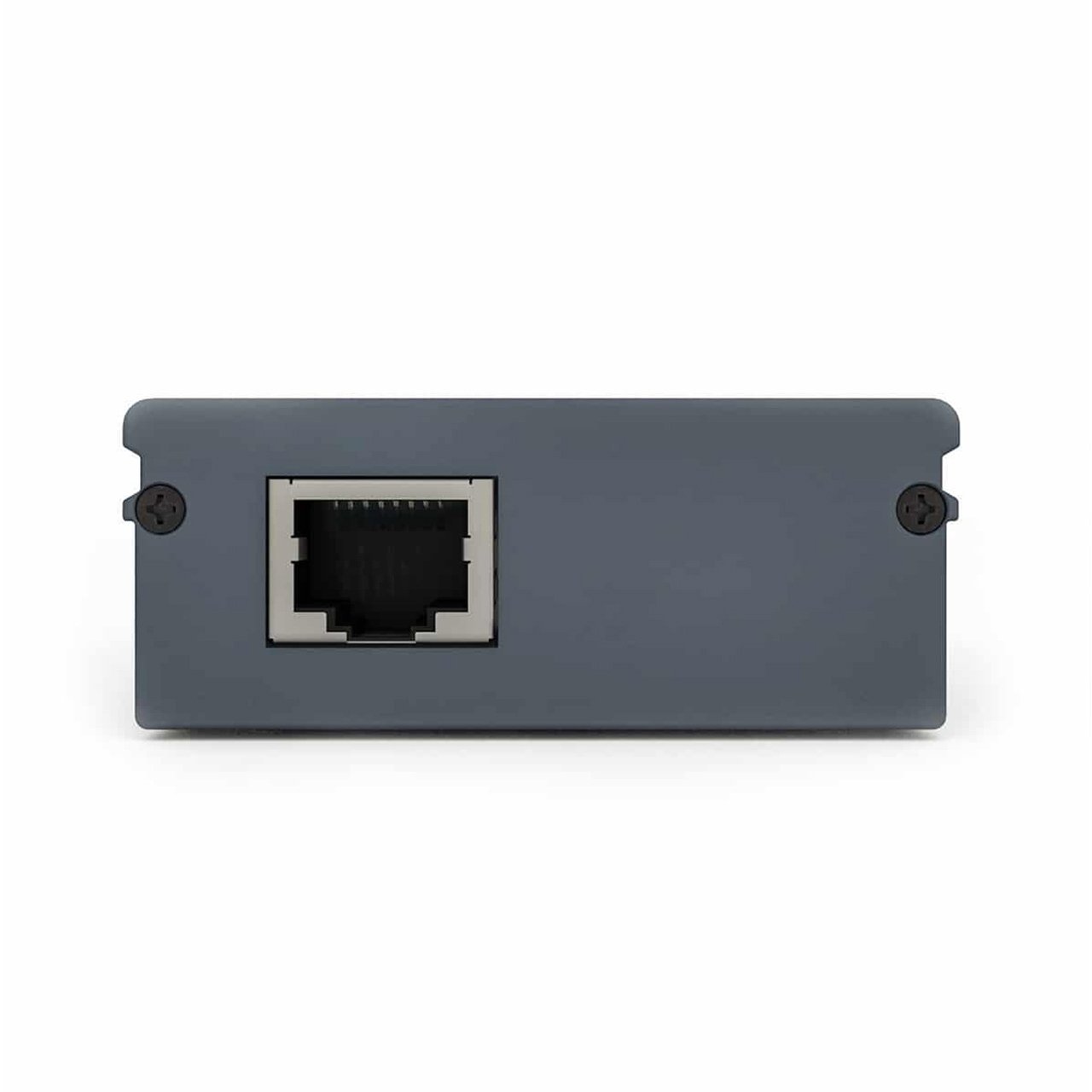

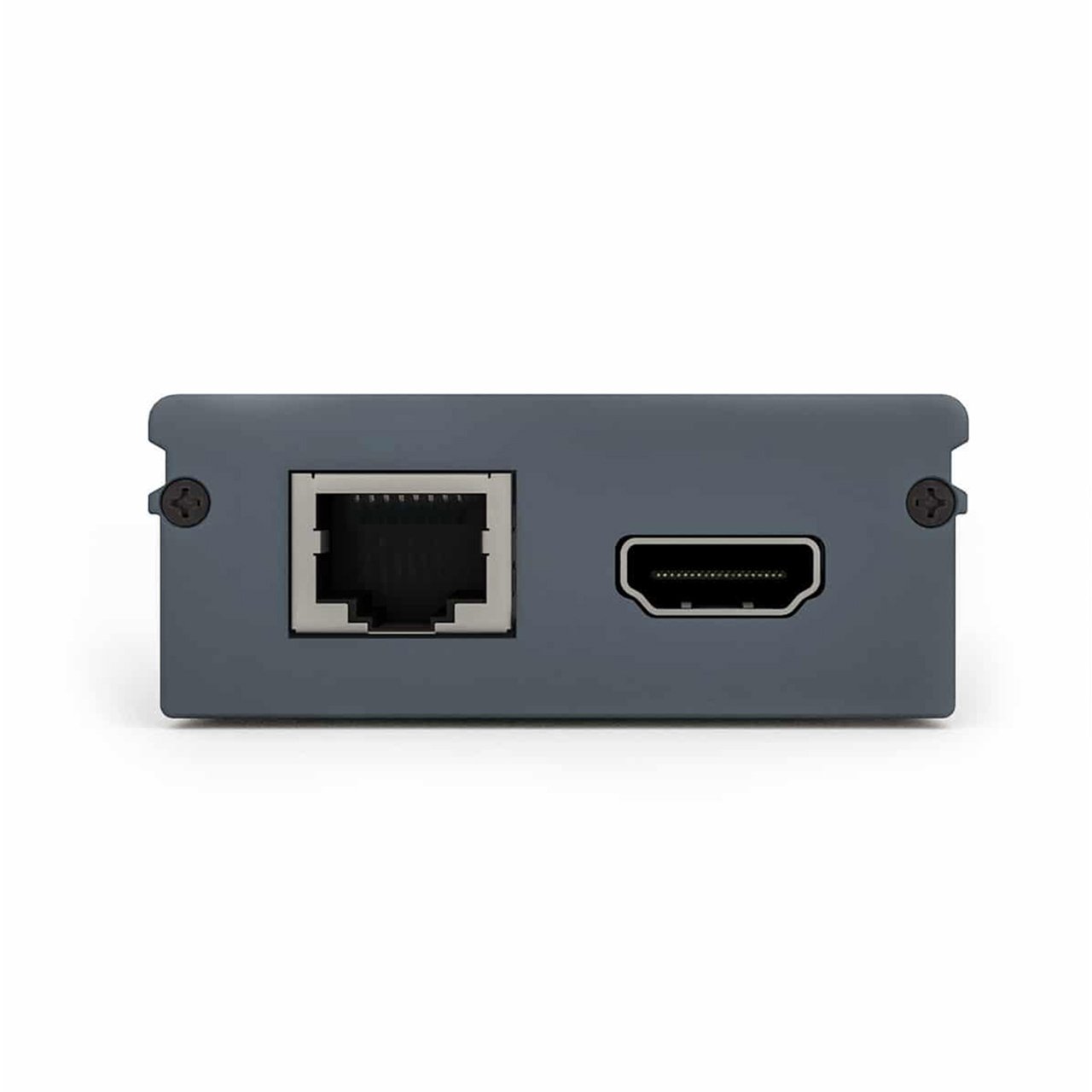

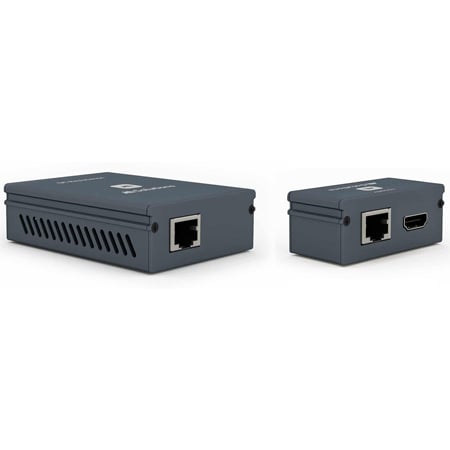

The optional MSolutions DCR MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT).
The DCR will check for:

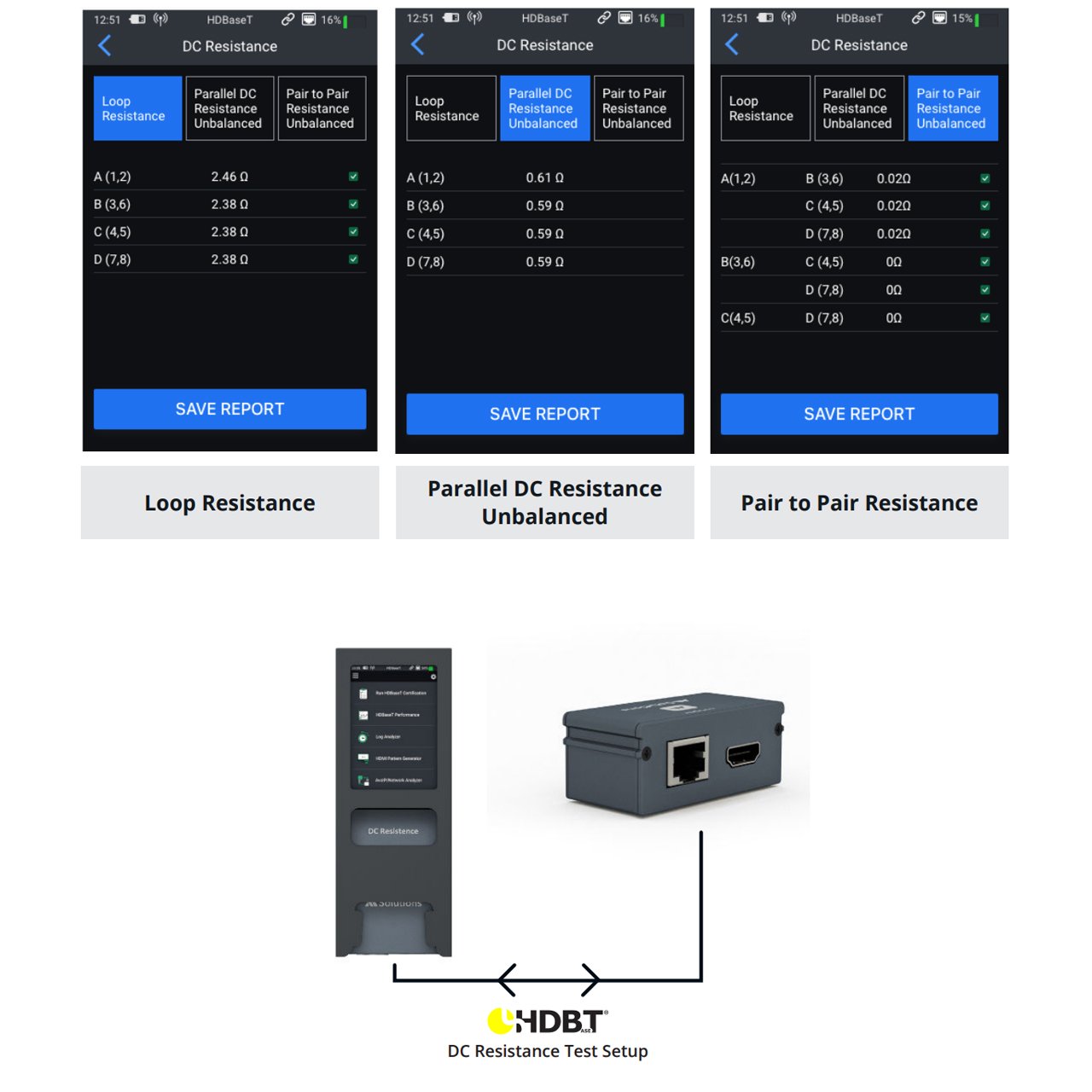

1. Loop Resistance which represents the DC loop resistance in Ohm (Ω) of a cable, and is calculated as the sum of the DC resistance of the two conductors in a pair.
2. Parallel DC Resistance Unbalanced for the parallel resistance of the CATx two conductors in each cable pair. For each pair, the difference is expressed in ohms (Ω).
3. Pair-to-Pair Resistance Unbalanced which is the difference in DC resistance between all four twisted pairs in the cable. For each pair, the difference is expressed in ohms (Ω).
DC Resistance provides a deeper analysis of the infrastructure cabling quality, analyzing each twisted pair. It provides an inner look on the CATx wiring quality and its ability to support a high quality HDBaseT/Ethernet transmission while supplying PoE / PoH with high efficiency.
Loop resistance indicates the quality and ability of the individual twisted pair wiring, to transfer the transmitted signal without degradation of the quality.
For example: the loop resistance will affect the heat developed on the wires due to power and as a side effect it will influence the crosstalk that leads to transmission degradation.
The DC Resistance module was designed to meet IEEE Standard 802.3-2012, IEEE 802.3bt regulations regarding the CATx quality.
