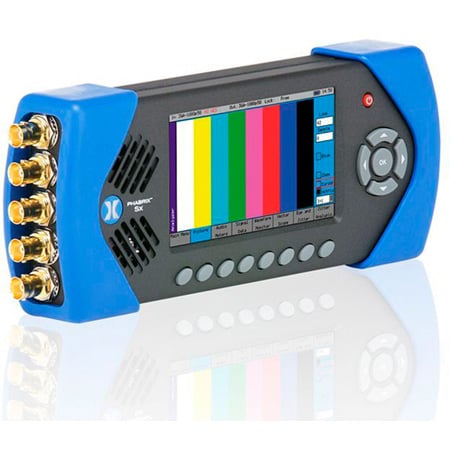

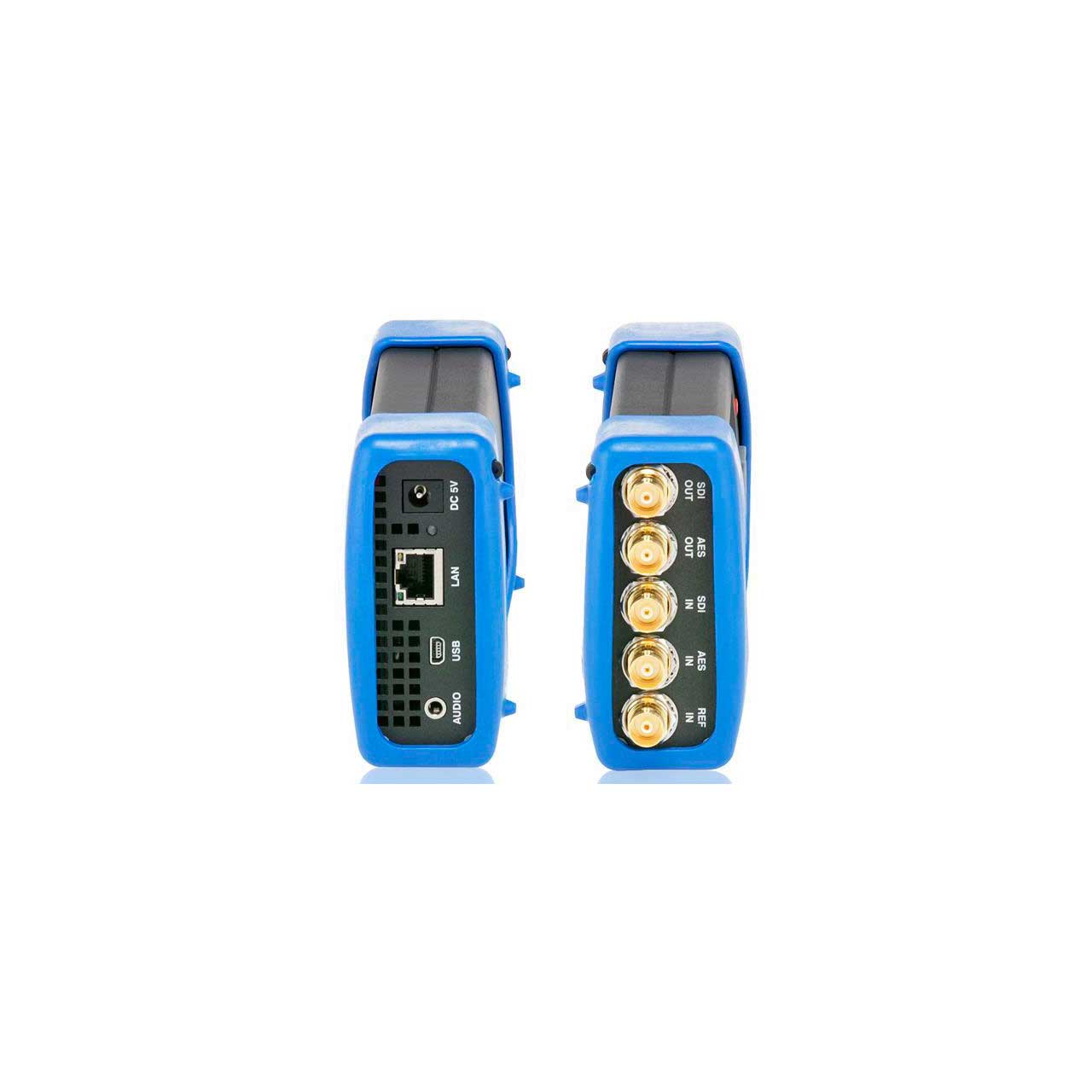

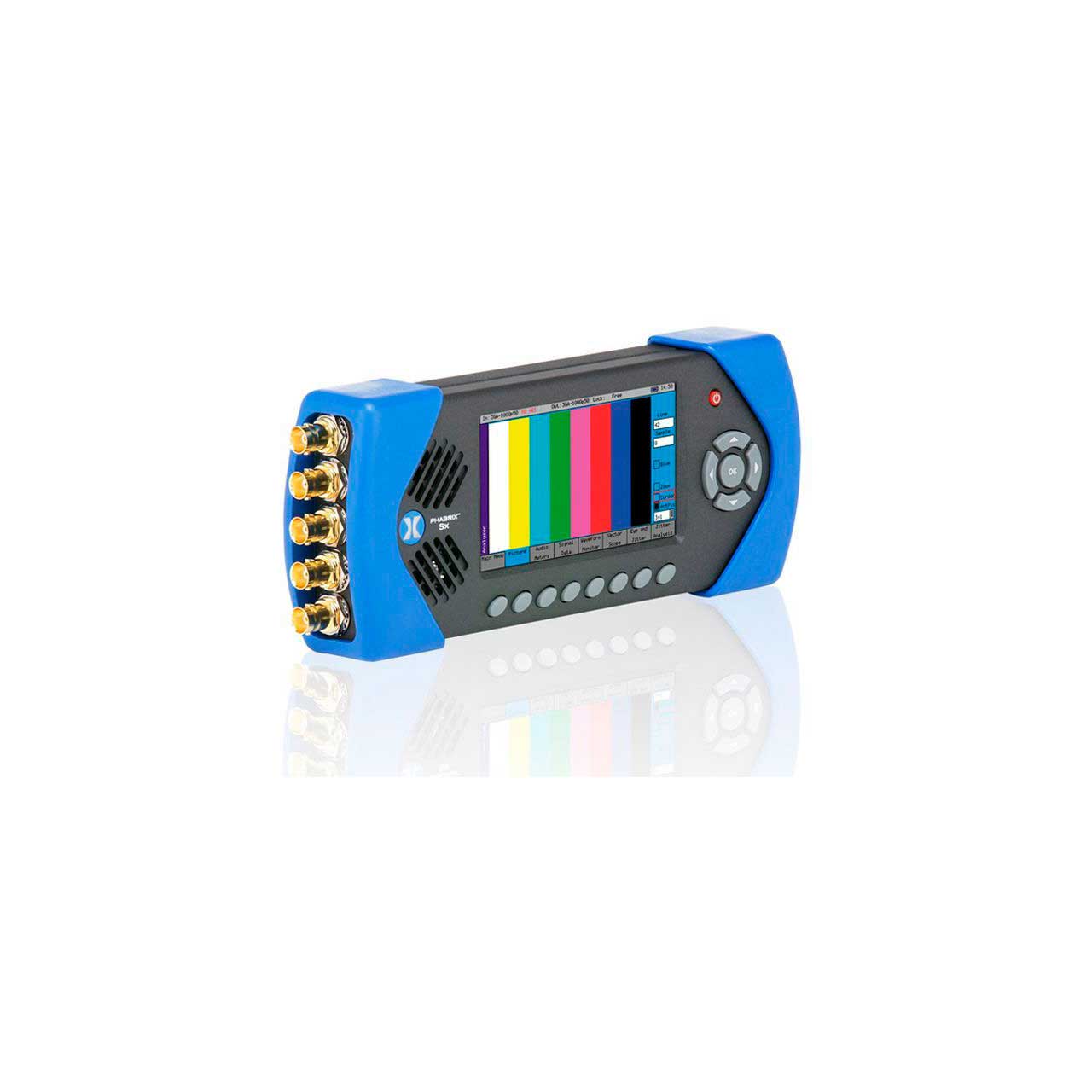

Phabrix SxAES Portable Audio/Video Test Signal Generator


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    PHSXAES - Overview

    Portable 3G/HD/SD Generation, Analysis & Video/Audio Monitoring
    The PHABRIX SxA offers all of the same advanced signal generation, analysis and monitoring capabilities as the SxE, without the advanced Real-Time SDI physical layer analysis (eye and jitter instruments)

    There's support for SMPTE compliance testing with over 350 different formats. An extensive array of video and audio tools includes a signal generator with moving test patterns, a high performance waveform, and ANC/VANC inspector. The SxA also offers 16 channel audio generation and metering with support for Dolby® E, Dolby® Digital and Dolby® Digital metadata and bitstream analysis.

    Extensive video & audio toolset
    The SxA offers an extensive array of video and audio tools, including a signal generator with moving test patterns, and high performance waveform and vectorscope instruments. It supports test and measurement with over 350 formats for highly effective compliance monitoring.

    Other key capabilities include Dolby® E, Dolby® Digital and Dolby® Digital Plus bitstream analysis, as well as video status logging, and remote operation over Ethernet.

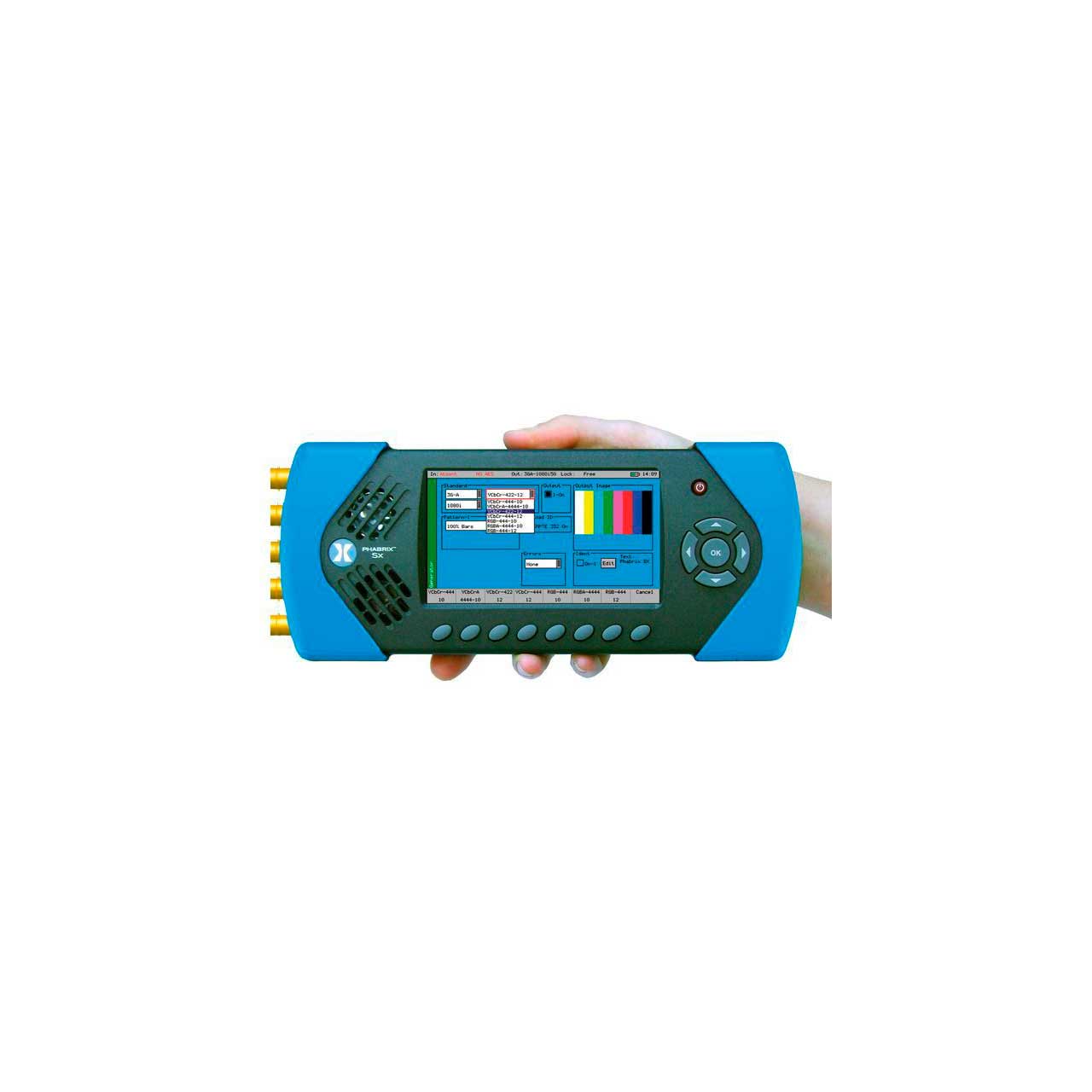

    Ultra-portable, rugged design
    The SxA offers exceptional mobility with a lightweight (0.7 kg) but rugged aluminium case with integral, high quality screen for instrument display and video monitoring.

    The generator/analyzer operates via rechargeable lithium battery for up to 2 hours, and can also be powered by the mains to offer flexible operation around facilities.

    Fast operation
    With its color coded GUI that simplifies signal and instrument selection, the Sx series generator/analyzers offer unmatched ease of use for busy engineers who need to diagnose faults and assure compliance quickly.

    • Features:

      • Simultaneous generation and analysis for SMPTE compliance testing
      • 3G/HD/SD-SDI support
      • Embedded audio generation, analysis & monitoring with 1x AES in, 1x AES out, 48kHz 75 Ohm
      • Auto Bi-level, Tri-level and SDI genlock with cross lock capability
      • Over 350 formats supported for compliance monitoring
      • 12-bit waveform monitor with YCbCr, Y, Cb, Cr and GBR format display and horizontal/vertical graticules
      • Vectorscope for checking color bias / conformity
      • Signal generation with 32 test patterns, including Pathological and moving patterns
      • CRC error detection, video aspect ratio detection and SMPTE 351 display
      • HANC/VANC support
      • Pixel check and picture zoom
      • Embed a single external 48kHz synchronous AES stream into the generated video stream
      • Extract embedded audio and export it via the AES output
      • 16 channel audio metering
      • Dolby® E, Dolby® Digital and Dolby® Digital Plus bitstream analysis
      • TCP/IP interface for remote control and automated testing
      • Comprehensive status logging with custom reports
      • Instrument picture capture to simplify fault finding
      • High quality, 16:9 built-in screen for video monitoring
      • Rechargeable lithium battery delivers 1-2 hours operation and mains power also available
      • Superior ease of use with color coded GUI
      • Lightweight at 0.7kg
      • Rugged aluminium case for demanding broadcast environments
    • Specifications:

      • Monitor Details
      • Display resolution: 480 x 272 pixels auto scaling
      • Display type: 16:9 24 bit color TFT
      • Display size: 95 x 54 mm
      • Processing: All digital

      • SDI: 3G-SDI, HD-SDI SD-SDI
      • Outputs: 1 x 75 Ohm BNC
      • Inputs: 1 x 75 Ohm BNC
      • Genlock: Bi/Tri/SDI with cross lock
      • Adjustable timing: 0 to 1 Frame
      • Text Ident: Yes with font, color and point size
      • Logo ident: Yes
      • EDH: Yes (SD-SDI)

        Video Test Signal
      • Resolution: 10 bits
      • Static Test patterns: 32+ including full frame
      • Moving Zone Plate: Yes
      • User defined: DPX,YUV,TGA,BMP

      • Internal speaker: 0.5 watts
      • Audio DAC: 24 bit stereo
      • Headphone socket: 3.5 mm with auto line out
      • Generator/Monitor: 48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
      • 16 channel embedded audio: Yes
      • AES output: 1 x 75 Ohm BNC
      • AES intput: 1 x 75 Ohm BNC

        Audio Test Signal
      • Fixed tones: 17
      • Variable tones: 1 Hz-24 Khz in 1Hz steps
      • Intermittent Tone: Yes
      • White noise generation: Yes
      • Audio levels variable: 0 to -100dB in 1dB steps
      • Audio phase invert: Yes

      • Navigation panel: 5 menu keys 8 custom select/program
      • Integral battery supply: Yes
      • Internal Storage: 8GB (upgradable)
      • Remote control: Web browser interface
      • Ethernet/USB: Yes
      • Security: Kensington lock fitting
      • Size: H:92mm W: 225mm D: 42mm
      • Weight: 0.7kgs
    • Item Includes:

      • Carry case
      • AC power supply
