    X-TS-MINI - Overview

    Digital Forecast has reached higher ground with the release of their Bridge X-TS Trouble Shooter. And now the latest addition to the Bridge XT-S Trouble Shooter series is here, the Bridge X-TS Mini!

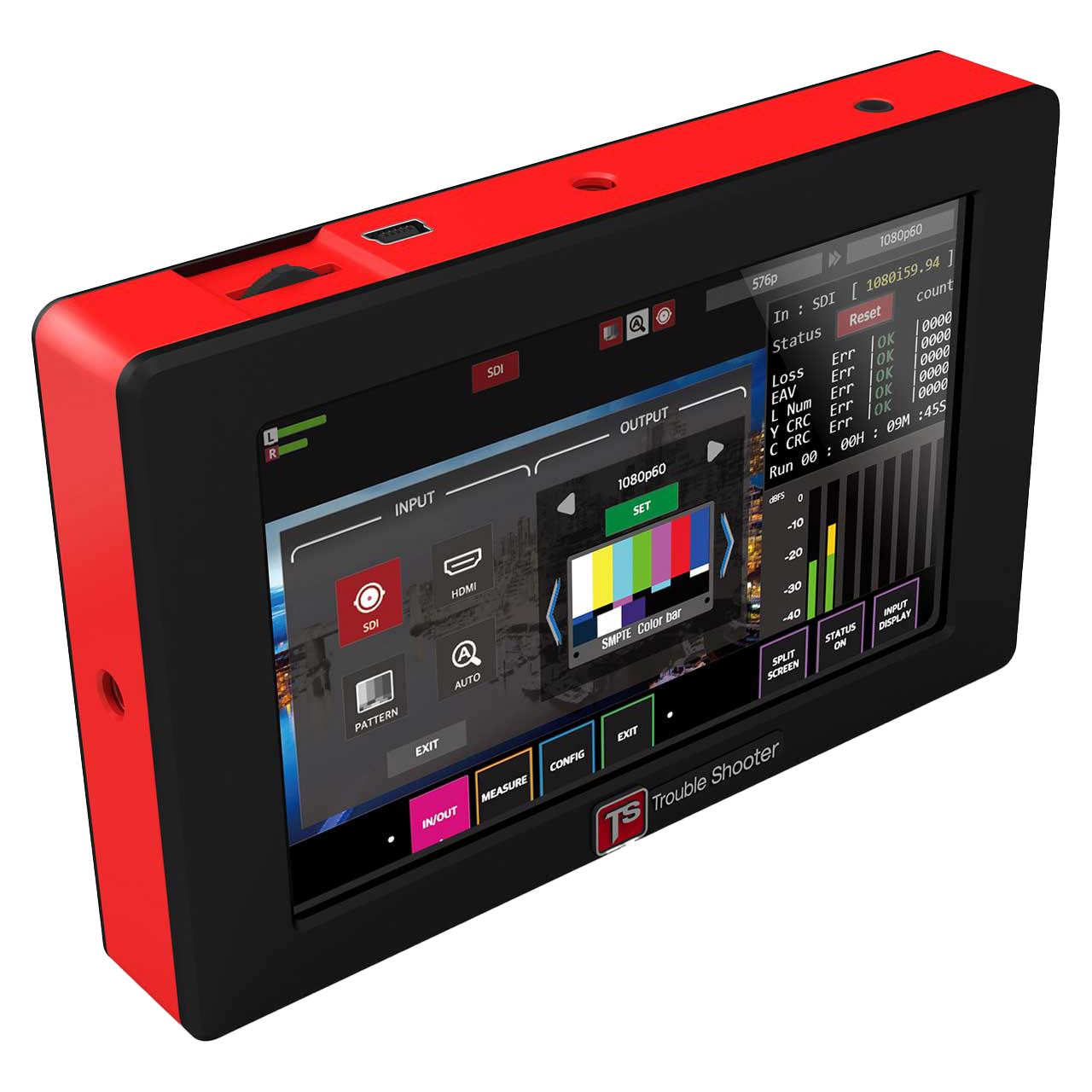

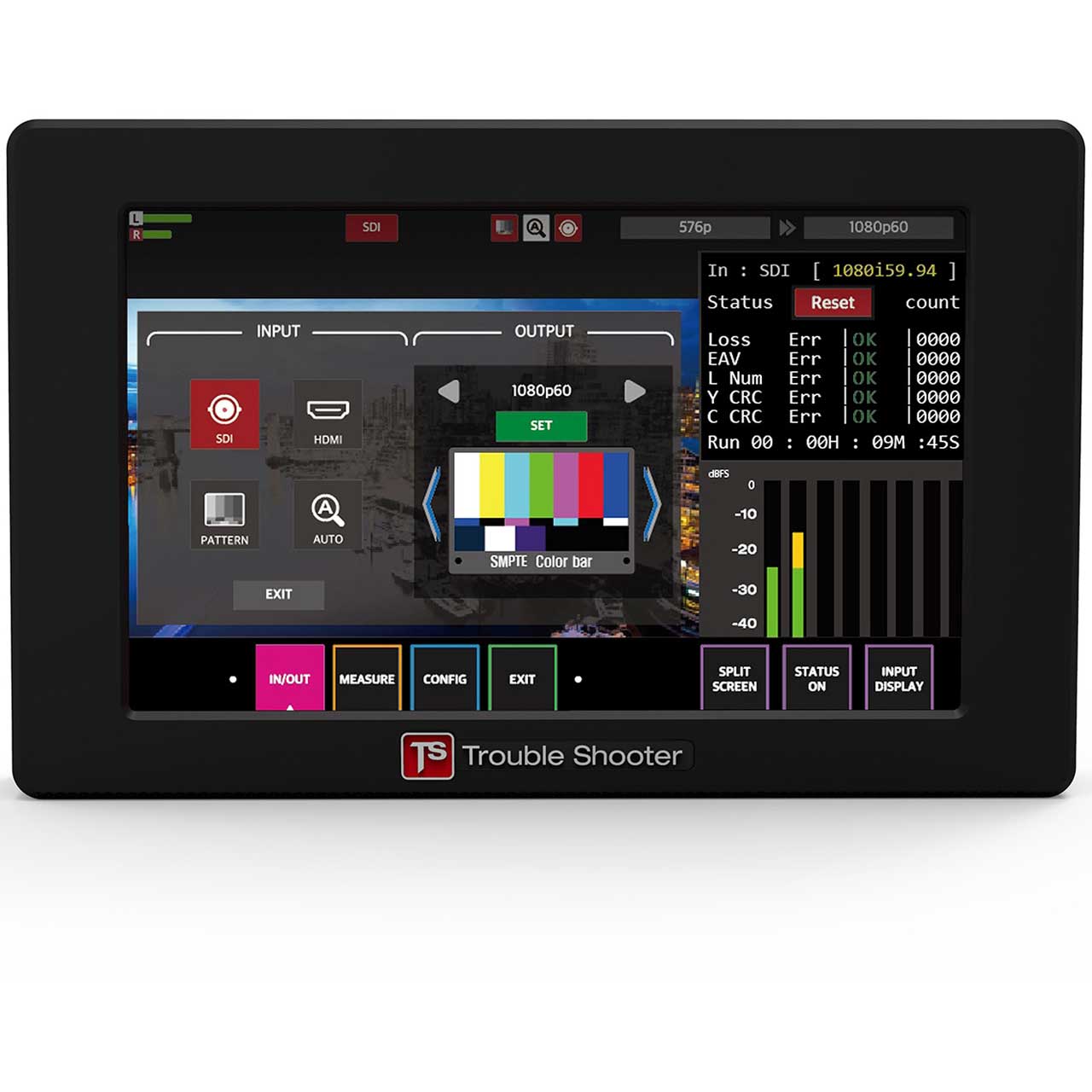

    Easily viewable the Bridge X-TS Mini features a 5 inch LCD touchscreen (800 x 480) and is a super portable SDI/HDMI cross convertor with measurement functions fully supporting up to 1080p60 for SDI (SD/HD/3G) and HDMI (SD/HD/Full HD). The Bridge X-TS Mini supports full SDI to HDMI and HDMI to SDI cross conversion with all standard formats supported. The Bridge X-TS Mini has all the features you need, an 8 type Test Pattern Generator with Static/Pathological, Moving box and more. Test pattern generation and measurement can even be done at the same time! There's SDI and HDMI integrity check, eye pattern diagram on the SDI input, and 8 Channel Audio level monitoring with an earphone output. Universal Power Supply Included.

    • Features:

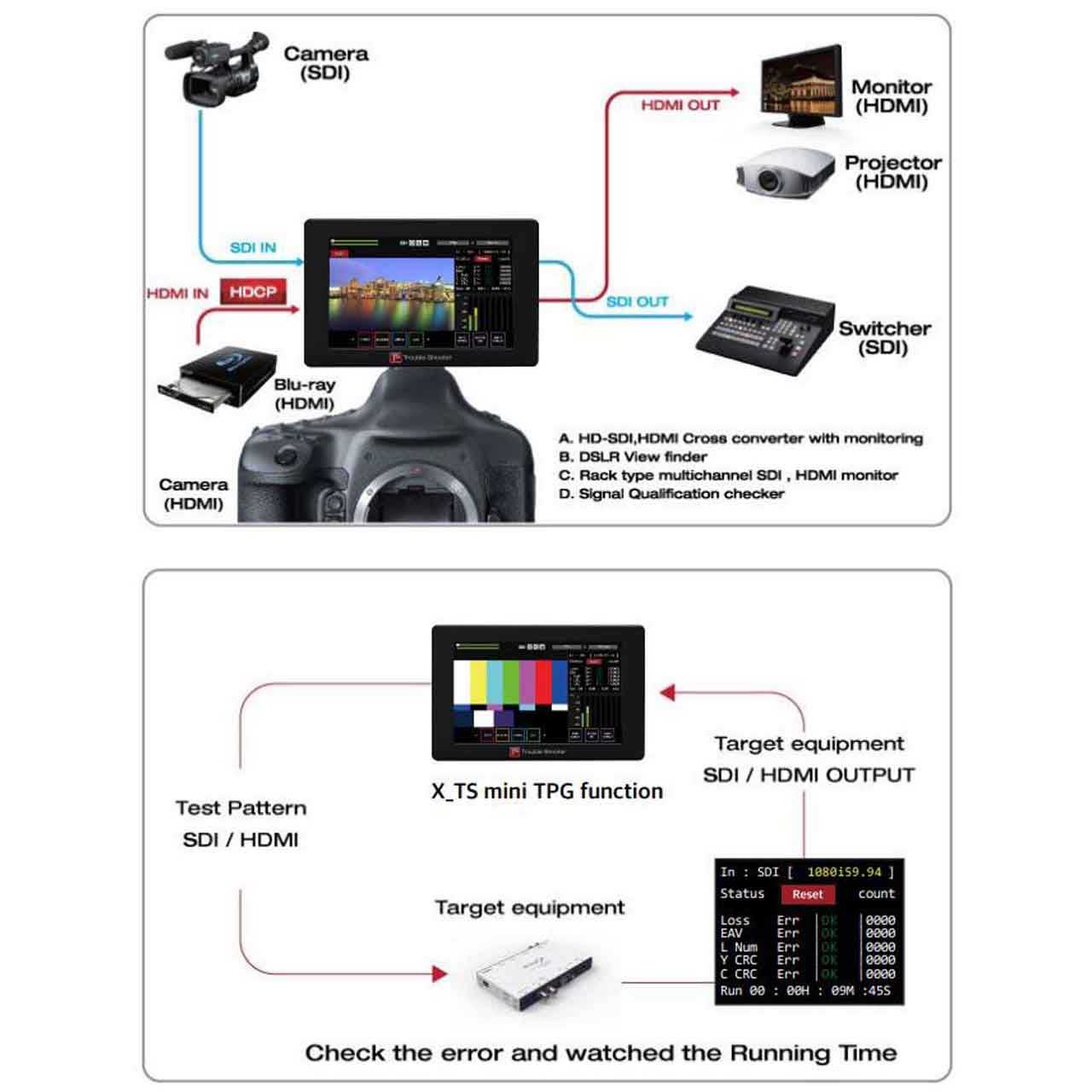

      • SDI to HDMI, HDMI to SDI cross conversion.
      • SDI In/Ouput SD/HD/3G - all standard format supported.
      • HDMI In/Ouput SD/HD/Full HD - all standard format supported.
      • Test Pattern Generator: 8 types provided - Static/Pathological/Moving Box, etc.
      • Test pattern generation and measurement at the same time.
      • Eye pattern diagram of the SDI input.
      • SDI signal integrity check (Loss, TSR, CRC, Line number).
      • HDMI signal integrity check (Loss, Resolution, HDCP).
      • Audio level monitoring (up to 8 channels).
      • Audio monitoring earphone output.

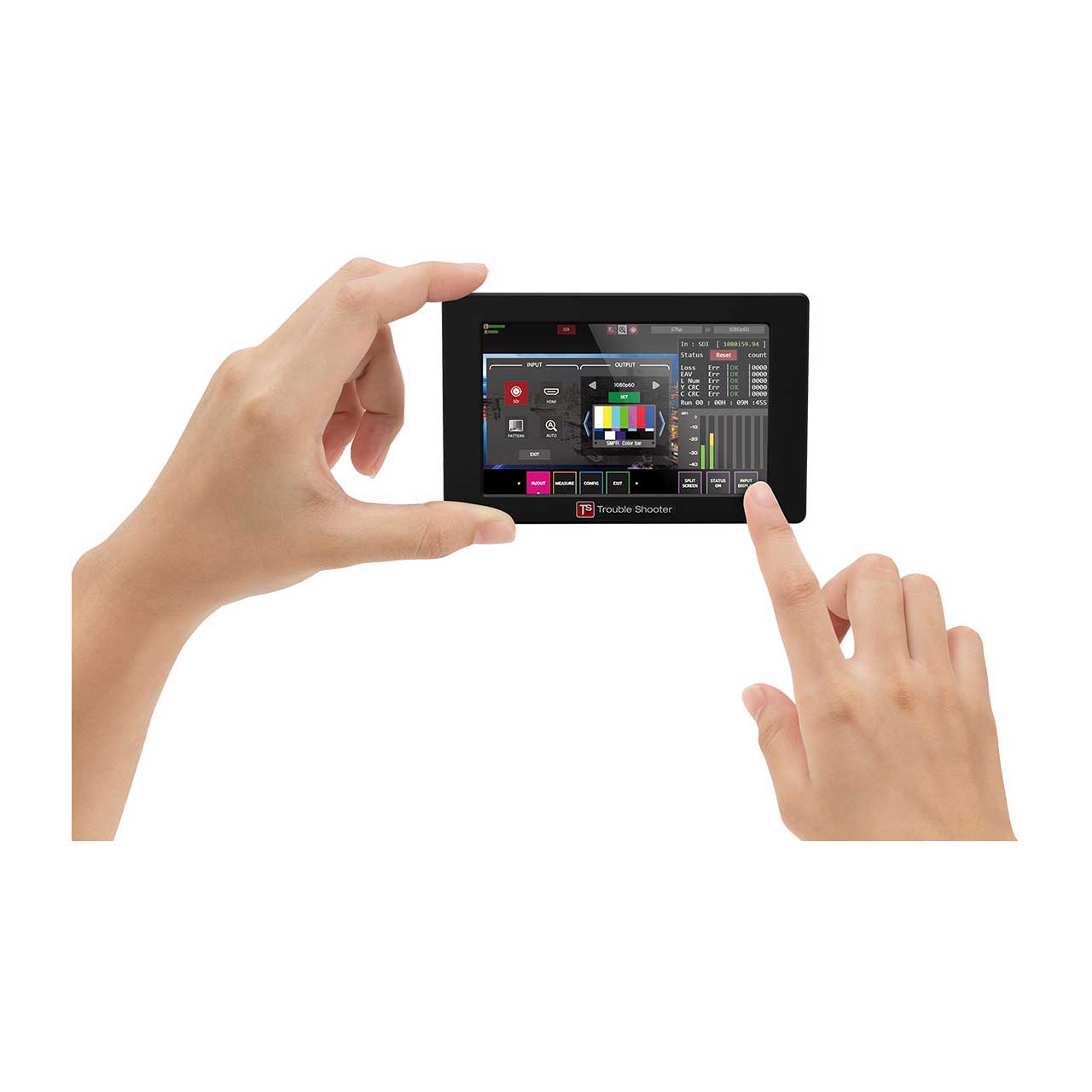

      • 5" Touch Screen LCD (800 x 480).
      • DC 7V ~ 17V Operation range.
    • Specifications:

      • LCD Specification
      • Size: 5.0 Inch
      • Resolution: 800 x 480
      • Pixel area: 0.135mm(W) x 0.135mm(H)
      • Display Area: 108mm(W) x 64.8(H)

        Video Standards
      • HDMI v1.3 format Support
      • Multi-rate SDI format Support
      • SD format: 525/29.97 (NTSC), 625/25 (PAL), 480P, 576P
      • HD format: 720P (24/25/30/50/59.94/60), 1080i (50/59.94/60), 1080p (24/25/30/sf24/50/59.94/60)

        Operating Environment
      • Power Supply: + 12 VDC
      • Power Consumption: 9 Watts (Maximum: 10Watts)
      • Operation temperature: 0°C ~ 70°C
      • Humidity: 0% ~ 95% RH, Non-condensing
    • Item Includes:

      • X-TS Mini Main Unit
      • Universal Power Adapter
