Lightel DI-2000-B2/PC USB 2.0 Digital Inspector Autofocus Probe - Standard PC Package

ITEM #: LTL-DI-2000-B2PC MFG #: DI-2000-B2/PC

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,025.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DI-2000-B2/PC - Overview

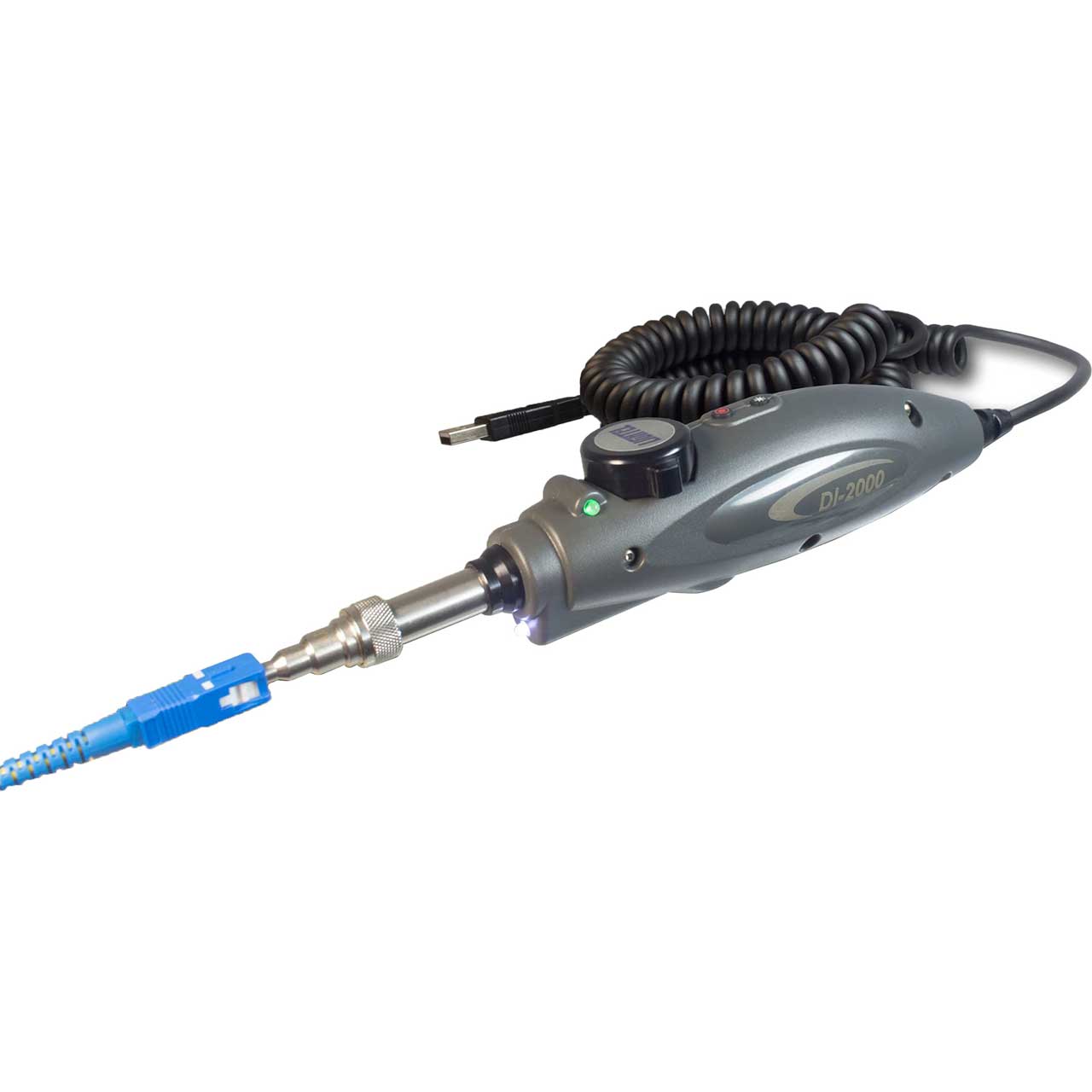

    USB autofocus probe for easy connector inspection
    Many modern network issues can be traced to contaminated or damaged fiber optic connector endfaces. Lightel's DI-2000-B2/PC DI inspection probe series provides ergonomic, easy-to-use, and versatile inspection of the endfaces for fiber optic male and female, single and multi-channel connectors. The DI-2000 features rapid one-touch autofocus. Its visual indicator LED will change from red to green when focus is achieved, facilitating connector inspection, especially useful in high density racks. In addition, since technicians must sometimes work in wiring closets or data centers with poor illumination, the unit comes equipped with a built-in flashlight. With its easily accessible capture button, capturing and saving images to your PC and other devices is simple. Like all of our DI Series scopes, the DI-2000 can use any of Lightel's more than 120 inspection tips.

    The DI-2000 package includes four UPC tips, free ConnectorView (standard) software for image display, auto-centering, image capture and digital zoom, and a convenient carrying case. Lightel's optional ConnectorView Plus software can provide pass/fail analysis on a Windows tablet or PC. WiFi connectivity to tablets and smart phones is also available using their optional DI-1000-WIFI adapter.

    • Features:

      • One-touch autofocus
      • Compatible with more than 120 inspection tips
      • Capture and save endface images to PC with the push of a button
      • Single and multichannel connectors
      • Green LED indicates when image focus achieved
      • Built-in flashlight for use in dark conditions
      • Four UPC tips, ConnectorView software, and carrying case included
      • Optional WiFi connectivity
      • Optional pass/fail software

    • Specifications:

      • Field of View: ~ 680μm x 480μm
      • Detectable Resolution: 0.5μm
      • Focus: Autofocus or manual adjustment, 2mm max travel
      • Autofocus Time: ~2 seconds
      • Camera: 1/4" CMOS
      • Light Source: Blue LED
      • Power Supply: USB2.0 (or higher) port
      • Dimensions: 195mm x 41mm x 31mm (Probe with cap)
      • Weight: 0.4 lbs 210g
      • Operating Temperature: 0°C to 50°C
      • Storage Temperature: -20°C to 70°C
      • Supported Operating Systems (ConnectorView Software): Windows XP®, Vista®, Windows® 7, Windows® 8, Windows® 10, 32-bit and 64-bit processors

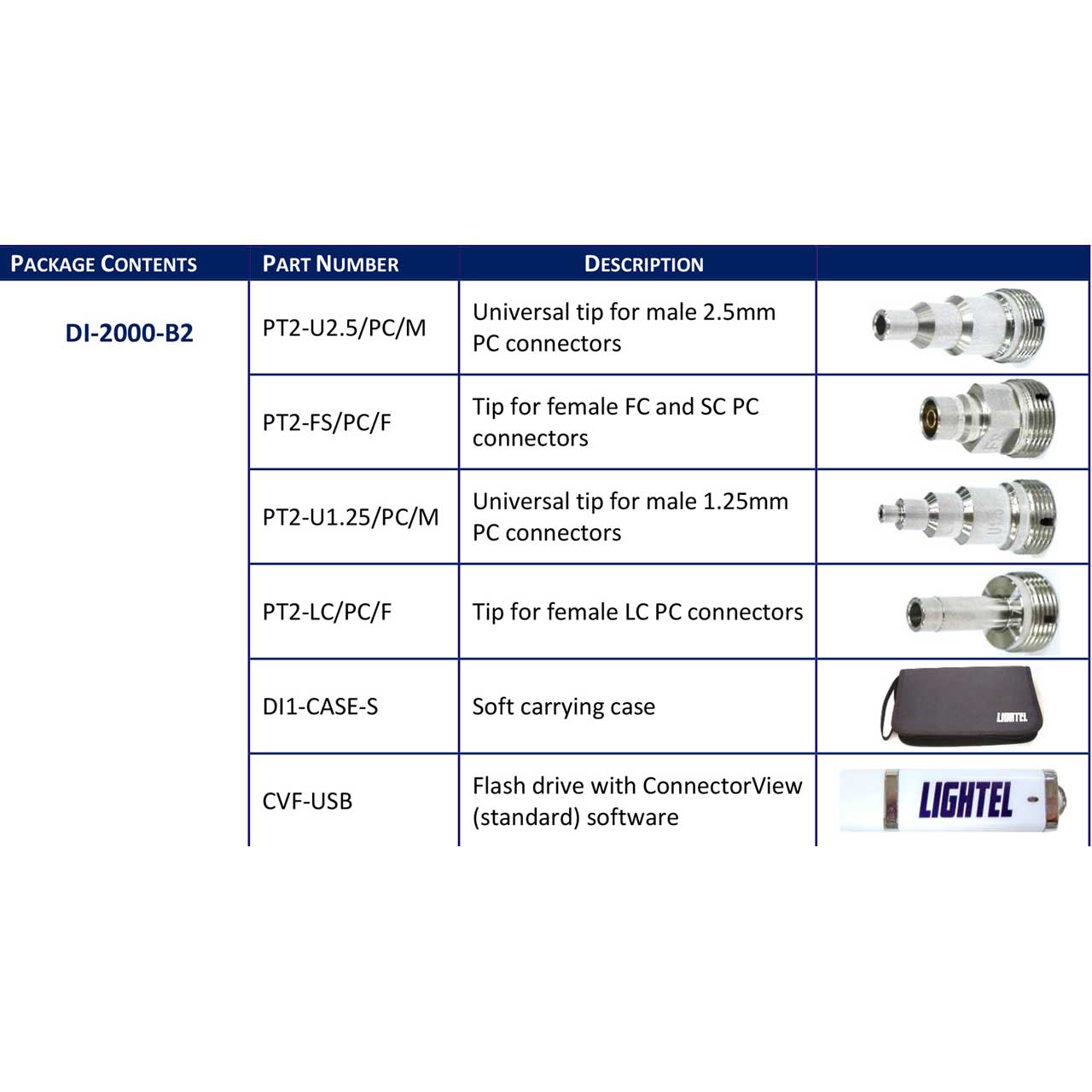

    • Item Includes:

      • (1) DI-2000 USB 2.0 Digital Inspection autofocus probe
      • (1) Tip for SC and FC PC type female connectors
      • (1) Tip for LC PC type female connectors
      • (1) Universal tip for 2.5mm PC male connectors
      • (1) Universal tip for 1.25mm PC male connectors
      • (1) Carrying case
      • (1) Flash drive with ConnectorView (standard) software, driver, and User's manual
