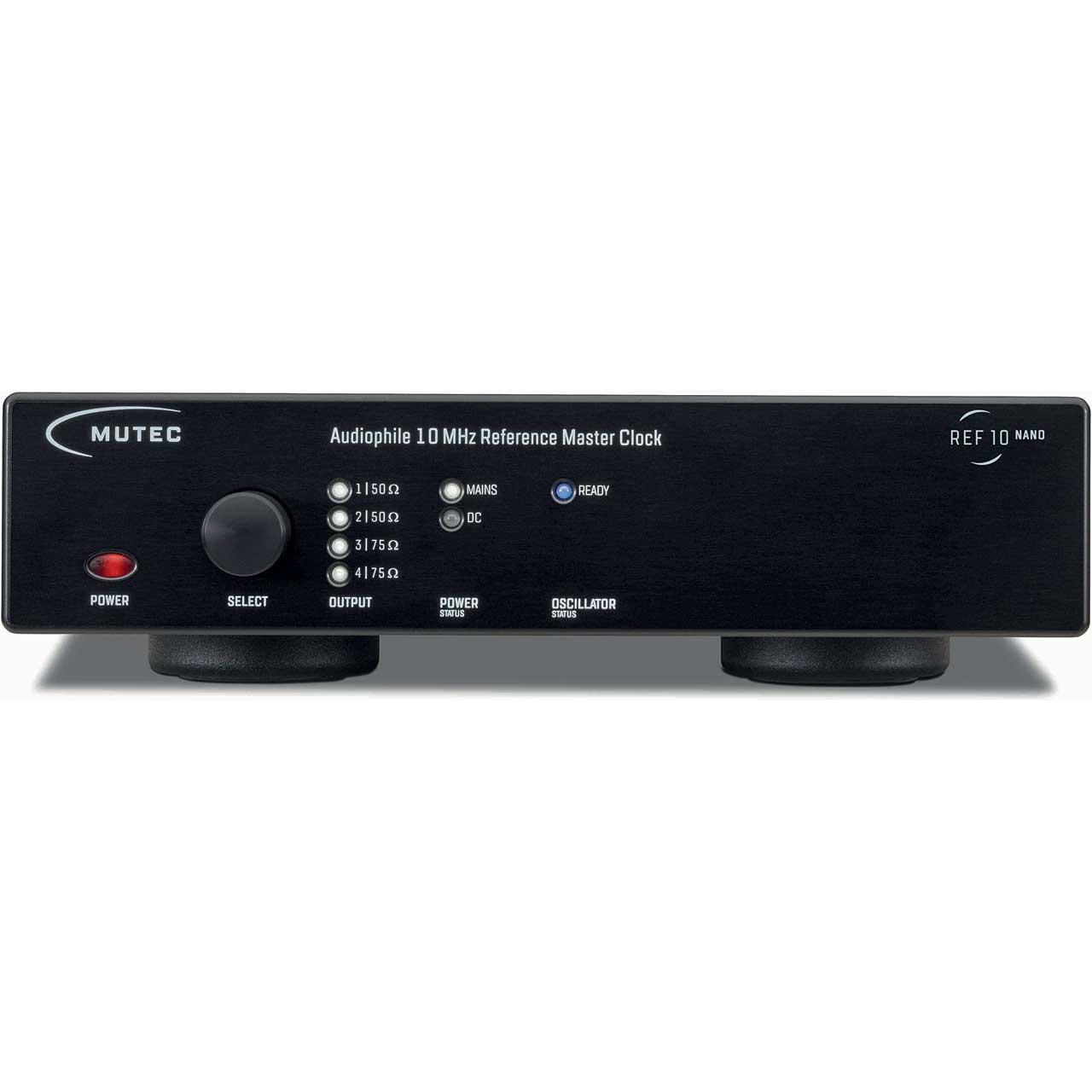

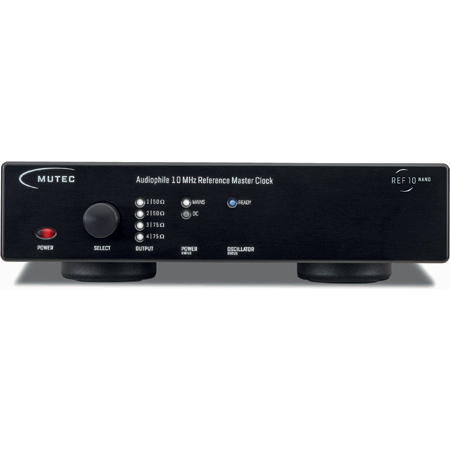

Mutec REF10 NANO Compact 10 Mhz Reference Master Clock with 4 Clock Outputs - Black

REF10NANO BLACK - Overview

• Features:

  • Audiophile 10 MHz reference generator with extra low phase noise
  • Improves and enhances compatible DACs, audio re-clockers, music servers, and master clocks
  • Engineered around a handcrafted, extra low phase noise OCXO Made in Germany
  • Generates a very high slew-rate square wave signal for superior lock precision compared to the sine wave signals used by competing brands
  • Provides simultaneous reference outputs with 50 and 75 Ω impedance for maximum compatibility with clocks and DACs by other manufacturers

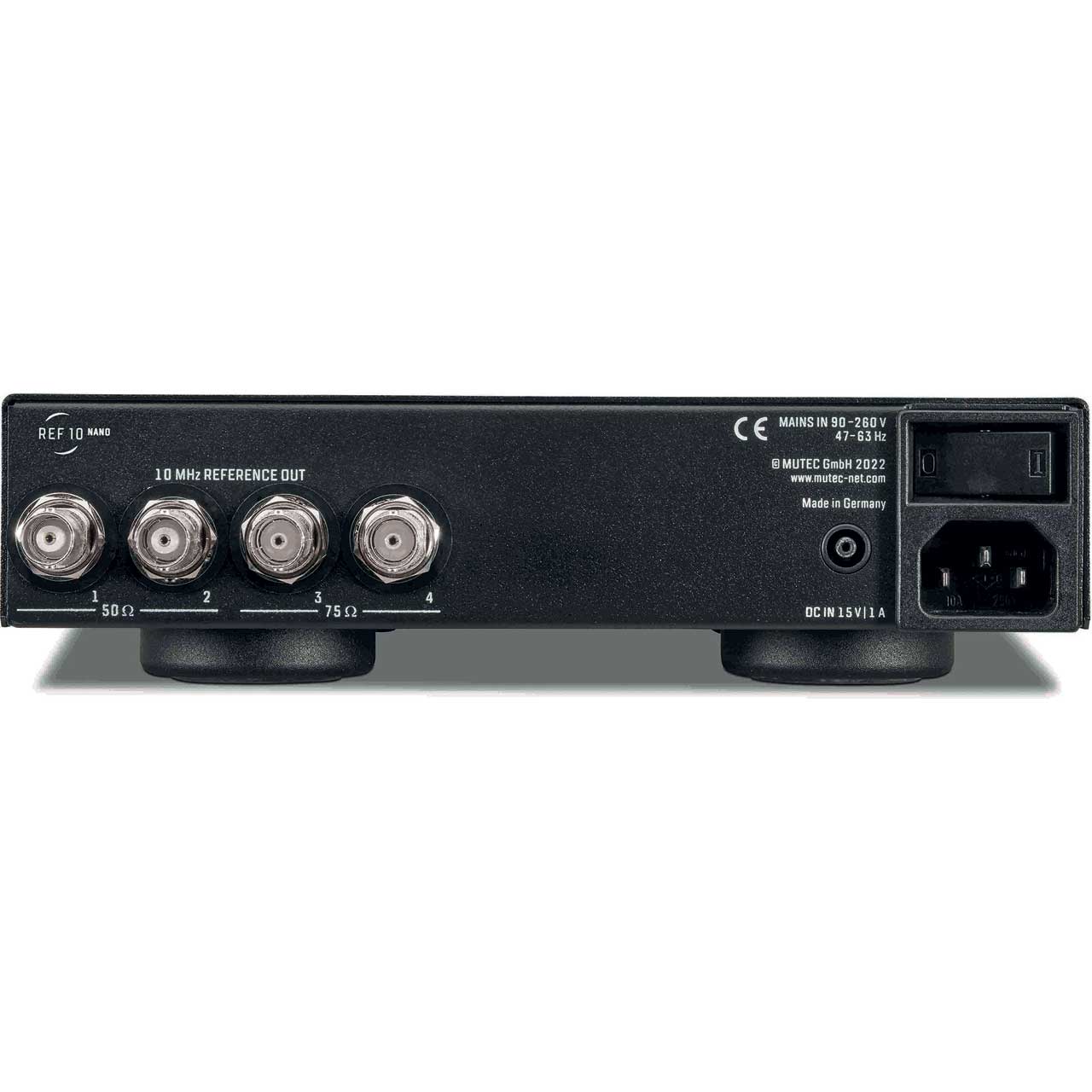

  • Four galvanically isolated, individually switchable BNC clock outputs
  • Revolutionary, sub-Hz optimized, lowest noise power supply for every circuit section
  • Integrated international power supply
  • DC voltage input to improve the REF10 NANO's noise performance with an external low-noise DC power supply
  • Power supply redundancy by using mains and DC voltage supply simultaneously
  • Self-explanatory user interface
  • Developed and manufactured in Germany


• Specifications:

  • Interfaces
  • 2 x: 10 MHz reference clock BNC output, 50Ω terminated, unbalanced
  • 2 x: 10 MHz reference clock BNC output, 75Ω terminated, unbalanced


  • Signal Format of all Clock Outputs
  • Square wave 10.000 MHz, 2 Vpp, 50:50 duty cycle


  • Clock Generation
  • Type: 10.000 MHz low noise oven-controlled crystal oscillator
  • FQ stability when shipped: < +/-0.01 ppm
  • FQ stability vs. temperature range: < +/-0.03 ppm within -20 °C to +70 °C (-4 °F to +158 °F)
  • Short term stability (Allan deviation) at Tau = 1 s: 2 x 10-12 (typically)
  • Aging after 10 days operation:
  • < +/-0.0002 ppm (per day),
  • < +/-0.03 ppm (1st year),
  • < +/-0.2 ppm (10 years)
  • Warm-up time at +25 °C (+77 °F) : <5 min


• GTIN:

  4260342461259
