Brainstorm DXD-8 Precision Reference Generator with 8 Universal Outputs
  • Brainstorm DXD-8 Precision Reference Generator with 8 Universal Outputs
  • Brainstorm DXD-8 Precision Reference Generator with 8 Universal Outputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Brainstorm DXD-8 Precision Reference Generator with 8 Universal Outputs

Manufacturer: Brainstorm Electronics

Item #: BRAIN-DXD-8   •   MFG #: DXD-8




Our Price:$2,495.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

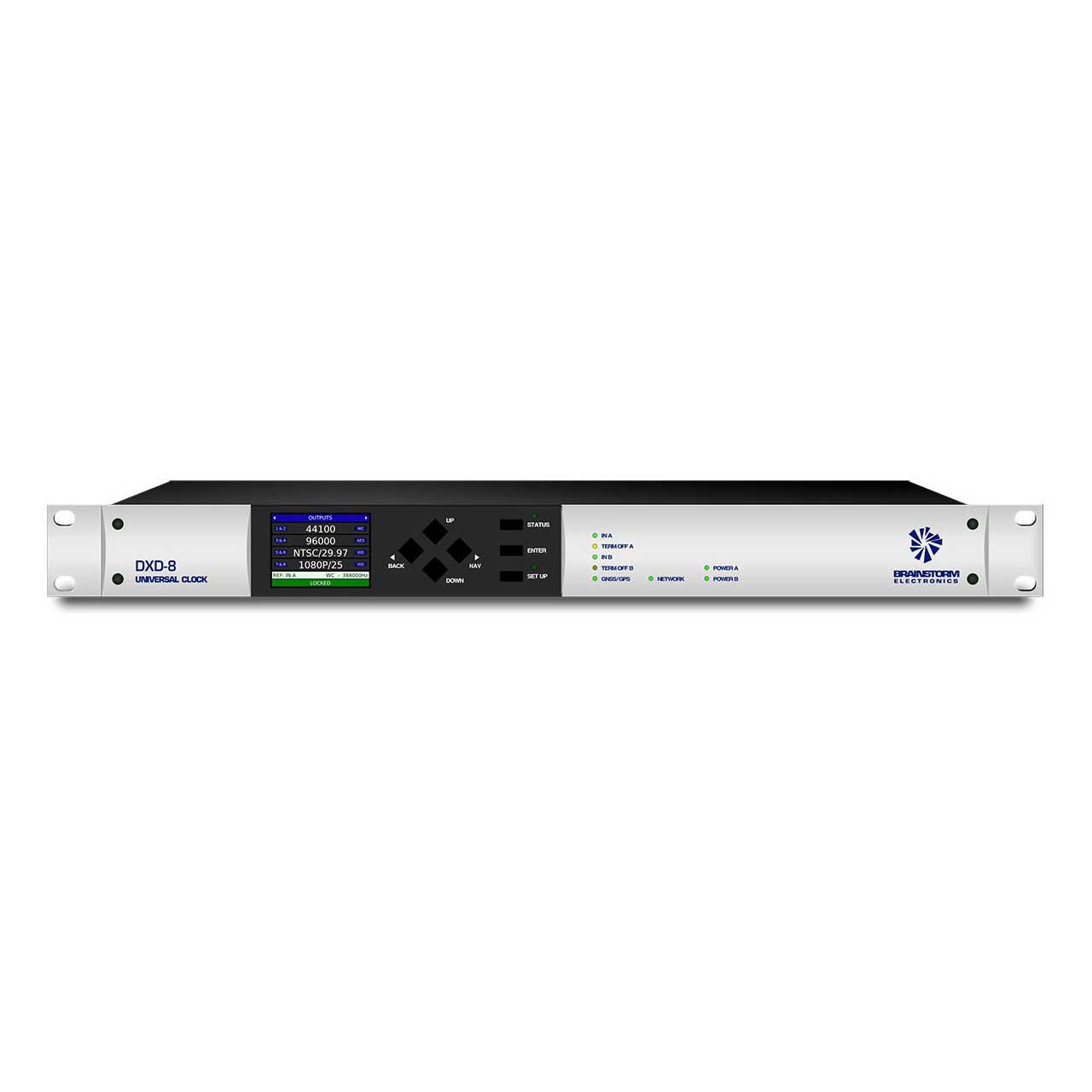

    The DXD series from Brainstorm is designed to ease the transition to IP. The DXD-8 Universal Clock, a precision multi-format reference generator generates up to 4 independent video syncs and audio clocks simultaneously.

    The DXD-8 generates up to 4 independent sync pulses and clocks simultaneously and routes them to the 8 BNC universal outputs. Universal Outputs give the DXD-8 great exibility as they can output any of the generated legacy reference signals. Included are all standard SD and HD video sync formats (Black Burst and HD tri-level sync), word clock and AES11 DARS (standard rates up to 384 KHz and all the necessary pull-up/down, including 24:25 conversions, even VSO) and 10MHz.

    A high-accuracy internal crystal oscillator (TCXO) provides a very stable frequency reference (+/- 1ppm). External legacy signals can also be used as reference: Word Clock, AES, Video Sync (SD & HD) and 10MHz. The generated signals have extremely low jitter. The output rates are independent from the reference rate which means that any rate can be extracted from any reference such as 59.97 from 25FPS for example.


    • Features

      • 4 separate Reference Generators
      • 8 universal outputs (WC, AES, VID SYNC, 10MHz)
      • 2 external reference inputs with failover for redundancy

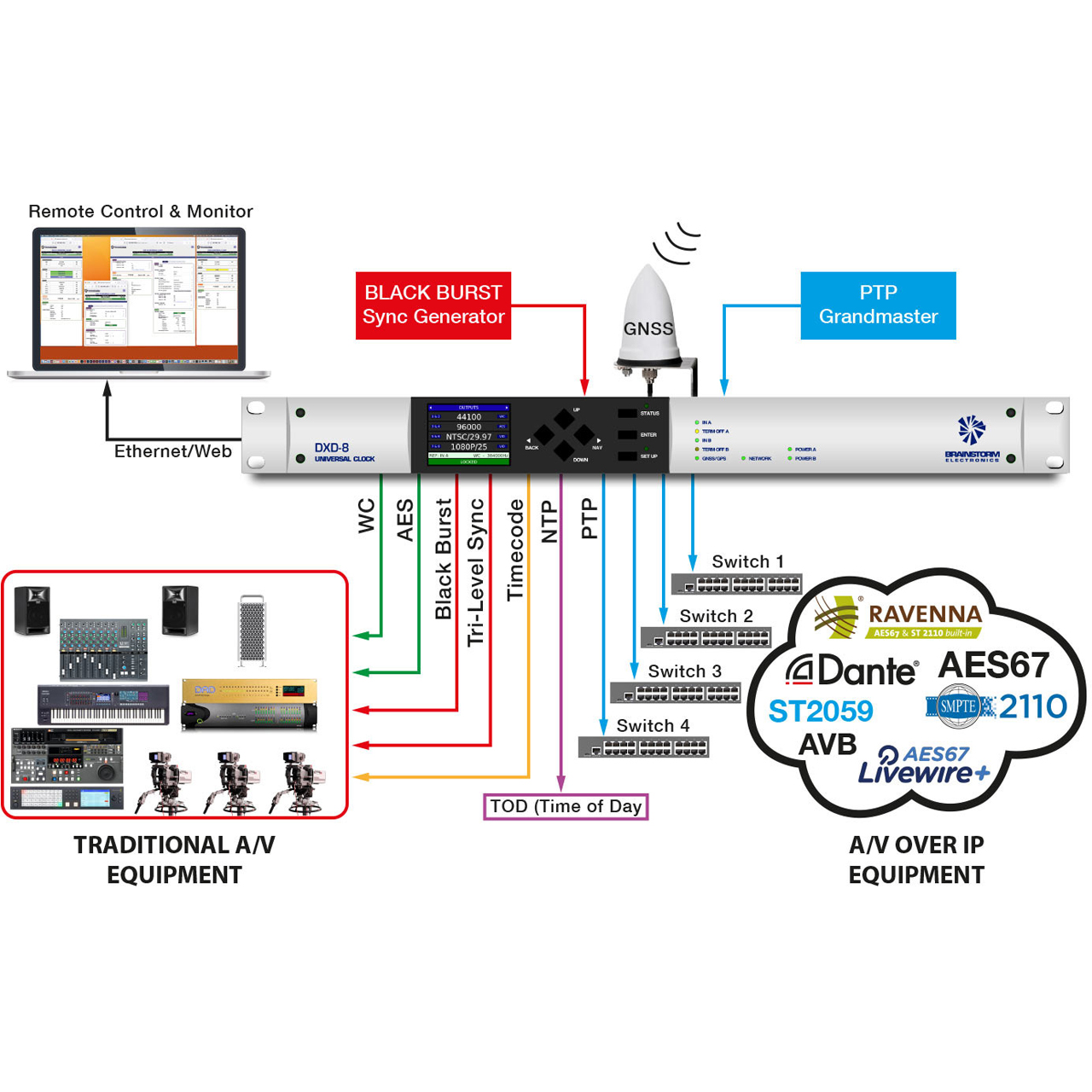

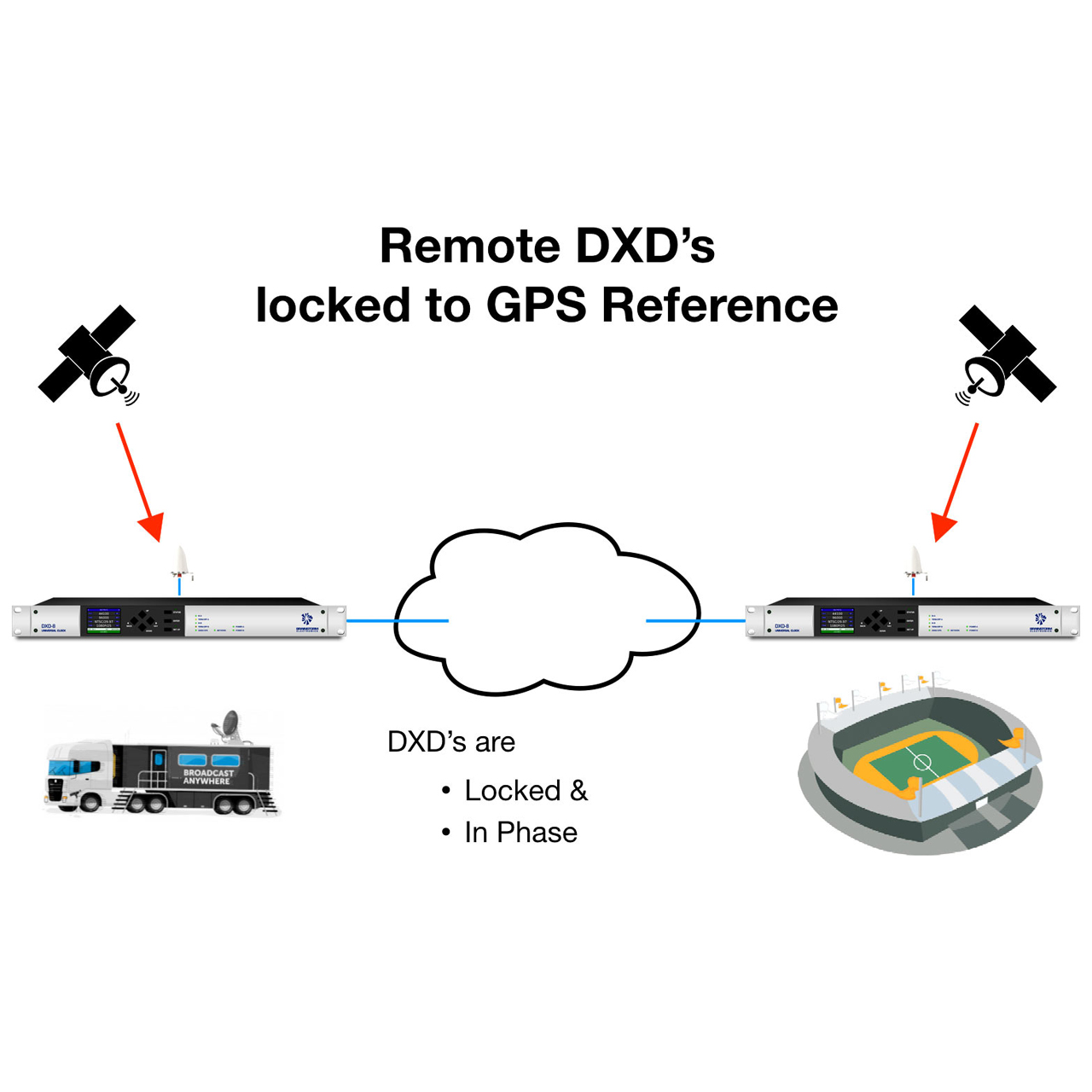

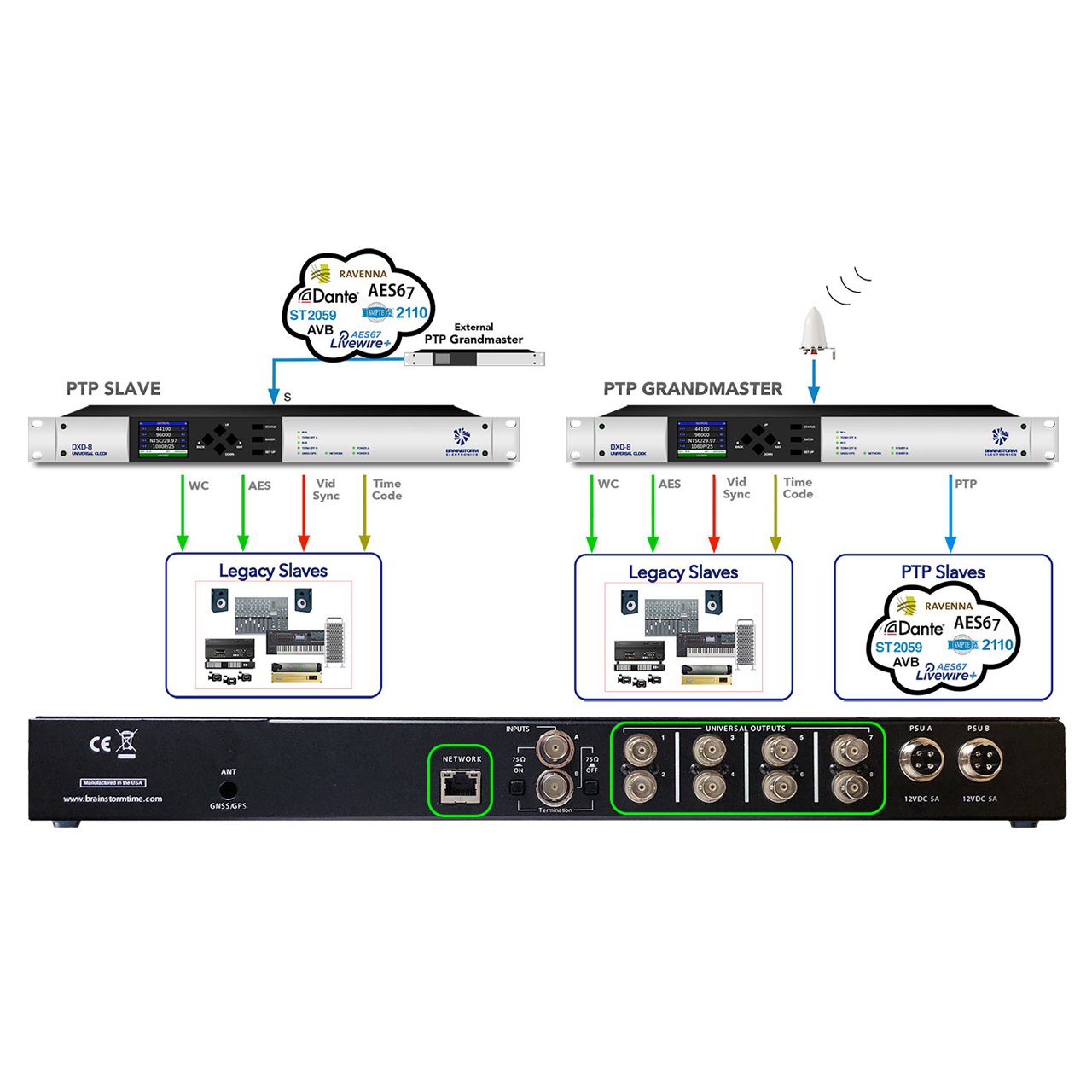

      • Synchronizes to a legacy reference, a PTP network or a GPS clock
      • Remote control via web browser

    • Specifications

      • Reference Generator
      • Generates simultaneously up to 4 different rates in any of these formats:
      • Word clock - rates from 32 to 384 KHz
      • AES - rates from 32 to 96 KHz
      • Video sync:
      • NTSC/PAL black burst
      • 525/29.97/30i
      • 625/23.98/24/25i
      • HD tri-level sync
      • 720/23.98/24/25/29.97/30/50/59.94/60P
      • 1080/25/29.97/30i
      • 1080/23.98/24/25/29.97/30sF
      • 1080/23.98/24/25/29.97/30/50/59.94/60p
      • 10MHz

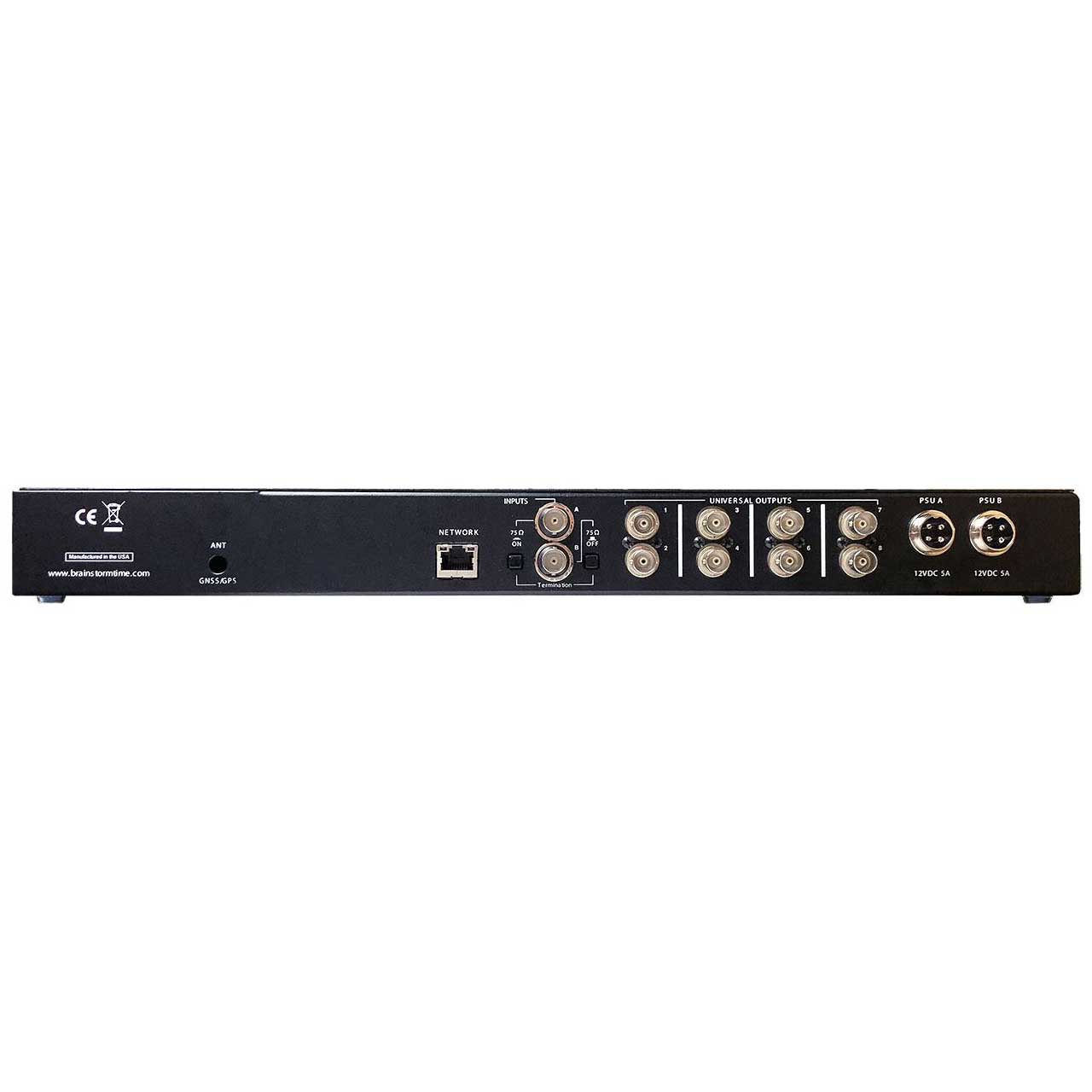

        Universal Outputs
      • 8 outputs
      • BNC - 75Ω
      • Output signal: any of the generated legacy references

        Oscillators
      • TCXO: +/- 1ppm
      • OCXO: +/-10ppb (option)

        External Sync Sources
      • Word clock
      • AES
      • Video sync (Black Burst or HD tri-level sync)
      • 10MHz

        Universal Inputs
      • 2 BNC input connectors w/ 75Ω termination switch - Input signal:
      • Word clock
      • AES
      • Video sync (Black Burst or HD tri-level sync)
      • 10MHz Input frequency counter

        General
      • Remote Control: Web browser
      • Battery Backup: An on-board battery keeps he internal time-of-day clock running while power is off
      • Presets: 10 presets can be programmed for quick recall
      • Display: 2.4" TFT LCD - 240 x 320 resolution
      • Power: 12 VDC @ 60A - External, switching power supply; Dual inputs with auto switch-over for redundancy
      • Dimensions: 19" x 1.75" x 8"
