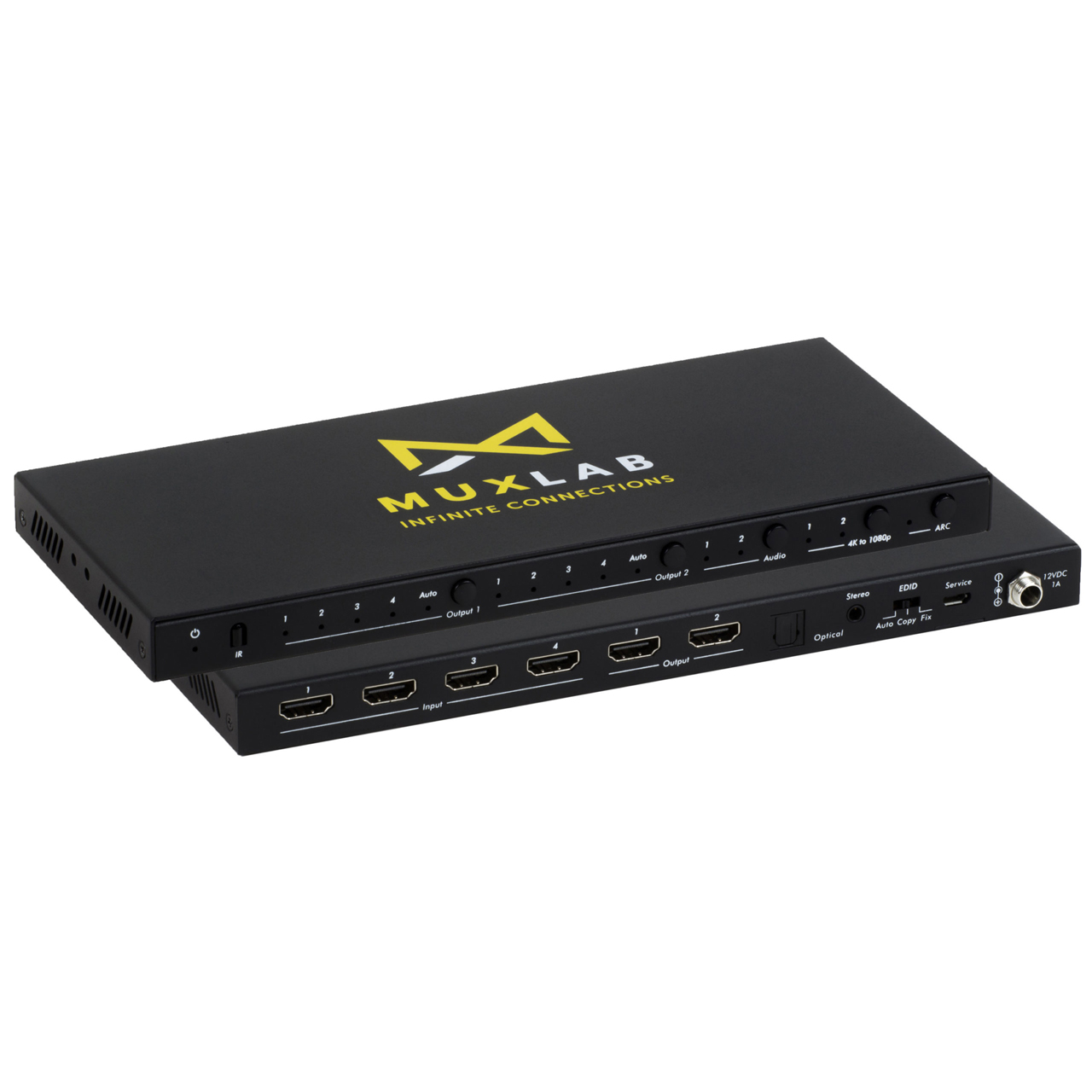

MuxLab 100510 High Performance 4x2 4K60 HDMI Matrix Switch - HDMI 2.0/HDCP 2.2/HDCP 1.4 and DVI 1.0 Compliant

ITEM #: MUX-100510 MFG #: 100510

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$272.00

Our Price:

$186.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

100510 - Overview

The Muxlab 100510 is a high performance HDMI 4x2 Matrix Switch 4K60 device that can switch any of four HDMI sources to two HDMI displays. It supports resolution up to 4K @ 60Hz (4:4:4) and is HDCP 2.2 compliant. It can extract HDMI source audio to digital optical and analog L/R outputs. It supports a 4K to 1080P downscale function for cases where the source is 4K, but the TV only supports up to 1080P. It also supports ARC (Audio Return Channel) capability and an EDID (AUTO/COPY/STD) function. The device supports an 18Gbps bandwidth and the additional features, including the latest HDMI standards. Flexible control is available via front panel buttons and an IR remote.

Applications:
- Commercial/Residential AV Systems
- Classroom Projector Systems
- Digital Signage
- Boardroom Systems
- Collaborative PC Systems
- Medical Information Systems

  • Features:

    • HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant
    • Supports 4 HDMI inputs and 2 HDMI outputs
    • Video resolution up to 4K @ 60Hz (4:4:4)
    • Supports 18Gbps uncompressed bandwidth
    • Supports Dolby Vision, HDR 10+, HLG
    • Supports audio extract to digital optical audio Out A or Out B, and to analog L/R Out A and Out B
    • Supports a 4K to 1080p downscale function
    • Supports ARC (Audio Return Channel)
    • Supports advanced EDID management including AUTO, COPY and STD
    • Control is via front panel buttons and included IR remote


  • Specifications:

    • Environment: HDMI 2.0
    • HDCP Compliance: HDCP 2.2 and HDCP 1.4
    • Video Bandwidth: 18Gbps
    • Video Resolution: Up to 4K@50/60Hz (YCbCr 4:4:4), 4K@30Hz. All HDMI 3D TV format, etc.
    • Color Space: RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
    • Color Depth:
      - 8-bit, 10-bit, 12-bit (1080P, 4K30Hz, 4K60Hz [YCbCr 4:2:0])
      - 8-bit (4K60Hz [YCbCr4:4:4])
    • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Optical Audio Formats: PCM2.0, Dolby Digital/Plus, DTS
    • L/R Audio Formats: PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.)
    • Connectors:
      - 4x HDMI Inputs
      - 2x HDMI Outputs
      - 1x L/R Analog Audio Output (3.5mm Stereo Mini-jack)
      - 1x Digital Optical Audio Output (S/PDIF - Toslink)
    • Enclosure: Metal Enclosure (color black)
    • Power Supply:
      - Input; AC 100V - 240V, 50/60Hz
      - Output: DC12V/1A
    • Power Consumption: 3.8W (max)
    • Temperature:
      - Operating Temperature: 32°F - 104°F (0°C - 40°C)
      - Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)
    • Dimensions (HxWxD): 0.79" x 9.88" x 4.13" (20mm x 251mm x 105mm)
    • Weight: 1.37lbs (620g)


  • Item Includes:

    • 1x HDMI 4x2 Matrix Switch 4K60
    • 1x 12V/1A DC Locking Power Adapter
    • 1x Quick Reference Sheet
    • 1x HDMI Matrix IR Remote
    • 2x Mounting Ears


  • Warranty:

    • 1 Year Warranty


  • GTIN:

    0627699505106
