    500460 - Overview

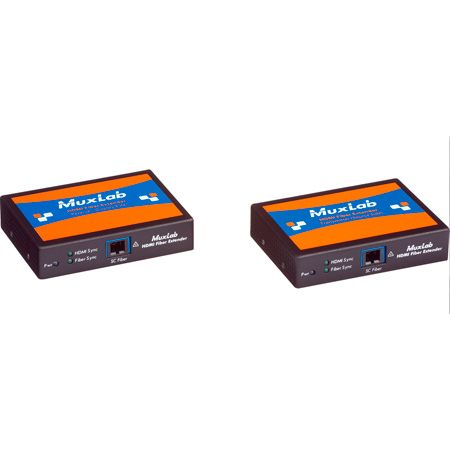

    The MuxLab 500460 HDMI Fiber Extender Kit allows HDMI equipment to be connected up to 1,000 ft (305m) via one (1) multimode fiber strand in a point-to-point configuration depending on resolution. The kit comes with one (1) transmitter, one (1) receiver, IR Sensor (500998), IR Emitter (500999) and two (2) power supplies.

    • Features:

      • Up to 1,000ft (305m) via a single multimode fiber
      • IR Control (IR Sensor and IR Emitter included)
      • SC connector for multimode fiber 62.5µm/125µm or 50µm/125µm
      • Supports RS232

    • Specifications:

      • Environment: HDMI 1.3a
      • Transmission: Transparent to the user
      • Bandwidth: 340 MHz
      • Signals: HDMI 1.3a protocol

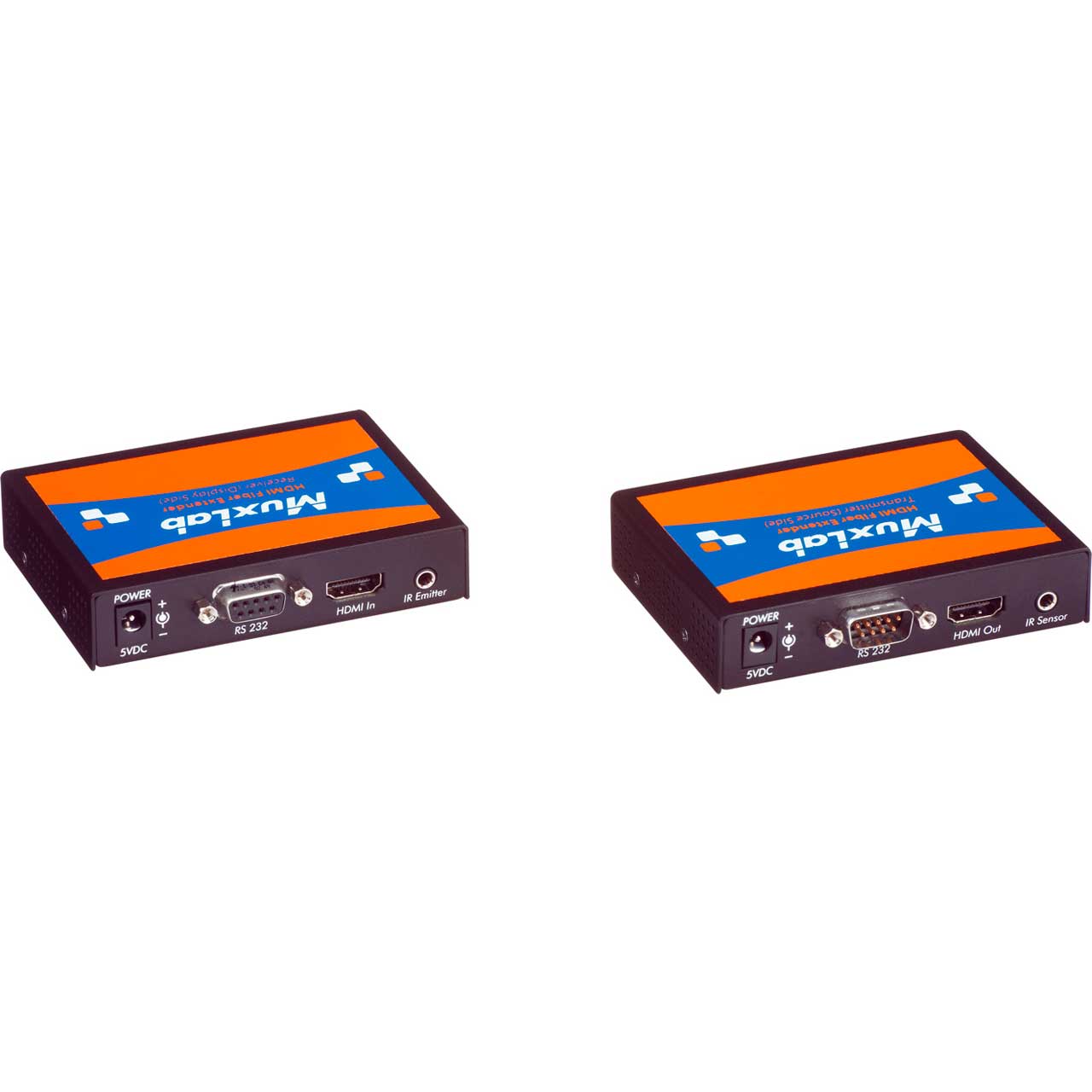

      • Connectors:
        - 1x HDMI receptacle
        - 1x SC Fiber connector
        - 3.5mm jacks for IR emitter and sensor
        - DB9 Connectors for RS-232 Ports
        Note: Fiber and serial cables not included
      • Maximum Distance (Based on a maximum length of 6.6ft (2m) of HDMI cable per end):
        - 1080P video may be extended up to 1000 feet (305m), depending of the type of fiber used
        - 100m (300 ft) on 62.5/125µm (OM1) multi-mode SC fiber
        - 305m (1000 ft) on 50/125µm (OM3) multi-mode SC fiber
      • Cable: 1x Multimode fiber 50/125µm or 62.5/125 µm cable required
      • Power Supply: 2x 110-240V/5VDC power supplies with interchangeable blades
      • Power Consumption:
        - Transmitter: 2.7 Watt
        - Receiver: 2.3 Watt
      • Temperature:
        - Operating: 32°F - 104°F (0°C - 40°C)
        - Storage: -4°F - 185°F (-20°C - 85°C)
        - Humidity: Up to 95% non-condensing
      • Enclosure: Steel
      • Dimensions: 4.00" x 3.00" x 0.876" (10.2cm x 7.6cm x 2.2cm)
      • Weight: 2.0lbs (0.9kg)

    • Warranty:

      • 2 Year Warranty

    • Applications

      :

      • Commercial and professional AV systems
      • Industrial megapixel video
      • Classroom projector systems
      • Digital signage
      • Interbuilding systems
      • Medical video systems

    • GTIN:

      0627699004609
