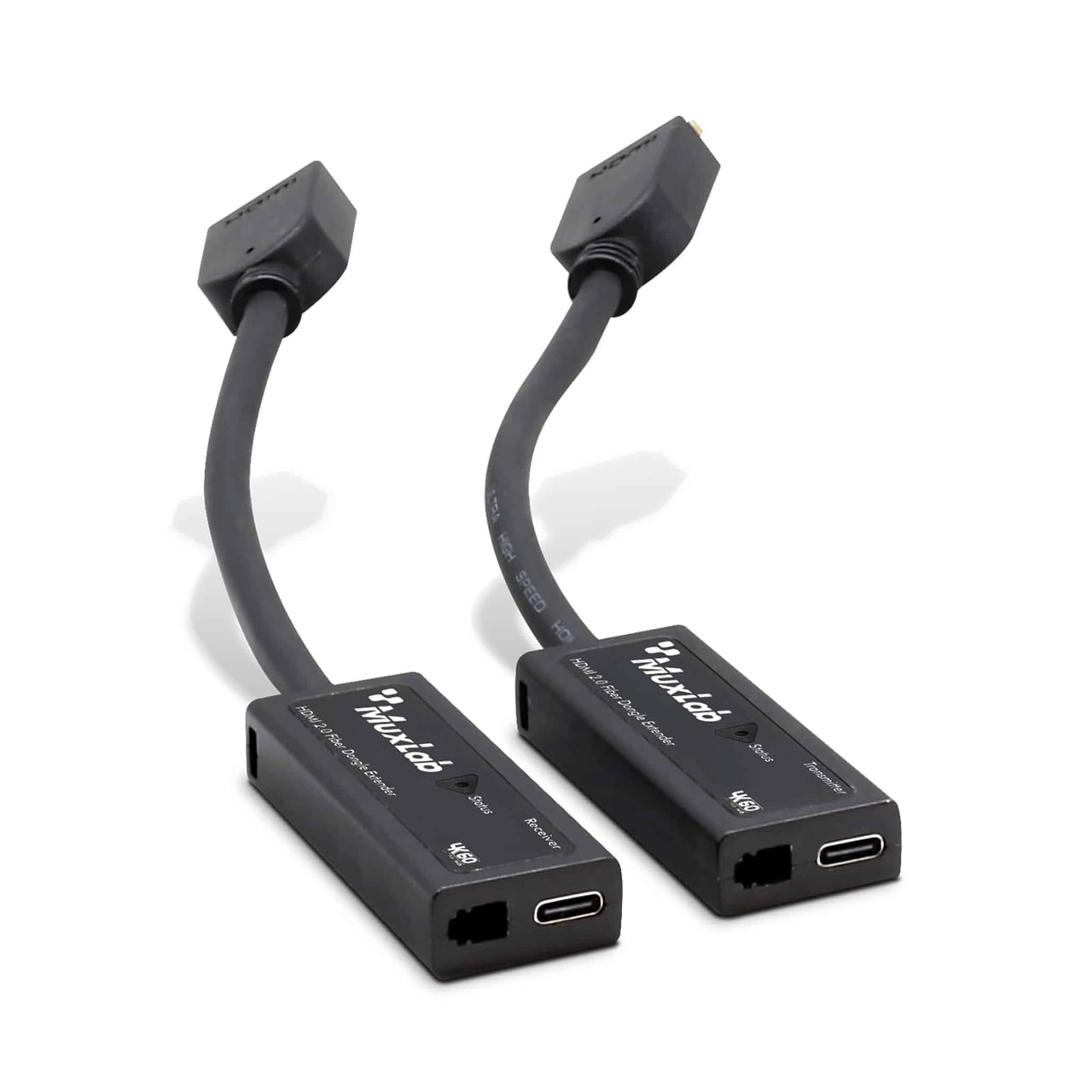

MuxLab 500487 4K60 Small HDMI 2.0 Fiber Dongle Extender Kit

500487 - Overview

• Features:

  • Supports resolution up to 4K60
  • Supports distance up to 300m
  • Requires power only on the receiver side
  • Supports EDID and HDCP
  • Supports Dolby Vision and HDR10+
  • Supports LPCM, Dolby and DTS Audio
  • Plug and Play


• Specifications:

  Technical
  • Environment: Custom audio-video systems in a structured cabling environment
  • Application: Head-end installations, conference room, home installation
  • Standard: HDMI 2.0, HDCP 2.2
  • Video Resolution: Up to 4K60 4:4:4
  • Distance: Up to 300m using OM3 Multi-mode Fiber
  • Wavelength: 850nm
  • Dynamic Range: SDR, HDR, HDRIO, HDR10+ and Dolby Vision
  • Audio Format: LPCM, Dolby, DTS, Dolby Atmos and DTS:X
  • Latency: Less than 1 frame at 300m with a resolution of 4K60 4:4:4
  • Fiber Type:

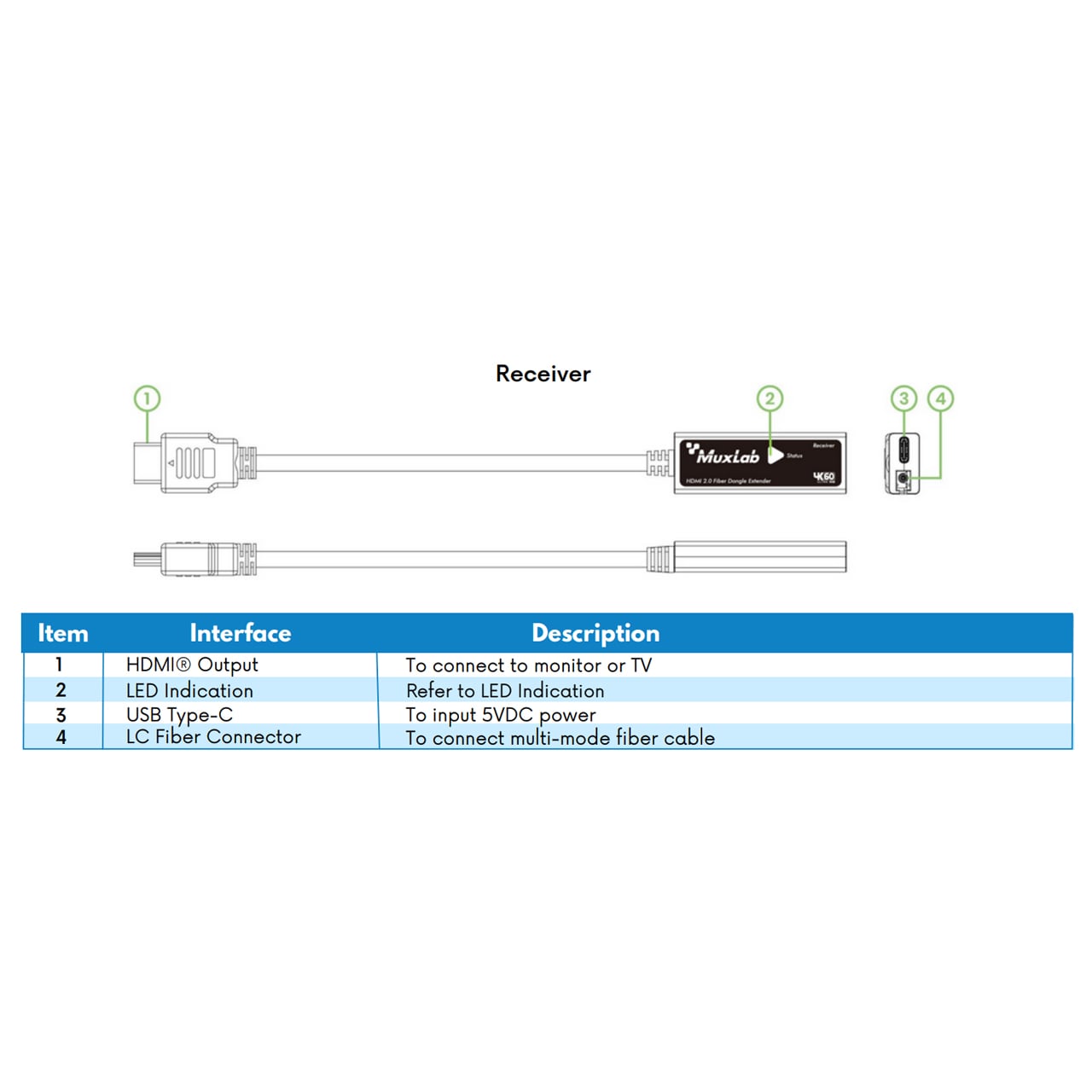

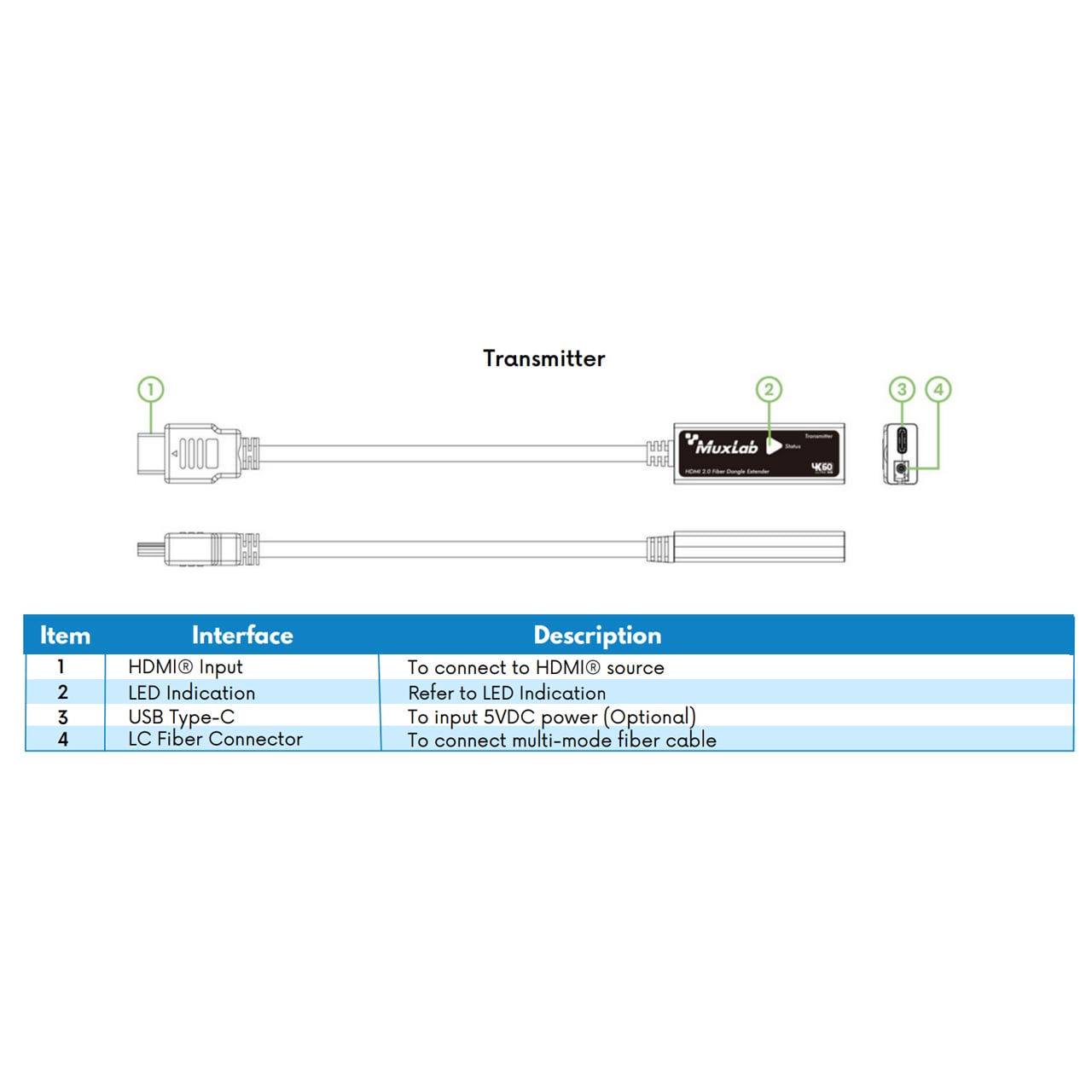

    Hardware Interfaces
  • HDMI Port: 1x HDMI Type A [19-pin female] with Pig-tail
  • Fiber Port: 1x LC fiber [female], supporting multi-mode fiber
  • Power Port: 1x USB-C connector
  • Status Led: Bi-color LED: off no power, red powered and purple HDMI signal transferring

    General
  • Power Supply: USB-C 5V
  • Power Consumption:
    - Transmitter: 0.70W
    - Receiver: 0.30W
  • Dimensions: 2.4" x 1" x 0.5" (62.2mm x 25mm x 12mm)
  • Weight: 0.1lb (45.6g)
  • Compliance: Regulatory: FCC, CE, RoHS


• Item Includes:

  • 1x HDMI 2.0 Fiber Dongle Extender Kit (Transmitter)
  • 1x HDMI 2.0 Fiber Dongle Extender Kit (Receiver)
  • 1x 5VDC 1A Power Adapter


• Warranty:

  • 2 Year Limited Warranty


• GTIN:

  0627699004876
