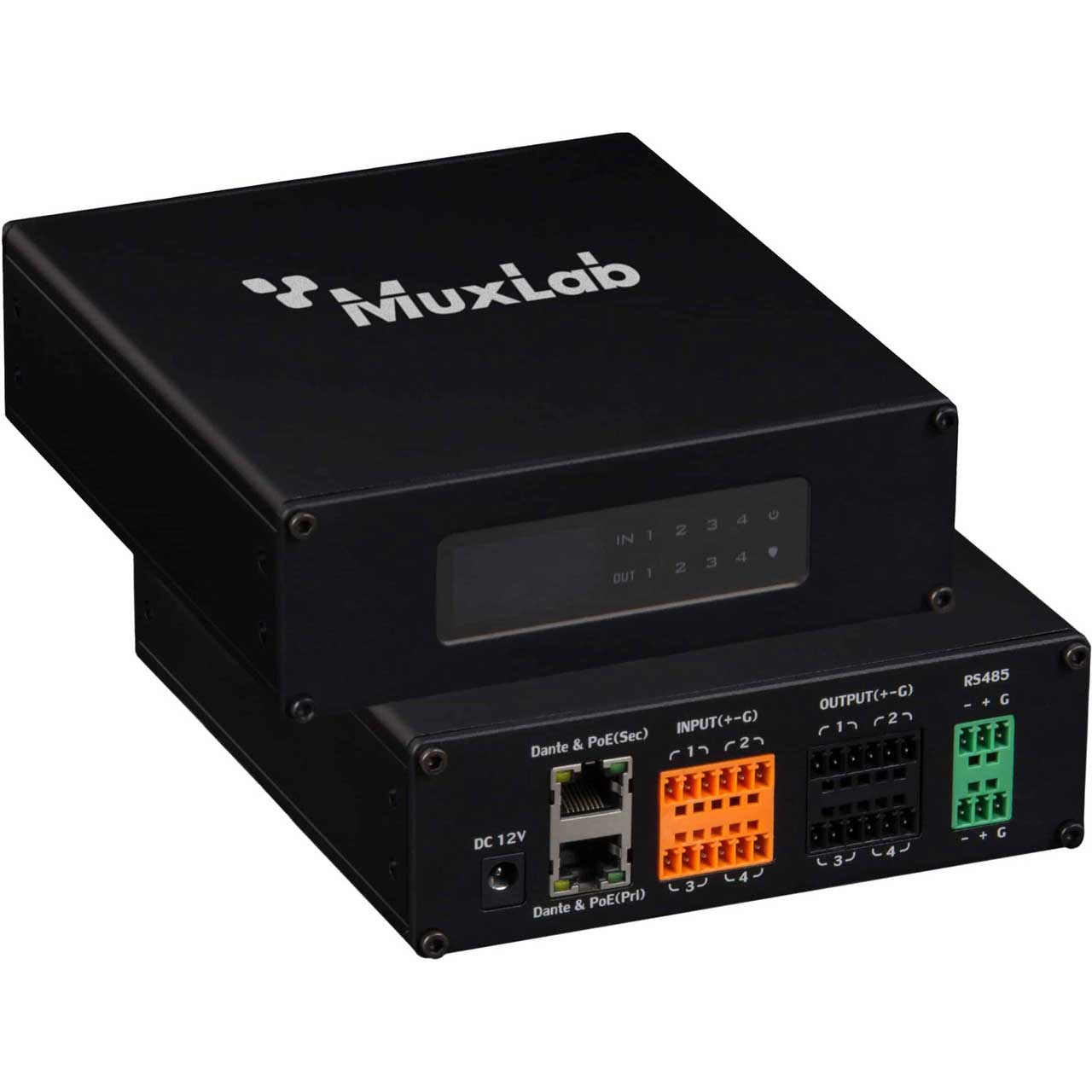

MuxLab 500556 Dante 4-Channel Audio DSP

ITEM #: MUX-500556 MFG #: 500556

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,061.00

Our Price:

$849.00

Availability: In Stock
iAvailability Description Popup


    500556 - Overview

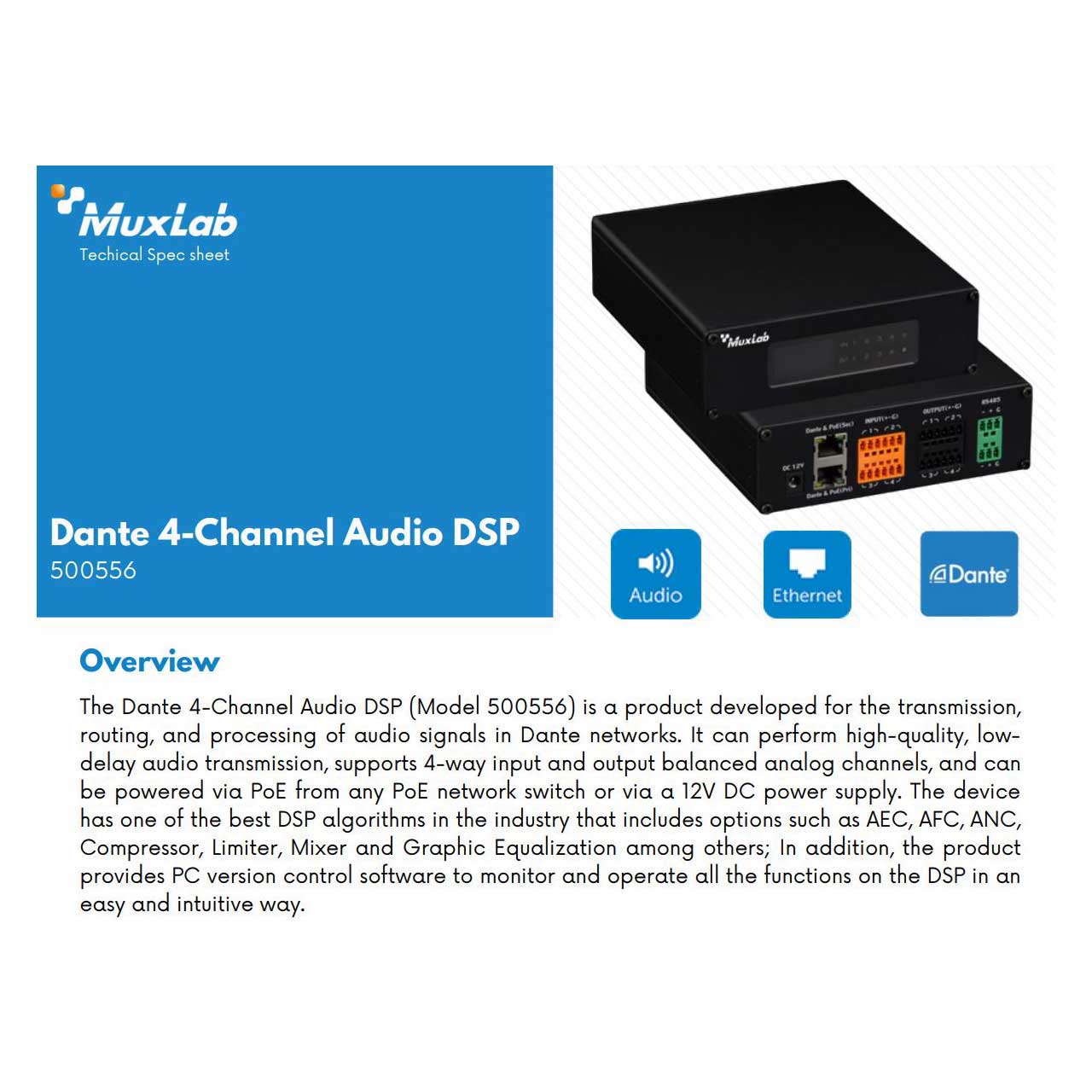

    The Dante 4-Channel Audio DSP (Model 500556) is a product developed for the transmission, routing, and processing of audio signals in Dante networks. It can perform high-quality, low-delay audio transmission, supports 4-way input and output balanced analog channels, and can be powered via PoE from any PoE network switch or via a 12V DC power supply. The device has one of the best DSP algorithms in the industry that includes options such as AEC, AFC, ANC, Compressor, Limiter, Mixer and Graphic Equalization among others; In addition, the product provides PC version control software to monitor and operate all the functions on the DSP in an easy and intuitive way.

    Applications:
    Conference Rooms
    Education
    Retail Stores
    Hotels
    Restaurants
    Conference Center
    Hospitals

    • Features:

      • Built-in Dante module
      • Supports PoE power from PoE network switches or via a 12V DC power supply
      • Features 4 balanced inputs and 4 balanced outputs
      • The input supports 48VDC phantom power supply
      • DSP processing functions include gain adjustment, stage parameter equalization, compressor, mixer, graphic equalization, limiter, setting, etc.
      • Provides software for the Windows platform to manage all audio operations
      • API provided for RS485 and TCP/IP control

    • Specifications:

      • Dante Interface: 4
      • Simulated maximum gain: -6 ~ 36dB
      • Digitalizing bit: 24bit
      • Sampling Rate: 48k
      • Frequency Response: 20~20KHz (±0.2dB)
      • Phantom power (per input): 48V
      • Maximum level (input/output): +10dBu /+14dBu, balance
      • Total harmonic distortion: ≤0.005% @4dBu
      • Noise floor (A- weight): -88dBu
      • Input impedance: 100Ω
      • System delay: 1ms
      • Channel isolation @1kHz: 100dB
      • Working Power Supply: DC 12V & PoE
      • Working Temperature: 0-50°C
      • Dimensions: 11.22 x 8.27 x 2.76"

    • Item Includes:

      • 1x MuxLab 500556 Dante 4-Channel Audio DSP

    • Warranty:

      • 2 years

    • GTIN:

      0627699005569
