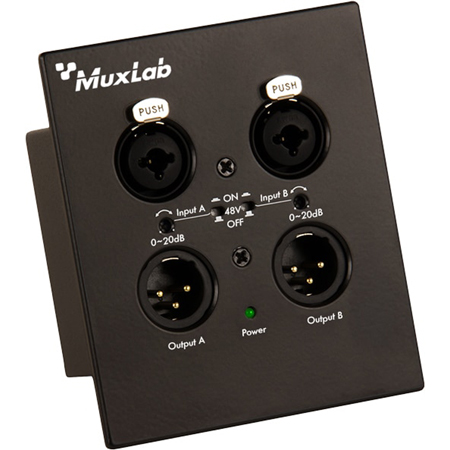

MuxLab 500558 Dante 2-Channel XLR Wall-Plate with 2 XLR Balanced Inputs/Outputs - Black

ITEM #: MUX-500558 MFG #: 500558

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$825.00

Our Price:

$660.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    500558 - Overview

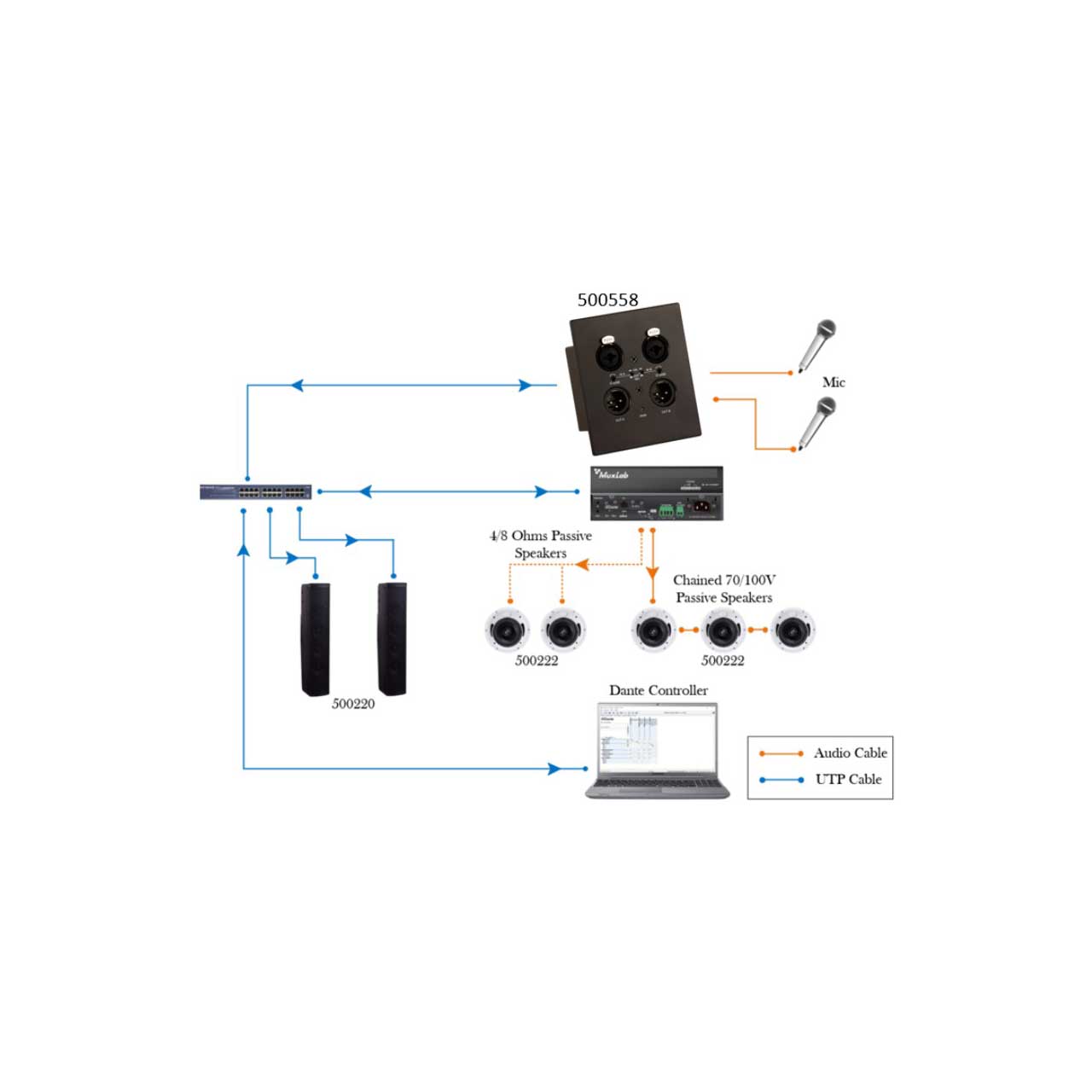

    The Muxlab Dante 2-Channel XLR Wall-Plate Model 500558 permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz - 20KHz) balanced or unbalanced two channel analog audio signals on XLR over the network to Dante equipment. It is powered using the PoE from any PoE network switch. The Dante 2 channel XLR Interface is designed to be compatible with standard double gang US wall boxes.

    • Features:

      • Built-in Dante module
      • Supports PoE power from PoE network switches
      • Features 2 XLR balanced inputs and 2 XLR balanced outputs
      • Features 2 channels Dante input and 2channels Dante output
      • Audio sampling rate supports 48kHz (24bit)
      • The input supports 48VDC phantom power supply
      • Power supply and audio transmission integrated in one cable
      • Designed to be compatible with standard double gang US wall boxes.
      • Supports PoE (IEEE802.3af)


    • Specifications:

      • XLR Impedance Input: Balance 20k Ohm
      • XLR Impedance Output: Balance 100 Ohm
      • Dante interface: RJ45 interface, with PoE
      • Frequency response: 20Hz-20kHz
      • Sampling rate: 48kHz 24bit
      • Floor noise: -90dB
      • Channel Isolation: 100dB @ 1kHz
      • Form Factor: 2 Gang US
      • Power Consumption: 2W
      • THD + N: <0.005% @4dBu
      • Operating temperature: 32° ~ +104° (0°C ~ +40°C)
      • Dimensions (LxWxH): 4.86" x 3.11" x 1.37" (123.5mm x 79mm x 35mm)
      • Net Weight: .34 lbs (156g)


    • Item Includes:

      • 1x Muxlab Dante 2-Channel XLR Wall-Plate


    • Warranty:

      • 2-Year Warranty
