    DD-BTN44 - Overview

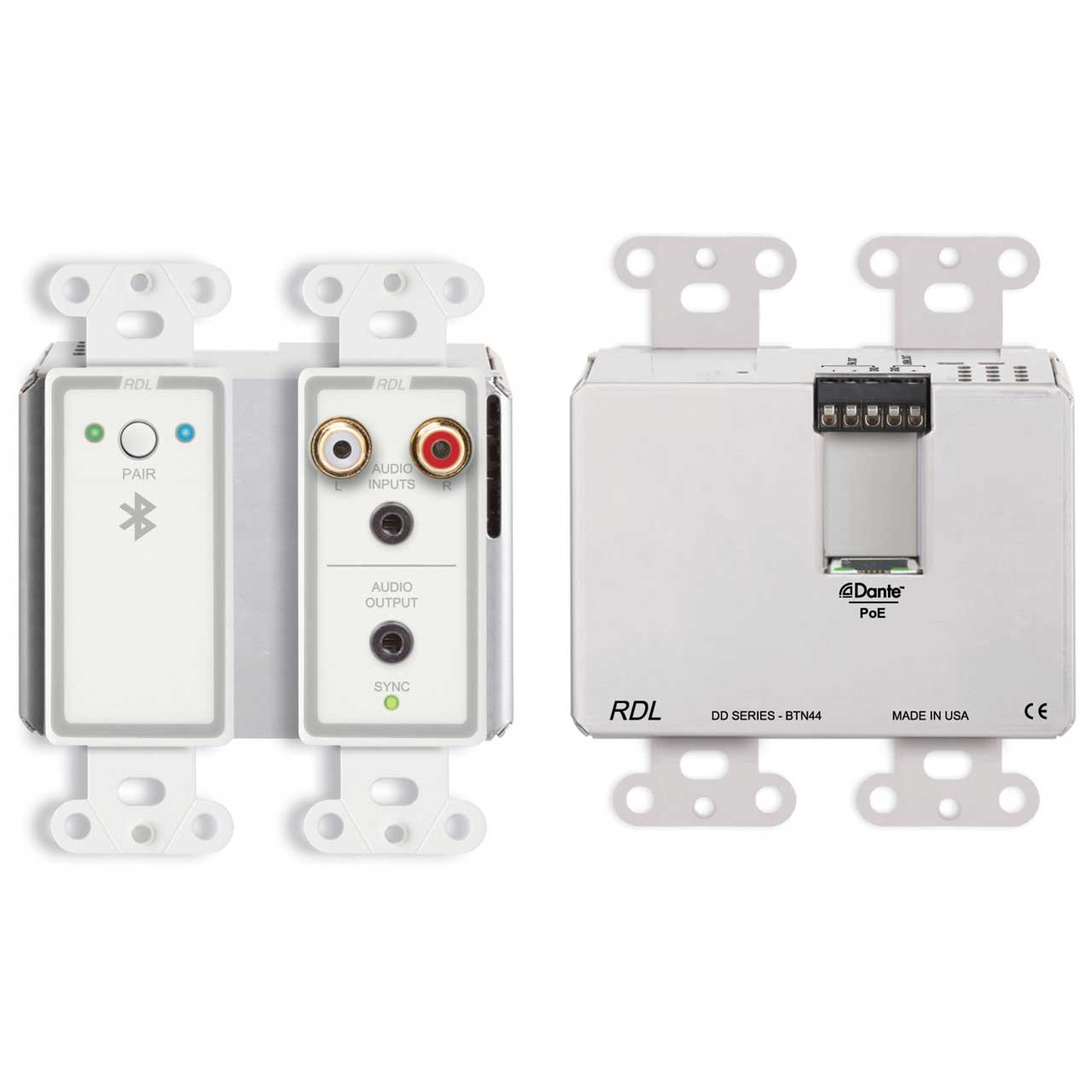

    The RDL D SERIES-BTN44 modules (DD-BTN44) are Dante networked, wall-mounted audio interfaces that include bidirectional Bluetooth audio, unbalanced analog stereo or mono audio inputs and outputs, and a balanced or unbalanced line-level output. Stereo audio from a compatible Bluetooth-enabled device feeds two Dante network audio channels. Stereo audio connected to a front-panel Mini-Jack or L and R RCA jacks feeds two other Dante network audio channels.

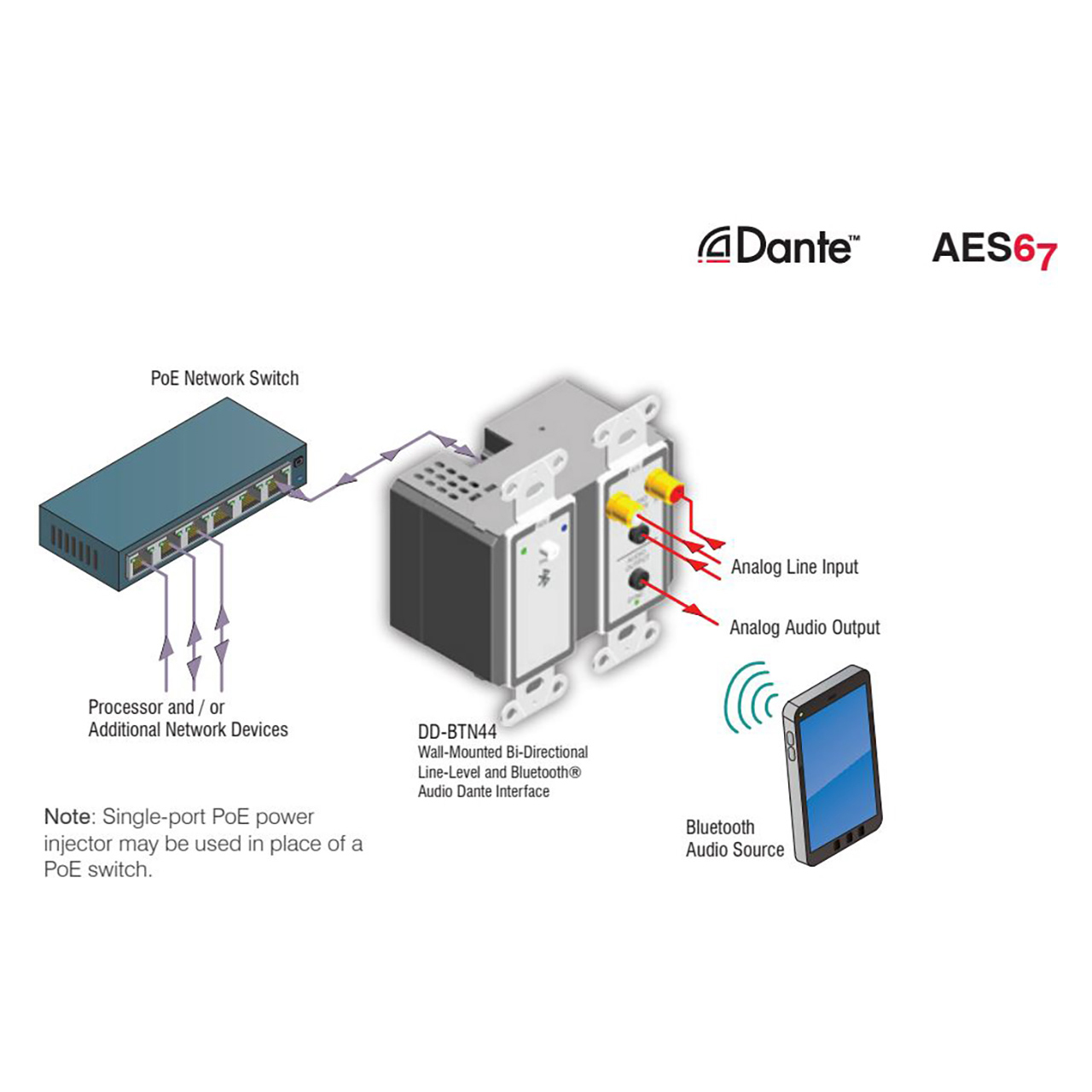

    Stereo audio is available to users through a front-panel Mini-Jack fed from two Dante network channels. A rear-panel terminal block provides either a balanced (+4 dBu) or unbalanced (-10 dBV) output from one Dante network channel. That output may feed a variety of RDL wall panels to provide a specific mic or line level output to users, or it may be used to feed the audio power amplifier in the associated audio zone. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.

    The D SERIES-BTN44 modules are powered from PoE. The installer can customize the module name and programming password through the Bluetooth connection using a smartphone, computer or tablet terminal program. These modules feature studio-quality circuits and analog filters to provide audio performance exceeding expectations from consumer interface technologies. High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.

    The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Radio Design Labs, Inc. is under license. Other trademarks and trade names are those of their respective owners.

    • Features:

      • Bluetooth Audio Input for Dante Networked System
      • Consumer Audio Inputs on Mini-Jack or RCA Jacks
      • Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
      • Consumer Audio Outputs on Mini-Jack
      • Balanced and Unbalanced Audio Line Outputs on Rear Panel
      • Intuitive Single Button Bluetooth Pairing with LED Status Indication
      • Special Software Not Required for Module Setup
      • Customize the Module ID Name and Settings through the Bluetooth Connection

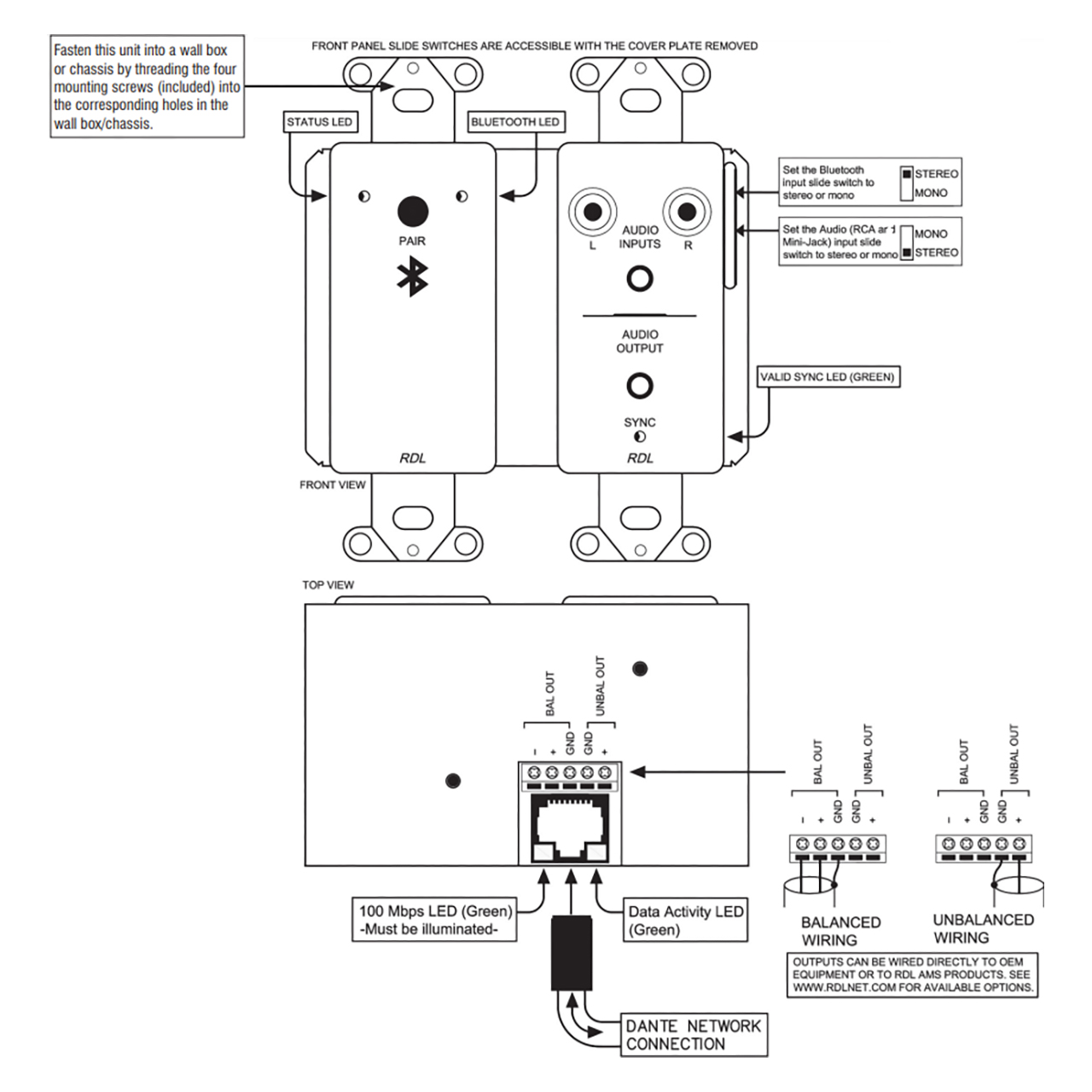

      • Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
      • Module is PoE Powered

    • Specifications:

      • Network Connector: RJ45 with Link and Speed indicators
      • Digital Audio Ethernet Protocol: Dante
      • Transmission Rate: 100 Mbps
      • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
      • Bit Depth Supported: 24 bits
      • Audio Operating Levels: -20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal

        Bluetooth® to Network Interface
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.1%
      • Noise below -20 dBFS: < -70 dB

        Network to Bluetooth® Interface
      • Voice signal feeding device: One Dante channel (mono, -20 dBFS nominal)

        Network to Mini Jack Output
      • Output: Stereo mini jack
      • Frequency Response: 20 Hz to 20 kHz (± 0.75)
      • THD+N: < 0.05%
      • Noise below -20 dBFS: < -80 dB
      • Crosstalk (channel to channel): < 80 dB

        Network to Line Output
      • Outputs: Balanced and unbalanced on detachable terminal block
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.05%
      • Noise below -20 dBFS: < -80 dB

        Line Inputs to Network Interface
      • Inputs (4): Stereo Mini jack (L and R); RCA jack (L and R)
      • Dante channels used (2): L and R
      • Frequency Response: 20 Hz to 20 kHz (± 0.25)
      • THD+N: < 0.05%
      • Noise below -20 dBFS: < -75 dB
      • Crosstalk (channel to channel): < 75 dB

        Common
      • Indicators (5): Bluetooth® (2), Network Sync
      • Power Connection: PoE (RJ45)
      • Ambient Operating Environment: 32° to 104°F (0° to 40°C)
      • Power Requirement: PoE
      • PoE: Class 0, IEEE 802.3af
      • Dimensions (WxHxD): 3.52 x 4.11 x 2.09" (8.94 x 10.44 x 5.31cm)
      • Package Type: Cardboard Box
      • Package Dimensions: 6.0 x 6.0 x 2.625"
      • Shipping Weight: 1.15Lbs
      • WEEE weight: 0.78Lbs
      • Tariff code: 8518.50.0000

    • GTIN:

      0813721011510
