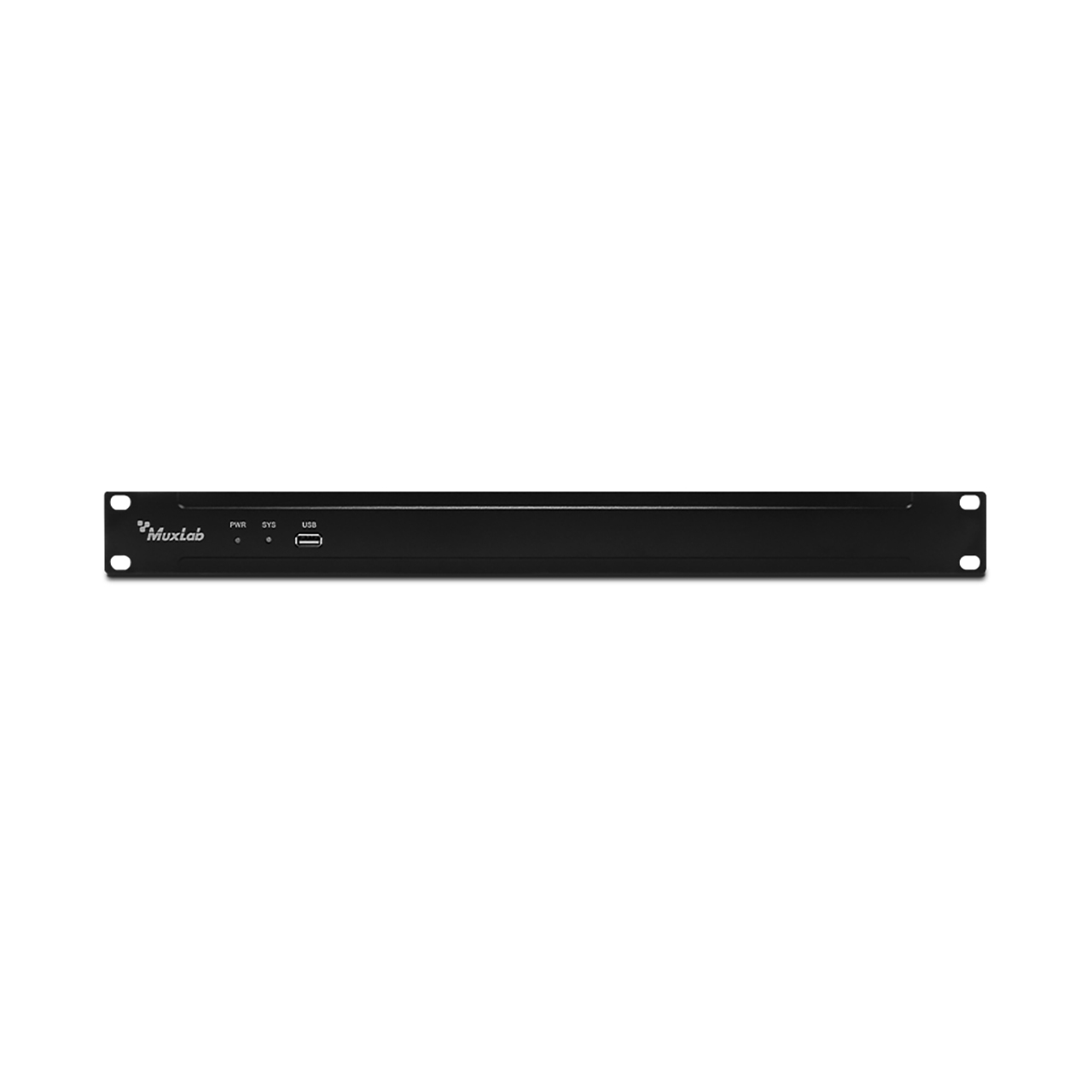

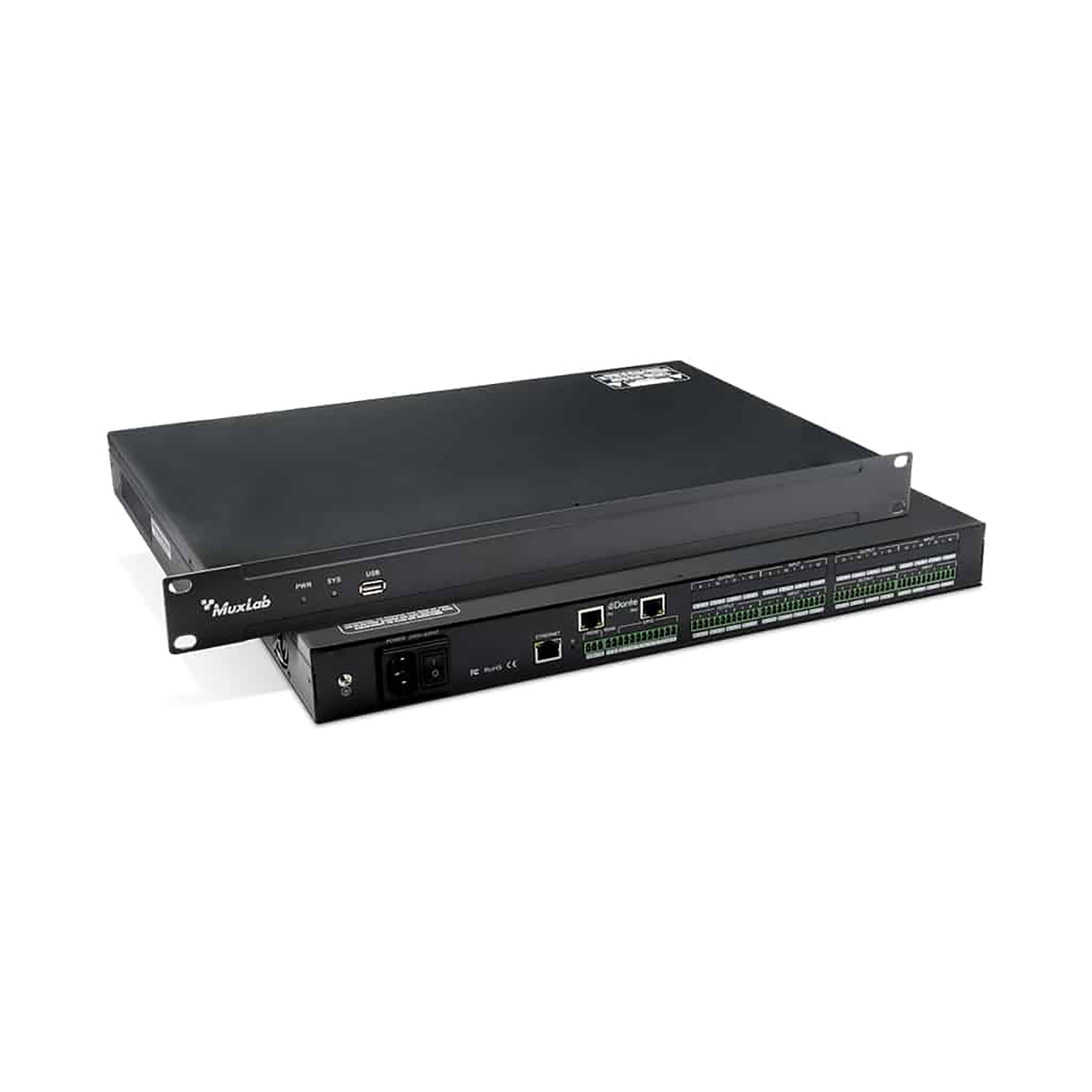

MuxLab 500601 Dante 8-Channel Audio DSP for Transmission Routing and Processing of Audio Signals in Dante Networks

ITEM #: MUX-500601 MFG #: 500601

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$2,507.00

Our Price:

$1,730.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

500601 - Overview

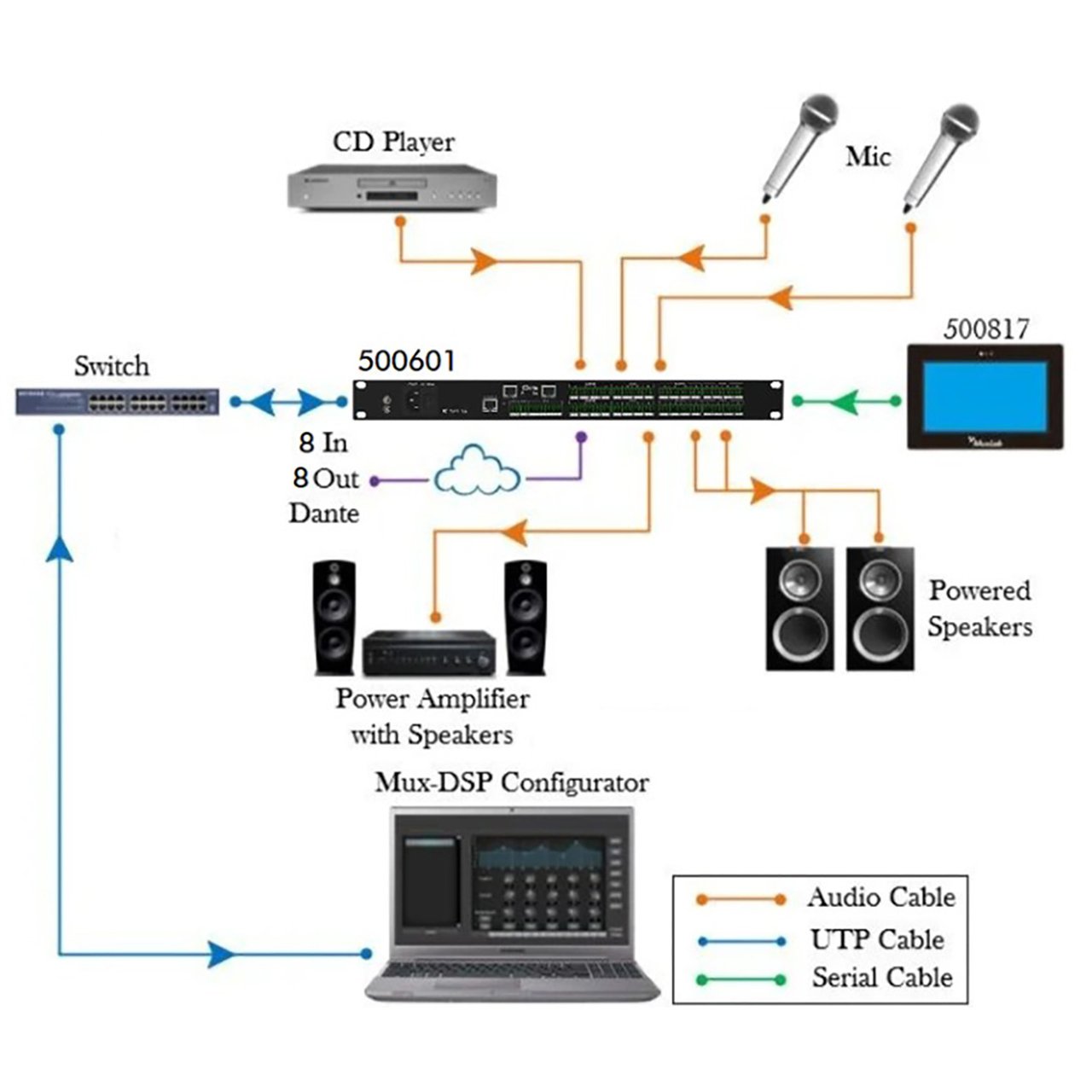

The MuxLab 500601 is a Dante 8-Channel Audio DSP. It is a product developed for the transmission, routing, and processing of audio signals in Dante networks. It can perform high-quality, low delay audio transmission, supports 8-way input and output balanced analog channels, and can be powered via a 110V - 220V AC power receptacle. This processor supports 8-way analog audio signal balance input and output and 8-way Dante digital audio signal input and output. It also features a USB audio card that supports one channel of audio input and one channel of audio output. The device has one of the best DSP algorithms in the industry that includes options such as AEC, AFC, ANC, Ducker, Compressor, Limiter, Mixer and Graphic Equalization among others. In addition, the product provides PC version control software to monitor and operate all the functions on the DSP in an easy and intuitive way. Comprehensive API Commands are available for system automatization. Supports multiple sets of scene presets.

Applications:
- Conference Rooms
- Education
- Retail Stores
- Hotels
- Restaurants
- Conference Center
- Hospitals

  • Features:

    • Built-in Dante module
    • Features 8 balanced inputs and 8 balanced outputs
    • Features a USB sound card
    • The input supports 48VDC phantom power supply
    • DSP processing functions include gain adjustment, stage parameter equalization, compressor, ducker, mixer, graphic equalization, limiter, setting, etc.
    • Provides software for the Windows platform to manage all audio operations
    • API provided for RS232, RS485 and TCP/IP control
    • Supports AES67 RTP audio transport
    • Supports GPIO for additional interface expansion


  • Specifications:

    • Analog Audio: 8x Balanced Inputs + 8x Balanced Outputs
    • Dante Audio: 8x Inputs + 8x Outputs
    • USB Sound Card: 1x Input + 1x Output
    • Analog Maximum Gain: 51dB
    • Quantization Bits: 24bit
    • Sample Rate: 48k
    • Phantom Power: 48V DC
    • Frequency Response: 20Hz - 20KHz ±0.25dB
    • THD+N: ≤ 0.003% @ 1KHz, +4dBu
    • Digital/Analog Dynamic Range: 114dB
    • Analog/Digital Dynamic Range: 120dB
    • Input Impedance: 20kΩ Balanced,10kΩ Unbalanced
    • Ouput Impedance: 100Ω Balanced,50Ω Unbalanced
    • Maximum Input Level: 18dBu,Balanced
    • Maximum Output Level: 18dBu,Balanced
    • Input Common Mode Rejection: 84dB @ +24dBu @ 60Hz
    • Channel Isolation: >104dB
    • Number of GPIO: 8x (Can be configure as input and output)
    • Number of RS485 Serial Ports: 1x
    • Number of RS232 Serial Ports: 1x
    • Number of USB Sound Cards: 1x


  • Item Includes:

    • 1x Dante 8-Channel Audio DSP


  • Warranty:

    • 2 Year Limited Warranty
