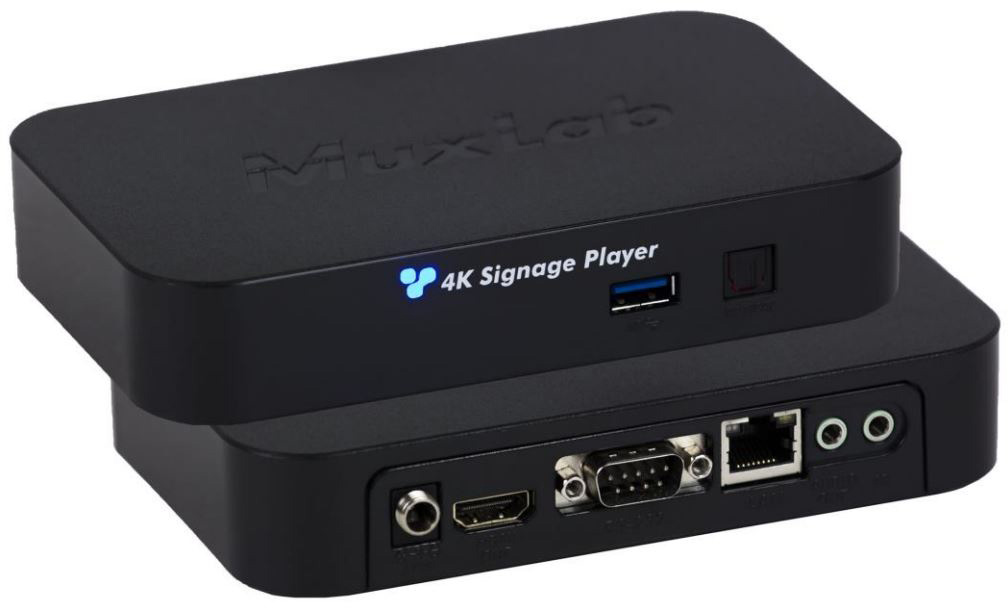

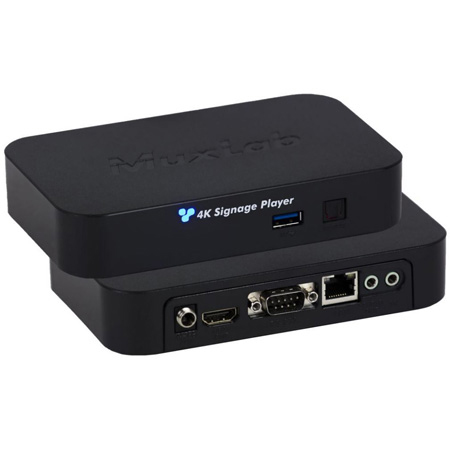

Muxlab 500769 HDMI 2.0 Digital Signage/Media Player
  • Muxlab 500769 HDMI 2.0 Digital Signage/Media Player
  • Muxlab 500769 HDMI 2.0 Digital Signage/Media Player

Questions? Ask a Markertek Expert:
800-522-2025 Email

Muxlab 500769 HDMI 2.0 Digital Signage/Media Player

Manufacturer: MuxLab Inc

Item #: MUX-500769   •   MFG #: 500769



List Price:$549.00
Our Price:$377.00

free ship


Availability: Preorder
i
Item is not yet shipping from the manufacturer. We enjoy great relationships with our suppliers/manufacturers and take pride in our quick turnaround. Place your order today to ensure you will be one of the first to receive this item once it begins shipping from the manufacturer.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

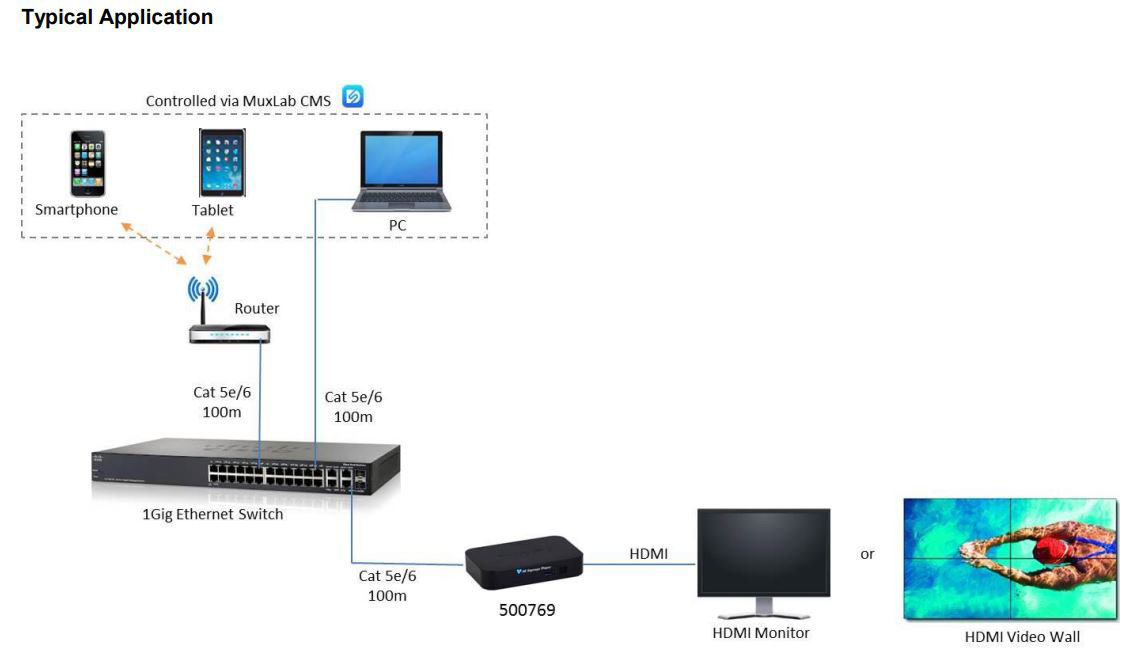

    The 500769 HDMI 2.0 Digital Signage Media Player is a digital signage player capable of receiving multiple H.264/H.265 AV content simultaneously up to 4K/60 (4:4:4) from a local network, the Internet, internal memory or external USB memory devices, and supports multiview capability and scheduling to automatically deliver this customized windowed AV content based on a weekly schedule. Multiple video, audio and image file formats are supported. The digital signage player is able to up-scale [email protected] video to [email protected] (4:4:4) and delivers content to a display or to another transmitter to support virtual matrix and video wall configurations.

    The exceptionally low bandwidth requirements of this device allows it to accept streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe.

    The digital signage player may be extended up to 100m from the Ethernet switch over CAT5/6 cable, and supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

    Please Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.


    • Features

      • Digital Signage Media player supporting playlists and weekly scheduler of multi-format video, image and audio files
      • Supports up to 4K @ 60Hz (4:4:4) video streams
      • Up-scales 1080p @ 60Hz video streams up to 4K @ 60Hz
      • Extends local audio/video transmission up to 330ft (100m) over Cat5e/6
      • H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
      • Supports Multicast, RTSP, HLS, FLV and TS
      • USB 3.0 port for playback of local content from external USB drive
      • Extracts digital audio via SPDIF (TosLink)
      • Extracts analog audio via 2CH 3.5 mm jack
      • RS232 and Directional IR for remote control of end-devices
      • PoE powered, via PoE (PSE) Ethernet Switch
      • Managed remotely via the unit web interface and soon via Content Management Software running on PC, tablet and smartphone

    • Specifications

      • General
      • Environment: HDMI 2.0
      • Devices: TVs, monitors, projectors supporting HDMI.
      • Signal Protocol/Standard: HDMI 2.0 and HDCP 2.2
      • Video Bandwidth: 594MHz
      • Network Bandwidth: 32Mbps (max)
      • Latency: 300ms
      • Protocols: Supports Multicast, RTSP, HLS, FLV & TS
      • Maximum Distance: Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
      • Power Source: PoE (PD) or External
      • PoE: IEEE 802.3af
      • Power Consumption: 4.5W
      • Operating Temperature: 0° to 40°C
      • Storage Temperature: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Dimensions: 5.8" x 4.3" x 1.3" (148mm x 108mm x 33mm)
      • Weight: 0.75lbs (0.34kg)
      • Compliance: Regulatory - FCC, CE, RoHS; Flammability - 94V0

        Connectors
      • (1) HDMI output connector for AV
      • (1) RJ45S for Ethernet connection
      • (1) USB 3.0 connector for local AV content storage via external USB drive
      • (1) TosLink optical connector for digital audio extraction
      • (1) 3.5mm output connector for audio extraction
      • (1) 3.5mm connector for directional IR (direction controllable via software)
      • (1) RS232 DB9 connector for controlling end devices
      • (1) 2.1mm locking power connector

    • Warranty

      • 3 Year
